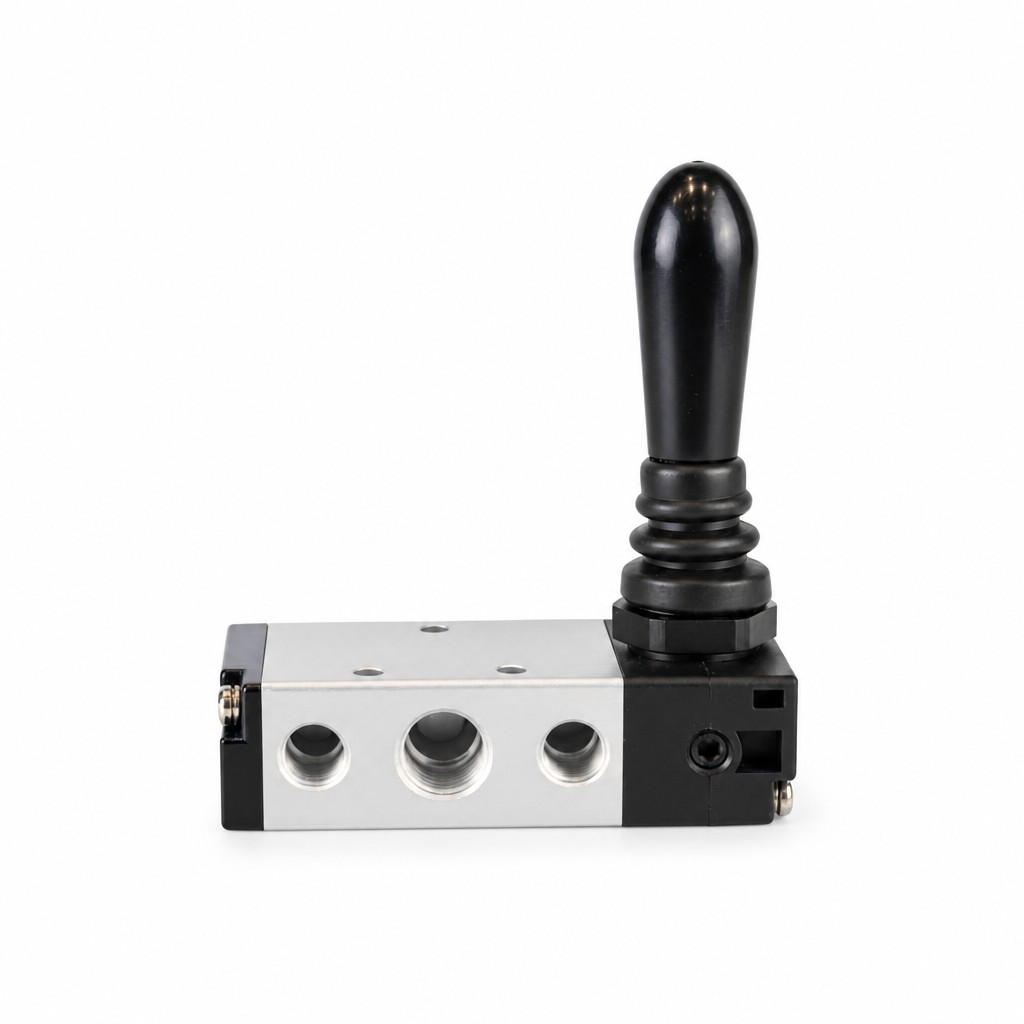

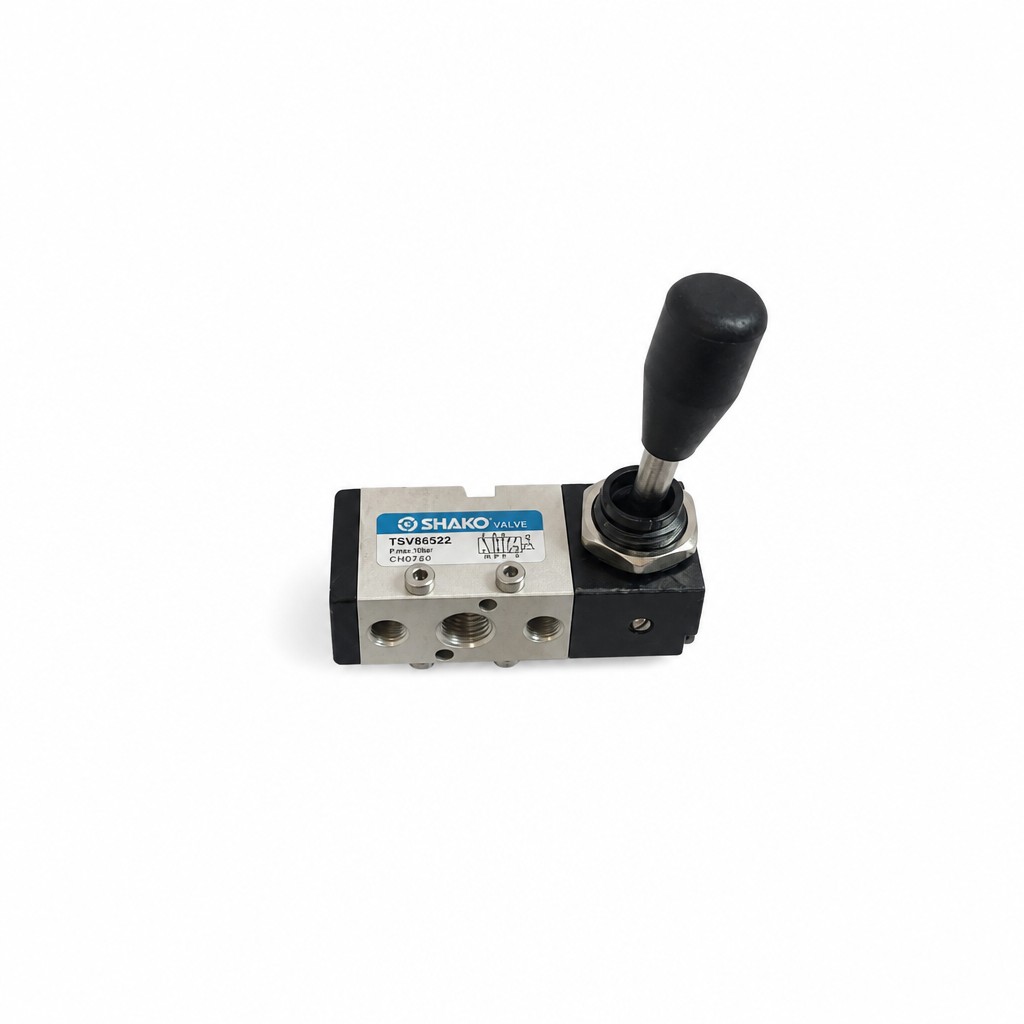

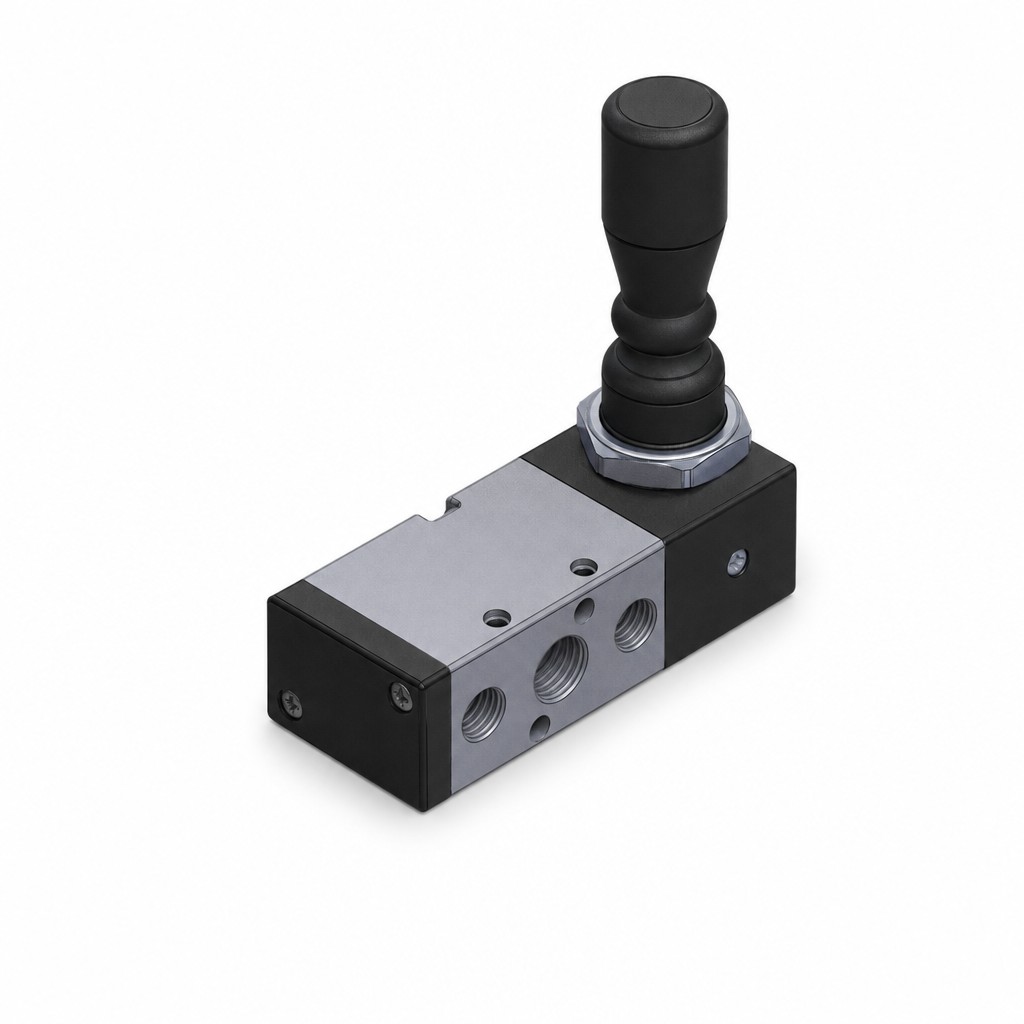

Direct Lift TSV86522M Latch Air Valve with Spring Return for Pro 14F 14,000 lb Four-Post Lift

Description

Direct Lift TSV86522M Latch Air Valve with Spring Return for Pro 14F 14,000 lb Four-Post Lift

Replace a worn, leaking, or malfunctioning pneumatic component with the TSV86522M Latch Air Valve with Spring Return, listed for use on Pro 14F 14,000 lb Four-Post Lift. Match the reference part number and application to the original Direct Lift component before ordering to help ensure correct fitment.

Product Information

• Brand / Equipment: Direct Lift
• Manufacturer / Reference Part Number: TSV86522M
• Store SKU: DIT522M
• Component: Latch Air Valve with Spring Return
• Listed Application: Pro 14F 14,000 lb Four-Post Lift

Fitment & Ordering Notes

Automotive lift manufacturers may use different parts across model years, production runs, or equipment revisions. Before ordering, compare the reference part number and the model/application information in this listing with the identification tag, parts manual, or original component on your lift. If your equipment uses a different part number, verify interchange before installation.

Additional Existing Product / Fitment Information

This is part number 1 in the drawing image above.

The Direct Lift TSV86522M is the latch air valve with spring return used on the Pro 14F 14,000 lb four-post lift, shown in FIG. 17 (Air Connections) of the parts breakdown. This valve controls the compressed air that releases the mechanical safety latches, with the spring return automatically re-engaging the locks when the valve is released.

A leaking or sticking latch air valve prevents the locks from releasing cleanly or from re-seating, which is a safety issue that should be corrected immediately. This is the OEM replacement valve for the 14K four-post latch air system. Confirm your model against the FIG. 17 air connections diagram; the related valve for CR14 and newer Pro14F lifts is TSV86522S.
