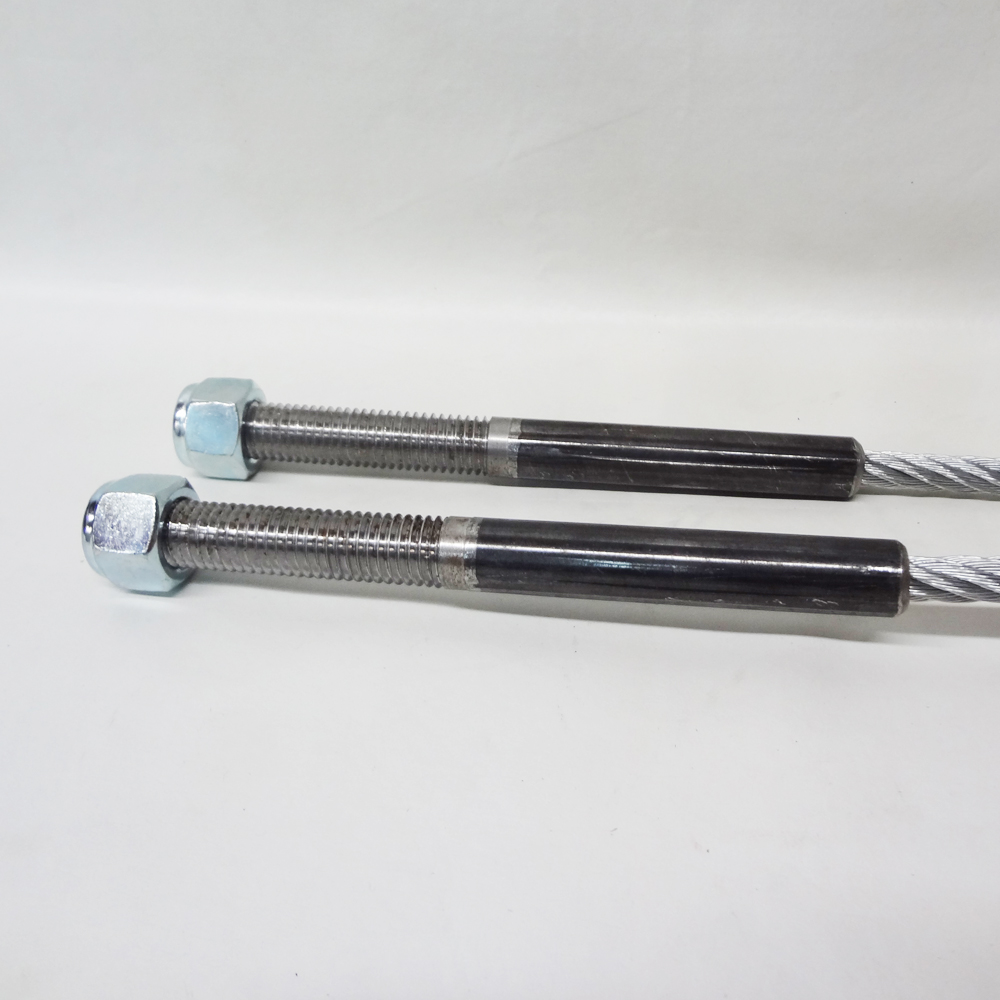

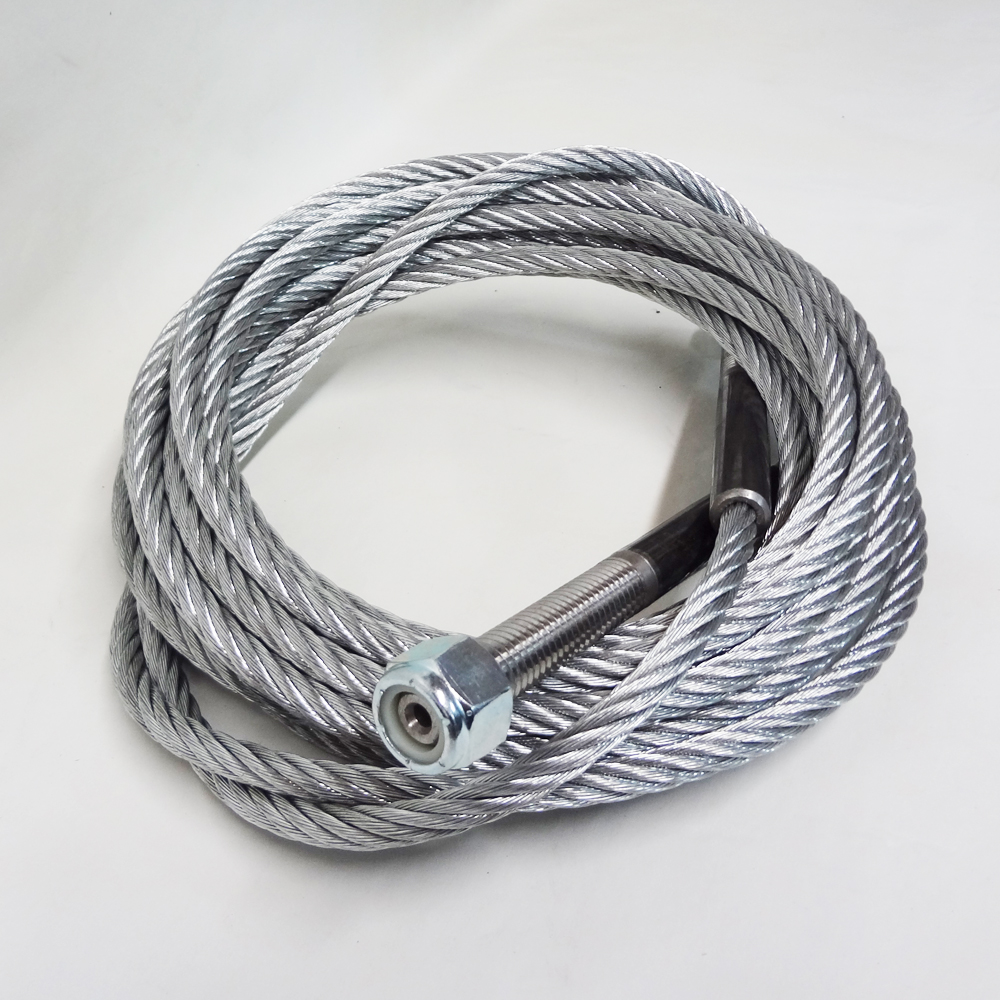

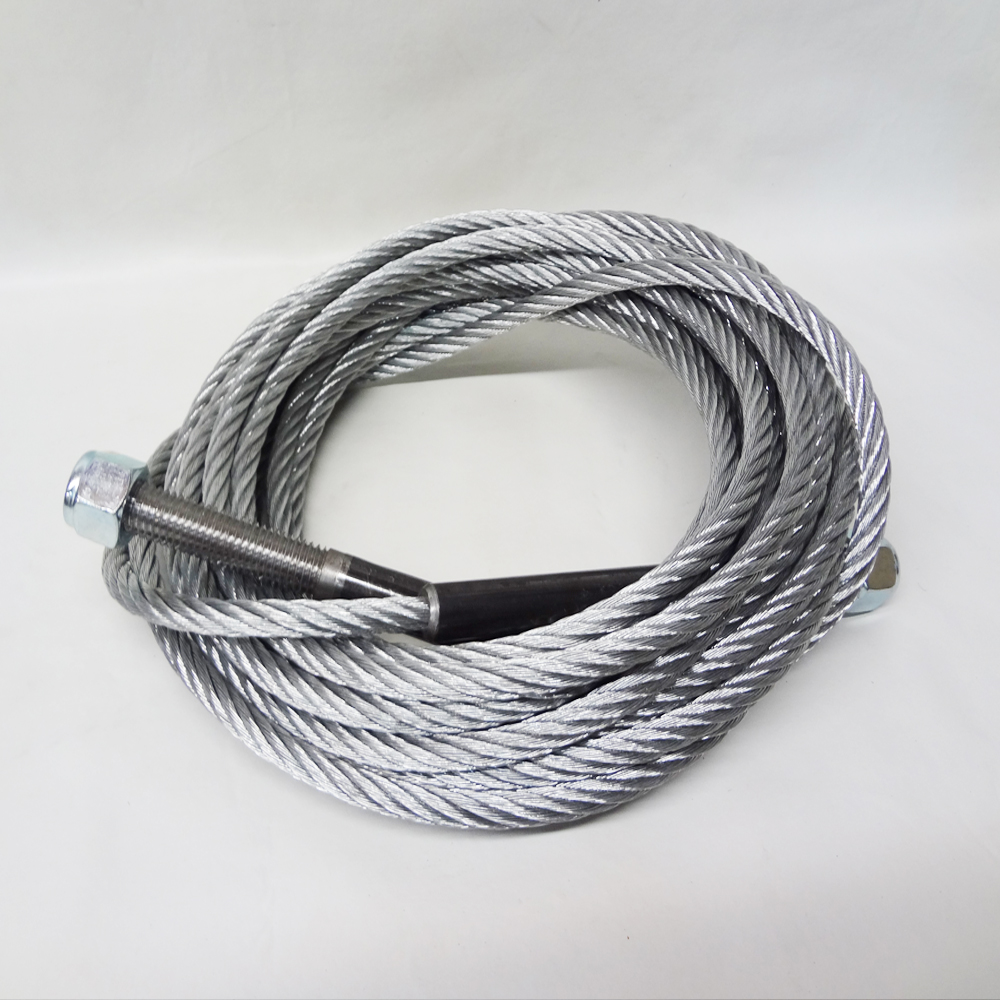

Direct Lift 30400-9101M-2 Equalizer Cable – Pro9D, OH8000 2-Post, Pre-2007, Chain-Over Cylinders
The equalizer cable keeps both sides of a 2-post lift synchronized during raising and lowering. There are two versions of the Direct Pro9D requiring different cables. This cable fits only the version with chain-over-style hydraulic cylinders. Confirm cylinder style and serial number before ordering.
Product Information
- Brand / Equipment: Direct Lift 2-Post Lift
- Manufacturer / Reference Part Number: Direct Lift 30400-9101M-2
- Store SKU: DIT8000H
- Component: Equalizer Cable (Wire Rope)
- Listed Application: Direct Pro9D and Pro9 lifts produced before 2007 (and some 2007 units with serial number starting with zero); also fits Direct Lift OH8000
Parts Diagram & Manual Reference
- 2-Column 8K Automatic – Overhead Beam Equalization Cable Parts – Figure # 6
- OH8000 8K Overhead – Drawing 3 (Slack chain safety linkage and cable/sheave carriage assembly, page 28)
- PRO-9 / PRO-9F 9K 2-Column – Fig. 12 PRO-9
Fitment & Ordering Notes
There are two versions of the Direct Pro9D; this cable fits only the chain-over-cylinder version. Confirm the serial number starts with a zero for 2007-production lifts. If your lift has inverted cylinders (chrome shaft pushes down when lifting), you need a different cable. Call 866-902-6060 for fitment assistance.
