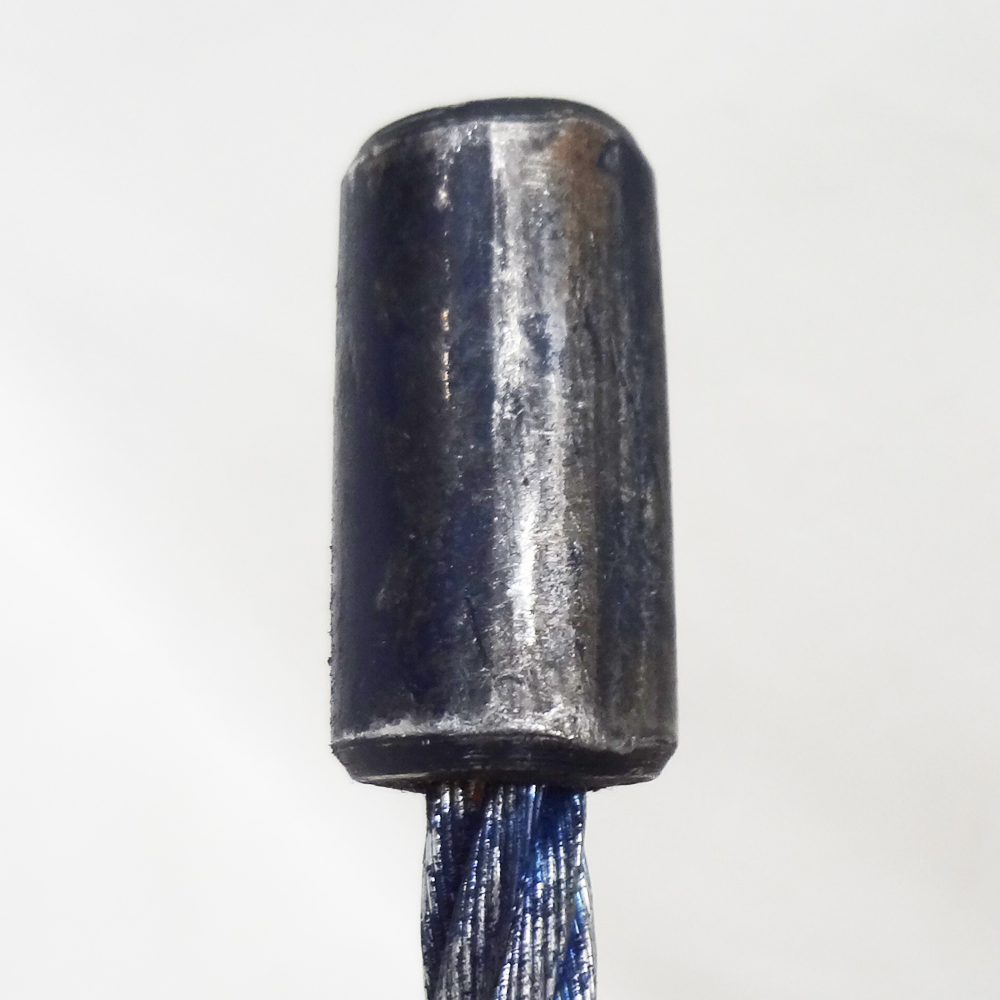

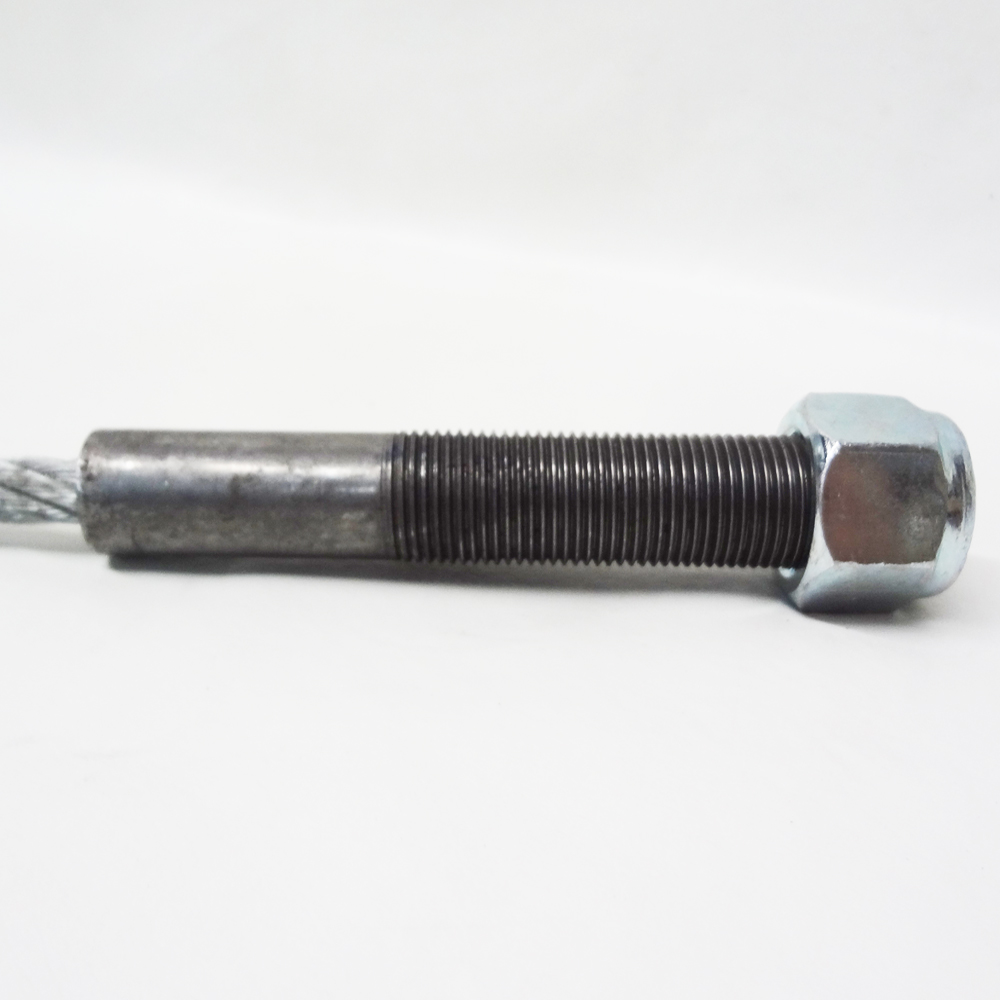

Direct Lift H4D-9000D Lifting Cable – ProPark 7 / DP7 4-Post Lift, Welded Locks
The lifting cable raises and supports the vehicle platform on a 4-post lift. This cable fits the early Direct ProPark 7 and DP7 with welded (fixed) lock blocks on the columns. Confirm your lock type before ordering.
Product Information
- Brand / Equipment: Direct Lift ProPark 7 / DP7 4-Post Lift
- Manufacturer / Reference Part Number: Direct Lift H4D-9000D
- Store SKU: DIT000D
- Component: Lifting Cable (Wire Rope) – Item #74 in diagram
- Position: Left rear column (standard orientation, power unit on left front)
- Listed Application: Direct Lift ProPark 7 and some DP7 models, early production with welded lock blocks on columns
Parts Diagram & Manual Reference

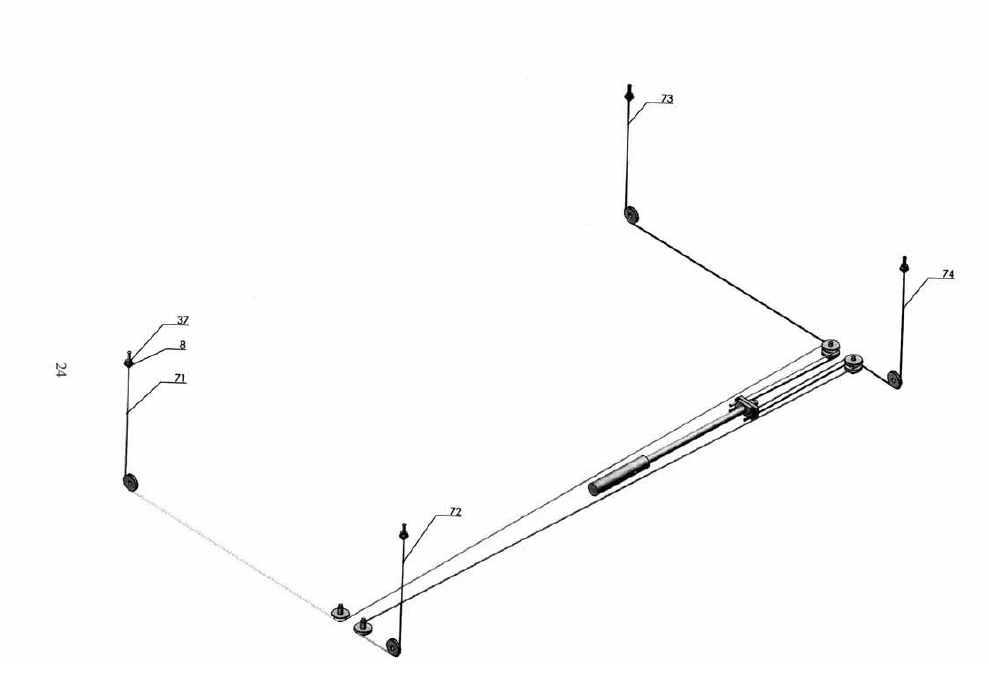

- DP-7 4-Post Parking Lift – Drawing 9 (cable routing / pulley layout, page 24) – Item #74
- DP-7 4-Post Parking Lift – Fig. 3
Fitment & Ordering Notes
Two versions of the ProPark 7 / DP7 exist: welded lock blocks (early, this cable) and adjustable lock ladders (late, different cables). Check inside each column for welded blocks vs. a plate with square cut-outs to identify your version. Call 866-902-6060 for identification help.
