DURO / Tuxedo TP9-1024 Hydraulic Cylinder – Chain-Over Style 2-Post Lift, 9K Capacity

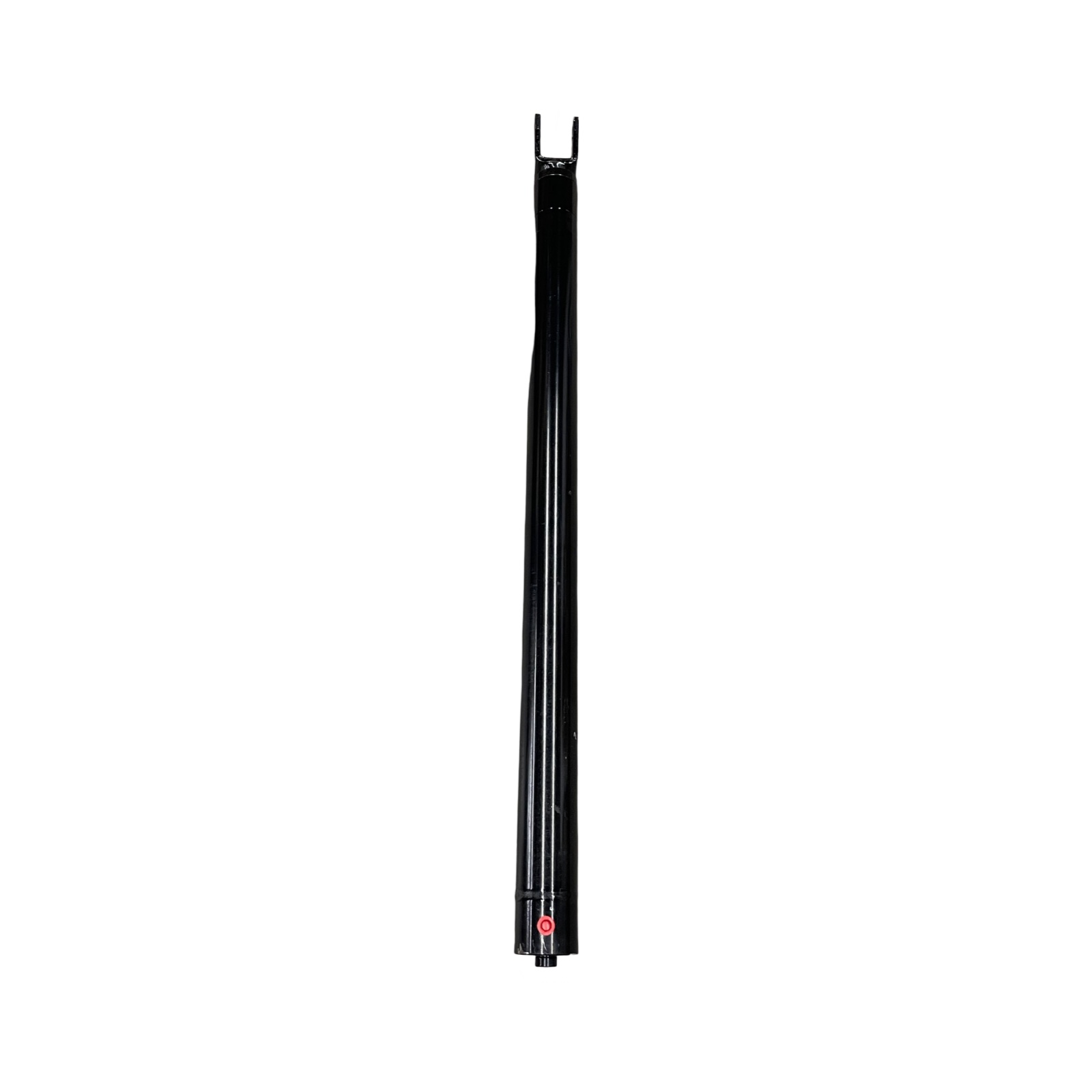

When the hydraulic cylinder on a chain-over 2-post lift begins to leak at the breather port or fails to raise a vehicle, replacement is typically required. This cylinder features a welded U-shaped yoke at the top that houses the chain roller, hose fittings at the bottom, and a large brass breather port at the top of the barrel. The breather port is the most common leak point when seals fail. This cylinder works on both base-plate and overhead-style models.
Product Information
- Brand / Equipment: DURO / Tuxedo Chain-Over 2-Post Lift
- Manufacturer / Reference Part Number: TP9-1024, TP9-1024-F
- Store SKU: TUO1024
- Component: Main hydraulic lifting cylinder (chain-over style)
- Dimensions: Approximately 3″ x 3″ x 50″ (verify against your existing cylinder before ordering)
- Listed Application: Tuxedo TP9KAC, TP9KAF; DURO AL2-9K, MTP-9, MTP-9-DURO
- Also Found On: Kernal Lift, Eagle Lift, Auto Lift, Prokar Lift, North American Auto Equipment, and other brands using DURO power units
Fitment and Ordering Notes
Verify your existing cylinder dimensions and identify your lift model before ordering. Compare the yoke configuration, hose fitting location, and breather port position on your old cylinder before installing a replacement. This cylinder may ship in black or gray depending on current inventory – color does not affect function.
Additional Product Information
Roller and pin sold separately. This cylinder fits chain-over style lifts in 7K, 9K, and 11K lb capacities. May ship in either black or gray depending on current inventory.
