Forward Lift 143540 Latch Pull Rod, 7K/8K/9K/10K - I10 / INT 10 2-Post Lifts

Description

Forward Lift 143540 Latch Pull Rod, 7K/8K/9K/10K – I10 / INT 10 2-Post Lifts

The 143540 Latch Pull Rod, 7K/8K/9K/10K – I10 / INT 10 2-Post Lifts is listed for use on compatible equipment and is intended for service or repair of compatible Forward Lift equipment. Match the reference part number, component description, and listed application to your original lift part before ordering.

Product Information

• Brand / Equipment: Forward Lift
• Manufacturer / Reference Part Number: 143540
• Store SKU: FOD3540
• Component: Latch Pull Rod, 7K/8K/9K/10K – I10 / INT 10 2-Post Lifts

Fitment & Ordering Notes

Automotive lift manufacturers may use different parts across model years, production runs, or equipment revisions. Before ordering, compare the reference part number and the model/application information in this listing with the identification tag, parts manual, or original component on your lift. If your equipment uses a different part number, verify interchange before installation.

Additional Existing Product / Fitment Information

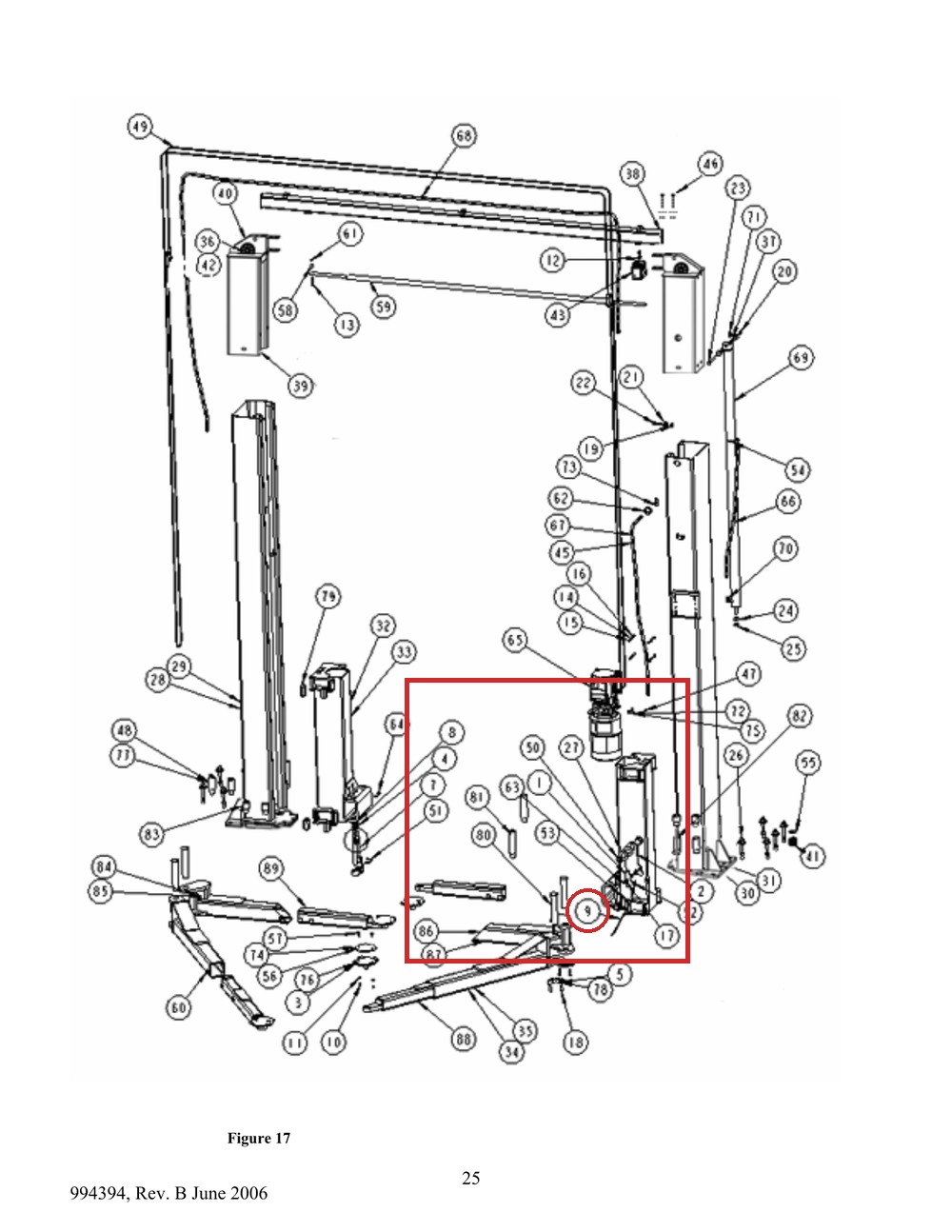

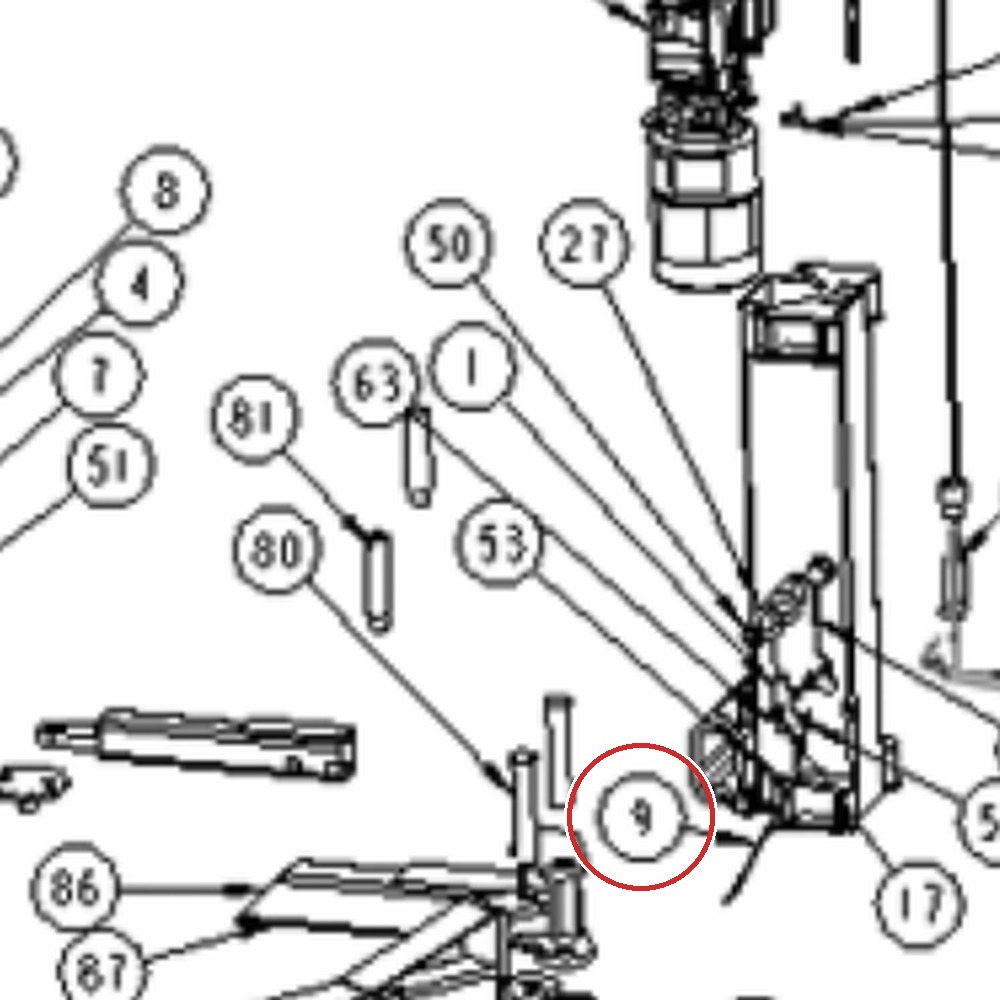

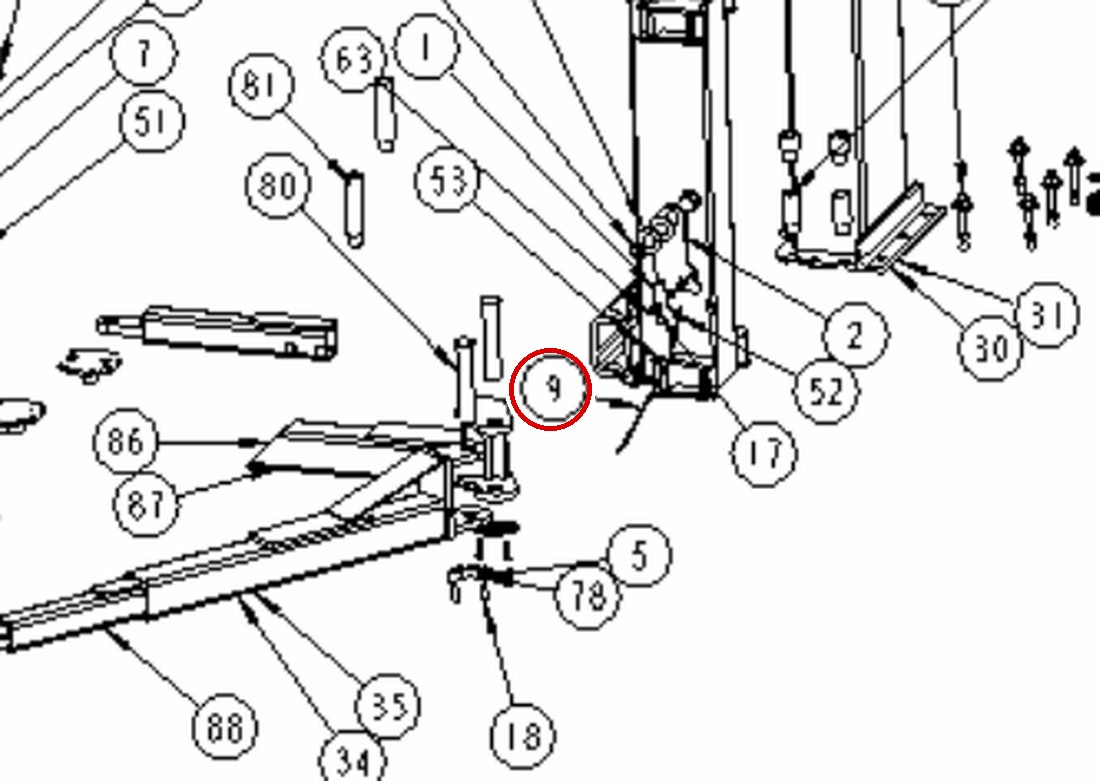

This is part number 9 in the drawing image above.

Fits the following lift models — part number 143540 appears in the parts breakdown of each of these lifts: Forward Lift I10, I10 (111000), INT10, INT9, DP9A-S, DP10 10K Two-Post.

This latch pull rod is shown in Figure 17 of the Section 3 parts breakdown and is specified for 7,000 through 10,000 lb. capacity models. It connects the lock release handle to the carriage safety latch, letting the operator disengage the locks to lower the lift. A bent or broken pull rod will leave the safety latches stuck engaged and the lift unable to lower.

OEM replacement for Forward light duty 2-post lifts. Verify against Figure 17 in your lift’s parts breakdown before ordering.
