Forward Lift 912603 Nylon Insert Lock Nut 1/2"-13 for DP10AN, DP97S2, I10 Cylinder Mount (Same as 40707)

Forward Lift 912603 Nylon Insert Lock Nut 1/2"-13 for DP10AN, DP97S2, I10 Cylinder Mount (Same as 40707) - full parts breakdo

$14.53

Availability: In Stock

SKU: FOD12603

Forward Lift 912603 — Nylon Insert Lock Nut 1/2"-13 for DP10AN, DP97S2, I10 Cylinder Mount (Same as 40707). Use the part number and listed lift application to confirm compatibility before ordering.

1/2″-13 nylon insert lock nut for Forward DP10AN, DP97S2 and I10 lifts, used at the cylinder mount and in the bolt box. Same as 40707. Forward Lift part number 912603.

Availability may vary depending on vendor stock.

Description

Forward Lift 912603 Nylon Insert Lock Nut 1/2"-13 for DP10AN, DP97S2, I10 Cylinder Mount (Same as 40707)

Replace missing, worn, or damaged lift hardware with the 912603 Nylon Insert Lock Nut 1/2"-13, listed for use on DP10AN, DP97S2, I10 Cylinder Mount (Same as 40707). This hardware is used when servicing the specified Forward Lift assembly. Match the part number, size or description, and listed application before ordering.

Product Information

Brand / Equipment: Forward Lift
Manufacturer / Reference Part Number: 912603
Store SKU: FOD12603
Component: Nylon Insert Lock Nut 1/2"-13
Listed Application: DP10AN, DP97S2, I10 Cylinder Mount (Same as 40707)

Fitment & Ordering Notes

Automotive lift manufacturers may use different parts across model years, production runs, or equipment revisions. Before ordering, compare the reference part number and the model/application information in this listing with the identification tag, parts manual, or original component on your lift. If your equipment uses a different part number, verify interchange before installation.

Additional Existing Product / Fitment Information

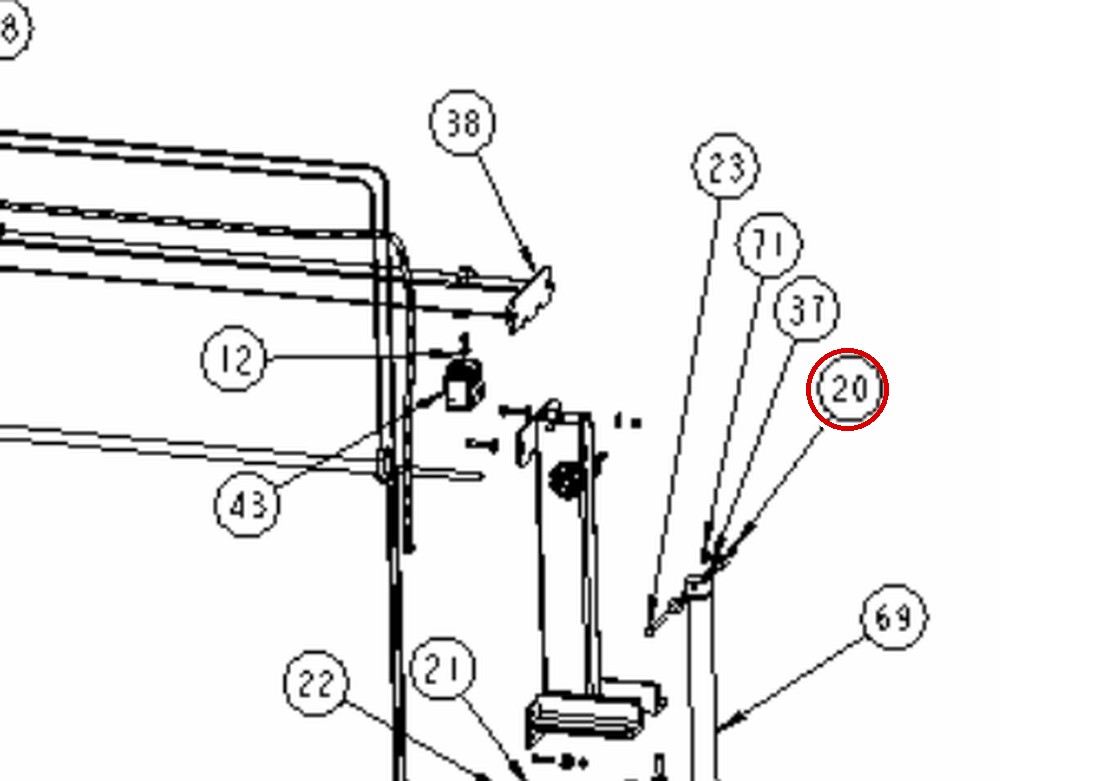

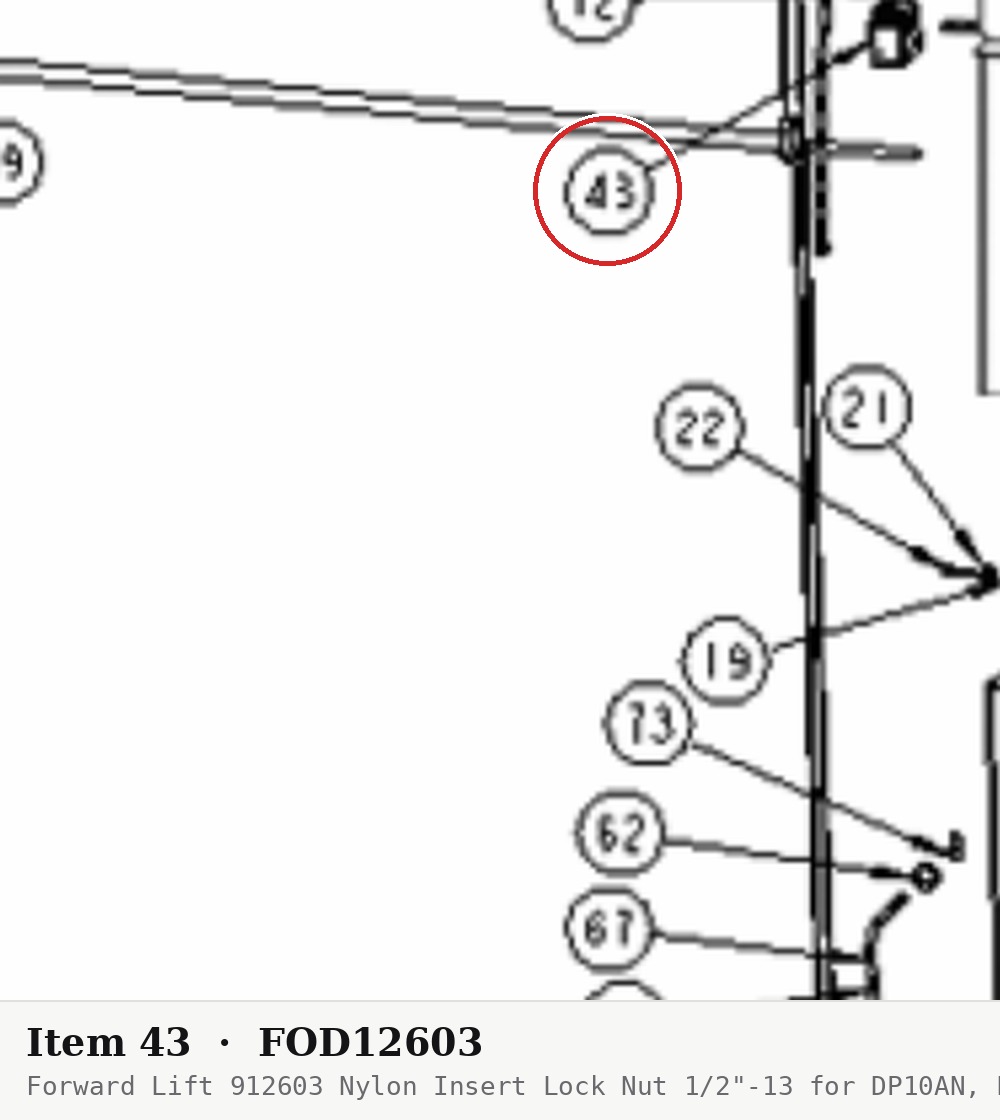

In the drawing images above this is part number 43 in the DP10AN drawing and part number 41 and 12 in the DP97S2 drawing and part number 20 in the I10 drawing.

Fits the following lift models — part number 912603 appears in the parts breakdown of each of these lifts: Forward Lift DP10AN, DP97S-2, I10, I10 (111000), INT10, INT9, DP9A-S, 12000LR/LRD 12K, 12500ARO Open-Front, DP97S-2 Two-Post, DP09P Two-Post Asymmetric, DP09A-2 Two-Post Asymmetric, DP10 10K Two-Post, DP97A-2 / DP10A-2 Two-Post, DPO7A Two-Post Asymmetric, DPO9S-2 Two-Post Asymmetric; 12K SAR/LAR/SWT/EW Four-Post.

This nyloc nut is the factory-specified locking nut for the cylinder mount and appears in the 12000 EWT Parts Breakdown, the 2′ Extended Upright Assembly (Page 22), and Bolt Box P/N 994034. The nylon insert prevents the nut from backing off under lift vibration, which is why it is specified at the hydraulic cylinder mounting point.

OEM replacement from the Forward Parts family, cross-referenced by the factory as identical to part 40707. Nyloc nuts are single-use in critical joints; fit a new one whenever the cylinder mount hardware is disturbed.
