Forward Lift 913602 Hex Nut 3/4-16 NF Plated, Cylinder Mount Nut for DP10AN, DP97S2, I10 Lifts

Forward Lift 913602 Hex Nut 3/4-16 NF Plated, Cylinder Mount Nut for DP10AN, DP97S2, I10 Lifts - full parts breakdown drawing

$14.53

Availability: In Stock

SKU: FOD3602

Forward Lift 913602 — Hex Nut 3/4-16 NF Plated, Cylinder Mount Nut for DP10AN, DP97S2, I10 Lifts. Use the part number and listed lift application to confirm compatibility before ordering.

Plated 3/4-16 NF hex nut used at the cylinder mount on Forward Lift DP10AN, DP97S2 and I10 two-post lifts.

Availability may vary depending on vendor stock.

Description

Forward Lift 913602 Hex Nut 3/4-16 NF Plated, Cylinder Mount Nut for DP10AN, DP97S2, I10 Lifts

Restore reliable hydraulic lift operation with the 913602 Hex Nut 3/4-16 NF Plated, Cylinder Mount Nut, listed for use on DP10AN, DP97S2, I10 Lifts. This component is used when servicing a worn, leaking, or damaged cylinder where this exact part number and application are specified. Compare the part number and listed fitment with your original Forward Lift component before ordering.

Product Information

Brand / Equipment: Forward Lift
Manufacturer / Reference Part Number: 913602
Store SKU: FOD3602
Component: Hex Nut 3/4-16 NF Plated, Cylinder Mount Nut
Listed Application: DP10AN, DP97S2, I10 Lifts

Fitment & Ordering Notes

Automotive lift manufacturers may use different parts across model years, production runs, or equipment revisions. Before ordering, compare the reference part number and the model/application information in this listing with the identification tag, parts manual, or original component on your lift. If your equipment uses a different part number, verify interchange before installation.

Additional Existing Product / Fitment Information

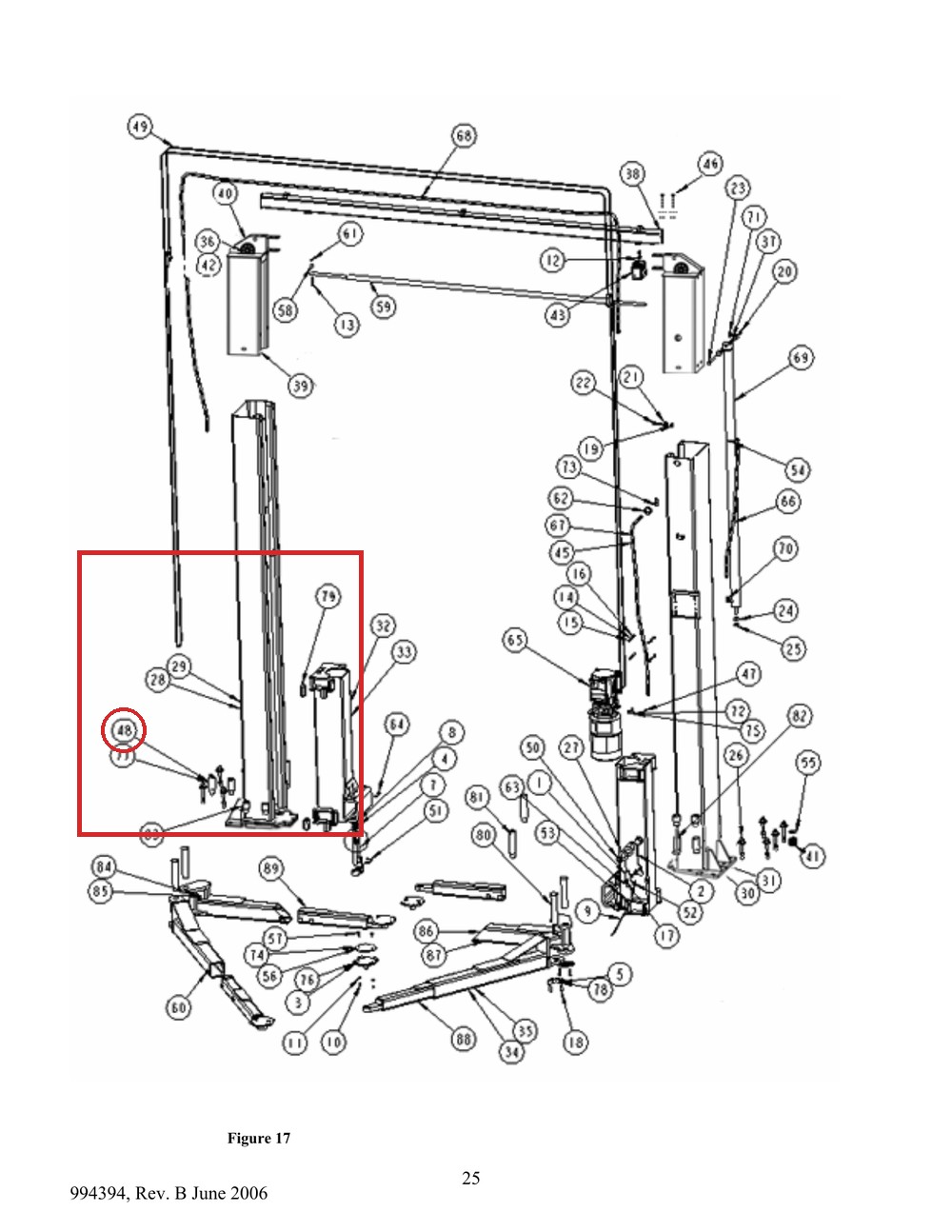

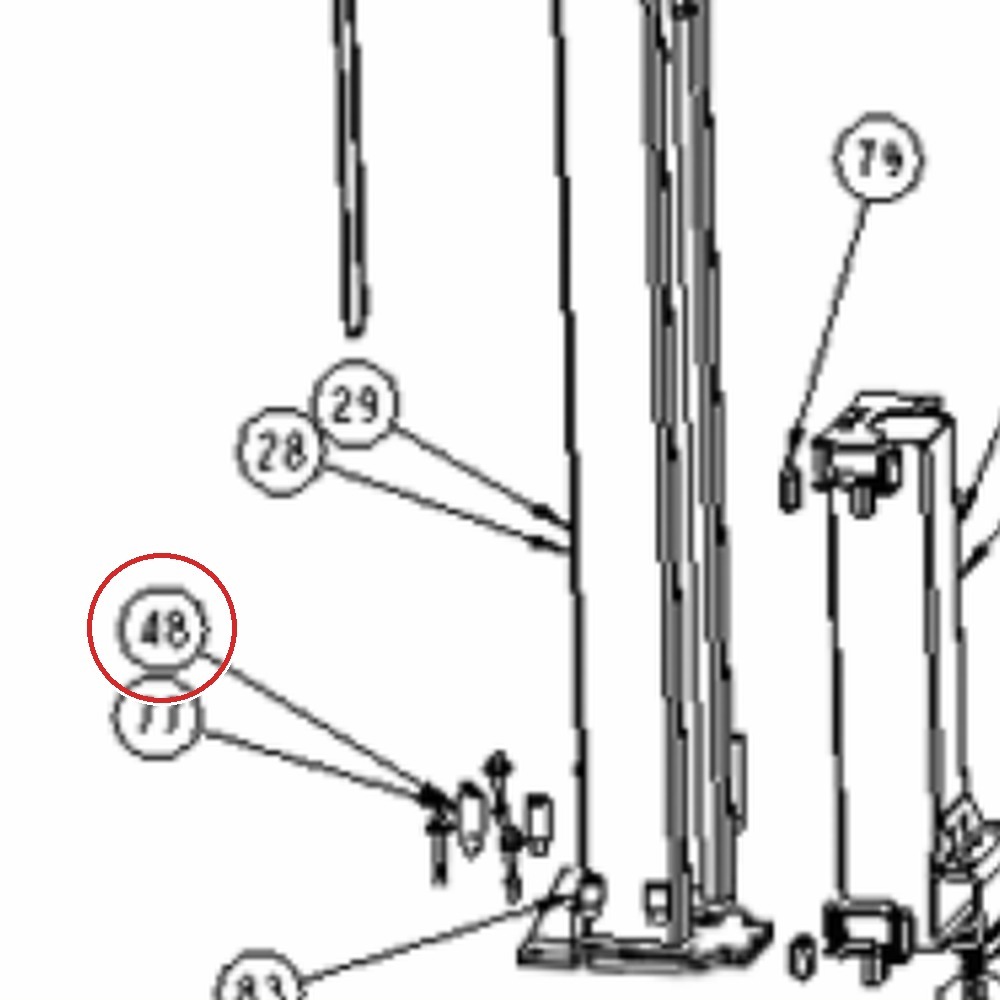

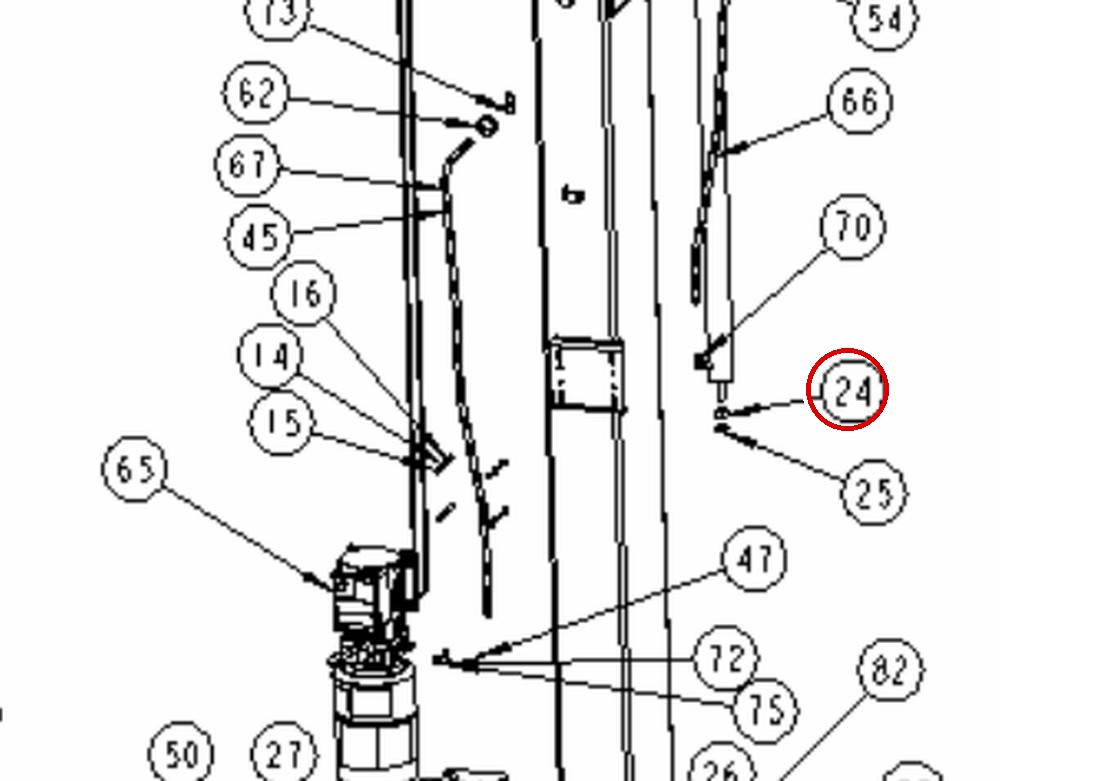

In the drawing images above this is part number 48 in the DP10AN drawing and part number 47 in the DP97S2 drawing and part number 24 in the I10 drawing.

Fits the following lift models — part number 913602 appears in the parts breakdown of each of these lifts: Forward Lift DP10AN, DP97S-2, I10, I10 (111000), INT10, INT9, DP9A-S, DP97S-2 Two-Post, DP09P Two-Post Asymmetric, DP09A-2 Two-Post Asymmetric, DP10 10K Two-Post, DP97A-2 / DP10A-2 Two-Post, DPO7A Two-Post Asymmetric, DPO9S-2 Two-Post Asymmetric.

This fine-thread 3/4-16 plated hex nut secures the hydraulic cylinder mount hardware on Forward two-post and inground lift models. Correct thread engagement here is important for keeping the lifting cylinder properly anchored.

Direct OEM replacement for the factory cylinder mount nut. Confirm against Figure 17 or Drawing 1 of your lift’s parts breakdown before ordering.
