Forward Lift 994256 Stack Swivel Pad Weldment Kit (4 Pcs) for I10 / INT 10 Two-Post Lifts (8K, 9K, 10K)

Description

Forward Lift 994256 Stack Swivel Pad Weldment Kit (4 Pcs) for I10 / INT 10 Two-Post Lifts (8K, 9K, 10K)

Replace a worn, damaged, or missing lift contact component with the 994256 Stack Swivel Pad Weldment Kit (4 Pcs), listed for use on I10 / INT 10 Two-Post Lifts (8K, 9K, 10K). Match the part number, style, and listed Forward Lift application to your existing lift hardware before ordering.

Product Information

• Brand / Equipment: Forward Lift
• Manufacturer / Reference Part Number: 994256
• Store SKU: FOD4256
• Component: Stack Swivel Pad Weldment Kit (4 Pcs)
• Listed Application: I10 / INT 10 Two-Post Lifts (8K, 9K, 10K)

Fitment & Ordering Notes

Automotive lift manufacturers may use different parts across model years, production runs, or equipment revisions. Before ordering, compare the reference part number and the model/application information in this listing with the identification tag, parts manual, or original component on your lift. If your equipment uses a different part number, verify interchange before installation.

Additional Existing Product / Fitment Information

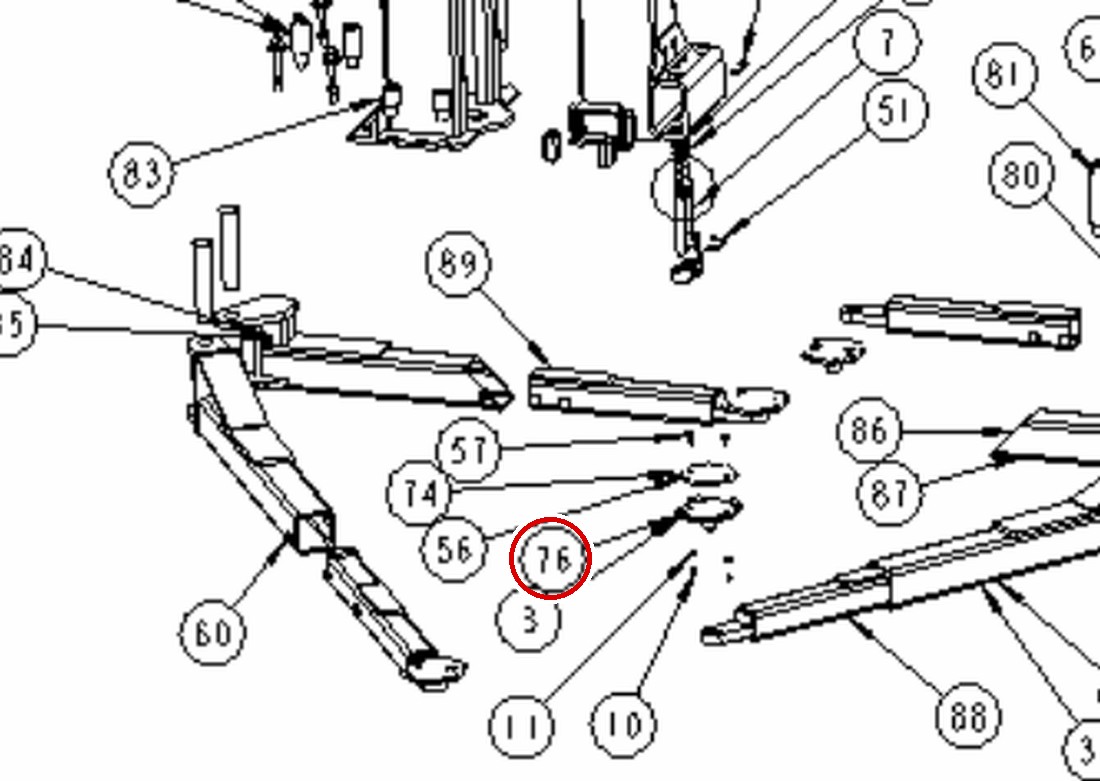

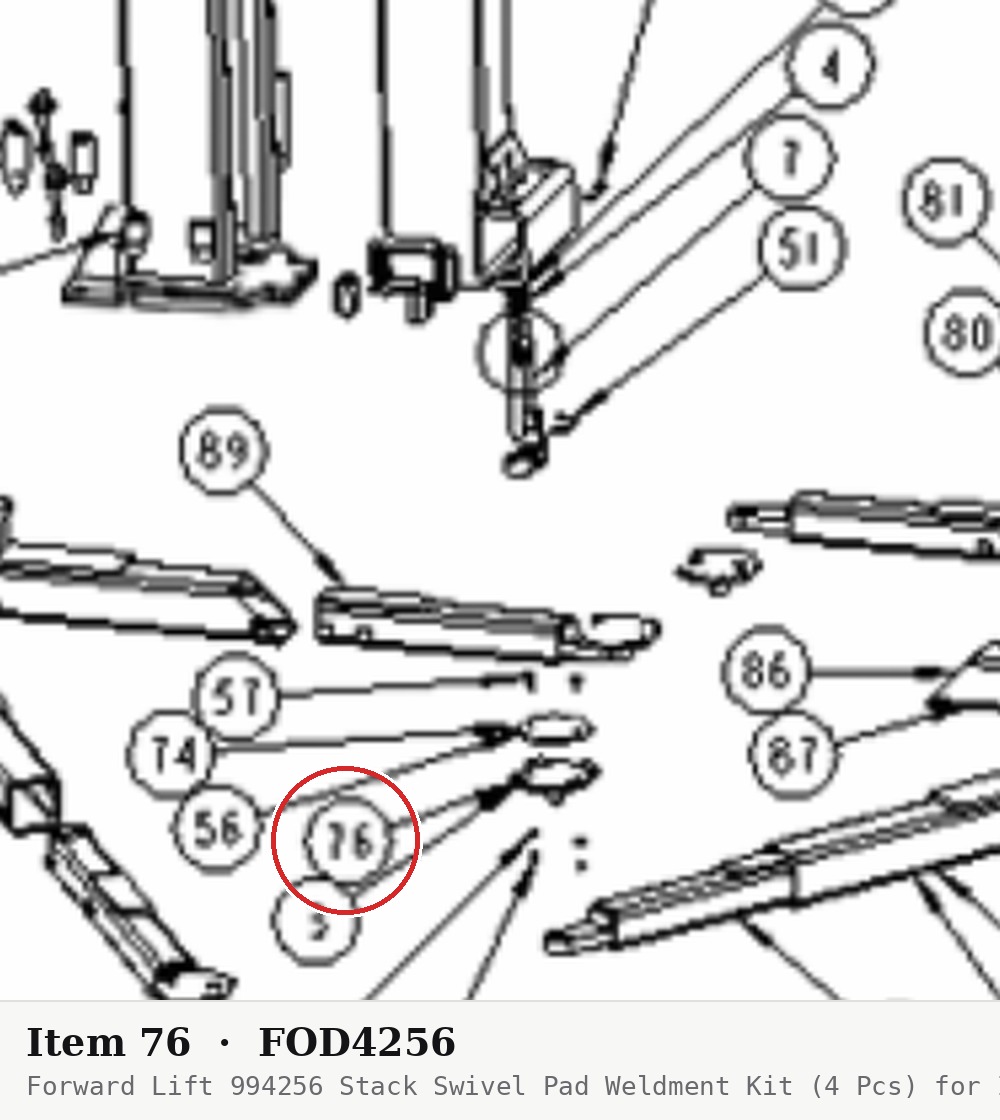

This is part number 76 in the drawing image above.

Fits the following lift models — part number 994256 appears in the parts breakdown of each of these lifts: Forward Lift I10, I10 (111000), INT10, INT9, DP9A-S, DP10 10K Two-Post.

Forward Lift replacement stack swivel pad weldment kit, supplied as a set of four pieces. Fits Forward light duty two-post lifts in the I10 / I10111000 / INT 10 family and applies to 8,000, 9,000 and 10,000 lb capacity models.

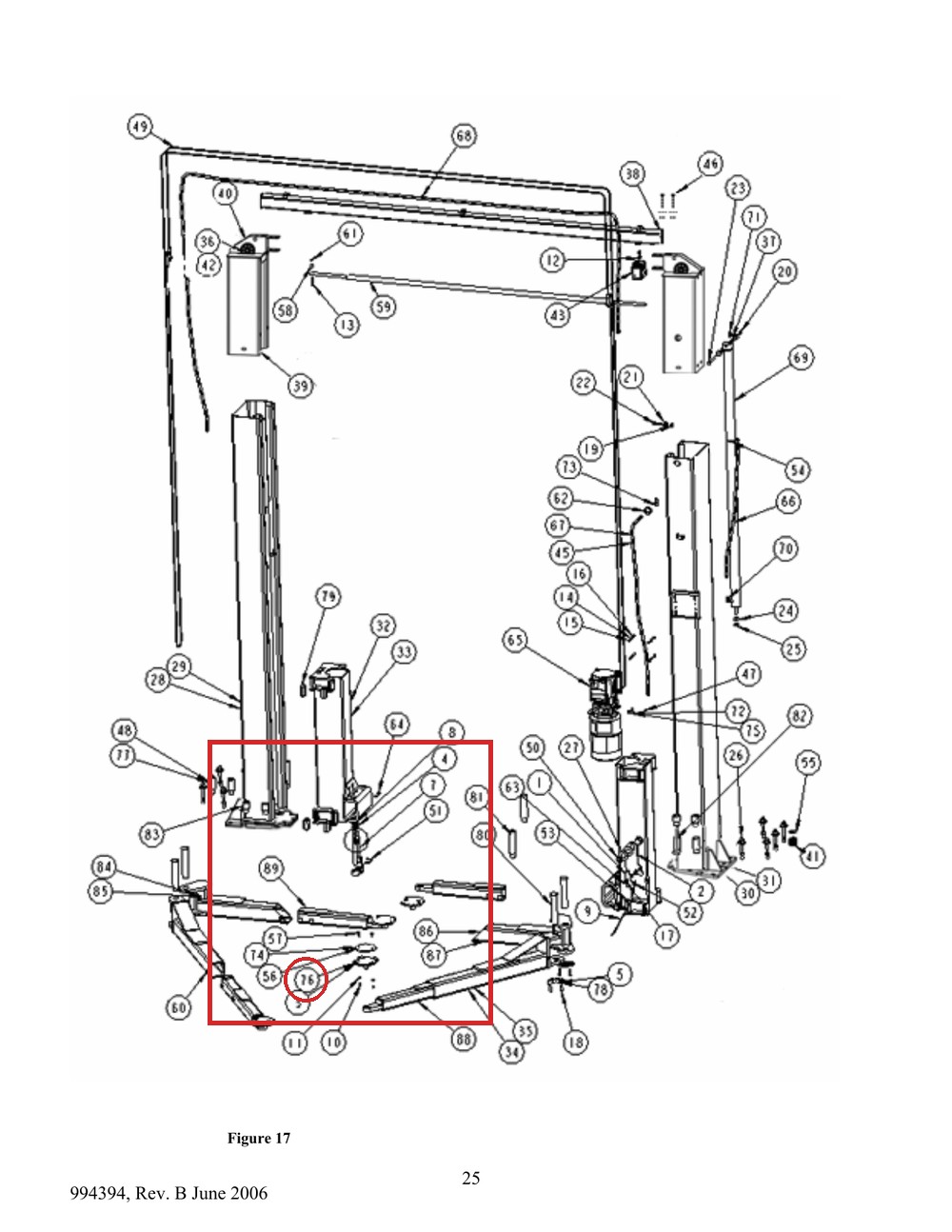

The stack swivel pads are the contact points between the lift arms and the vehicle’s lifting points. The swivel design lets each pad seat flat against the pickup point while the weldment stack accepts height extensions to reach frames and rocker panels. This kit is shown in Figure 17 of the Section 3 parts breakdown for the I10 series.

This is an OEM Forward Lift service part. Replacing pads as a complete set of four keeps engagement heights consistent across all arms. Verify your lift model and Figure 17 breakdown before ordering.
