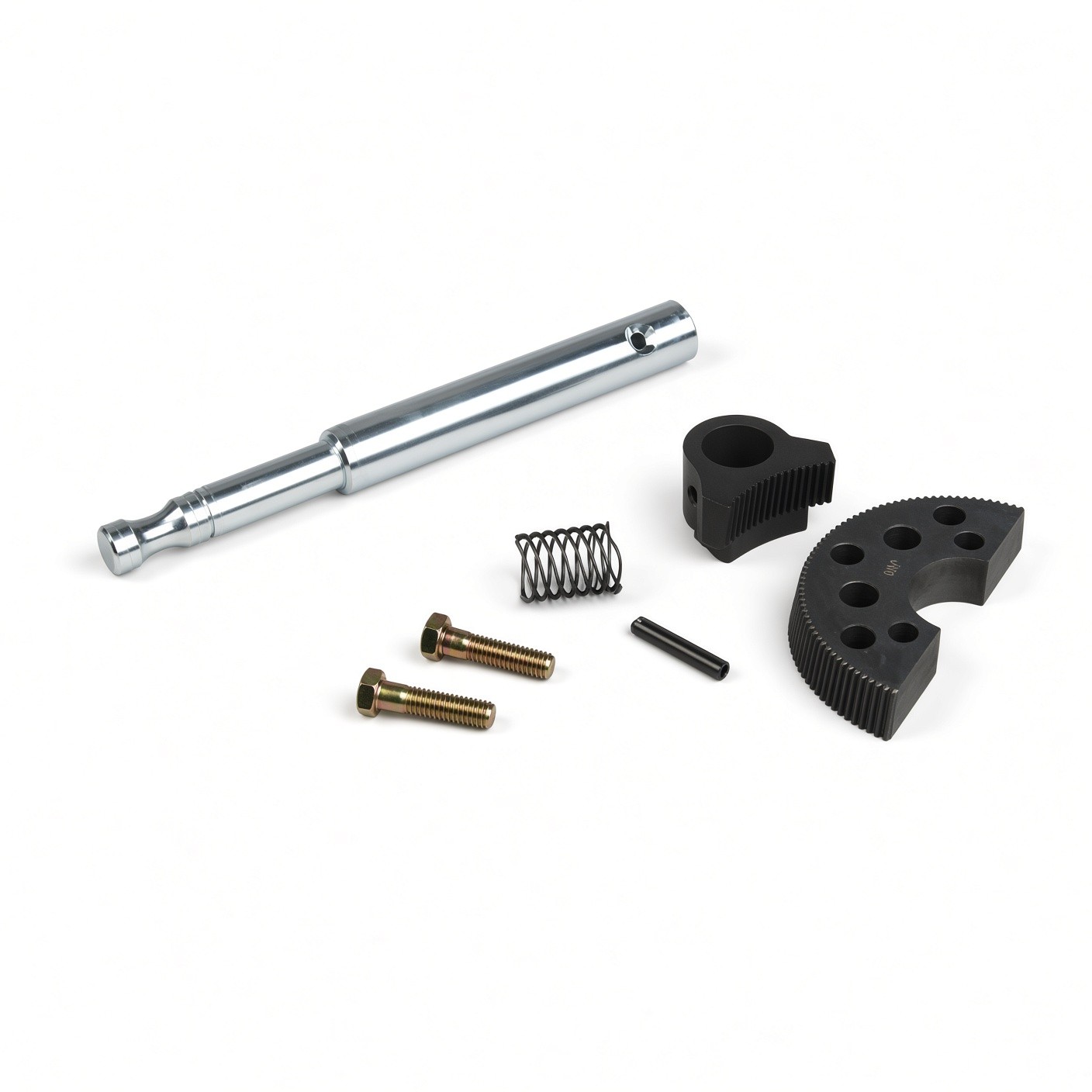

Forward Lift 994258 Arm Restraint Gear Kit (4 Pcs) for DP Series Since Mid-2004 / I10 / INT 10

Description

Forward Lift 994258 Arm Restraint Gear Kit (4 Pcs) for DP Series Since Mid-2004 / I10 / INT 10

Repair or service the applicable lift assembly with the 994258 Arm Restraint Gear Kit (4 Pcs), listed for use on DP Series Since Mid-2004 / I10 / INT 10. Use the reference part number and listed Forward Lift application to compare against the original component before ordering.

Product Information

• Brand / Equipment: Forward Lift
• Manufacturer / Reference Part Number: 994258
• Store SKU: FOD4258
• Component: Arm Restraint Gear Kit (4 Pcs)
• Listed Application: DP Series Since Mid-2004 / I10 / INT 10

Fitment & Ordering Notes

Automotive lift manufacturers may use different parts across model years, production runs, or equipment revisions. Before ordering, compare the reference part number and the model/application information in this listing with the identification tag, parts manual, or original component on your lift. If your equipment uses a different part number, verify interchange before installation.

Additional Existing Product / Fitment Information

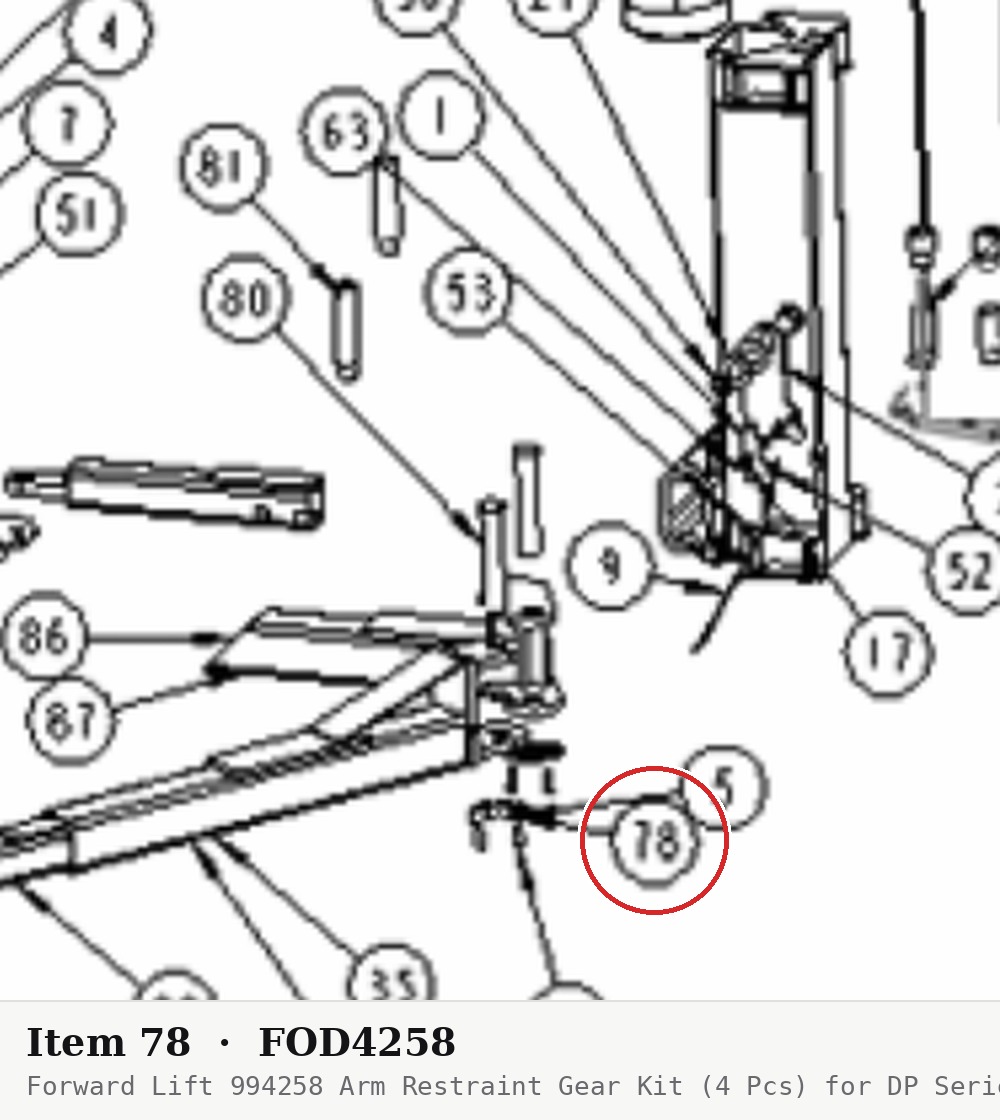

This is part number 78 in the drawing image above.

Fits the following lift models — part number 994258 appears in the parts breakdown of each of these lifts: Forward Lift I10, I10 (111000), INT10, INT9, DP9A-S, DP10 10K Two-Post.

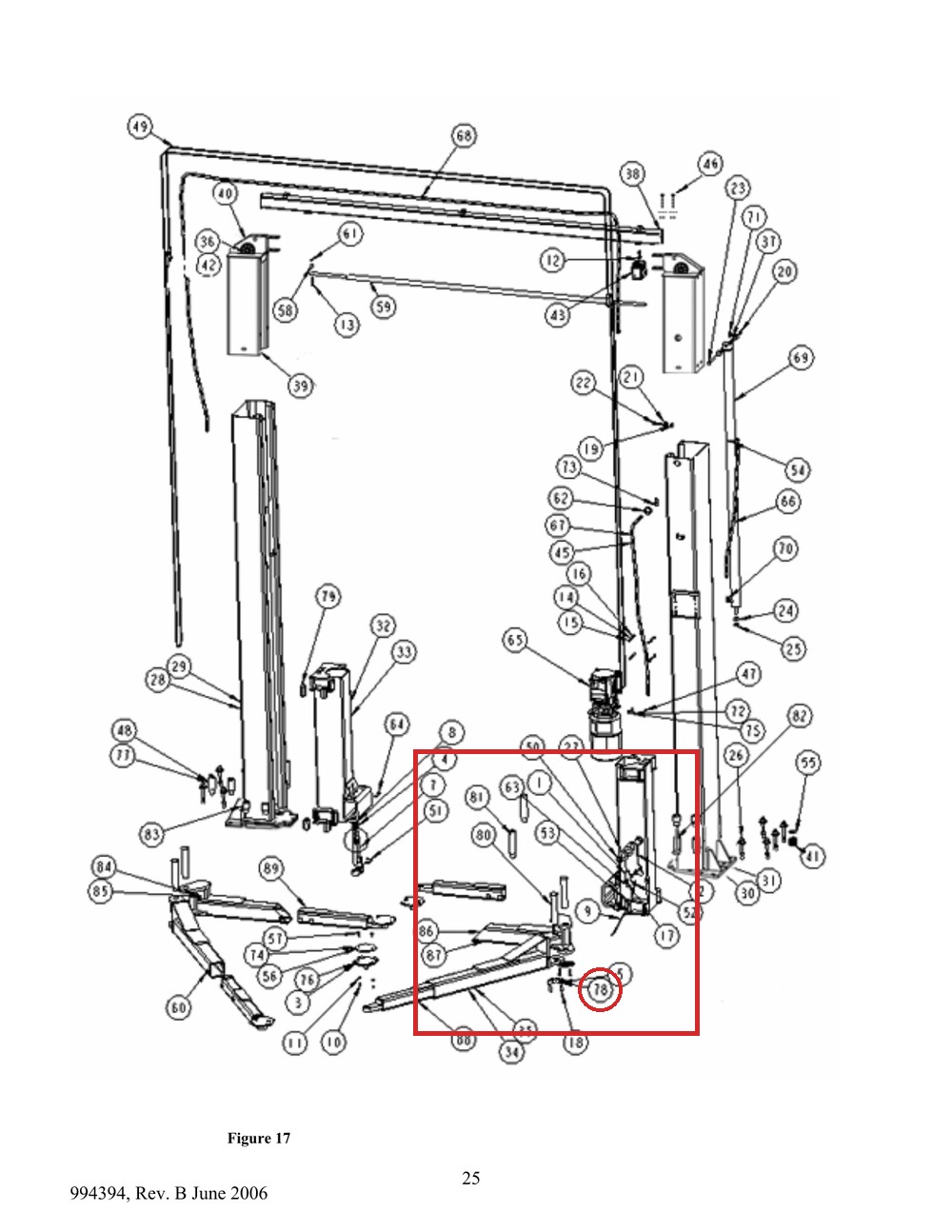

Genuine Forward Lift arm restraint gear kit supplied as a set of four. Per the Forward catalog this kit fits DP series two-post lifts built since mid-2004, and it appears in Figure 17 of the Section 3 parts breakdown for the I10 / I10111000 / INT 10 lift family.

The arm restraint gears are the toothed components that lock the swing arms in position once the vehicle is raised, preventing the arms from drifting under a loaded vehicle. Worn or chipped restraint gears are a common cause of arms that will not lock, and this is a safety-critical wear item that should be replaced on all four arms at once.

OEM Forward Lift replacement kit. Match the kit to your serial-number range (DP series since mid-2004) and Figure 17 breakdown before ordering.
