Forward Lift DL9-9802-1 Flow Control Valve Assembly for DL9 Lift

Description

Forward Lift DL9-9802-1 Flow Control Valve Assembly for DL9 Lift

Replace a worn, leaking, or malfunctioning pneumatic component with the DL9-9802-1 Flow Control Valve Assembly, listed for use on DL9 Lift. Match the reference part number and application to the original Forward Lift component before ordering to help ensure correct fitment.

Product Information

• Brand / Equipment: Forward Lift
• Manufacturer / Reference Part Number: DL9-9802-1
• Store SKU: FOD8021
• Component: Flow Control Valve Assembly
• Listed Application: DL9 Lift

Fitment & Ordering Notes

Automotive lift manufacturers may use different parts across model years, production runs, or equipment revisions. Before ordering, compare the reference part number and the model/application information in this listing with the identification tag, parts manual, or original component on your lift. If your equipment uses a different part number, verify interchange before installation.

Additional Existing Product / Fitment Information

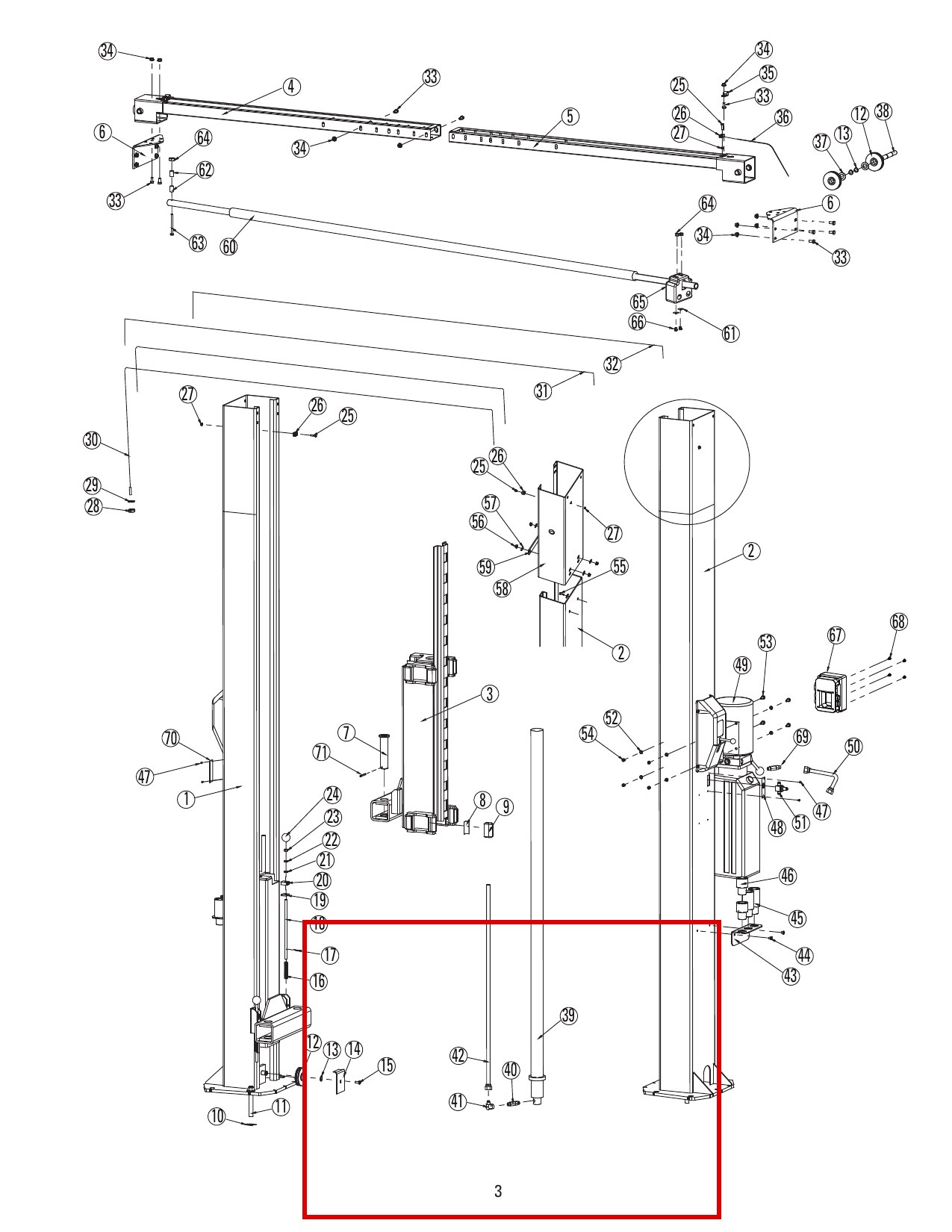

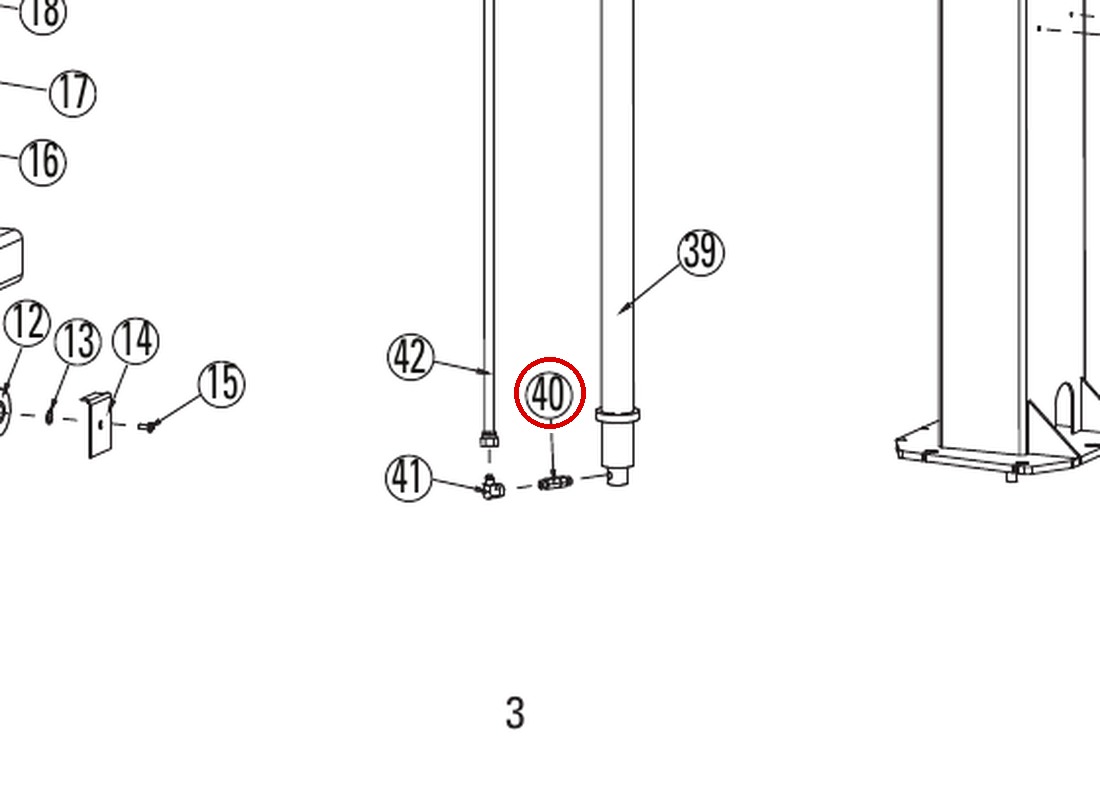

This is part number 40 in the drawing image above.

Fits the Forward Lift DL9, shown in Drawing 1 (Main Lift Assembly, page 3) of the DL9 parts breakdown.

The flow control valve regulates the rate of hydraulic fluid flow in the DL9’s lift circuit, controlling how quickly the lift lowers so the vehicle descends at a safe, steady speed. A faulty flow control can cause a lift to drop too fast or lower unevenly, so this valve is a safety-critical replacement.

Genuine Forward Lift replacement part from the Light Duty-Forward parts line. Confirm against Drawing 1 in your DL9 parts breakdown before ordering.

Fits these lifts:

• Direct Lift — DL9 (9,000 lb two-post)
• Hanmecson (VSG) — DL9
