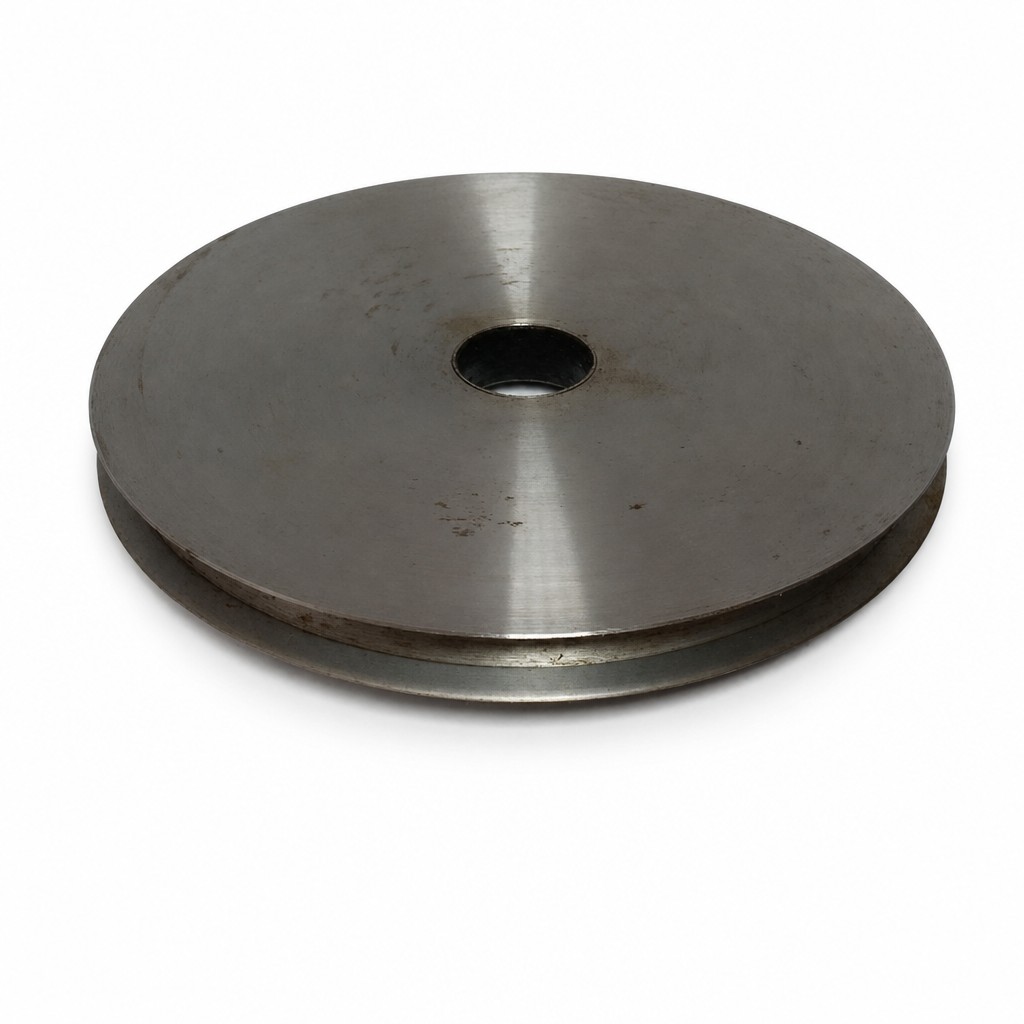

Forward Lift H4P-3003 Runway Cable Sheave for CR14 14,000 lb & Pro 14F 4-Post Lifts
Service a worn, stretched, frayed, or damaged lift cable with the H4P-3003 Runway Cable Sheave, listed for use on CR14 14,000 lb & Pro 14F 4-Post Lifts. Correct cable fitment is important to proper lift operation, so match the part number and listed application to your Forward Lift equipment before ordering.
Product Information
- Brand / Equipment: Forward Lift
- Manufacturer / Reference Part Number: H4P-3003
- Store SKU: FODP3003
- Component: Runway Cable Sheave
- Listed Application: CR14 14,000 lb & Pro 14F 4-Post Lifts
Fitment & Ordering Notes
Automotive lift manufacturers may use different parts across model years, production runs, or equipment revisions. Before ordering, compare the reference part number and the model/application information in this listing with the identification tag, parts manual, or original component on your lift. If your equipment uses a different part number, verify interchange before installation.
Additional Existing Product / Fitment Information
This is part number 2.2 in the drawing image above.
Fits the following lift models — part number H4P-3003 appears in the parts breakdown of each of these lifts: Direct Lift CR14 (14,000 lb EWT), CR14 14000 (serial 00N), PRO-14F (newer, 3-bolt lock), PRO-14F 14K.
The H4P-3003 runway sheave is the pulley the equalizing cables route over inside the runway, shown in Drawing 4 (Cable Routing / Sheave Assembly, p.41) and FIG. 10 of the parts breakdowns. The sheaves keep the lifting cables aligned and rolling smoothly so all four corners of the lift rise and lower evenly. Worn or seized sheaves cause cable fraying and uneven lifting and should be replaced promptly.
Direct OEM-style replacement for the factory runway sheave. Pairs with sheave shaft H4P-3005 and shaft locker H4P-3006; inspect cables when replacing sheaves.
Cross-check part number: Forward Lift H4P-3003. This is a Forward Lift replacement part.
