Forward Lift SW-002 90 Degree Fitting / Switch - DL9 & Newer CR14 Lifts

Description

Forward Lift SW-002 90 Degree Fitting / Switch – DL9 & Newer CR14 Lifts

Repair the applicable lift control or electrical system with the SW-002 90 Degree Fitting / Switch – DL9 & Newer CR14 Lifts, listed for use on compatible equipment. Because electrical components can vary by model and production revision, verify the part number and listed Forward Lift application before ordering.

Product Information

• Brand / Equipment: Forward Lift
• Manufacturer / Reference Part Number: SW-002
• Store SKU: FODW002
• Component: 90 Degree Fitting / Switch – DL9 & Newer CR14 Lifts

Fitment & Ordering Notes

Automotive lift manufacturers may use different parts across model years, production runs, or equipment revisions. Before ordering, compare the reference part number and the model/application information in this listing with the identification tag, parts manual, or original component on your lift. If your equipment uses a different part number, verify interchange before installation.

Additional Existing Product / Fitment Information

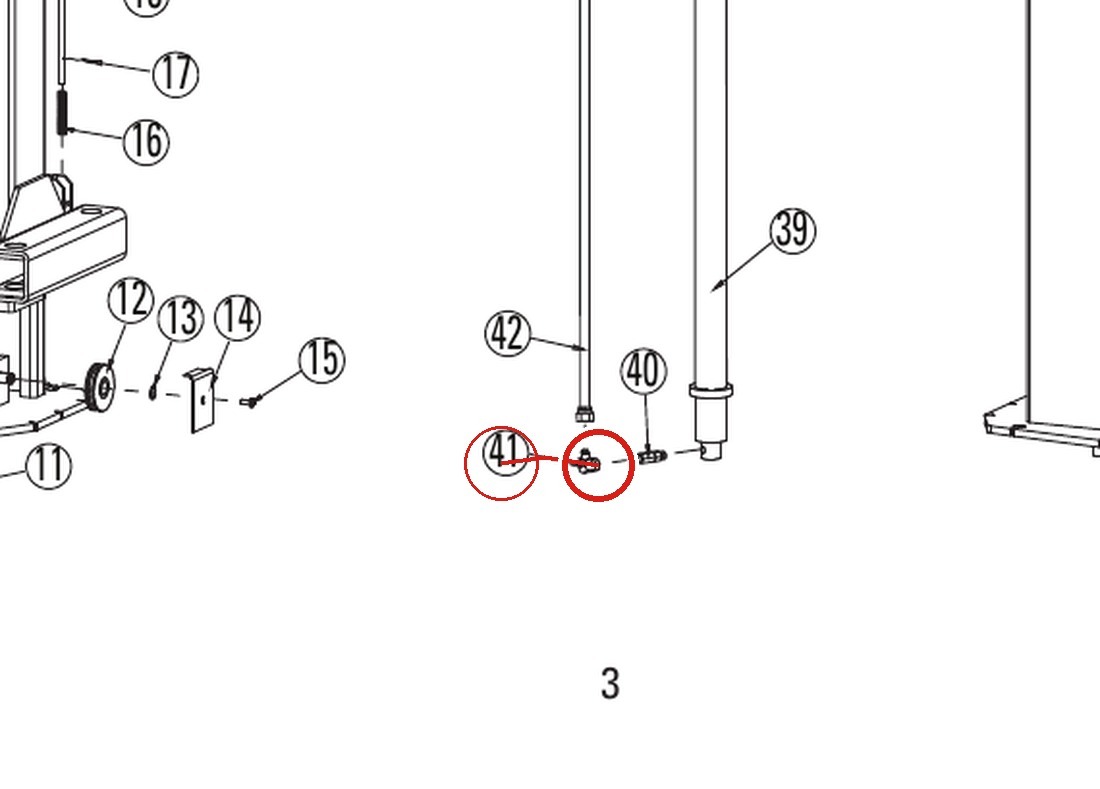

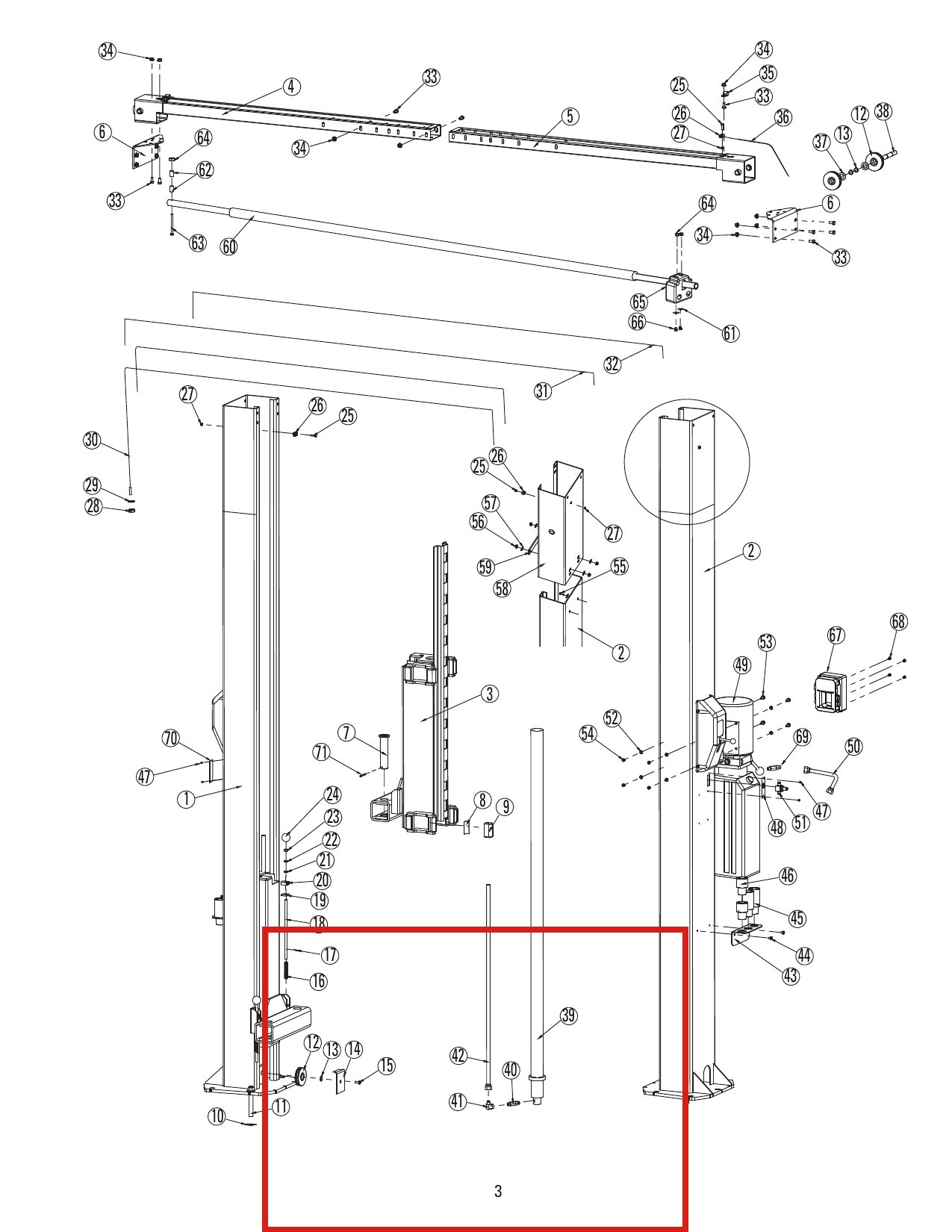

In the drawing images above this is part number 41 in the DL9 parts drawing and part number – in the newer cr14 parts breakdown drawing.

Fits the following lift models — part number SW-002 appears in the parts breakdown of each of these lifts: Rotary Lift DL9; Forward Lift CR14 (newer).

This 90 degree fitting installs in the hydraulic line at the power unit; on some models it serves as the switch/fitting between the power unit and the hydraulic hose, turning the connection 90 degrees for clean hose routing.

OEM replacement for compatible Direct Lift models. Replace fittings that leak or have damaged threads to keep the hydraulic connection sealed. For the O-ring version used on PP8 series 8K four-posts, see SW-002(30400-9053YZ).

Cross-check part number: Forward Lift SW-002. This is a Forward Lift replacement part.

Fits these lifts:

• Direct Lift — DL9 (9,000 lb two-post)
• Hanmecson (VSG) — DL9
