Hanmecson / Direct Lift 30500-9200 Equalizer Cable - ProV10 2-Post Pre-2007 Chain-Over Cylinders

Description

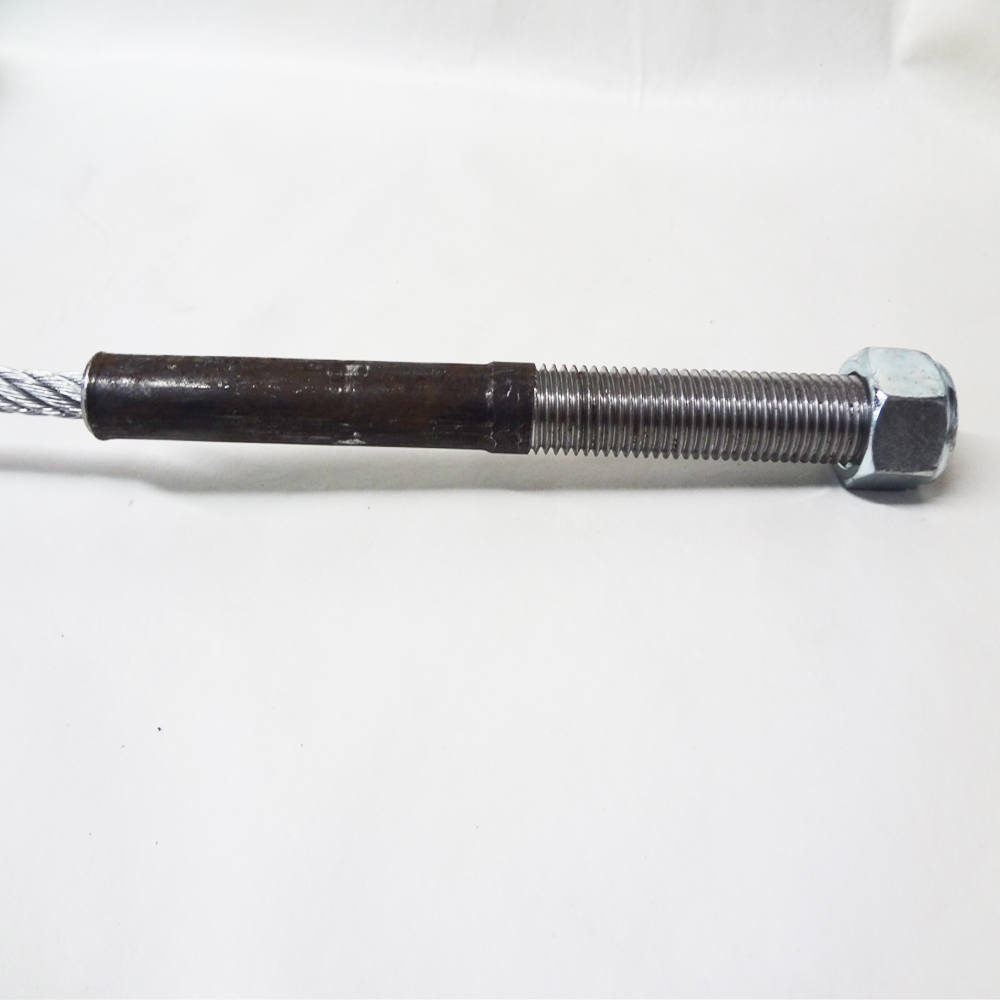

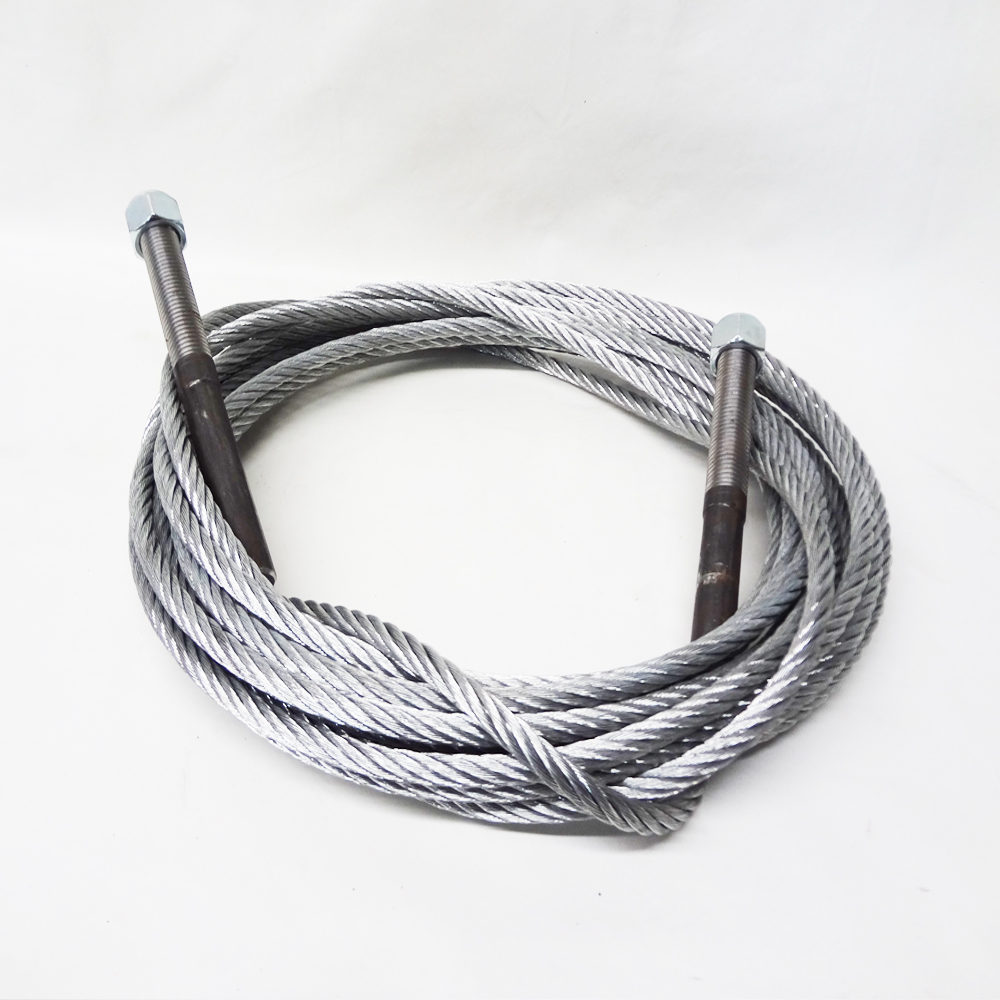

Hanmecson / Direct Lift 30500-9200 Equalizer Cable – ProV10 2-Post, Pre-2007, Chain-Over Cylinders

The equalizer cable synchronizes both sides of a 2-post lift during raising and lowering. The Hanmecson / Direct Lift ProV10 was produced in two distinct versions requiring different cables. This cable fits the early production version with chains running over the tops of the hydraulic cylinders. Inspect for fraying, kinking, or stretching, and replace both cables at the same time.

Product Information

• Brand / Equipment: Hanmecson / Direct Lift 2-Post Lift
• Manufacturer / Reference Part Number: Hanmecson 30500-9200 / Direct Lift 30500-9200
• Store SKU: DIT9200
• Component: Equalizer Cable (Wire Rope)
• Listed Application: Hanmecson ProV10 and Direct Lift ProV10 2-post lifts produced before July 2007, chain-over-style hydraulic cylinders

Parts Diagram & Manual Reference

Listed under Equalization Cables & Safety Latch Components – Figure # 7 for early ProV10 production (serial number prefix “ST”).

Fitment & Ordering Notes

There are two versions of the ProV10 2-post lift. To confirm this is the correct cable, check that your lift has a chain running over the top of each hydraulic cylinder (ram). If your lift has no chains, you need a different cable. Locate the model number, serial number, and production date on the ID tag on the column. Call 866-902-6060 for help identifying the correct cable.
