Description

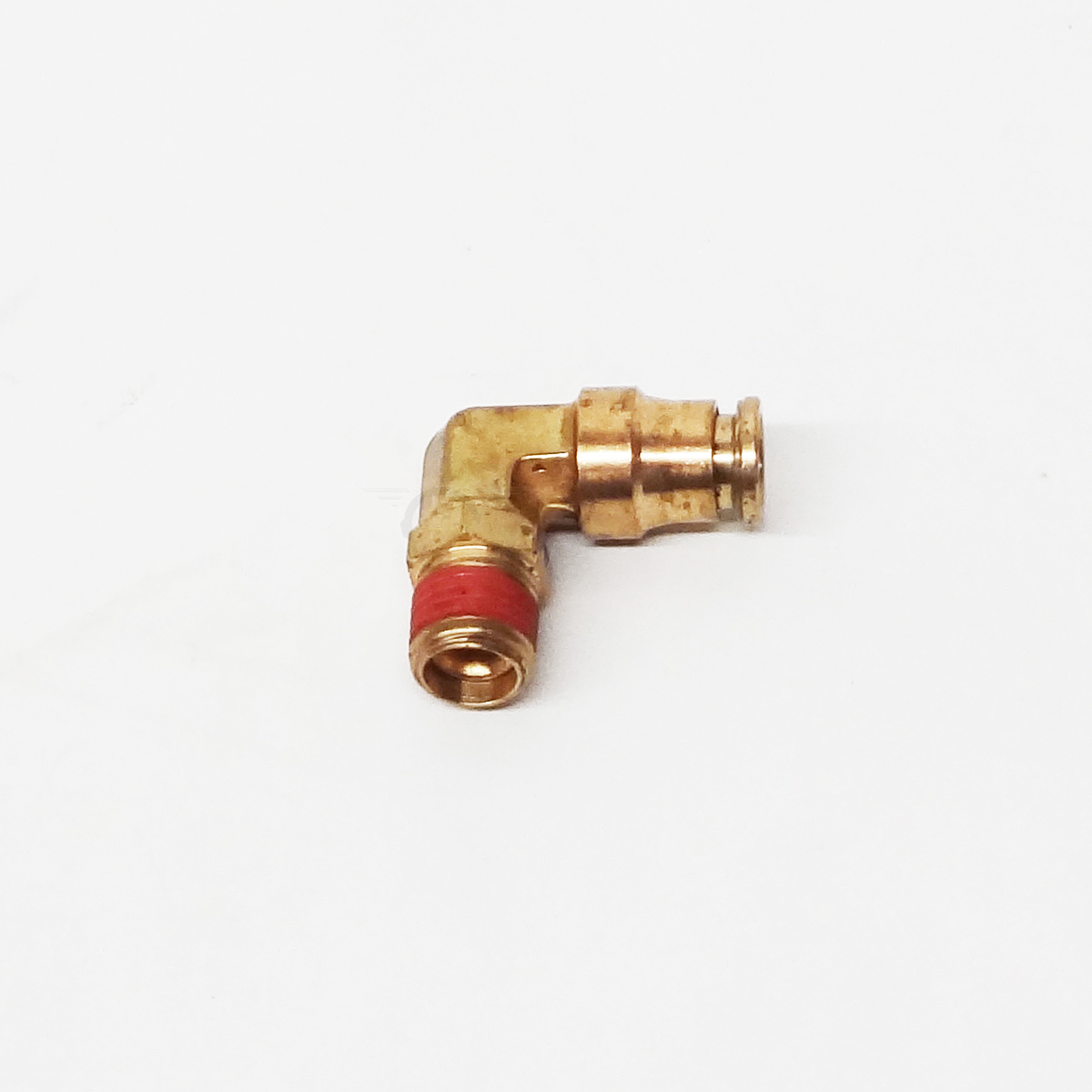

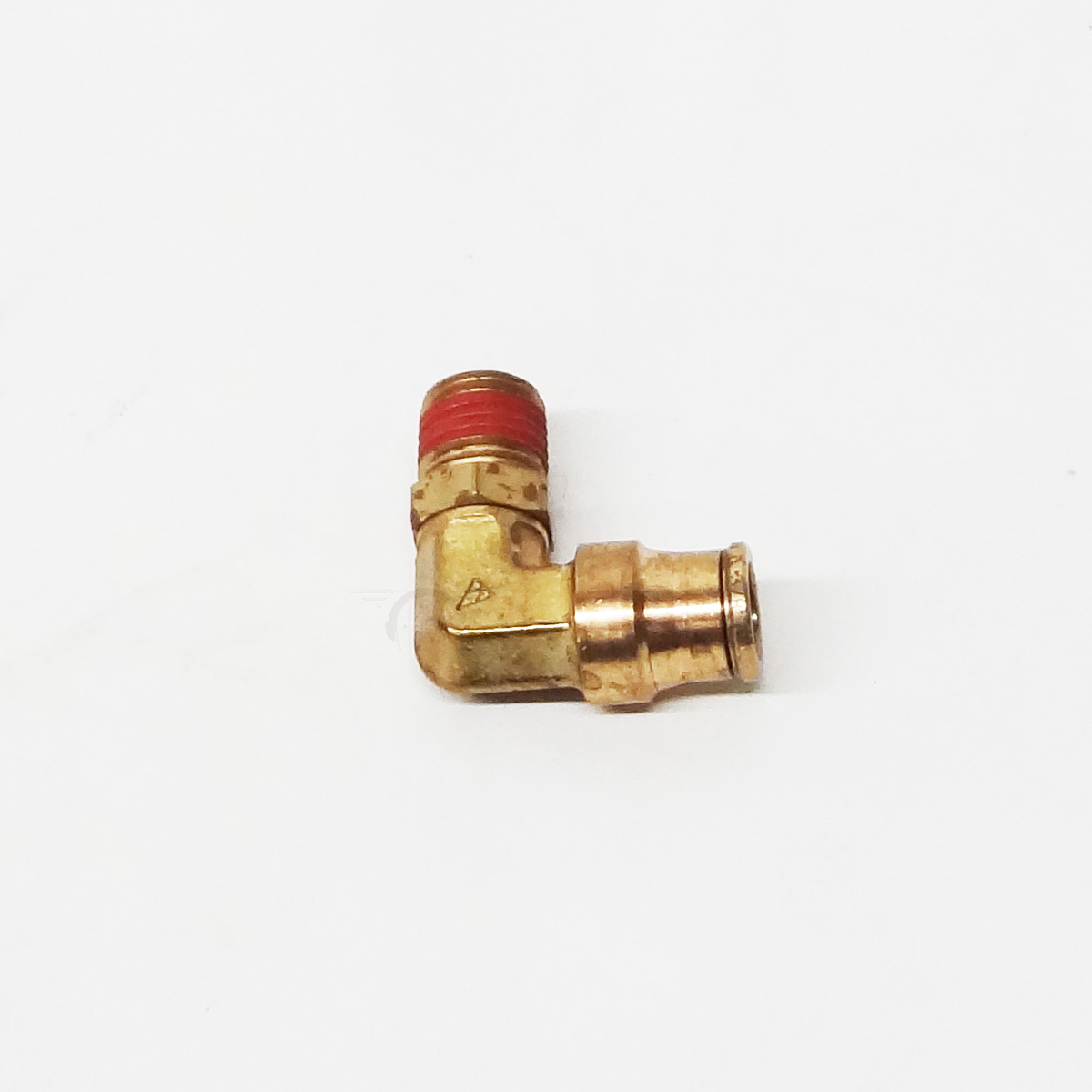

Coats 8181998 90-Degree Swivel Elbow Air Fitting for Coats Tire Changer Air Valves
This 90-degree brass swivel elbow fitting connects 3/8-inch push-to-connect air line tubing to the 1/4-inch MNPT port on Coats tire changer air valves and bead blast assemblies. It is most commonly found on the bottom of the leftmost foot pedal, supplying air to all foot pedals via the center NPT fitting. It is also found at bead blast hose connections and other locations. Verify fitting orientation and tube diameter before ordering.
Product Information
- Brand / Manufacturer: Aftermarket replacement (equivalent to Coats OEM)
- Manufacturer / Reference Part Number: 8181998, 181998
- Store SKU: COS1998
- Component: 90-Degree Swivel Elbow Air Fitting
- Thread: 1/4 MNPT
- Tube Connection: 3/8-inch push-to-connect
- Material: Brass
- Listed Application: Coats rim clamp tire changers, 50/60/70 series
Compatible Makes / Verified Fitment Models
- Coats 5030, 5030A, 5030E, 5040, 5040A, 5040E, 5050, 5050A, 5050E, 5060, 5060A, 5060E, 5060AX, 5060EX, 5065, 5065A, 5065E, 5065AX, 5065EX, 5070, 5070A, 5070E
- Coats 6050, 6050A, 6050E, 6050AX, 6050EX, 6060, 6060AX, 6060EX, 6065, 6065A, 6065E, 6065AX, 6065EX
- Coats 7050, 7050AX, 7050EX, 7055, 7055AX, 7055EX, 7060, 7060AX, 7060EX, 7065, 7065AX, 7065EX, 7655, 7655AX, 7655EX, 7660, 7660AX, 7660EX, 7665, 7665AX, 7665EX, 70X EH1, 70X EH2, 70X AH1, 70X AH2
Replacement / Cross-Reference Numbers
- Coats 8181998, 181998, BW-1219-98, 85000342
Fitment & Ordering Notes
This fitting is found in multiple locations on these machines. The straight version is Coats 8181999. Confirm which fitting style and port location you are replacing before ordering. Call 866-902-6060 with questions.
Additional Product Information
Coats is a registered trademark of Hennessy Industries, Inc. This is an aftermarket alternative. All part numbers are used for reference only.
