Description

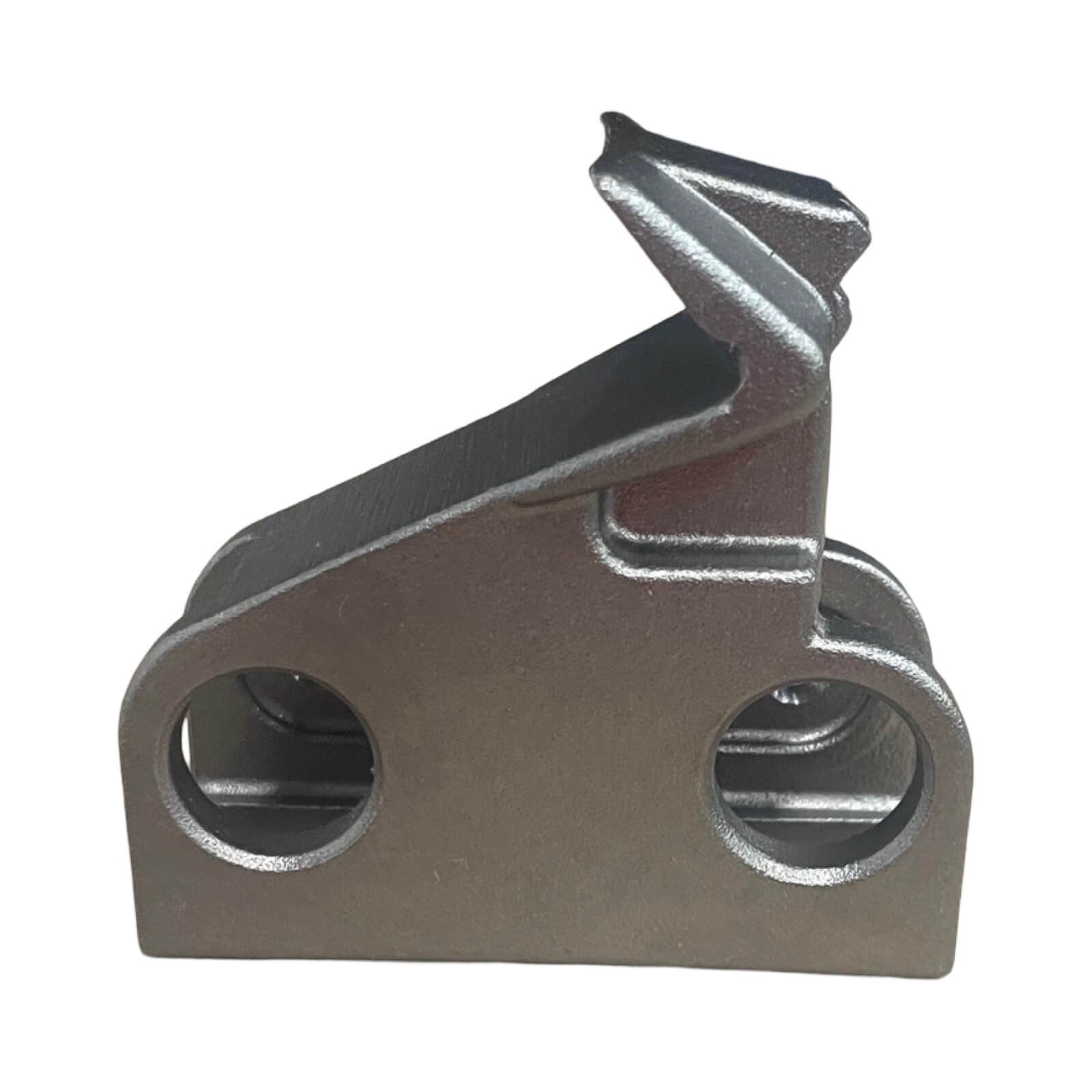

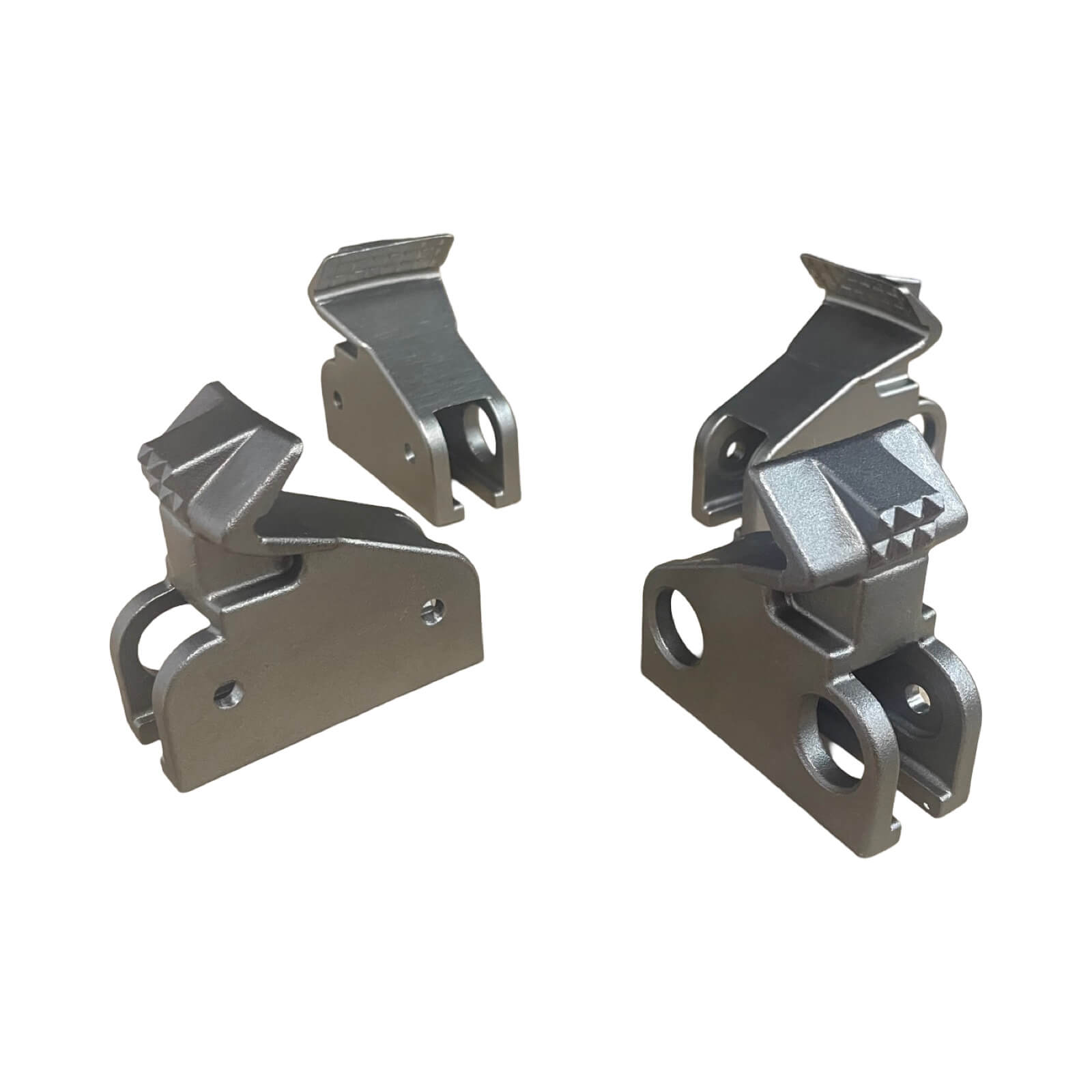

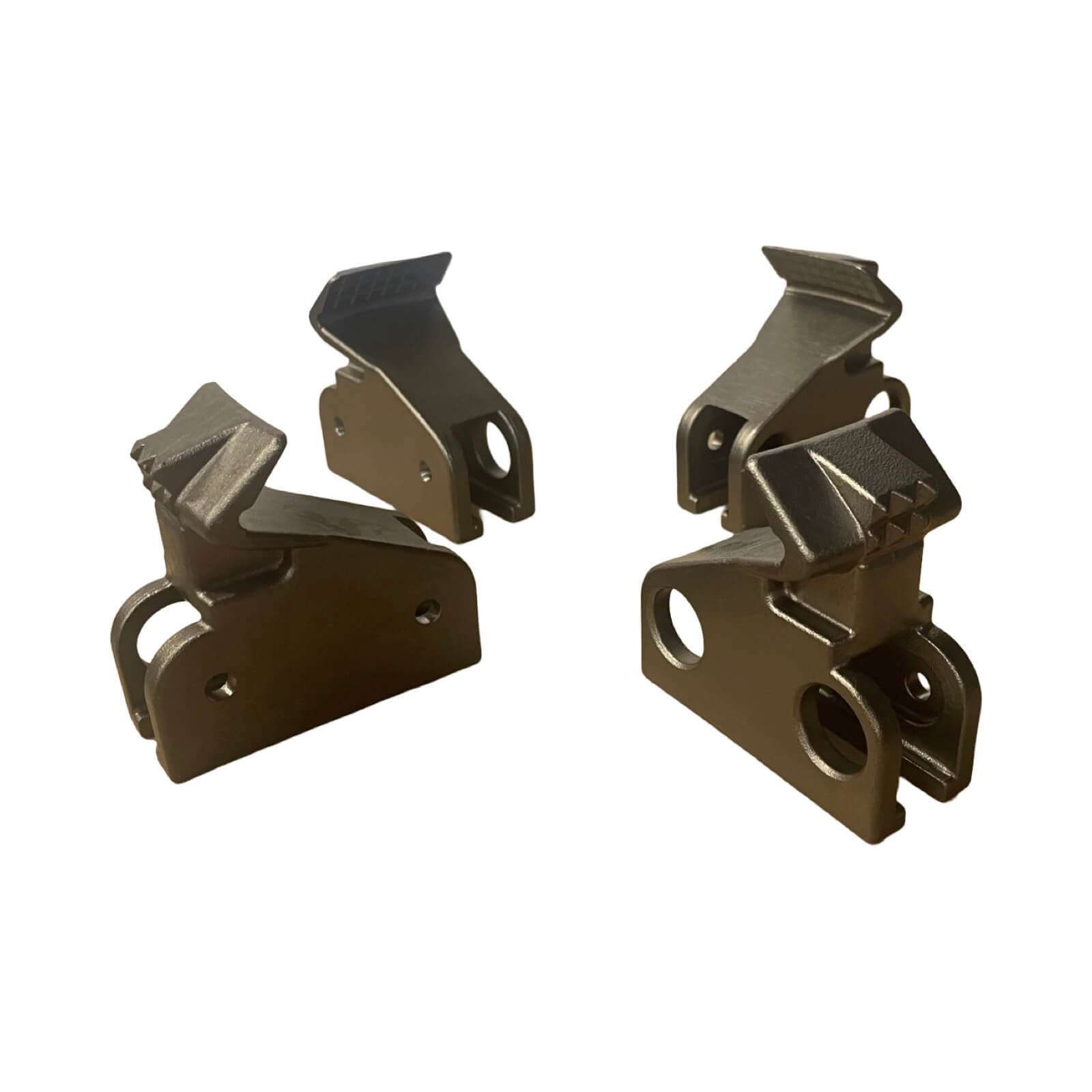

Coats 8182247-4 Metal 2-Position Rim Clamp Jaw Set of 4 – 6 to 20 in. Wheel Range
The rim clamp jaws grip the wheel during tire mounting and demounting. When jaws become worn, bent, or damaged, they can slip off the rim or scratch wheel surfaces. This set of four 2-position metal jaws extends the machine’s clamping range to handle wheels from 6 to 20 inches. The machine must already have adjustable multi-position jaws (with the adjustment button on the side) for these to work.
Product Information
- Brand / Equipment: Coats
- Manufacturer / Reference Part Number: 8182247-4
- Store SKU: COS2474
- Component: 2-position rim clamp jaw set
- Quantity: Set of 4 jaws
- Wheel Range: 6 to 20 in.
- Listed Application: Coats EX-series rim clamp tire changers – 5030a, 5030e, 5040, 5040a, 5040e, 5050, 5050ax, 5050ex, 5060ax, 5060ex, 5065ax, 5065ex, 5070ax, 5070ex, 6050ax, 6050ex, 6060ax, 6060ex, 6065ax, 6065ex, 7050ax, 7050ex, 7055ax, 7055ex, 7060ax, 7060ex, 7065ax, 7065ex, 7655ax, 7655ex, 7660ax, 7660ex, 7665ax, 7665ex, 70x EH1, 70x EH2, 70x AH1, 70x AH2, APX80, APX80a, APX80e, APX90, APX90a, APX90e, Baseline 200, Baseline 300, Baseline 400, Baseline 500, RC100, RC150, RC200
Replacement / Cross-Reference Numbers
- Replaces Coats 8182247-4, Coats 182247, Coats 182247-4, TC182247-4
Fitment and Ordering Notes
The machine must already have multi-position adjustable jaws (with the adjustment button on the side) for this kit to work. Verify your tire changer model is listed above before ordering. If your wheel range exceeds 20 inches, consider the 3-position jaw set (8184926) which handles up to 22 inches.
