Description

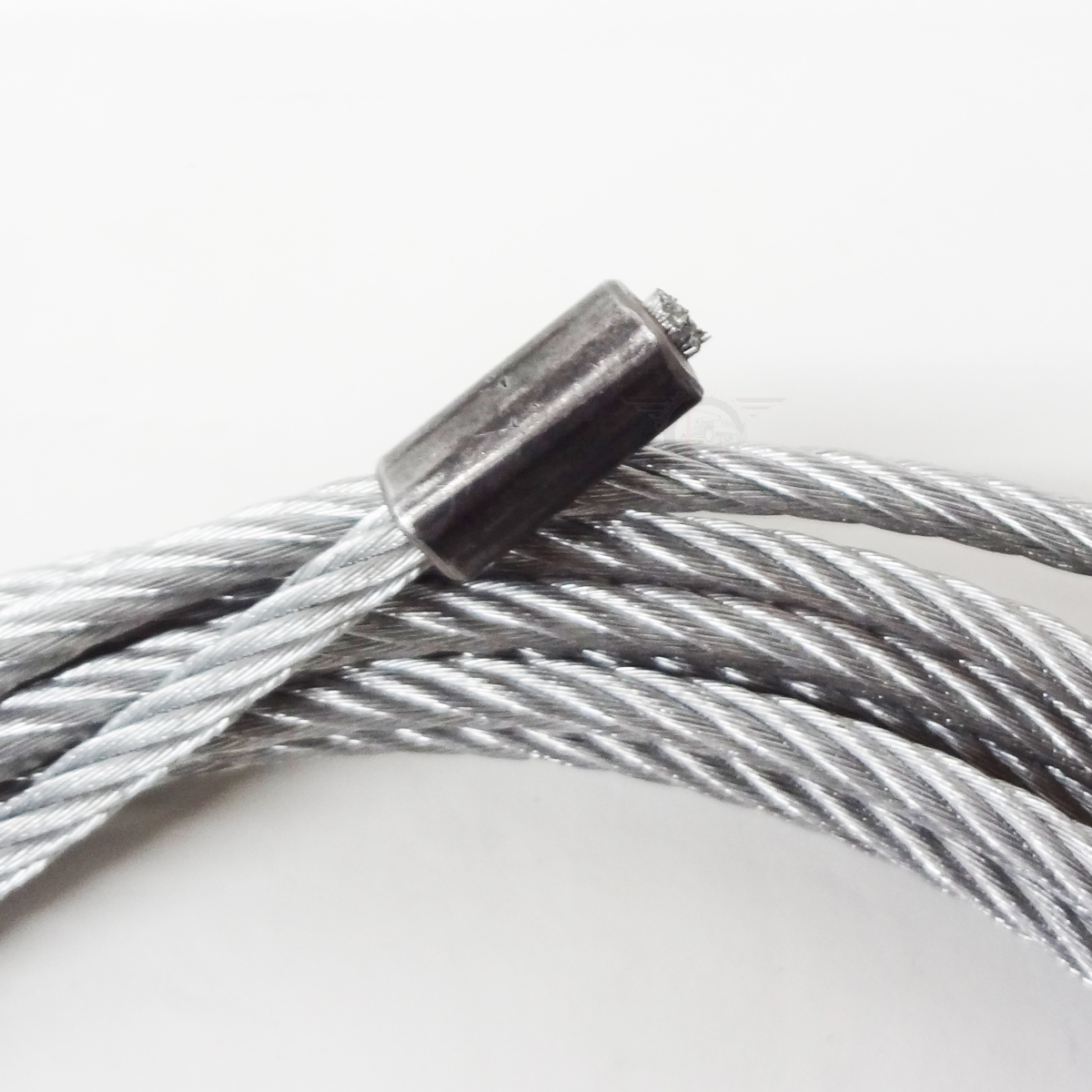

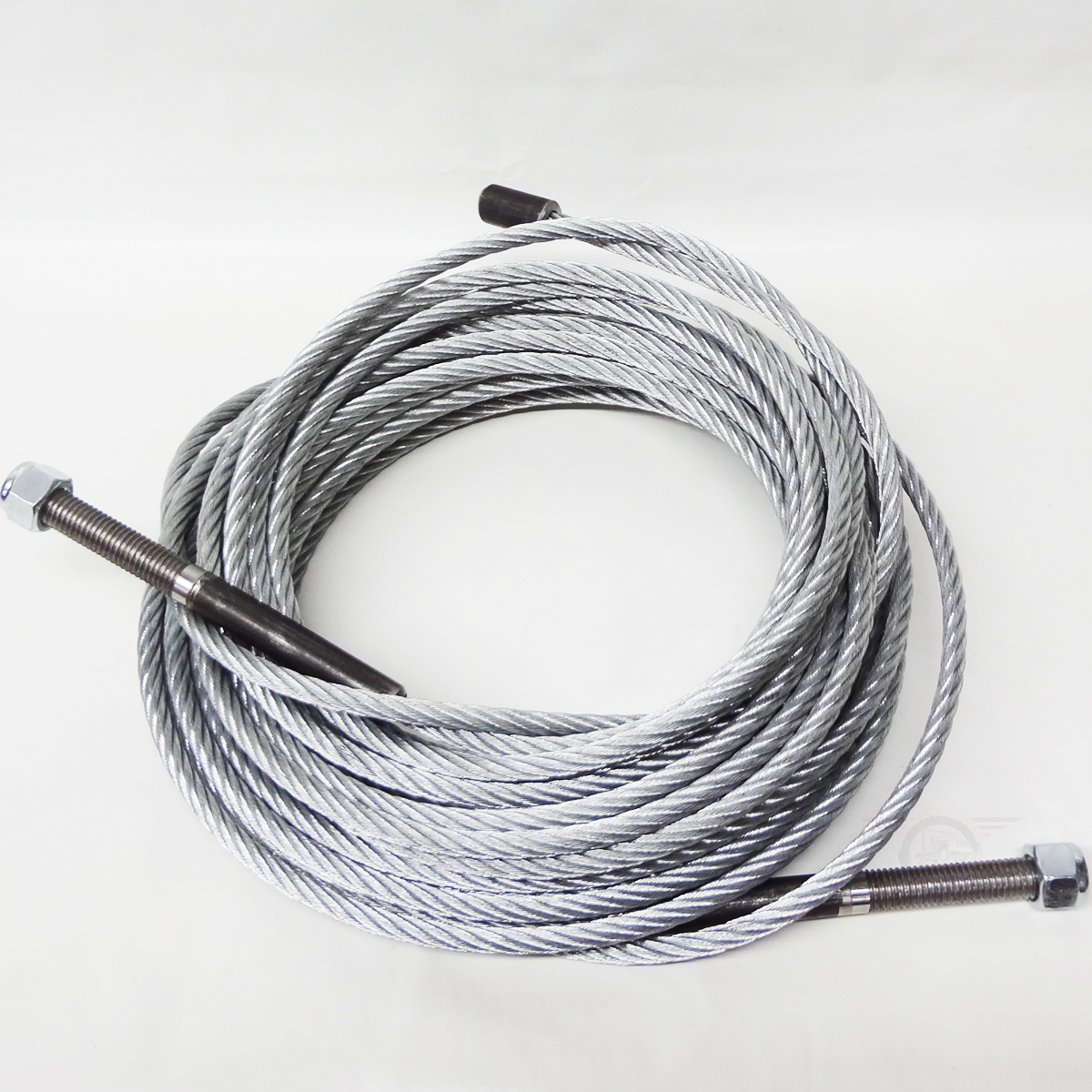

This is a Brand New Set of Cables for Ranger 2 Post Automotive Hoist. This includes 2 cables and Hardware.
THESE CABLES FIT LIFTS MADE IN 2003 OR LATER AND ARE MADE FOR STANDARD HEIGHT AND WIDTH LIFTS.(BENDPAK LIFTS OFFERED VARIABLE HEIGHTS AND WIDTHS) Bendpak lift model MX-10CX
Ranger Lift Model R2M-10CW
Magnum Lift Model MX-10CX
Ranger 5595515, BH-7479-53, 119918PLEASE DOUBLE CHECK THE FOLLOWING CRITERIA BELOW BEFORE ORDERING:
Make sure your lift is made in 2003 or later by locating the data tag on the power unit post of the lift and look at the production date.
Check the height of the columns on your lift , They should measure 12′-1″ (145″)
Check the outside width of the two columns including the base. Should measure 12′-1″ (145″)
The base foot plate on each column measures 17″ x 19″
Make sure the columns are facing each other and not turned facing the rear of the bay
If all Specification match the above information then the cables in this listing should fit your lift. If there are any Specs that are different from the above information or you need assistance with the measurements CALL 866-902-6060 These cables are high quality cables Made in the USA which have been pull tested for strength. They will meet or exceed factory specifications.
