Product Description

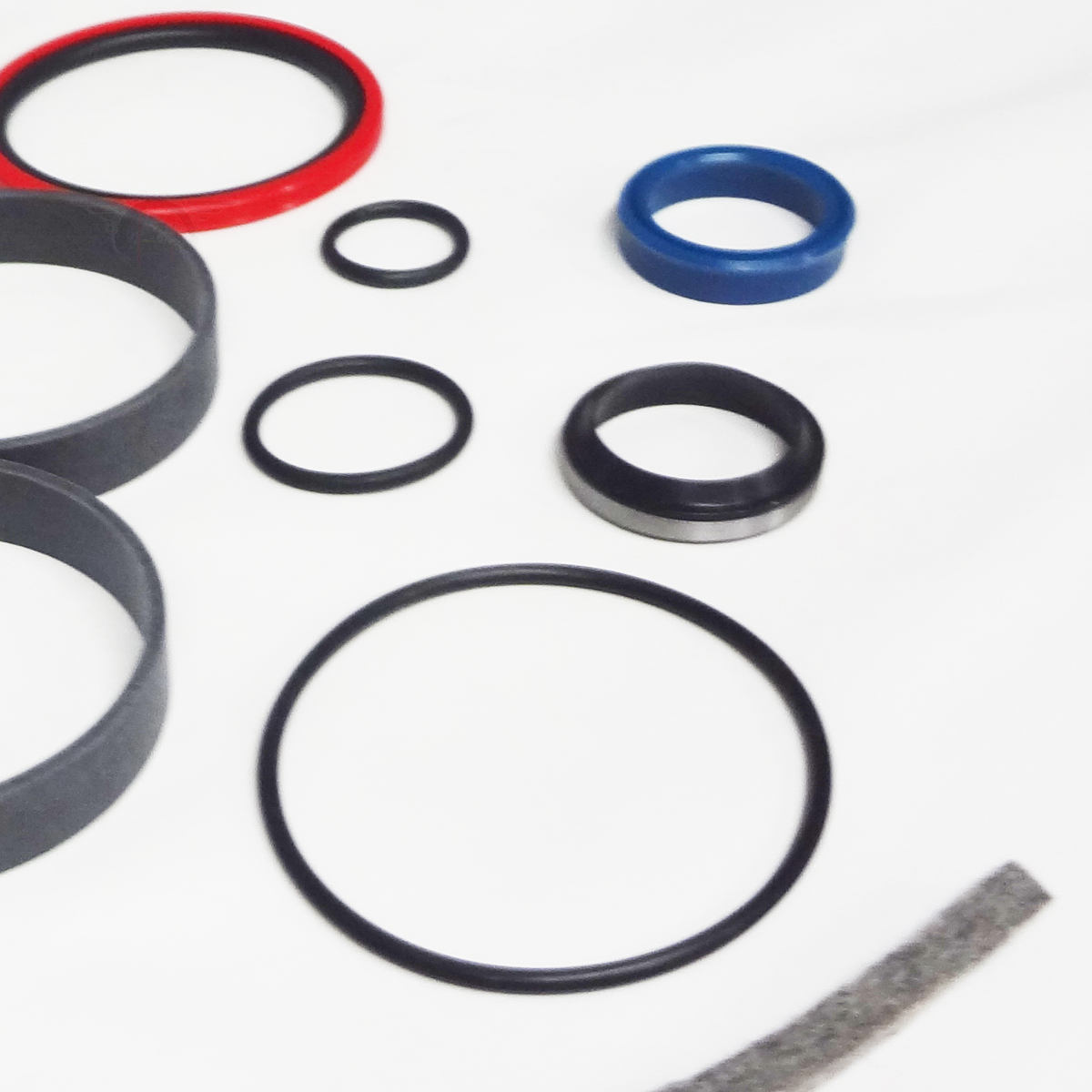

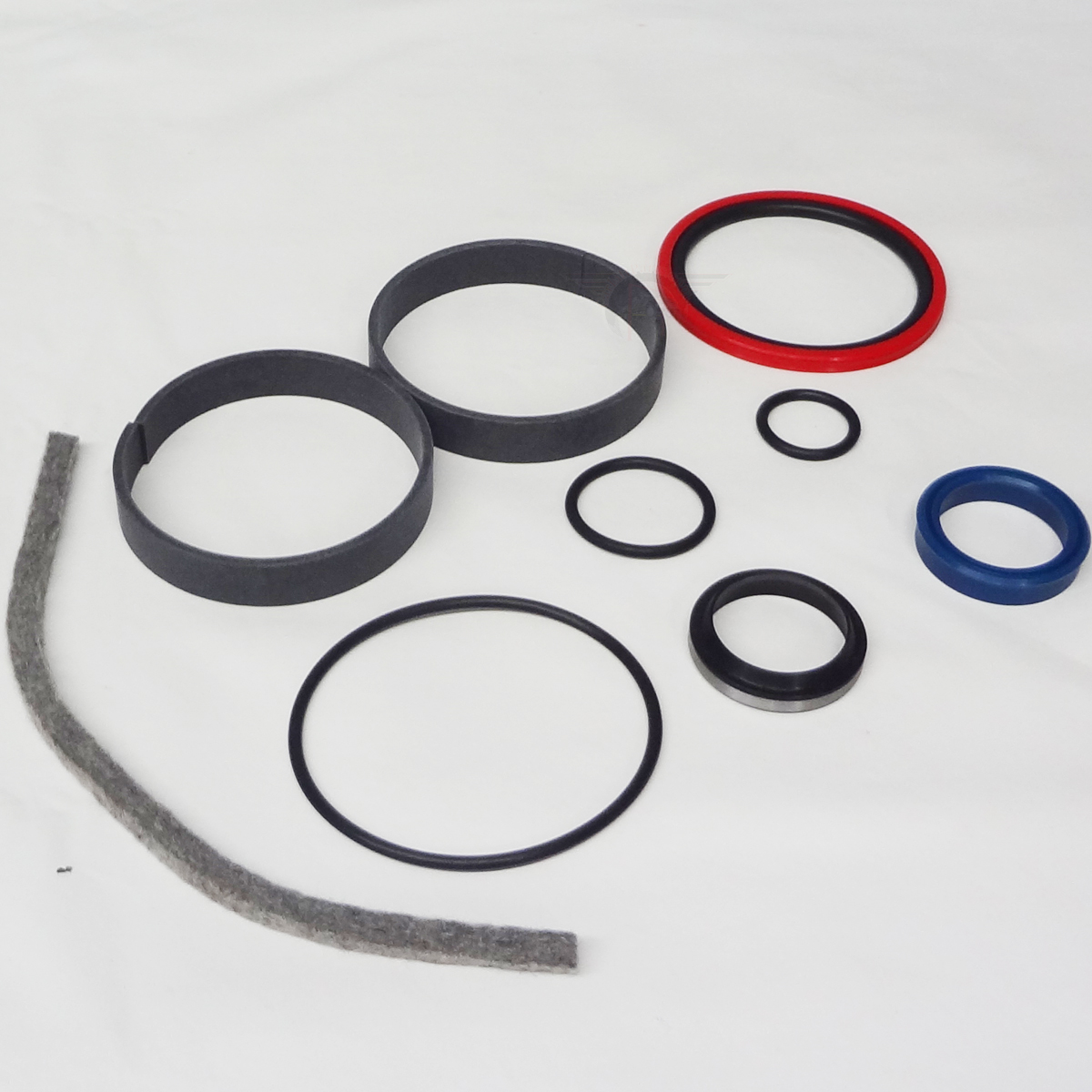

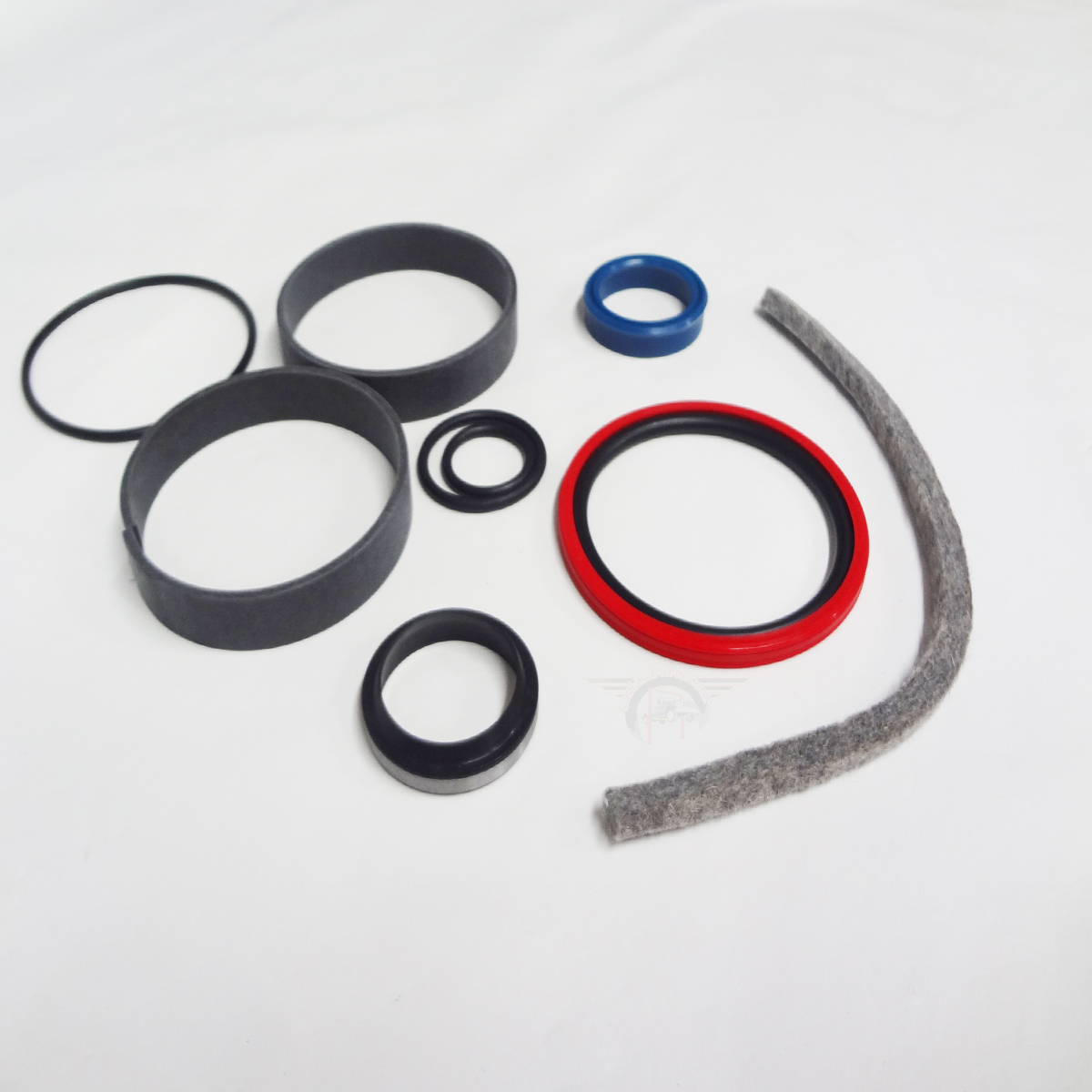

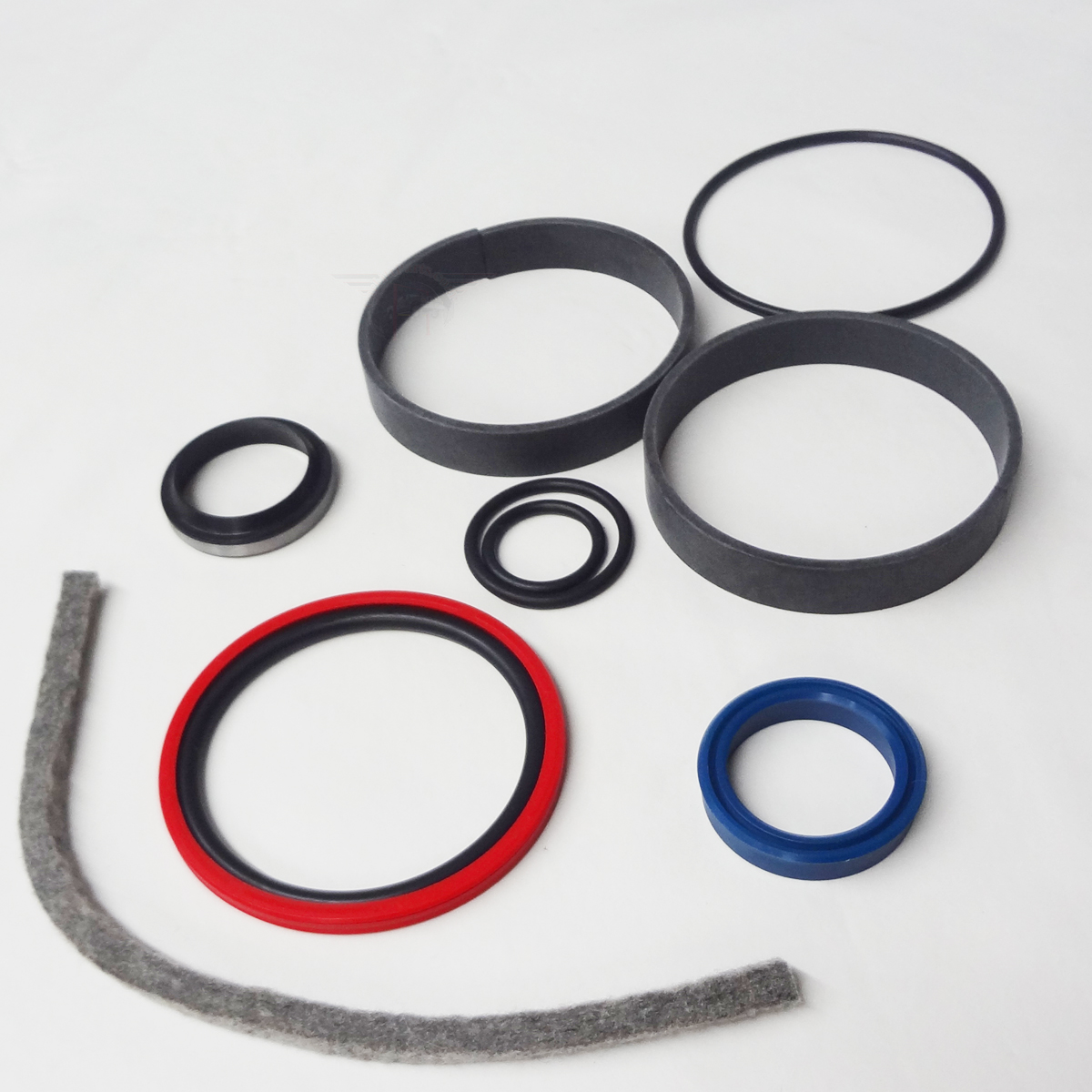

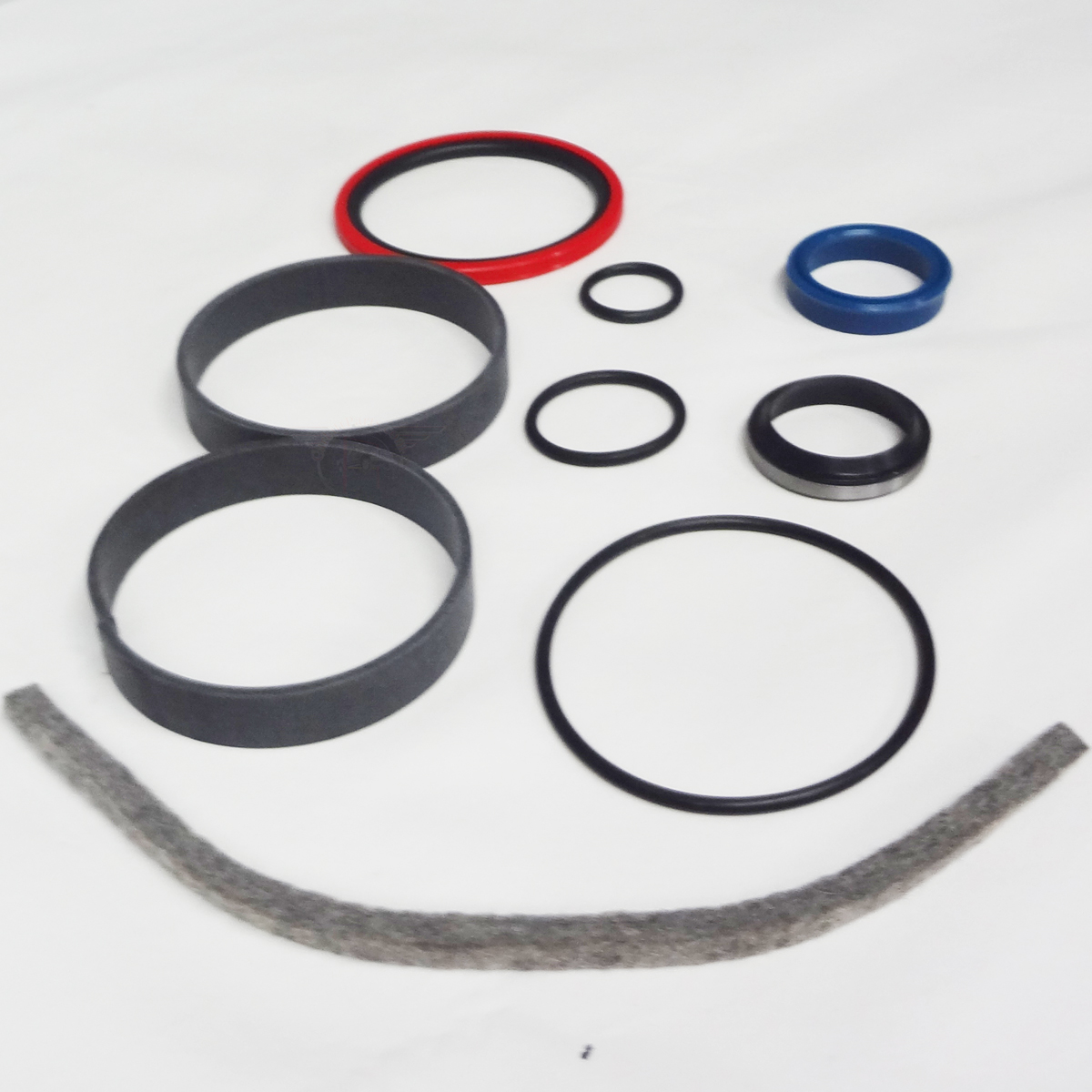

This cylinder rebuild kit fits many Rotary brand 4 post lifts rated for 12000 lb capacity. Its fits cylinder FC542 & FC5342 made by Pacoma for Rotary lifts. This kit includes all seals as well as wear bands and felt buffer rings to do a complete rebuild on your cylinder. Please see below for help identifying your cylinder to ensure seal fitment!

-HOW TO IDENTIFY YOUR CYLINDER IS A PACOMA

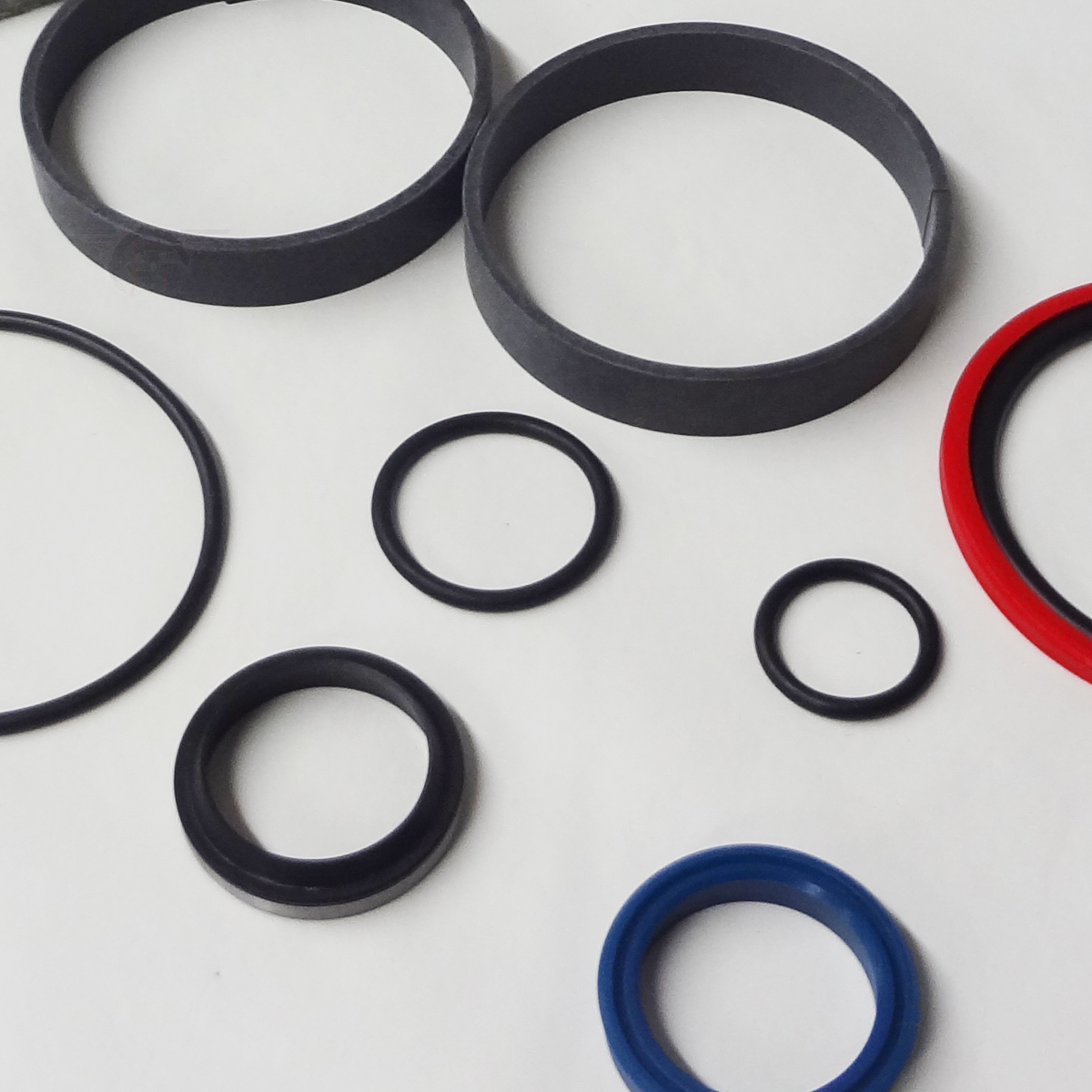

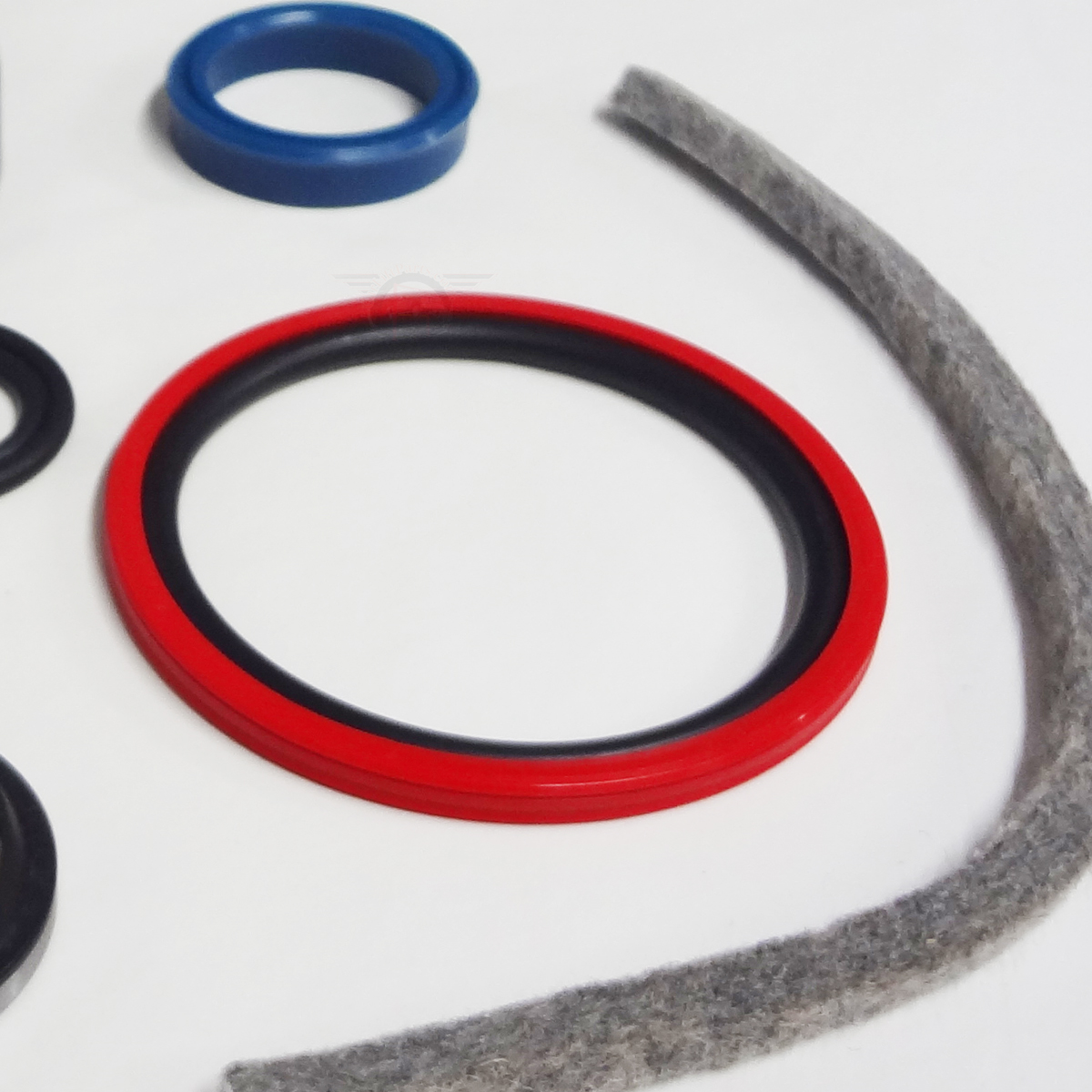

If your lift 4 post lift has a FC542 / FC5342 cylinder in it, It should be stamped on the Body / Barrel of the cylinder near the clevis end of the cylinder . The stampings you are looking for will read “FC5342”, OR “FC542” followed by the words “PACOMA” or Made in Germany”. This specify’s it being a Pacoma cylinder and this seal kit will fit your cylinder. This cylinder measures 74-5/16″ long from the center of the clevis pin hole to the end of the chrome shaft  when fully retracted.  If you have your cylinder apart already, compare your piston seal with the one pictured in the 3rd picture. Pacoma cylinders have distinctive RED double lipped seal on the piston. If you are still unsure if this seal kit will work for you, call our help hotline above and we will be glad to determine what seal kit you need.

This kit came in the following model lifts and may fit others as well
SM101, SM120, AR120, CWA120, SM121, AR121, QL4P, QLHV SM122, AR122, SMO123, ARO122, QL4P-100 QLHV-100, SM101-100

-HOW LONG DOES IT TAKE??
This kit usually takes less than an hour to install and can be done with a vice, pipe wrench and a few hand tools.

-WHAT THIS KIT WONT’ FIT!
If you see the numbers “FC-5797” or letters “TH” or “TX” or If you don’t see the words “pacoma” or “made in germany”  then your cylinder is not a Pacoma and this seal kit will NOT work with your lift but we offers those seal kits as well in our ebay store.  ALSO there is a universal rotary 2 post seal kit that fits all rotary 4 post with the listed model numbers and has noth style cylinder seals. Contact 866-902-6060 for universal kit.

Call our customer service hotline @ 866-902-6060 if you need help identifying which seal kit is best for you!

-RETURN POLICY ON SEAL KITS
Our seal kits come in a sealed clear bag. Warning! Do not open bag until your verify you have the right seal kit once your cylinder is torn down. Simply remove your old seals from your cylinder and match them up by holding them next to new seals in bag. If they appear similar inside and outside diameter then you have the correct seals. If your not sure please call us before opening the bag. We will not except returns from open /used seals because you didn’t verify fitment first.

Rotary Lift 4 Post Hydraulic Cylinder Seal Kit

Part Number # FC542-12MF

Alternate # fc5342, FC542, BH-7501-63, PACOMA

Found in Rotary Model # SM101, SM120, AR120, CWA120, SM121, AR121, QL4P, QLHV SM122, AR122, SMO123, ARO122, QL4P-100 QLHV-100, SM101-100

See Below for Fitment Information and Full Description
