Product Description

This is 1 seal kit that fits the hydraulic cylinders found in many NEWER Rotary 2 post above ground and inground lifts. It fits lifts with capacity between 7000 – 12000LBS

This seal kit will rebuild ONE cylinder if you need to rebuild both cylinders in your lift you will need TWO seal kits.

Replacement Rotary lift hydraulic cylinder seal kit rebuilds  THE NEWEST STYLE Pacoma / Massey Ferguson cylinders that rotary used through MOST RECENT YEARS OF PRODUCTION.

These seal kits were found in following Rotary models: SL29-300 , SL29-400 Thru -800 , SL212-400 Thru 1000 , SPOA7LC-400,  SPOA10-500 , SPO10-500 , SPOA7-300 Thru -700 , SPOA9-300 Thru -700 , SPO9-300 Thru -700 , SPOA10-300 Thru -700 , TLO7-300 Thru -500 , SPO12-310 Thru -710 , TLO7 300 Thru -500 , read below for important fitment details

-HOW TO IDENTIFY YOUR CYLINDER IS A NEW STYLE PACOMA CYLINDER AND N342-12 SEALS WILL WORK

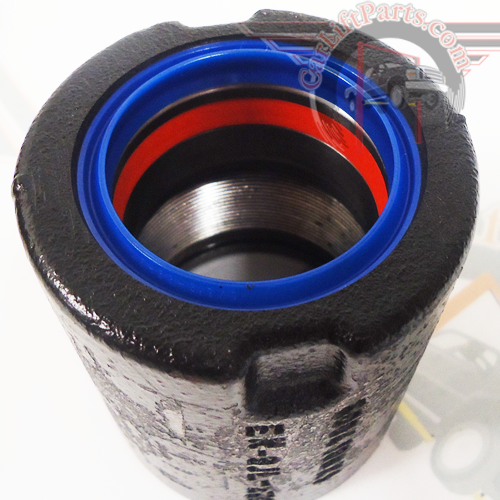

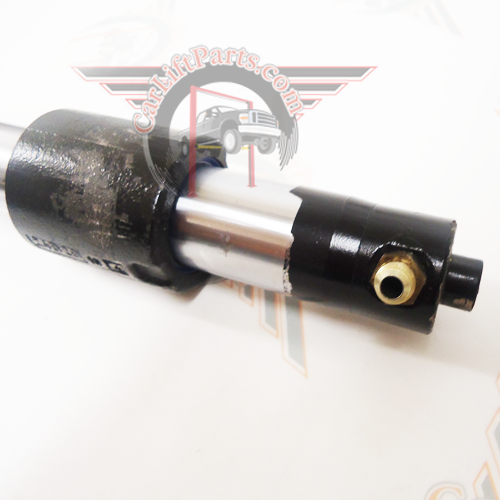

-Rotary’s newer style Pacoma cylinders have a large cast screw off type end gland on them (seen in pics 3-6). All the seals for this cylinder are located in this end gland. (note they may be dark red from being stained with ATF)

-Approximately 6″ from the bleeder screw on the top of the cylinder there is stampings. The n342-12 seal kit fits the following rotary part #s stamped in the cylinder casing –  N342 , N382 , N343 , N346 , N380. The cylinder will also be  stamped “5581” to help identify it as a pacoma .

*- be sure to verify that the overall stroke of the cylinder is 68″ as this separates this cylinder from other cylinders that were found in these model lifts. (STROKE IS THE DISTANCE THE CYLINDER TRAVELS FROM FULLY COLLAPSED TO FULLY RAISED)

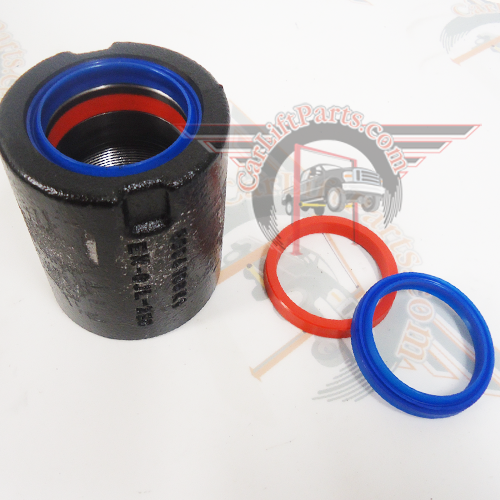

–If you have your cylinder apart already, compare your end gland seals with the one pictured above.

*If you are still unsure if this seal kit will work for you, call our help hotline at 866-902-6060 and we will be glad to determine what seal kit you need.*

-HOW LONG DOES A REBUILD TAKE??

This kit usually takes less than an hour to install and can be done with a vice, pipe wrench and a few hand tools.

    -WHAT THIS KIT WONT’ FIT!
If you see the words PANNI OR YANTI then your cylinder is not a Pacoma and this seal kit will NOT work with your lift but we offers those seal kits as well in our related products section below. If your cylinder stroke (distance the cylinder travels from fully raised to fully colpased) is 71″ then you need a different seal kit which is also available by call 866-902-6060.

Replacement Rotary Cylinder rebuild packing kit n342 N342 N382 N346 380e

Brand: ROTARY LIFT

Model #spoa7-300 spoa7-400 SPOA9- 300 SPOA9- 400 spoa10

Part # n342-12

See below for full product description and fitment details!
