Rotary Lift N481-1 Right-Hand Overhead for DL9 / DP10 / I10 Two-Post Lifts

Description

Rotary Lift N481-1 Right-Hand Overhead for DL9 / DP10 / I10 Two-Post Lifts

The N481-1 Right-Hand Overhead is listed for use on DL9 / DP10 / I10 Two-Post Lifts and is intended for service or repair of compatible Rotary Lift equipment. Match the reference part number, component description, and listed application to your original lift part before ordering.

Product Information

• Brand / Equipment: Rotary Lift
• Manufacturer / Reference Part Number: N481-1
• Store SKU: ROY4811
• Component: Right-Hand Overhead
• Listed Application: DL9 / DP10 / I10 Two-Post Lifts

Fitment & Ordering Notes

Automotive lift manufacturers may use different parts across model years, production runs, or equipment revisions. Before ordering, compare the reference part number and the model/application information in this listing with the identification tag, parts manual, or original component on your lift. If your equipment uses a different part number, verify interchange before installation.

Additional Existing Product / Fitment Information

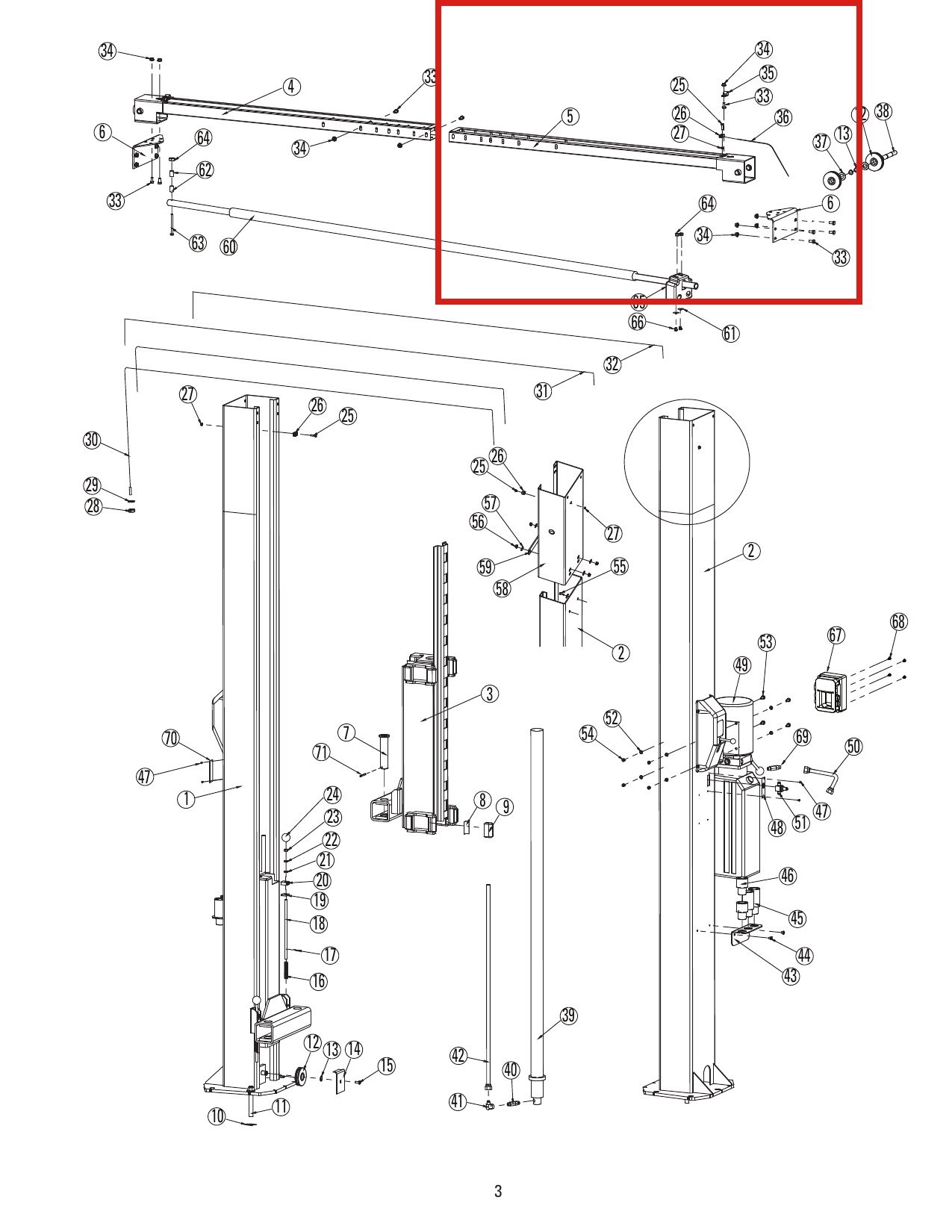

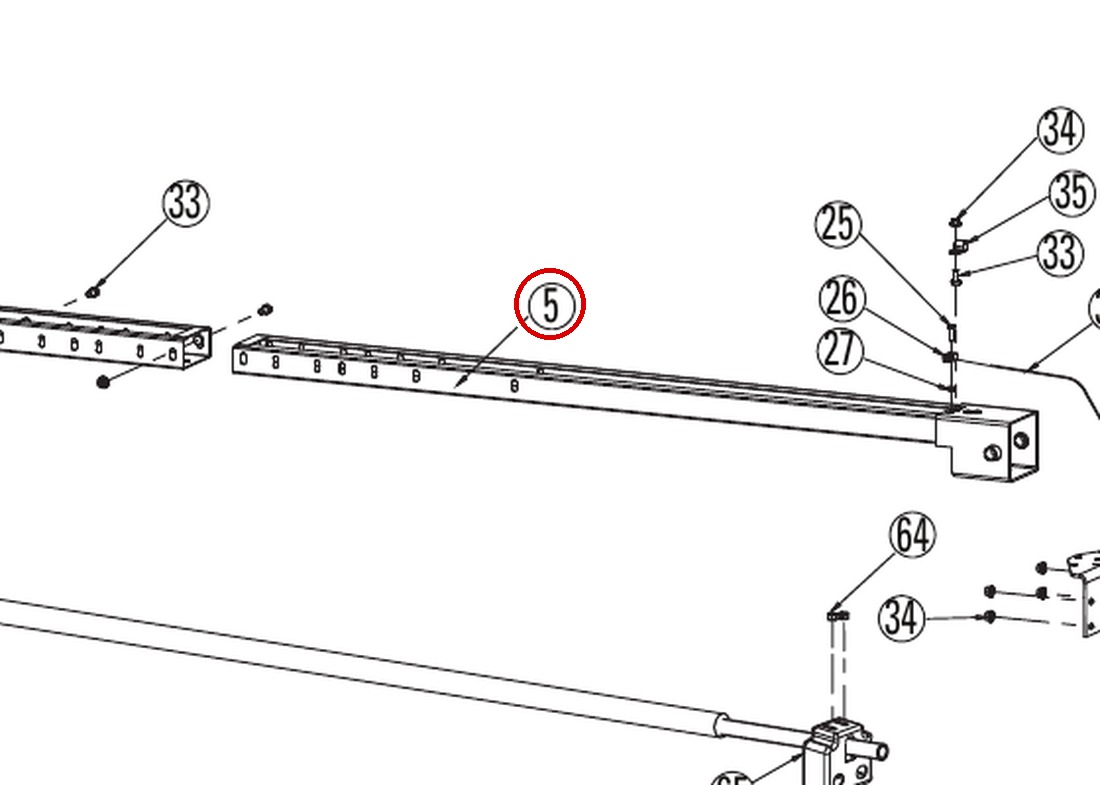

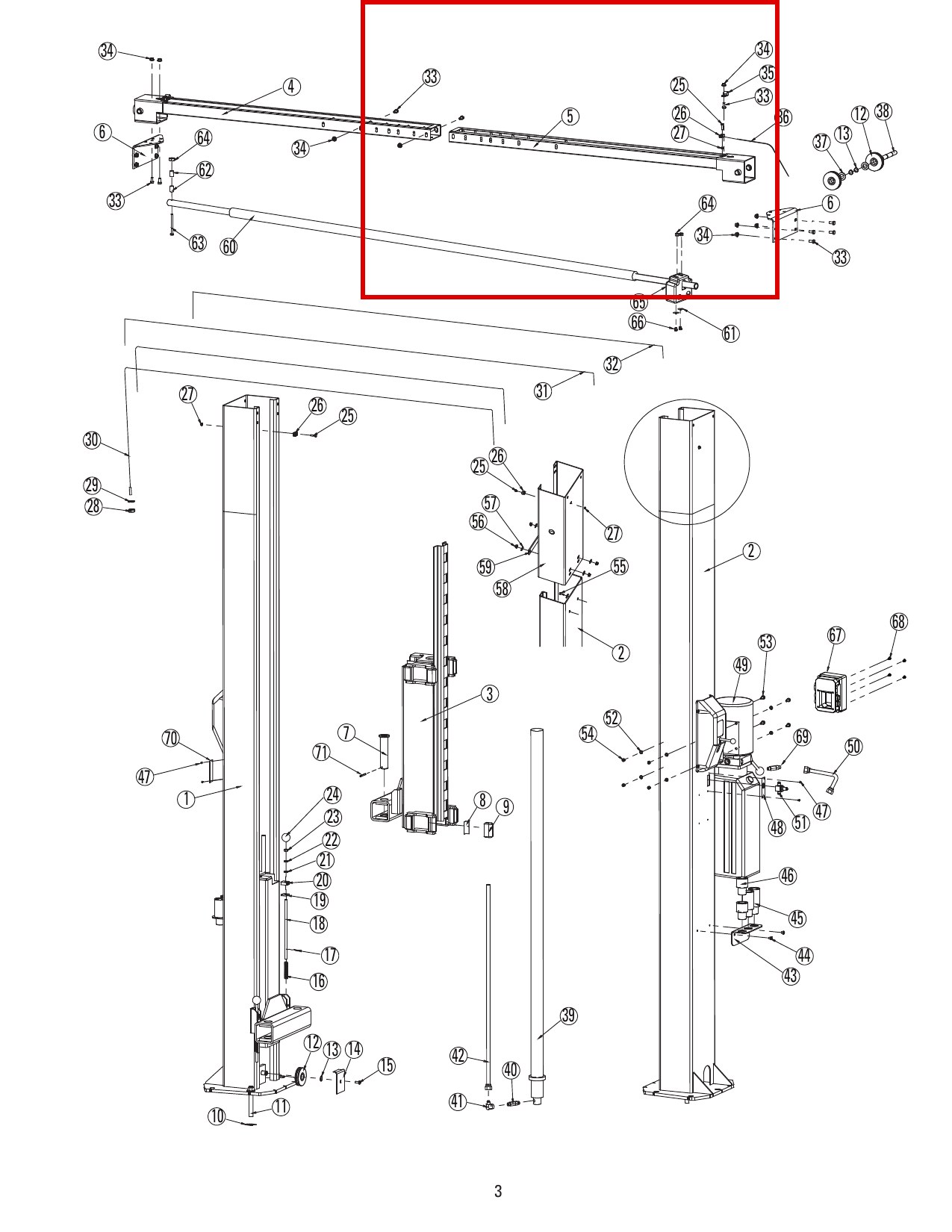

This is part number 5 in the drawing image above.

Fits the following lift models — part number N481-1 appears in the parts breakdown of each of these lifts: Rotary Lift DL9, DP10 (new style with lock covers), I10N000M.

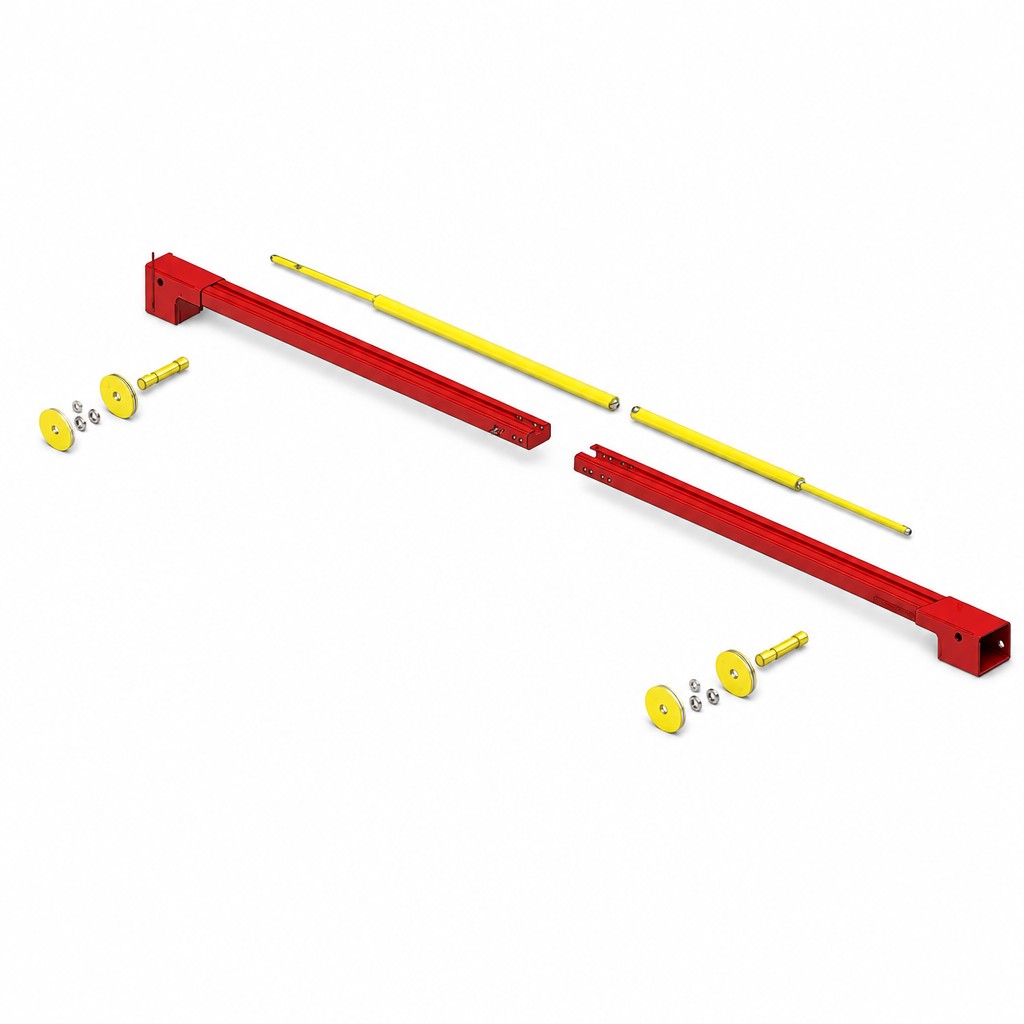

This right-hand overhead section joins the left-hand overhead to form the top beam spanning the two columns, carrying the overhead switch bar plus hydraulic hose and equalizer cable routing. Replace if bent, cracked or otherwise damaged.

Direct replacement per the factory parts breakdown for the listed models. Pairs with the L.H. overhead (N480-1); confirm orientation before ordering.

Cross-check part number: Rotary N481-1. This is a Rotary replacement part.

Fits these lifts:

• Direct Lift — DL9 (9,000 lb two-post)
• Hanmecson (VSG) — DL9
• Forward Lift — DP10 (new style with lock covers); I10 (I10N000M)
• Rotary Lift — interchange P/N N481-1
