CL10V3 Carriage and Arm ( 2 Stage Arm Version)

Drawing Number

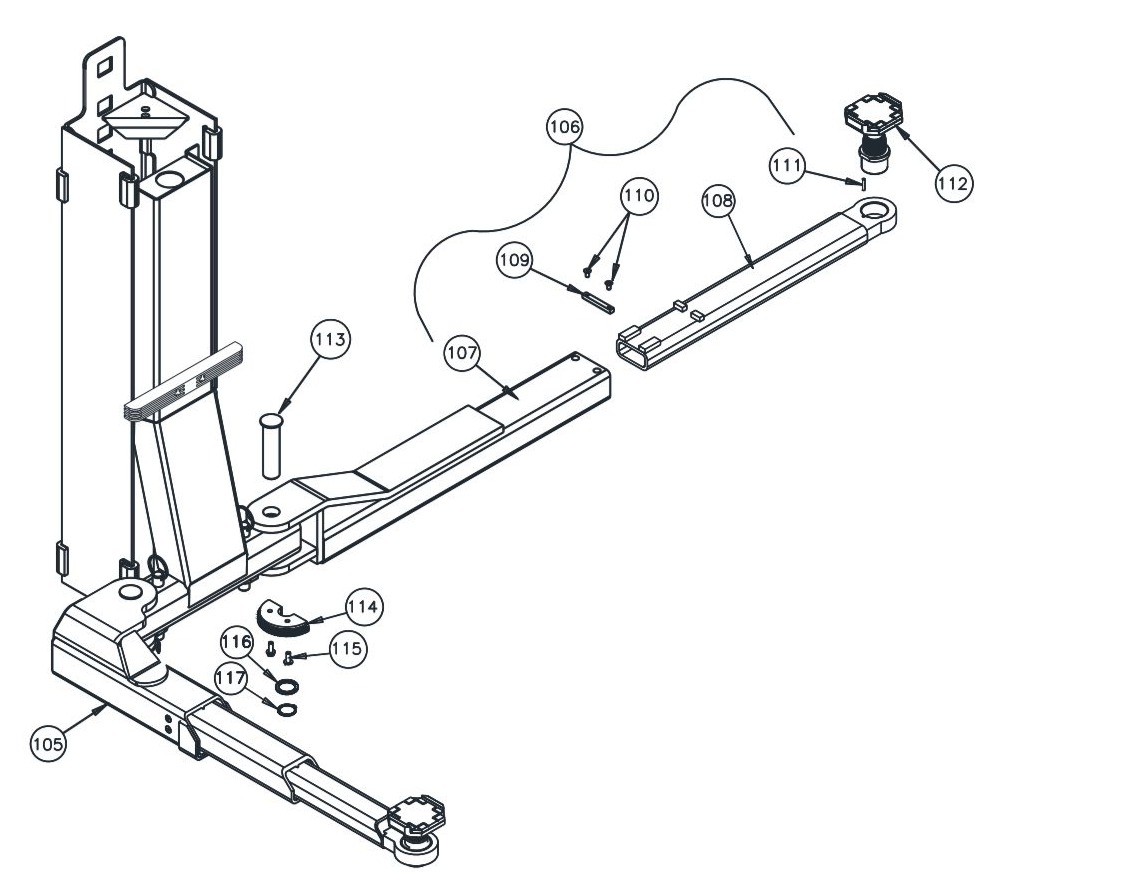

CL10V3 Carriage and Arm ( 2 Stage Arm Version)

Parts Description

14 Available Parts

105

Front 3-Stage Arm Assembly (power)

Front 3-Stage Arm Assembly (power)

$1,664.82

105

Front 3-Stage Arm Assembly (idler)

Front 3-Stage Arm Assembly (idler)

$1,620.79

106

Unnamed part

Unnamed part

—

Unavailable online – please call for availability.

107

Unnamed part

Unnamed part

—

Unavailable online – please call for availability.

108

Unnamed part

Unnamed part

—

Unavailable online – please call for availability.

109

Arm Stop

Arm Stop

$16.39

110

M8x1.25x16mm Lg. Flat Head Socket Capscrew

M8x1.25x16mm Lg. Flat Head Socket Capscrew

$2.63

111

Roll Pin, 6mm DIA x 30mm Lg.

Roll Pin, 6mm DIA x 30mm Lg.

$1.30

112

Foot Pad Assembly

Foot Pad Assembly

$161.79

113

Arm Pin Weld

Arm Pin Weld

$34.10

114

Inner Gear, Beveled

Inner Gear, Beveled

$66.98

115

M10x1.5x25mm Lg. HEX Flange Head Bolt

M10x1.5x25mm Lg. HEX Flange Head Bolt

$3.17

116

39mm ID, 51mm OD Washer

39mm ID, 51mm OD Washer

$3.58

117

38mm External Retaining Ring

38mm External Retaining Ring

$3.17
