Description

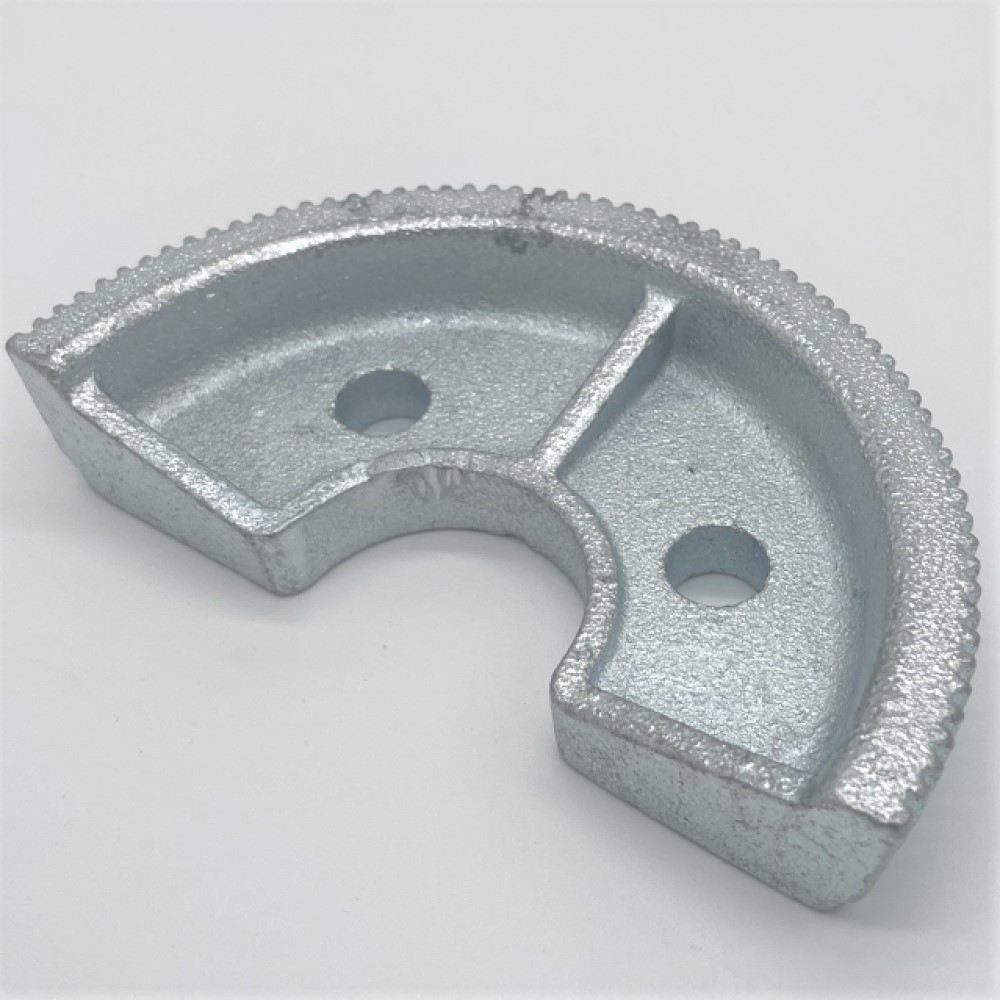

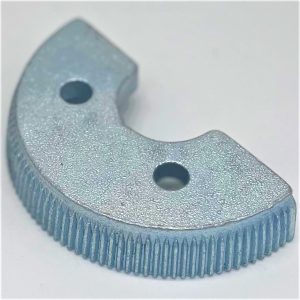

Challenger A1070TC Inner Arm Restraint Moon Gear for CL9 and CL10 2-Post Lifts
The arm restraint system on 2-post lifts locks the swing arms in position under the vehicle during lifting. The inner (moon) gear mounts to the arm and engages with the outer plunger gear to create this lock. The A1070TC is the upgraded-style gear featuring angled (beveled) teeth for improved engagement. If your arms sag slightly, this gear allows full engagement without requiring new arms or carriages (unless excess sag has occurred). Important: if you are replacing old-style straight-tooth gears with this beveled-tooth version, you must also replace the outer plunger gear (A1072TC) at the same time – they are a matched set and will not function correctly if mixed with old-style gears.
Product Information
- Brand / Equipment: Challenger 2-Post Lift
- Manufacturer / Reference Part Number: A1070TC
- Store SKU: CHR070TAMS
- Component: Inner Arm Restraint Gear / Half-Moon Gear (1 gear per listing)
- Bore Size: 1 in
- Material: Cast steel
- Tooth Style: Upgraded angled/beveled cut (improved engagement)
- Listed Application: Challenger CL9, CL10, CL10-V3, CLFP9; Ammco S21NS, AC21NS; Magnum OE-10; ADG TC2P10
Compatible Makes / Verified Fitment Models
- Challenger CL9
- Challenger CL10
- Challenger CL10-V3
- Challenger CLFP9
- Ammco S21NS
- Ammco AC21NS
- Magnum OE-10
- ADG TC2P10
Replacement / Cross-Reference Numbers
- Challenger OEM Part Number: A1070TC
- Store SKU: CHR070TAMS
Fitment & Ordering Notes
This is the upgraded beveled-tooth inner gear. If your lift has old-style straight-tooth gears, order the outer plunger gear A1072TC together with this part – they must be replaced as a matched set. A complete lift requires 4 sets (8 gears total) for all arm positions. See related products for the outer plunger gear. Call 866-902-6060 for assistance.
