Description

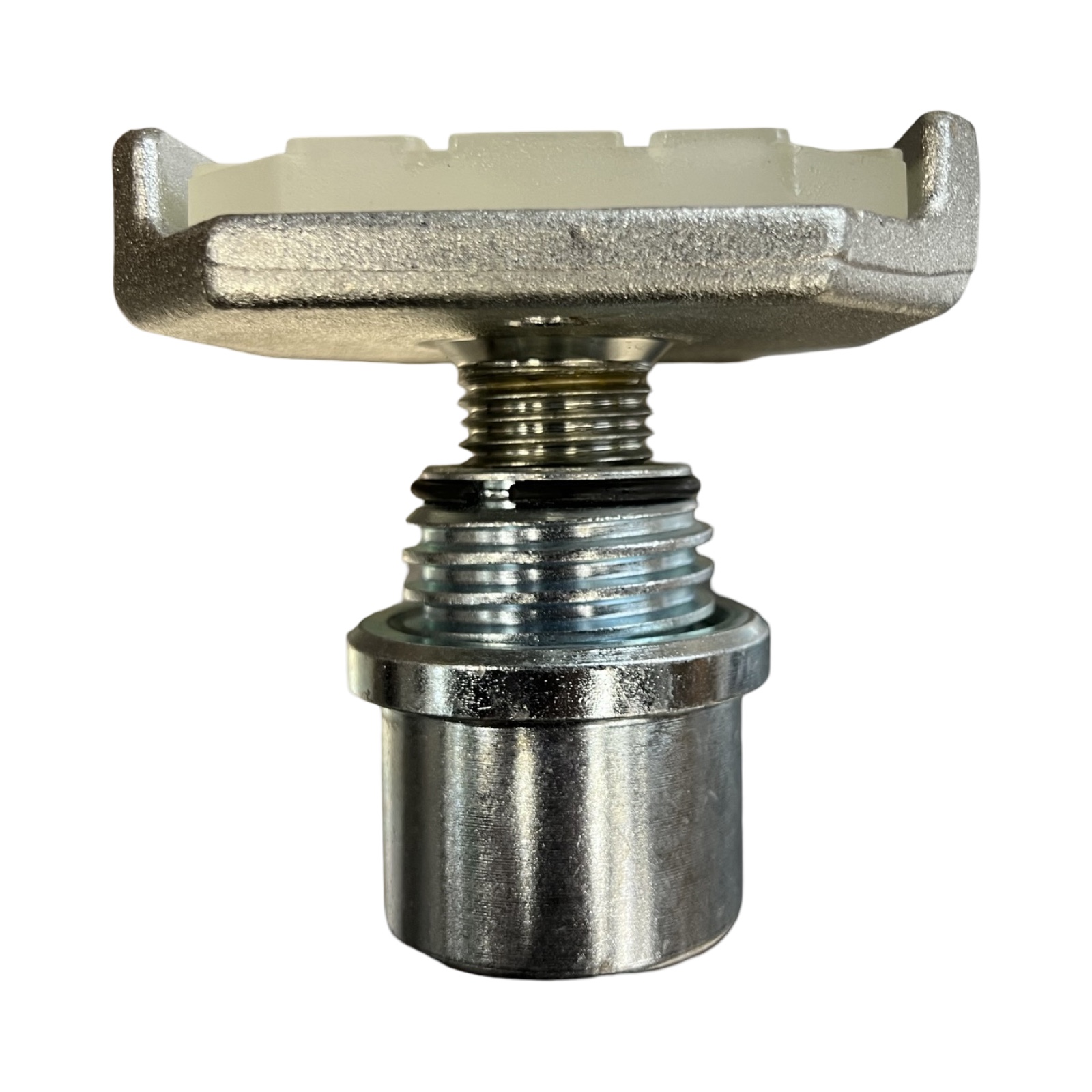

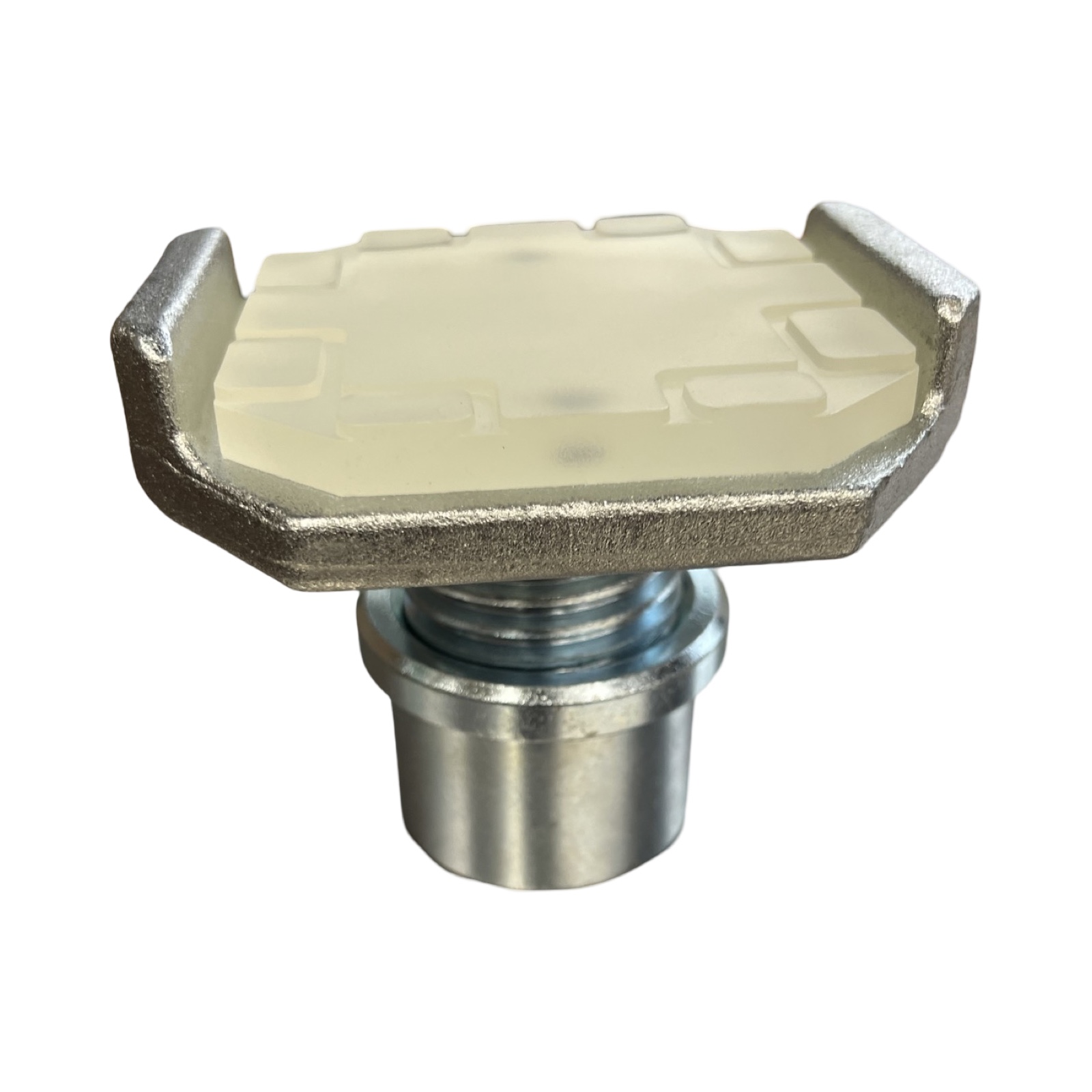

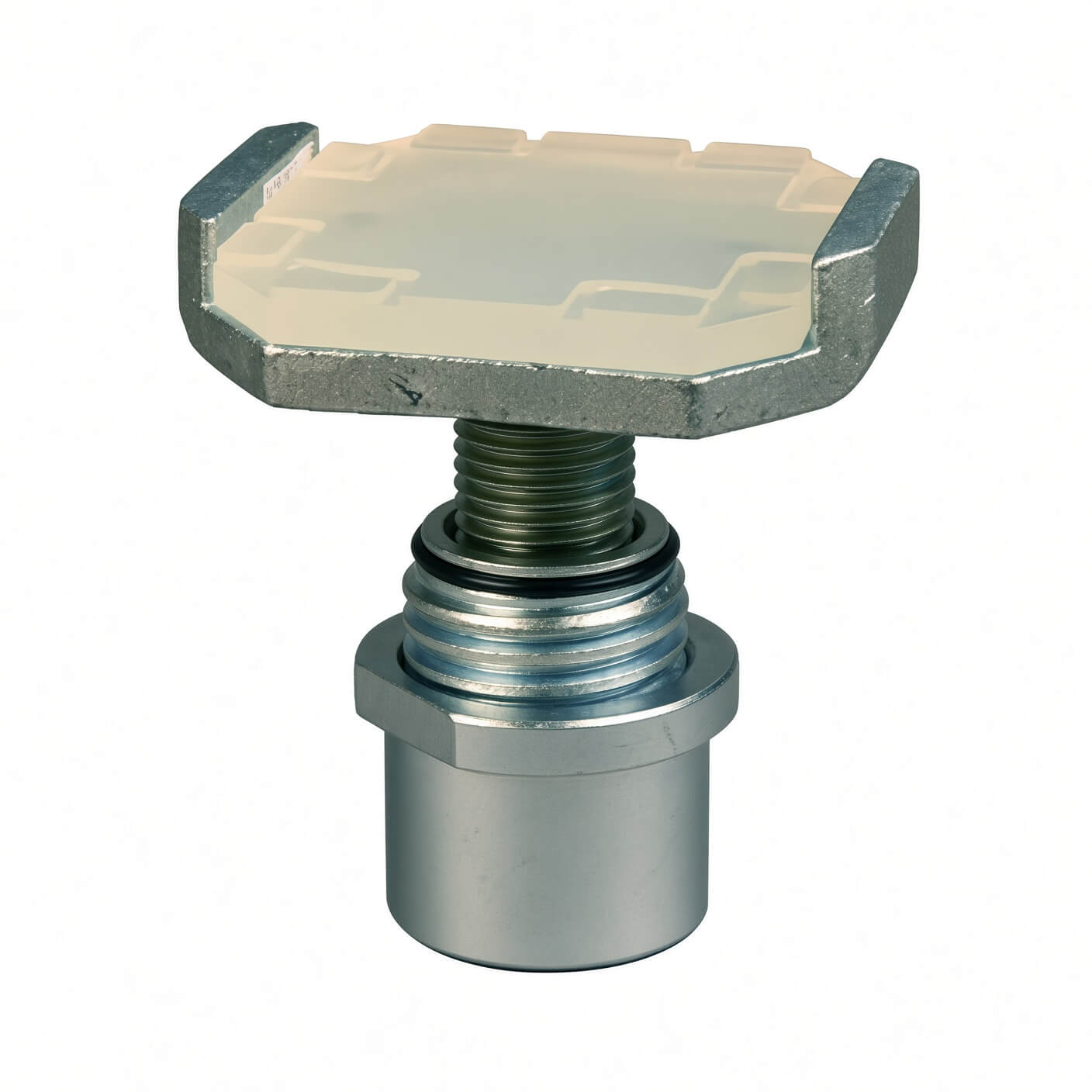

Challenger Lift B2270 Screw-Up Drop-In Arm Adapter with Rubber Pad – 2.36″ OD
Replace worn or damaged drop-in arm pad adapters on your Challenger 2 post or inground lift. This screw-up style weldment drops into 2.36″ diameter arm holes and adjusts with two sets of threads to accommodate different vehicle heights – screw fully down for low vehicles, extend for taller vehicles or trucks. Verify your arm hole diameter is 2.36″ before ordering.
Product Information
- Brand / Equipment: Challenger Lift
- Manufacturer / Reference Part Number: B2270
- Store SKU: CHR2270
- Component: Screw-Up Drop-In Arm Pad Adapter (Round Weldment)
- Drop-In Outer Diameter: 2.36″ (60mm)
- Upper Flange Outer Diameter: 2.747″ (69.78mm)
- Threads: Two sets of threads for adjustable height range
- Kit Includes: (1) Screw-Up Round Weldment, (1) Clear Rubber Pad
- Listed Application: Challenger, Accuturn, Ammco, Quality Lift, Snap-on, John Bean, Hofmann 2 post and inground lifts with 2.36″ diameter arm holes
Compatible Makes / Verified Fitment Models
- Challenger Lift: CL10, CLFP9, E10, LE10, VLE10, EV1020 (2.36″ diameter arm holes)
Replacement / Cross-Reference Numbers
- Challenger Lift: B2270 (replaces B2250, B2260)
Fitment & Ordering Notes
Verify your arm hole diameter is 2.36″ before ordering. This adapter fits lifts manufactured by Challenger Lift. Accuturn (2A10, 2S10), Ammco (AC21NS), Quality Lift (Q10), and Snap-on / John Bean (EELR532A, EELR731A, EELR537A) lifts built by Challenger with 2.36″ arm holes may also accept this adapter – check the ID tag on your lift to confirm. Inground Challenger / Ammco models CS1020WV, CS1220, CS1520 are also listed. Height extensions are available separately for truck frames and running boards.
Additional Product Information

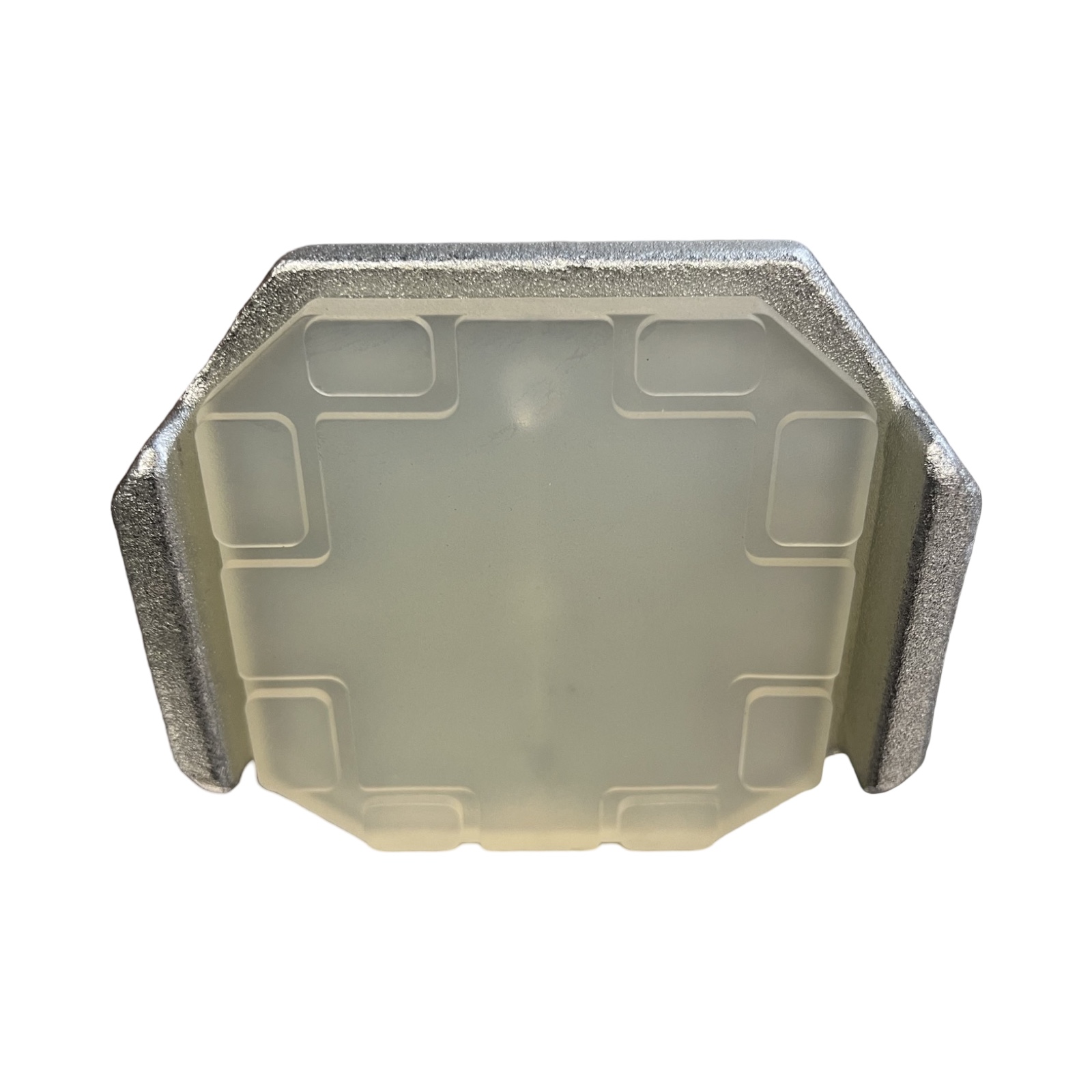

The included clear rubber pad is designed to outlast original wrap-around style pads. Metal side edges help prevent vehicles from slipping off the adapter during service.
