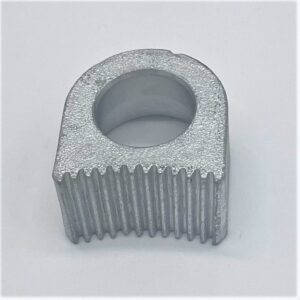

Challenger A1072TC Arm Lock Plunger Outer Gear (Cast) for 2-Post Lifts
Replace a worn or damaged arm restraint plunger outer gear to restore proper arm lock function on your Challenger 2-post lift. This cast outer gear engages the arm lock system when the lift’s arm contacts the restraint mechanism. The A1072TC is the upgraded tapered-tooth version; when upgrading from the older straight-tooth style, the inner moon gear (A1070TC, sold separately) must also be replaced so the gears mesh properly.
Product Information
- Brand / Equipment: Challenger, Ammco, Magnum, ADG
- Manufacturer / Reference Part Number: A1072TC (replaces A1072)
- Store SKU: CHR072T
- Component: Cast arm restraint plunger outer gear (swing arm gear)
- Listed Application: Arm restraint / arm lock system on Challenger, Ammco, Magnum, and ADG 2-post lifts
Compatible Makes / Verified Fitment Models
- Challenger: CLFP9, CL9, CL10, CL10V3, CL12, CL12A
- Ammco: S21NS, AC21NS
- Magnum: OE-10
- ADG: TC2P10
Parts Diagram & Manual Reference
- Item Number 67 from the Challenger CL10 parts breakdown diagram
Fitment & Ordering Notes
New part number A1072TC replaces old number A1072. If replacing older straight-tooth gears, you must also replace the inner moon gear (A1072TC pairs with inner moon gear A1070TC, sold separately) – new-style tapered gears do not mesh with old-style straight gears. Contact us at (866) 902-6060 with questions.
All brand names and part numbers are used for reference and identification purposes only. This is an aftermarket alternative part; it is not produced by the original equipment manufacturer.
