Description

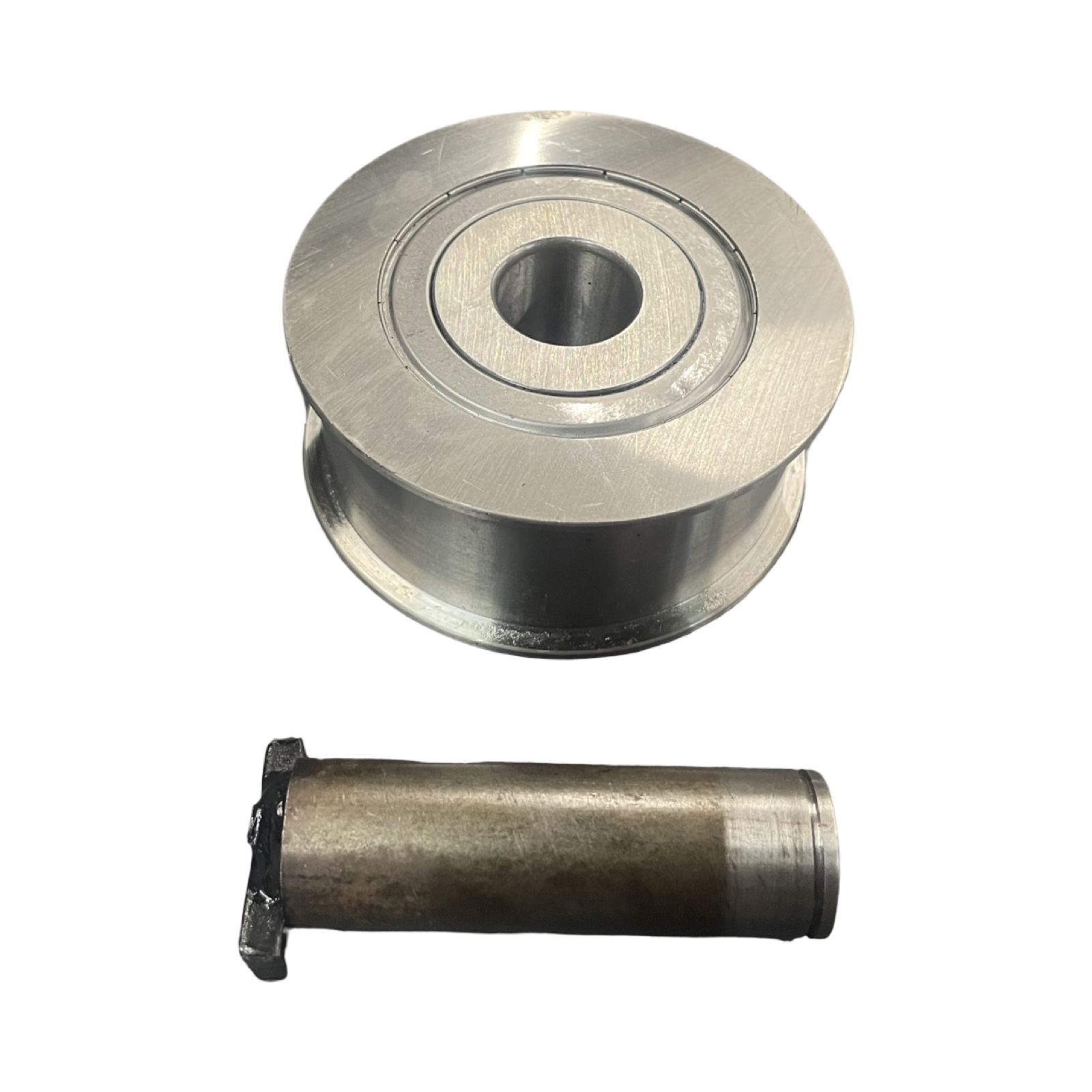

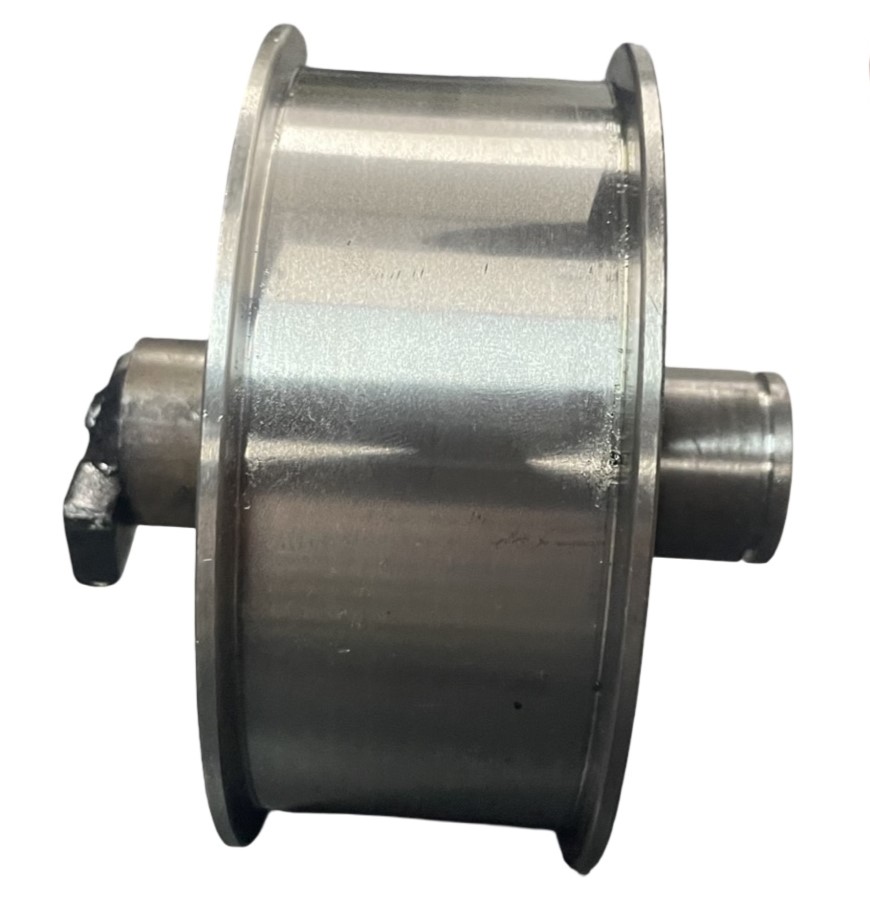

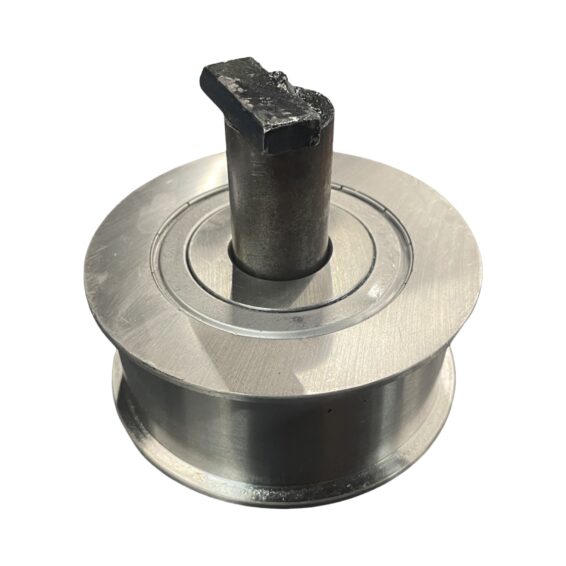

4"x1" Roller and Pin Kit for Chain-Over Style 2-Post Lift Cylinders
This replacement roller and pin kit is designed for chain-over style hydraulic cylinders found on many brands of 2-post above-ground automotive lifts. In a chain-over cylinder design, the hydraulic piston does not directly push the lift arms; instead, a roller mounted at the top of the piston rides against a chain, using mechanical advantage to extend the lifting range from a shorter cylinder stroke. Over time, the roller and its retaining pin are subject to wear from constant chain contact and hydraulic pressure, making this kit an essential service item when the cylinder develops slop, noise, or uneven lift travel.
The kit measures 4 inches in diameter by 1 inch wide and is compatible with Texas Hydraulics cylinders (look for a "T" or "TXT" stamp on the cylinder body) as well as similar chain-over cylinders used across multiple lift brands. Texas Hydraulics cylinders are widely used as OEM components in many private-label and branded 2-post lifts.
Product Information
- Brand / Equipment: For use on American Lift, Eagle, Forward, Grand, Western Worth Auto lift, and other brands using chain-over style cylinders
- Manufacturer / Reference Part Number: None identified; listed under store SKU only
- Store SKU: ALS0401
- Component: Replacement 4"x1" roller and pin kit for chain-over hydraulic cylinder
- Key Specs: 4 inch diameter x 1 inch wide roller with retaining pin
- Cylinder Type: Chain-over style (Texas Hydraulics and compatible)
- Lift Capacity: 7,000, 9,000, 10,000, and 11,000 lb capacity lifts
- Listed Application: 2-post above-ground lifts; fits both base plate and overhead models
Compatible Brands / Listed Fitment
- American Lift
- Eagle
- Forward
- Grand
- Western Worth Auto lift
- Other brands using Texas Hydraulics or equivalent chain-over cylinders
Fitment and Ordering Notes
This kit is specifically for chain-over style cylinders only. Chain-over cylinders can often be identified by the roller or sprocket visible at the top of the hydraulic piston where it contacts the lift chain. Direct-acting cylinders (where the chain attaches to the carriage without a roller) require different components.
- Verify your cylinder is chain-over style before ordering
- Texas Hydraulics cylinders can be identified by a "T" or "TXT" stamp on the cylinder body
- Fits 7k, 9k, 10k, and 11k lb capacity 2-post lifts
- Compatible with both base plate (floor plate) and overhead (drive-through) 2-post lift configurations
- If unsure of compatibility, compare your existing roller diameter and width before ordering
Additional Product Information
- Quantity: 1 roller and pin kit per order
- Found on many private-label lift brands sourced from common OEM cylinder suppliers
- Replacing a worn roller and pin restores proper chain engagement and smooth, even lifting operation
