Description

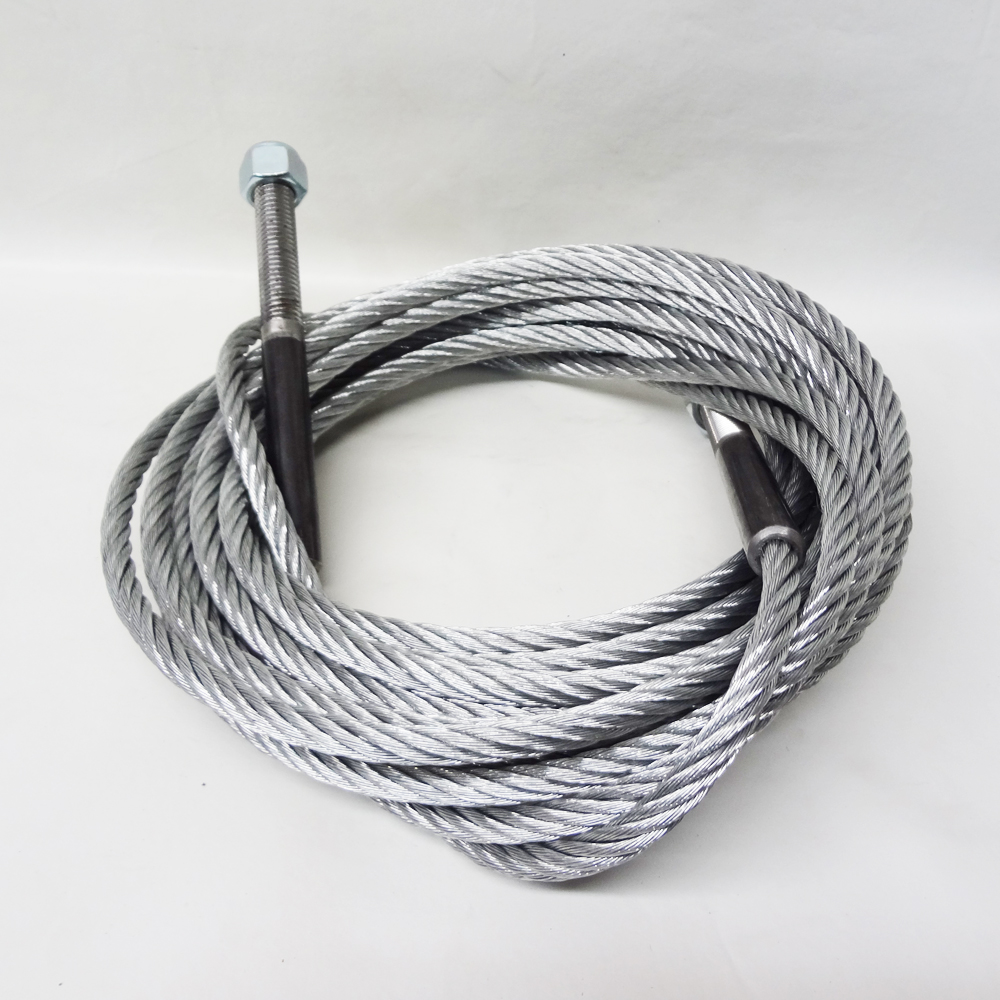

Challenger JSJ5-04-00CHH Equalizer Cable for E10, LE10 2-Foot Extended Height 2-Post Lift
The equalizer cable on a 2-post lift keeps both carriages at the same height throughout the lift cycle, preventing dangerous tilting and ensuring even weight distribution across all four arms. The JSJ5-04-00CHH is a longer cable specifically sized for the 2-foot extended height version of the Challenger E10 and LE10, which have 167-inch columns. It is not interchangeable with the standard-height or 3-foot extended cables. Inspect cables regularly for fraying, kinking, or corrosion, and always replace both cables at the same time to maintain matched tension and even wear.
Product Information
- Brand / Equipment: Challenger Lifts
- Manufacturer / Reference Part Number: JSJ5-04-00CHH
- Store SKU: CHR00CHH
- Component: 2-Post Lift Equalizer Cable (Wire Rope)

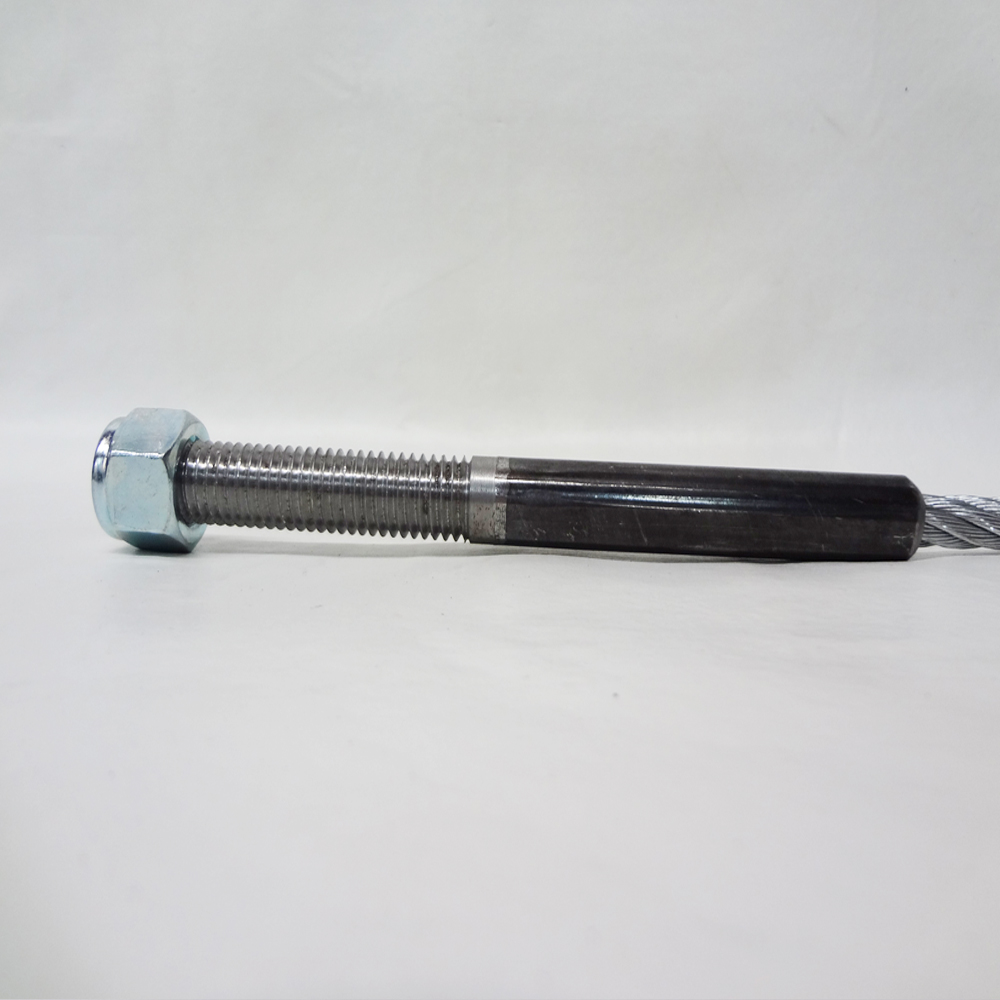

- Thread Stud: 5/8-11 (both ends)
- Material: Galvanized Steel
- Column Height: 167 in (2-foot extended version)
- Listed Application: Challenger E10, LE10 2-foot extended height with 167-in columns and serial numbers starting with 0805 or higher (May 2008 or later)
Compatible Makes / Verified Fitment Models
- Challenger E10EH2 (2-foot extended height, serial number 0805 and higher)
- Challenger LE10EH2 (2-foot extended height)
- Challenger VLE10EH2 (uses interchangeable part L5-04-00CHH per manufacturer)
Replacement / Cross-Reference Numbers
- L5-04-00CHH (physically identical per Challenger factory for VLE10 extended models)
Fitment & Ordering Notes
This cable is for the 2-foot extended height version of the E10 and LE10 only – columns must measure 167 inches. Serial numbers must begin with 0805 or higher (first two digits are year, second two are month, so 0805 means May 2008 or later). If your serial number is 0804 or lower, you need a different cable. The serial number is on the ID tag on the column of the lift – not on the motor. We recommend replacing both equalizer cables at the same time.
