Direct Lift 30400-8000-X Symmetric Swing Arm (New Middle Arm) for HR8000 & 8K 2-Column Lifts

Description

Direct Lift 30400-8000-X Symmetric Swing Arm (New Middle Arm) for HR8000 & 8K 2-Column Lifts

Repair or service the applicable lift assembly with the 30400-8000-X Symmetric Swing Arm (New Middle Arm), listed for use on HR8000 & 8K 2-Column Lifts. Use the reference part number and listed Direct Lift application to compare against the original component before ordering.

Product Information

• Brand / Equipment: Direct Lift
• Manufacturer / Reference Part Number: 30400-8000-X
• Store SKU: DIT8000X
• Component: Symmetric Swing Arm (New Middle Arm)
• Listed Application: HR8000 & 8K 2-Column Lifts

Fitment & Ordering Notes

Automotive lift manufacturers may use different parts across model years, production runs, or equipment revisions. Before ordering, compare the reference part number and the model/application information in this listing with the identification tag, parts manual, or original component on your lift. If your equipment uses a different part number, verify interchange before installation.

Additional Existing Product / Fitment Information

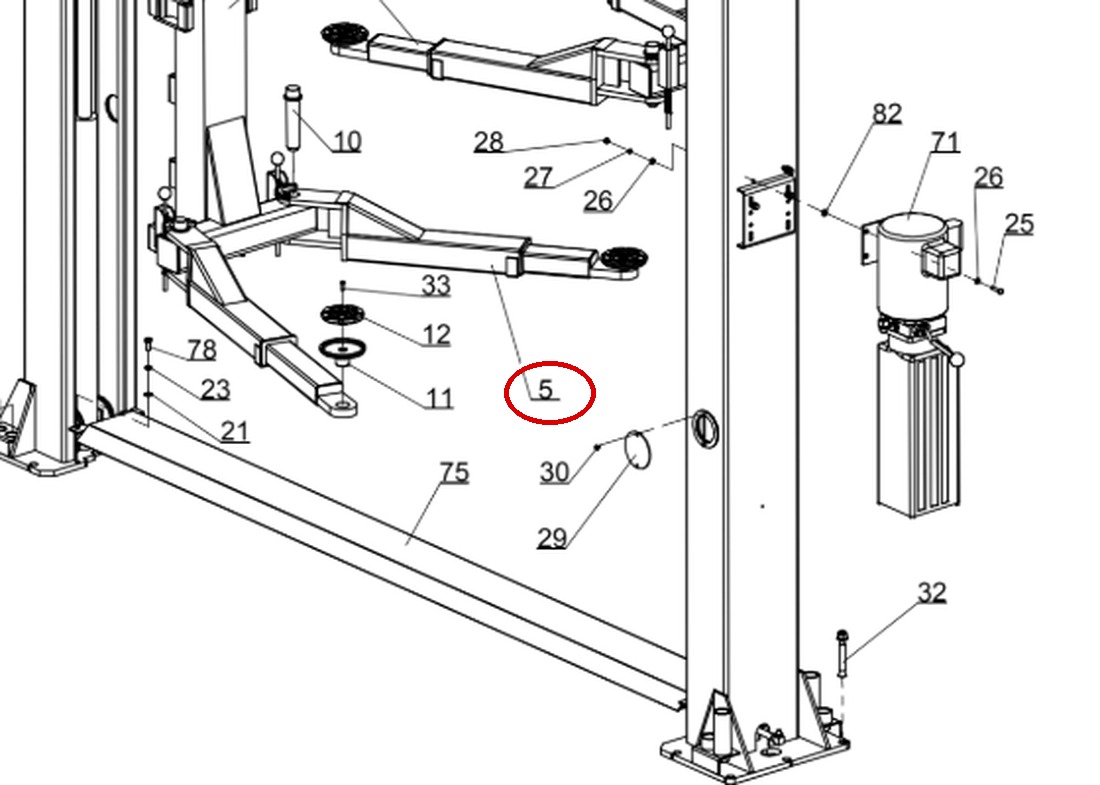

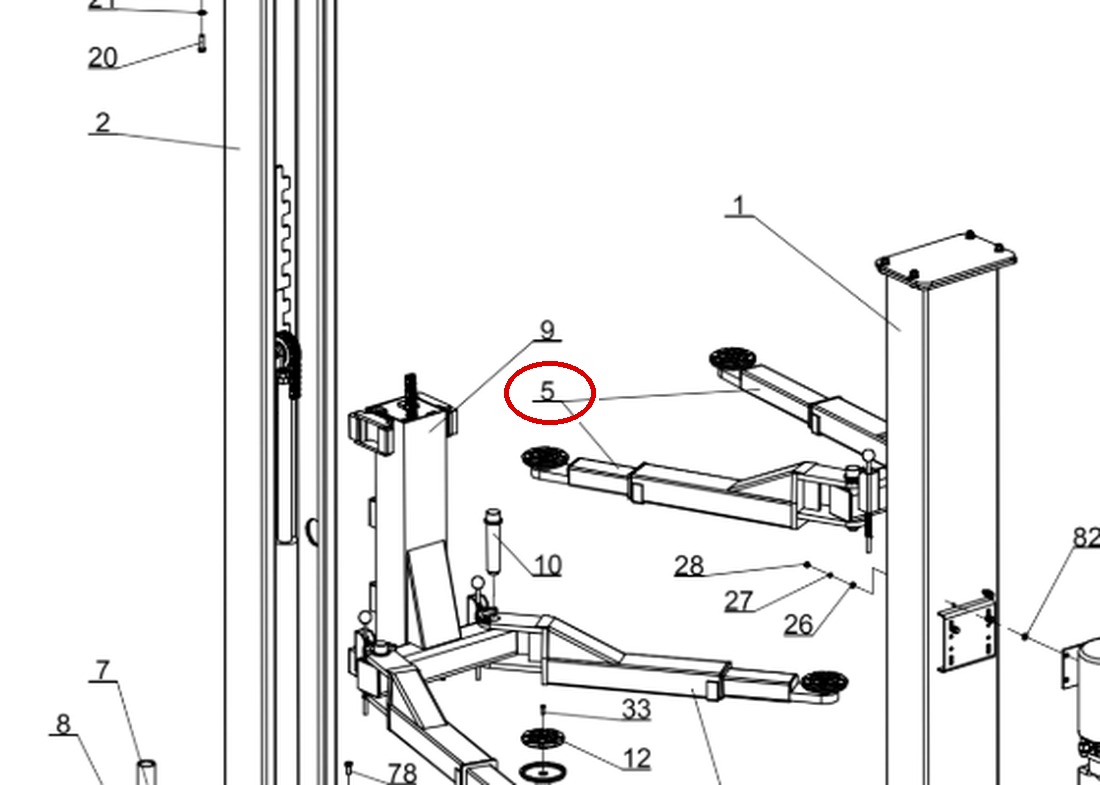

This is part number 5 in the drawing image above.

Fits the following lift models — part number 30400-8000-X appears in the parts breakdown of each of these lifts: Direct Lift 8K Two-Column Automotive, HR-8000 8K Floor Plate, HR-8000.

This symmetric swing arm mounts to the carriage and positions under the vehicle’s lifting points. Symmetric arms are equal length front and rear, replace any arm with bending, weld cracks, or worn pivot bores as a complete assembly.

OEM-compatible replacement matched to the factory parts breakdowns for these 8K lifts. Confirm the arm style (symmetric vs asymmetric) and Drawing 2 / Figure 11 location before ordering.
