Direct Lift 30500-5200-4 Arm Restraint Spring - PRO10 10K / BP9 / PRO9F 9K 2-Post Lifts

Description

Direct Lift 30500-5200-4 Arm Restraint Spring – PRO10 10K / BP9 / PRO9F 9K 2-Post Lifts

Replace missing, worn, or damaged lift hardware with the 30500-5200-4 Arm Restraint Spring – PRO10 10K / BP9 / PRO9F 9K 2-Post Lifts, listed for use on compatible equipment. This hardware is used when servicing the specified Direct Lift assembly. Match the part number, size or description, and listed application before ordering.

Product Information

• Brand / Equipment: Direct Lift
• Manufacturer / Reference Part Number: 30500-5200-4
• Store SKU: DIT52004
• Component: Arm Restraint Spring – PRO10 10K / BP9 / PRO9F 9K 2-Post Lifts

Fitment & Ordering Notes

Automotive lift manufacturers may use different parts across model years, production runs, or equipment revisions. Before ordering, compare the reference part number and the model/application information in this listing with the identification tag, parts manual, or original component on your lift. If your equipment uses a different part number, verify interchange before installation.

Additional Existing Product / Fitment Information

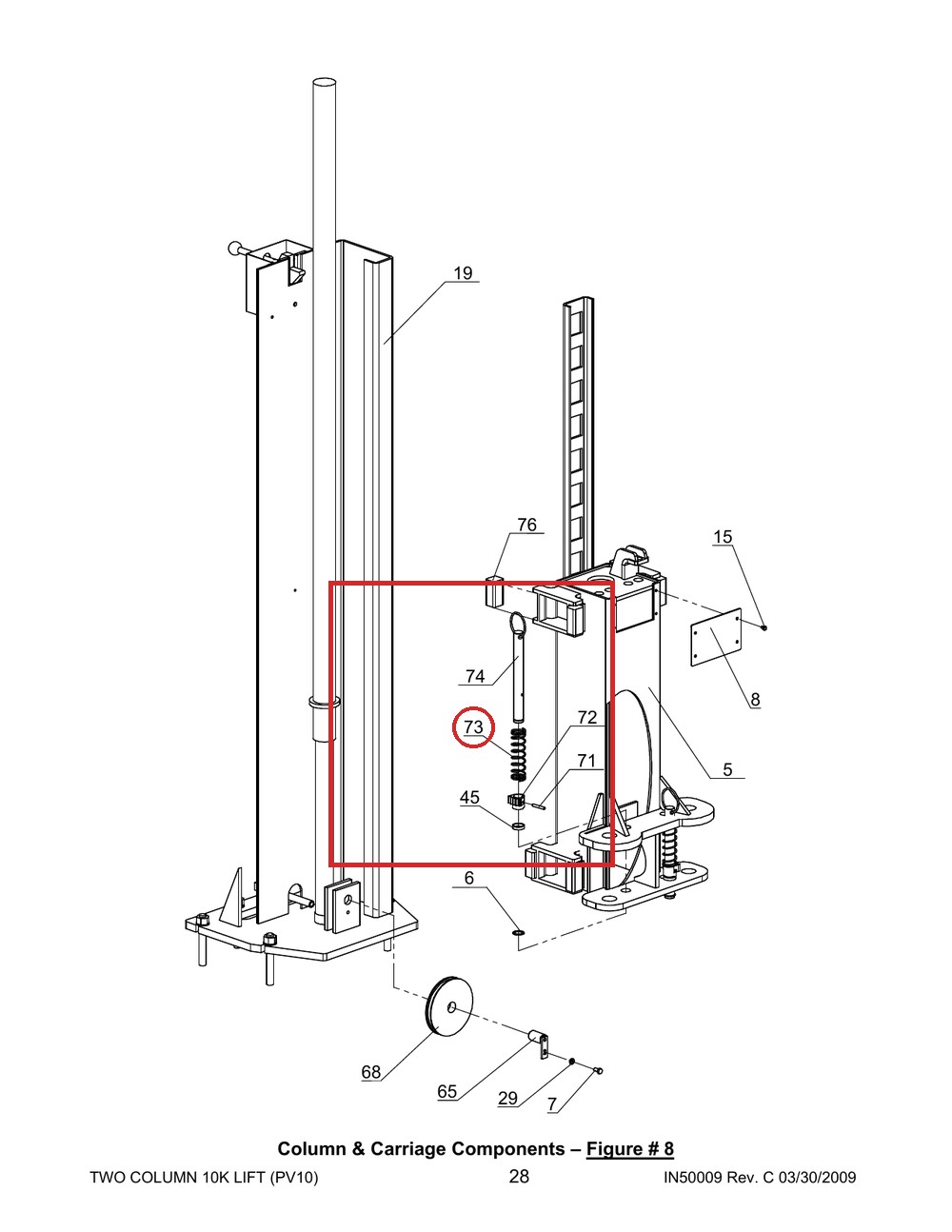

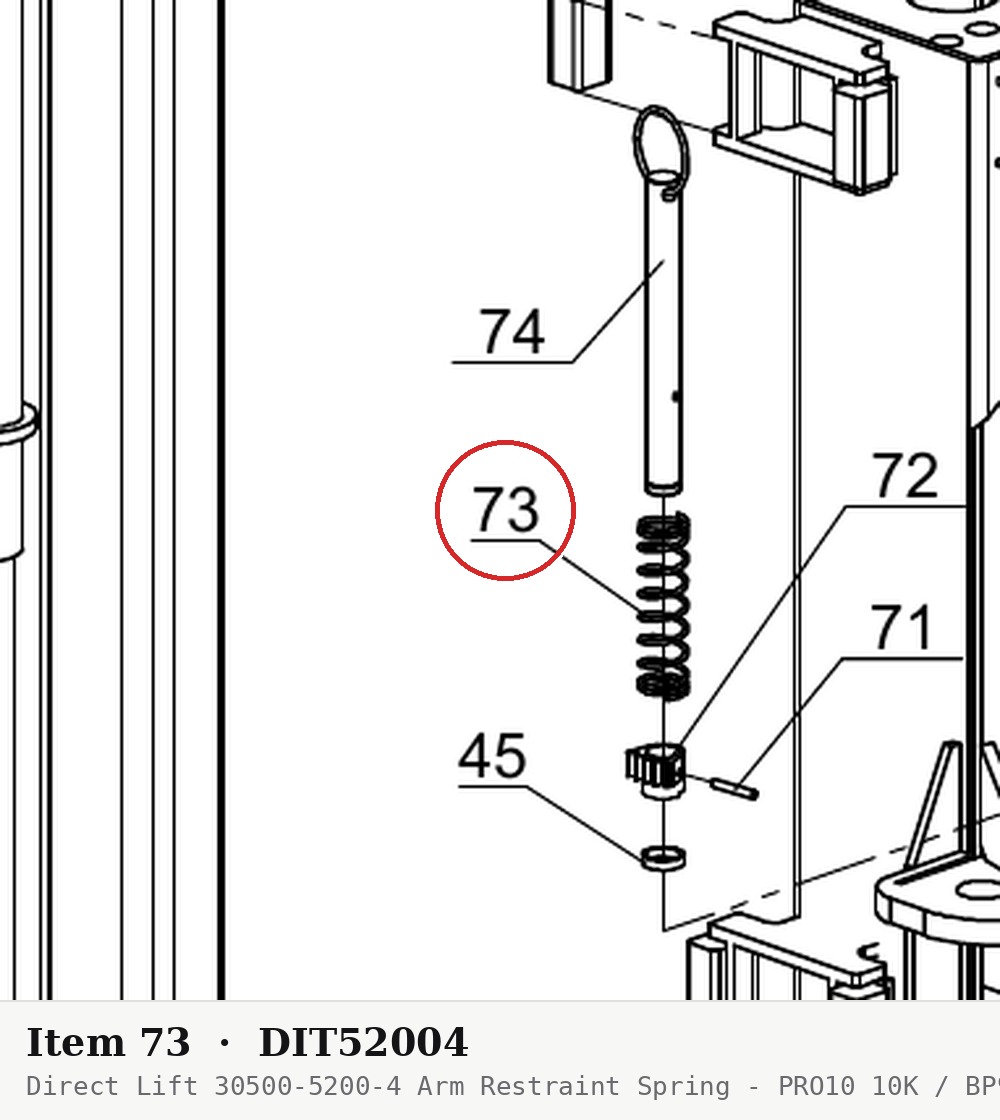

In the drawing images above this is part number 73 in the PARTS BREAKDOWN 2-COLUMN 10K drawing and part number 30 and 33 in the PARTS BREAKDOWN BP9 FLOOR PLATE AU drawing and part number 30 in the PARTS BREAKDOWN PRO9F 9K FLOOR PLA drawing.

Fits the following lift models — part number 30500-5200-4 appears in the parts breakdown of each of these lifts: Direct Lift 10K Two-Column, BP9 Floor Plate, PRO-9F 9K Floor Plate, PRO-10 / PROV10 / PV10 (new style), PRO-9F, PROV10 (early).

This spring is used in the arm restraint (swing arm pin) mechanism on Direct Lift two-post lifts, fitting the 2-Column 10K (PRO10 series, Column & Carriage Components, Figure #8), the BP9 floor plate lift, and the PRO9F 9K floor plate lift (Carriage / Arm-Lock / Cylinder & Chain Detail, Drawing 2).

The spring keeps the arm restraint pin engaged with the arm lock gear, so the swing arms stay locked in position once loaded. A weak or broken spring lets the pin ride up and the arms swing free, a safety issue that calls for immediate replacement.

OEM-style replacement for Direct Lift part number 30500-5200-4, Light Duty-Direct HI Parts line. Commonly replaced together with the arm lock pin (30500-5200-1).
