Direct Lift 30500-5300 Swing Arm Pin for Pro 10 10K, BP9 and Pro 9F 9K 2-Post Lifts

Description

Direct Lift 30500-5300 Swing Arm Pin for Pro 10 10K, BP9 and Pro 9F 9K 2-Post Lifts

Replace missing, worn, or damaged lift hardware with the 30500-5300 Swing Arm Pin, listed for use on Pro 10 10K, BP9 and Pro 9F 9K 2-Post Lifts. This hardware is used when servicing the specified Direct Lift assembly. Match the part number, size or description, and listed application before ordering.

Product Information

• Brand / Equipment: Direct Lift
• Manufacturer / Reference Part Number: 30500-5300
• Store SKU: DIT5300
• Component: Swing Arm Pin
• Listed Application: Pro 10 10K, BP9 and Pro 9F 9K 2-Post Lifts

Fitment & Ordering Notes

Automotive lift manufacturers may use different parts across model years, production runs, or equipment revisions. Before ordering, compare the reference part number and the model/application information in this listing with the identification tag, parts manual, or original component on your lift. If your equipment uses a different part number, verify interchange before installation.

Additional Existing Product / Fitment Information

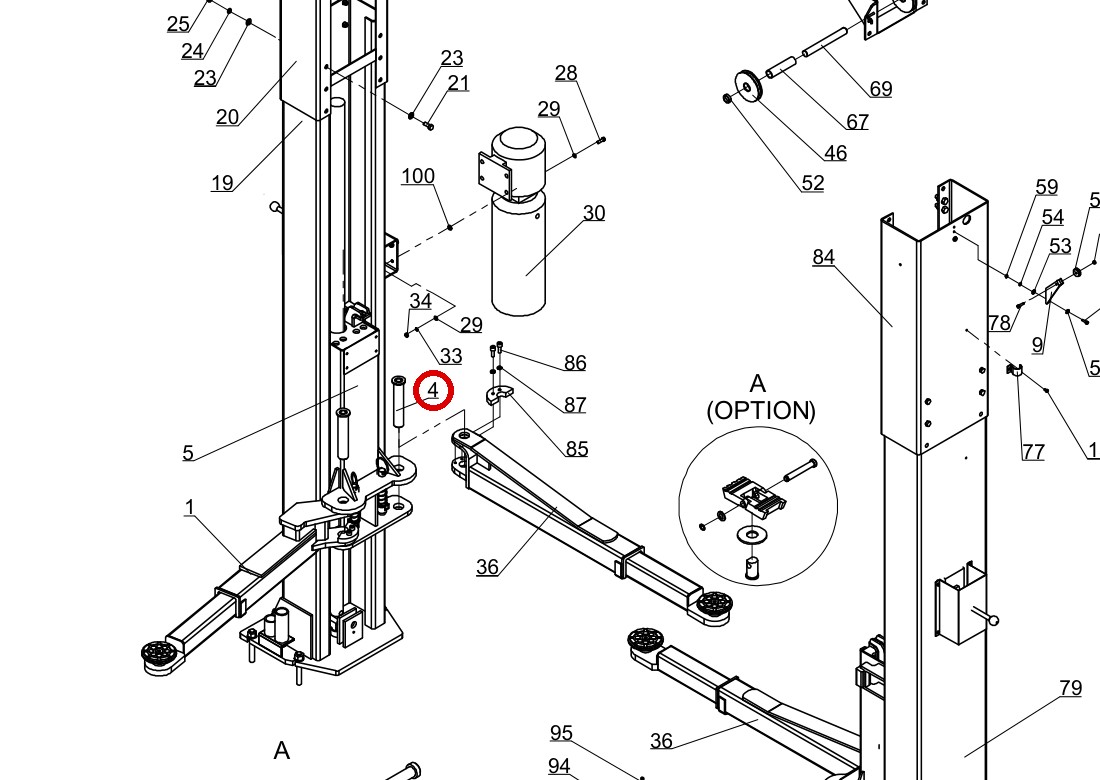

In the drawing images above this is part number 4 in the PARTS BREAKDOWN 2-COLUMN 10K drawing and part number 36 in the PARTS BREAKDOWN BP9 FLOOR PLATE AU drawing and part number 33 in the PARTS BREAKDOWN PRO9F 9K FLOOR PLA drawing.

Fits the following lift models — part number 30500-5300 appears in the parts breakdown of each of these lifts: Direct Lift 10K Two-Column, BP9 Floor Plate, PRO-9F 9K Floor Plate, PRO-10 / PROV10 / PV10 (new style), PRO-9F, PROV10 (early).

The swing arm pin is the pivot pin that secures the lift arm to the carriage. It carries the arm through its full swing range while keeping it positively retained on the carriage, and it works together with the arm restraint components to keep arms located under load.

OEM-style direct replacement for the swing arm pins fitted to the listed Direct Lift models. Worn or scored pins should be replaced to keep arm movement smooth and arm restraints engaging correctly.
