Direct Lift 30500-6100-3 Lifting Pad Pin for Flip-Up Pad Assembly - Pro 10 / PRO-V10 / PV10

Description

Direct Lift 30500-6100-3 Lifting Pad Pin for Flip-Up Pad Assembly – Pro 10 / PRO-V10 / PV10

Replace a worn, damaged, or missing lift contact component with the 30500-6100-3 Lifting Pad Pin, listed for use on Flip-Up Pad Assembly – Pro 10 / PRO-V10 / PV10. Match the part number, style, and listed Direct Lift application to your existing lift hardware before ordering.

Product Information

• Brand / Equipment: Direct Lift
• Manufacturer / Reference Part Number: 30500-6100-3
• Store SKU: DIT1003
• Component: Lifting Pad Pin
• Listed Application: Flip-Up Pad Assembly – Pro 10 / PRO-V10 / PV10

Fitment & Ordering Notes

Automotive lift manufacturers may use different parts across model years, production runs, or equipment revisions. Before ordering, compare the reference part number and the model/application information in this listing with the identification tag, parts manual, or original component on your lift. If your equipment uses a different part number, verify interchange before installation.

Additional Existing Product / Fitment Information

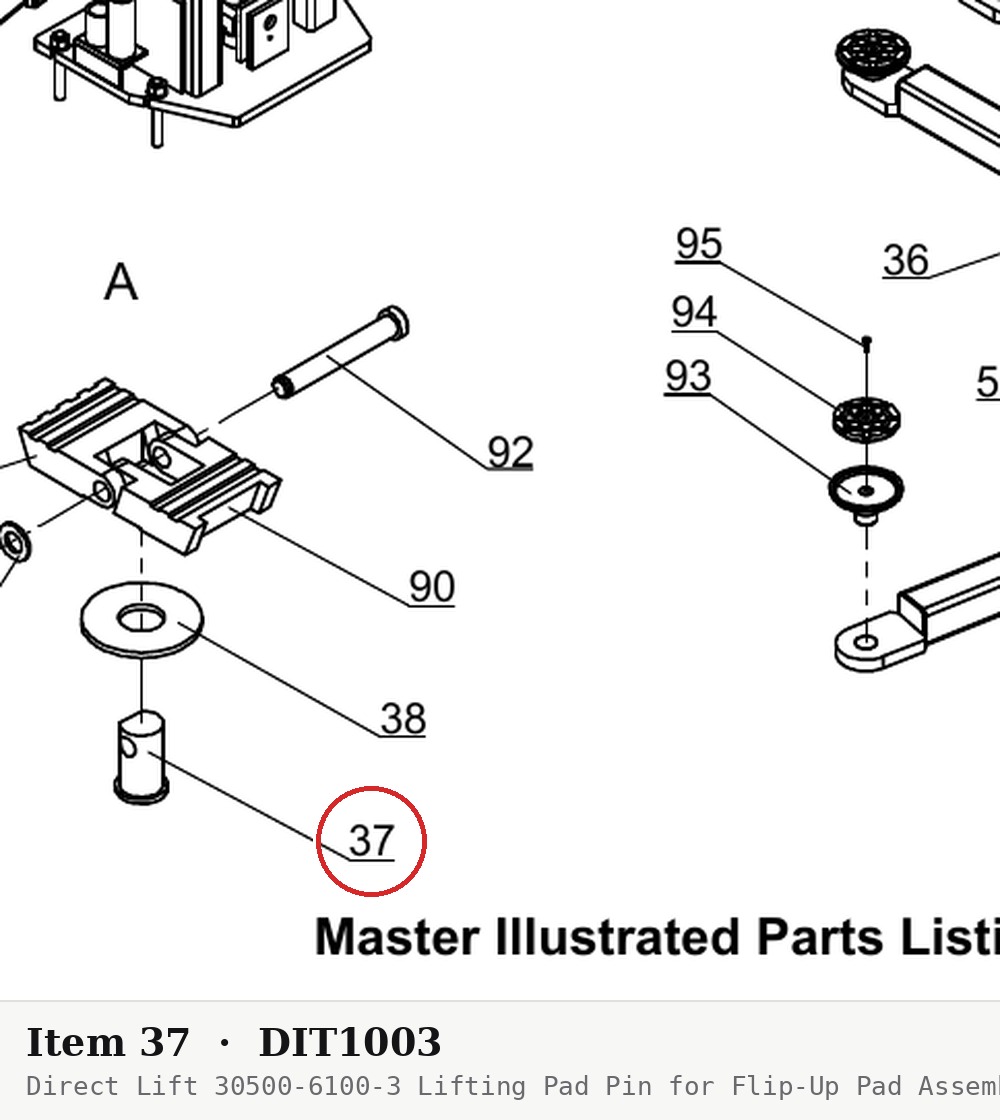

This is part number 37 in the drawing image above.

Fits the following lift models — part number 30500-6100-3 appears in the parts breakdown of each of these lifts: Direct Lift 10K Two-Column, PRO-10 / PROV10 / PV10 (new style), PROV10 (early).

This pin retains the lifting pad in the flip-up pad assembly at the end of the lift arm. It keeps the pad located in its channel while still allowing the pad to seat properly against the vehicle’s lift point.

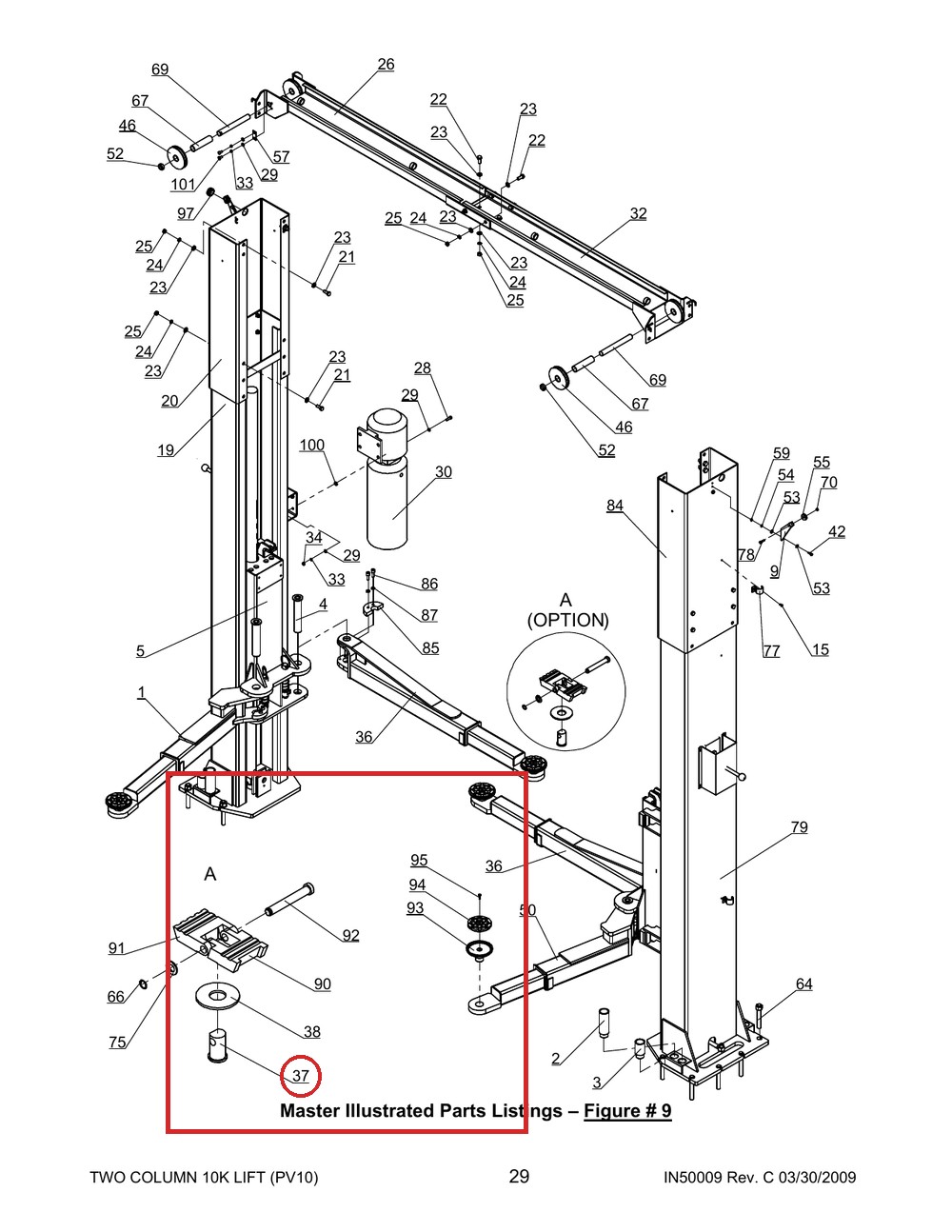

OEM-style replacement for the factory lifting pad pin on the listed models. Works with the lift pad channel (30500-6100-5) and the flip-up risers in the same Figure #9 assembly.
