Direct Lift B41-6 6mm Flat Washer for CR14, I12 & 6K Mid-Rise Lifts

Description

Direct Lift B41-6 6mm Flat Washer for CR14, I12 & 6K Mid-Rise Lifts

Replace missing, worn, or damaged lift hardware with the B41-6 6mm Flat Washer, listed for use on CR14, I12 & 6K Mid-Rise Lifts. This hardware is used when servicing the specified Direct Lift assembly. Match the part number, size or description, and listed application before ordering.

Product Information

Brand / Equipment: Direct Lift
Manufacturer / Reference Part Number: B41-6
Store SKU: DITB416
Component: 6mm Flat Washer
Listed Application: CR14, I12 & 6K Mid-Rise Lifts

Fitment & Ordering Notes

Automotive lift manufacturers may use different parts across model years, production runs, or equipment revisions. Before ordering, compare the reference part number and the model/application information in this listing with the identification tag, parts manual, or original component on your lift. If your equipment uses a different part number, verify interchange before installation.

Additional Existing Product / Fitment Information

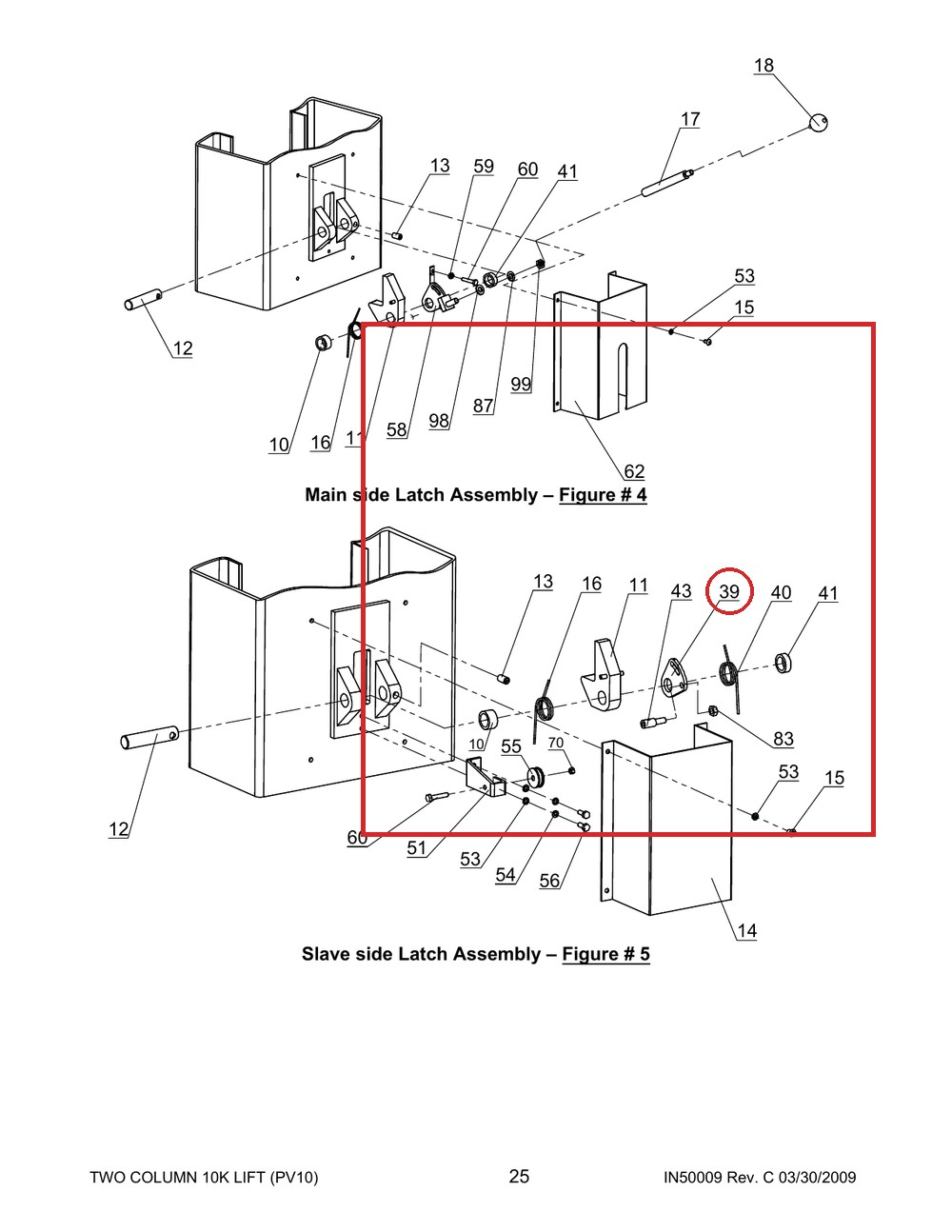

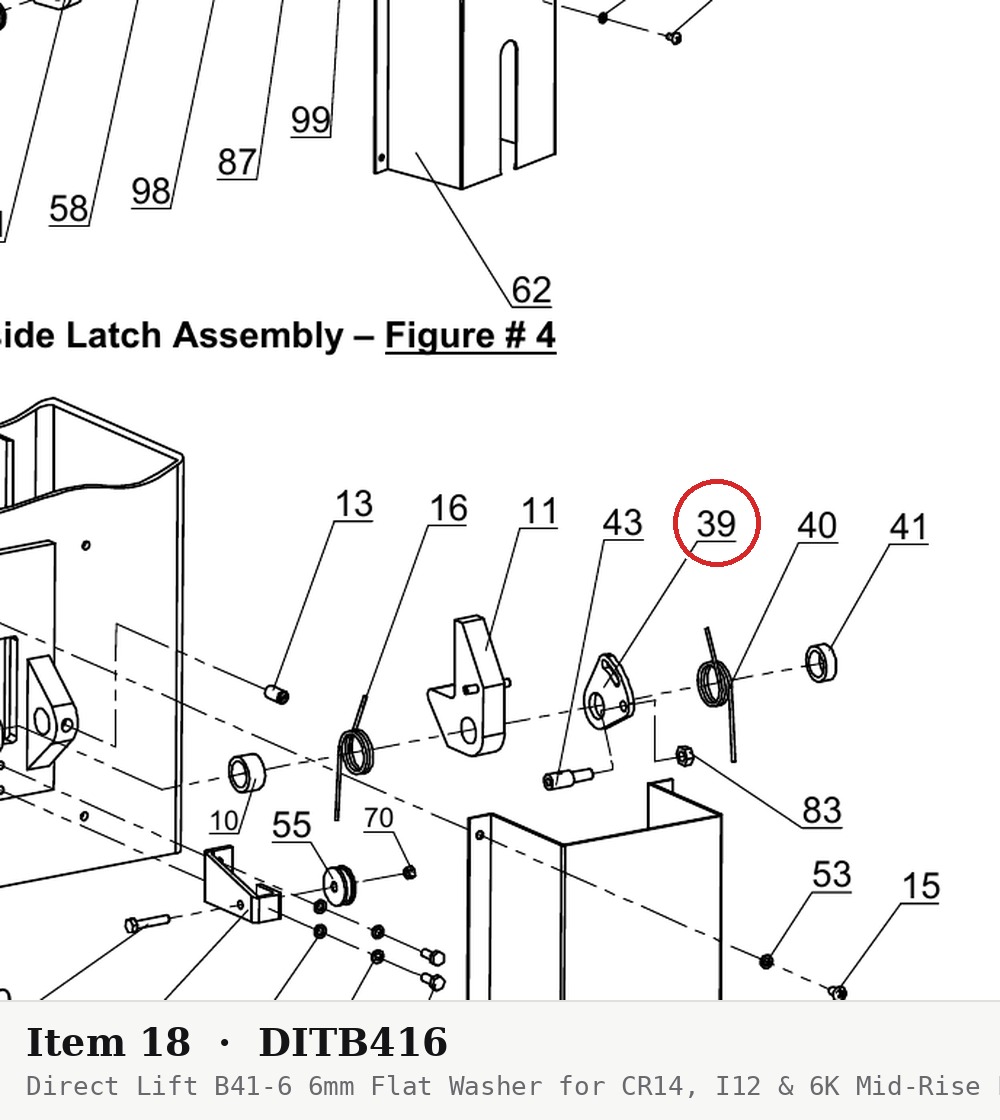

In the drawing images above this is part number 18 in the CRA14_PARTS-BREAKDOWN drawing and part number 24 in the I12-Parts drawing and part number 22 in the I12pro parts drawing.

Fits the following lift models — part number B41-6 appears in the parts breakdown of each of these lifts: Forward Lift CRA14, CR14 (newer); Direct Lift I12, 10K Two-Column, 8K Two-Column Automotive, 7K Four-Post Parking, 8K Four-Post Parking, 9K Parking (wide version), Mid-Rise 6K (2005), OH-8000 8K Overhead, PP8+ 8K Four-Post, PP8+ Long 8K Four-Post, PP8S 8K Four-Post, PP9+ 9K Four-Post, PRO-9D 9K Two-Column, PRO-10 / PROV10 / PV10 (new style), PROV12 / PRO-12, PV12, PROV10 (early); Rotary Lift I12 Pro; F12 / I12, PRO-9D.

This 6mm flat washer appears in the Crossbeam / Safety Latch Assembly (Figure #1) and the 6K mid-rise exploded parts list. It distributes load under M6 hardware on latch and crossbeam fasteners throughout these lifts.

Direct OEM-style replacement for the factory B41-6 washer. Confirm your model and figure number before ordering.

Additional information

Weight	4 oz
Dimensions	9 × 8 × 8 in
