Direct Lift H4P-2008 Curl Cable (Coiled Air Line) for PRO 14F 14000 4-Post Lift

Description

Direct Lift H4P-2008 Curl Cable (Coiled Air Line) for PRO 14F 14000 4-Post Lift

Service a worn, stretched, frayed, or damaged lift cable with the H4P-2008 Curl Cable (Coiled Air Line), listed for use on PRO 14F 14000 4-Post Lift. Correct cable fitment is important to proper lift operation, so match the part number and listed application to your Direct Lift equipment before ordering.

Product Information

• Brand / Equipment: Direct Lift
• Manufacturer / Reference Part Number: H4P-2008
• Store SKU: DITP2008
• Component: Curl Cable (Coiled Air Line)
• Listed Application: PRO 14F 14000 4-Post Lift

Fitment & Ordering Notes

Automotive lift manufacturers may use different parts across model years, production runs, or equipment revisions. Before ordering, compare the reference part number and the model/application information in this listing with the identification tag, parts manual, or original component on your lift. If your equipment uses a different part number, verify interchange before installation.

Additional Existing Product / Fitment Information

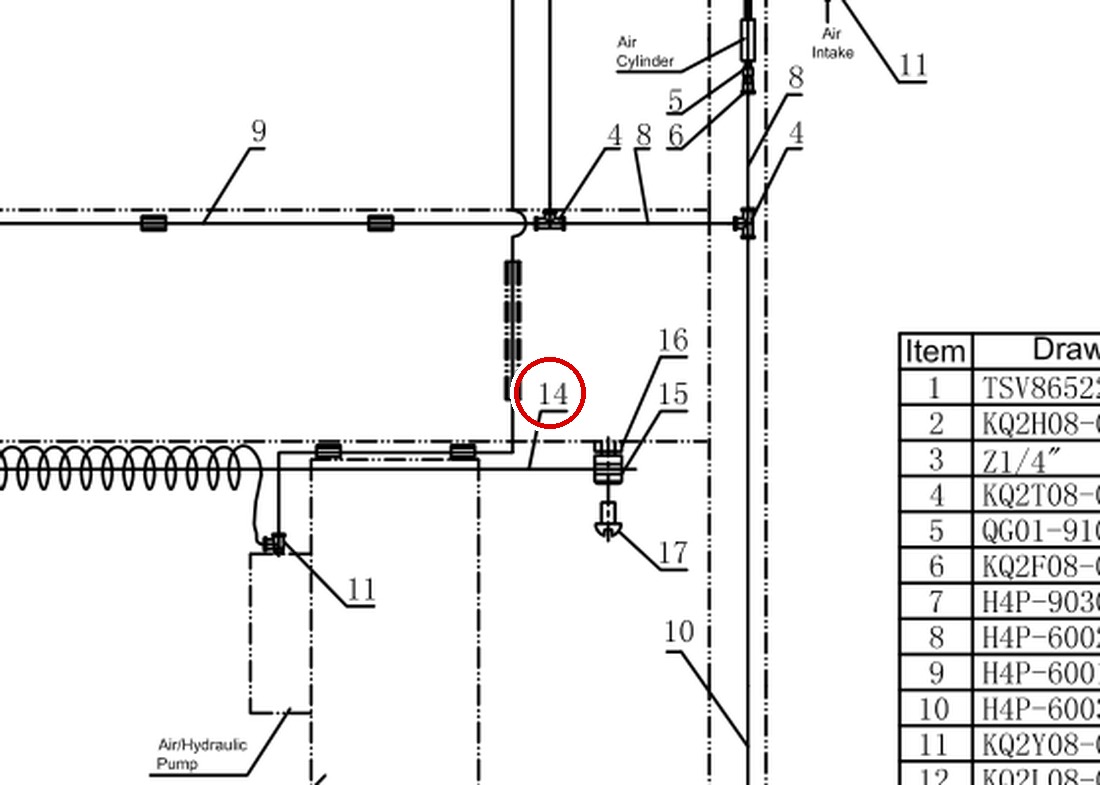

This is part number 14 in the drawing image above.

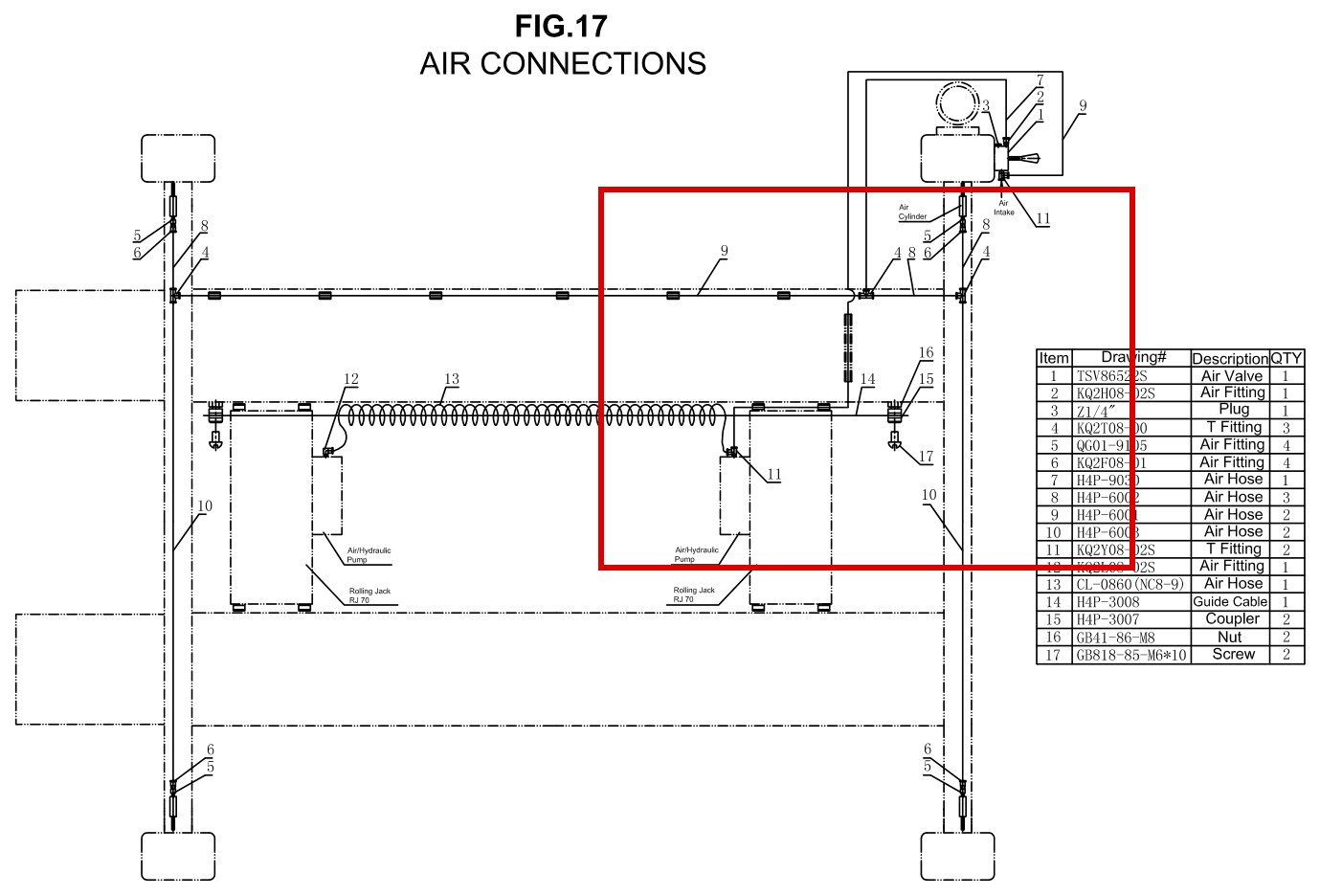

This curl cable fits the PRO 14F 14,000 lb four-post lift and is shown in FIG. 17 Air Connections of the parts manual.

The coiled design lets the line extend and retract as the lift travels up and down, maintaining the air connection to the moving beam without slack lines getting pinched or snagged. Replace it if the coil has lost its memory, the line is cracked, or fittings leak, since a failed line disrupts the pneumatic lock release circuit.

OEM-style replacement matched to the PRO 14F air connection diagram. Often replaced together with the straight air hoses (H4H-6003, H4H-9030) shown in the same FIG. 17 breakdown.

Cross-check part number: Direct Lift H4P-2008. This is a Direct Lift replacement part.
