Direct Lift H4P-9420 Roller Structure for RJ70 Rolling Jack – Pro 14F 4-Post Lift
Keep the lift cable and movement system operating correctly with the H4P-9420 Roller Structure, listed for use on RJ70 Rolling Jack – Pro 14F 4-Post Lift. Use this part when servicing the corresponding Direct Lift assembly and verify the reference part number and application before ordering.
Product Information
- Brand / Equipment: Direct Lift
- Manufacturer / Reference Part Number: H4P-9420
- Store SKU: DIT9420
- Component: Roller Structure
- Listed Application: RJ70 Rolling Jack – Pro 14F 4-Post Lift
Fitment & Ordering Notes
Automotive lift manufacturers may use different parts across model years, production runs, or equipment revisions. Before ordering, compare the reference part number and the model/application information in this listing with the identification tag, parts manual, or original component on your lift. If your equipment uses a different part number, verify interchange before installation.
Additional Existing Product / Fitment Information

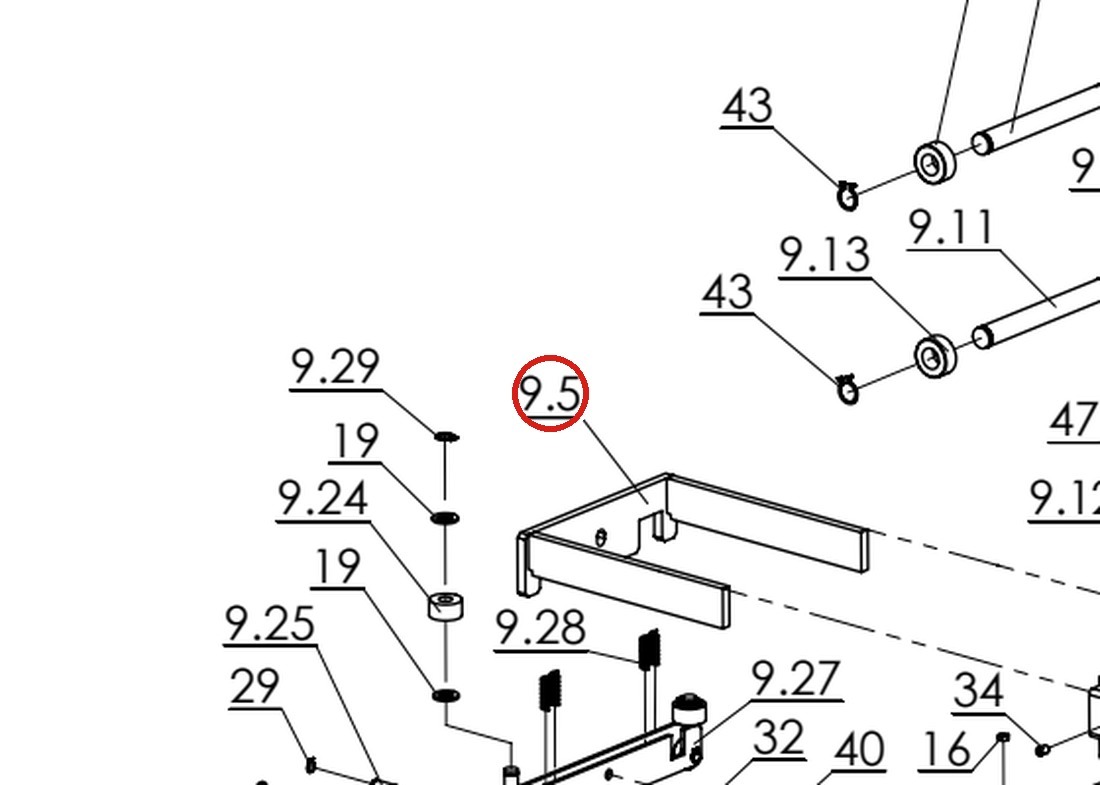

This is part number 9.5 in the drawing image above.
Fits the following lift models — part number H4P-9420 appears in the parts breakdown of each of these lifts: Direct Lift PRO-14F (newer, 3-bolt lock), PRO-14F 14K.

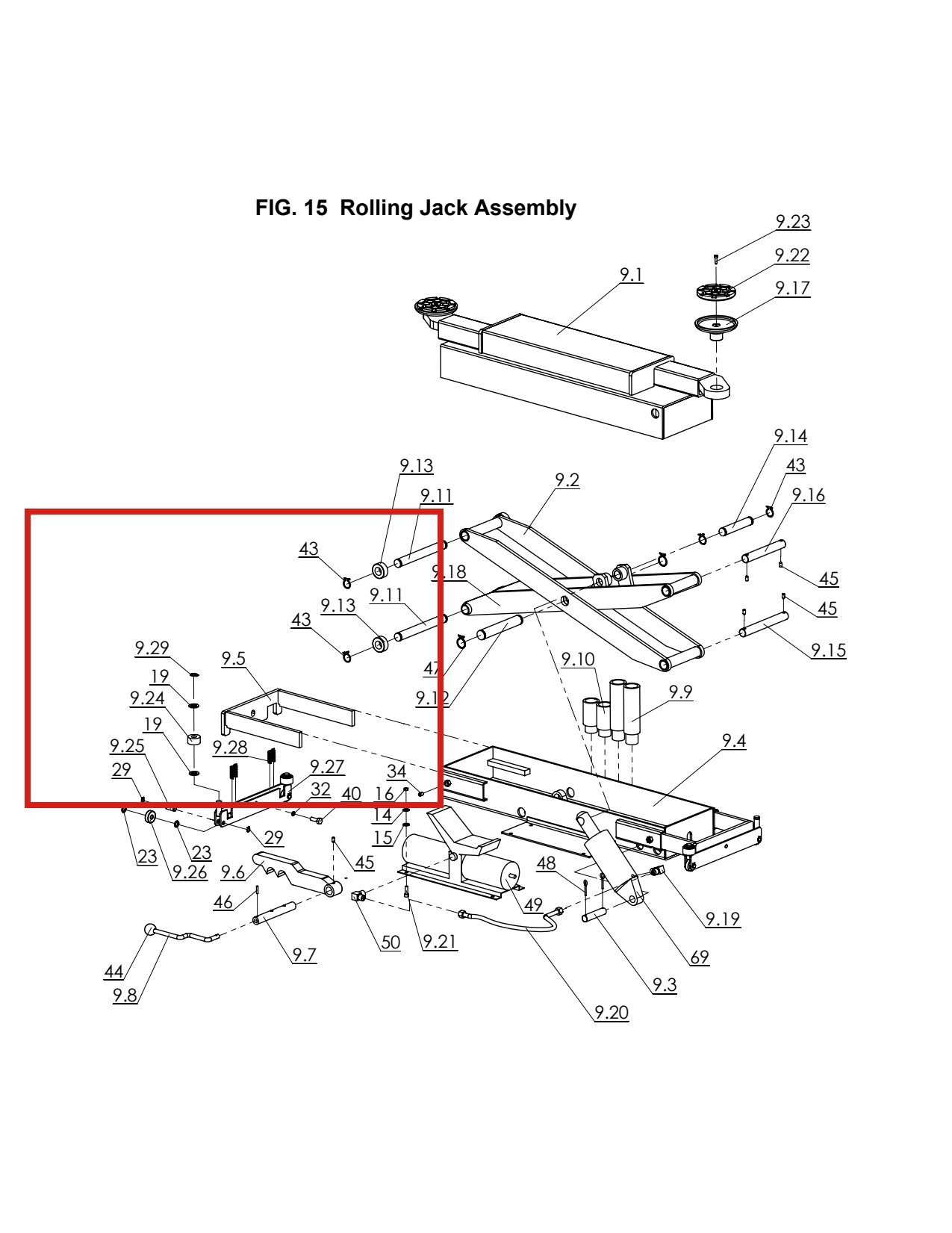

Item: H4P-9420 Roller Structure | Fits the RJ70 rolling jack used on Direct Lift Pro 14F 14,000 lb four-post lifts, including newer PRO14F units with the 3-bolt lock configuration. Shown in FIG. 15 (Rolling Jack Assembly).
The roller structure is the sub-assembly that carries the jack’s rollers, letting the rolling jack travel along the lift’s runway rails. If the structure is bent or its roller mounts are worn, the jack tracks poorly on the rails; replacing the assembly restores smooth travel. Individual rollers (H4P-9001) and roller shafts (H4P-9002) are also available separately.
OEM-style replacement matched to the Pro 14F 14000 parts breakdown. Confirm against FIG. 15 in your manual before ordering.
