Direct Lift PV10-3300 Up-Column A Power Unit Column Extension - PRO10 / PROv10 / PV10

Description

Direct Lift PV10-3300 Up-Column A Power Unit Column Extension – PRO10 / PROv10 / PV10

Repair or service the applicable lift assembly with the PV10-3300 Up-Column A Power Unit Column Extension – PRO10 / PROv10 / PV10, listed for use on compatible equipment. Use the reference part number and listed Direct Lift application to compare against the original component before ordering.

Product Information

• Brand / Equipment: Direct Lift
• Manufacturer / Reference Part Number: PV10-3300
• Store SKU: DIT3300
• Component: Up-Column A Power Unit Column Extension – PRO10 / PROv10 / PV10

Fitment & Ordering Notes

Automotive lift manufacturers may use different parts across model years, production runs, or equipment revisions. Before ordering, compare the reference part number and the model/application information in this listing with the identification tag, parts manual, or original component on your lift. If your equipment uses a different part number, verify interchange before installation.

Additional Existing Product / Fitment Information

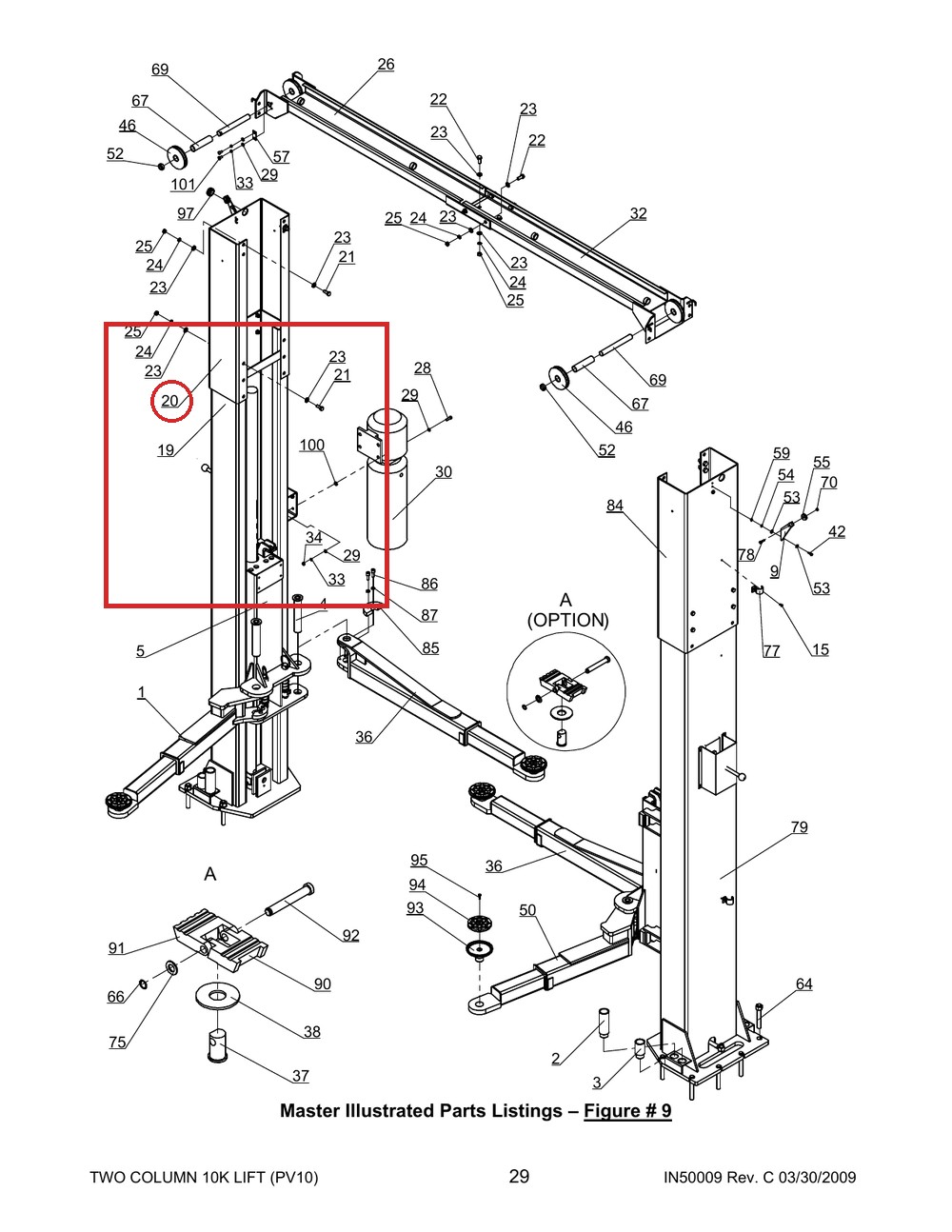

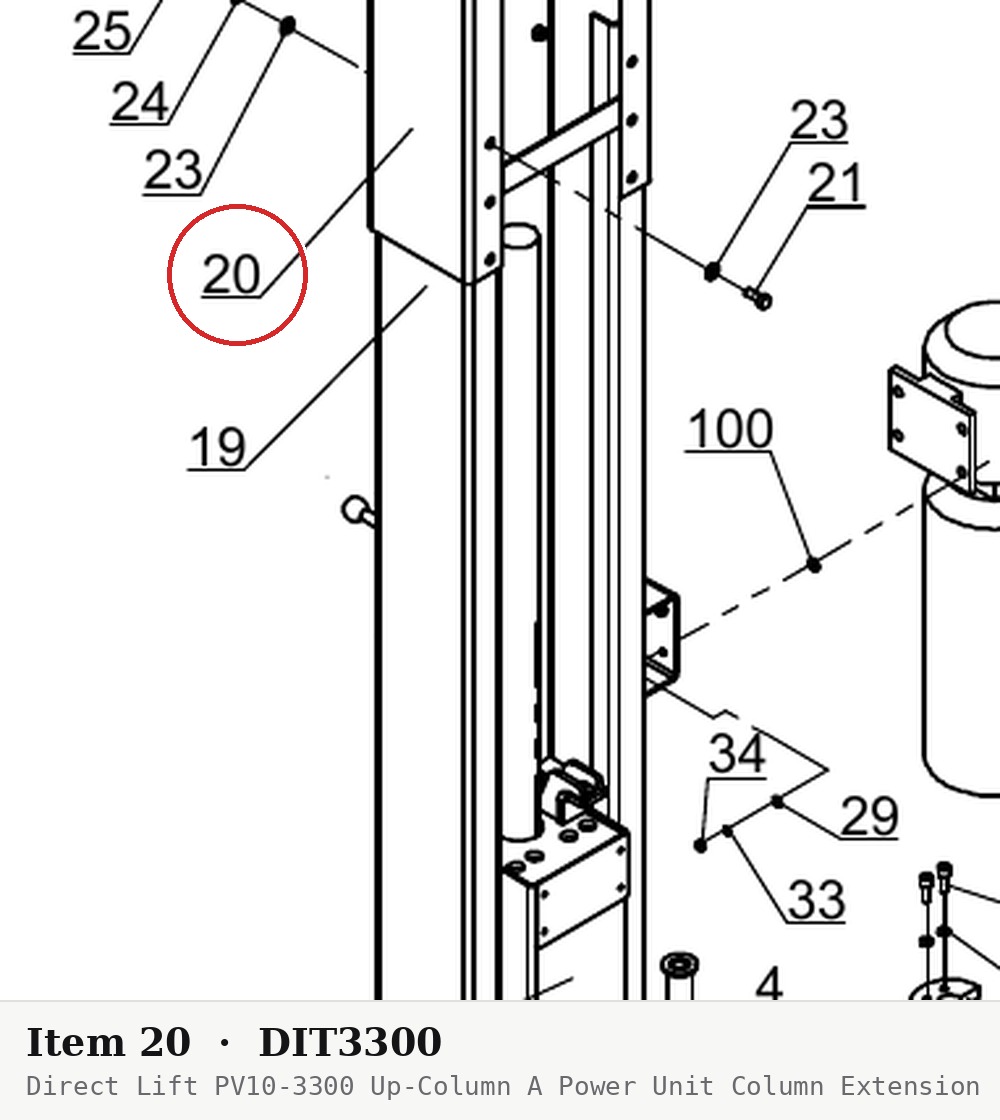

This is part number 20 in the drawing image above.

Fits the following lift models — part number PV10-3300 appears in the parts breakdown of each of these lifts: Direct Lift 10K Two-Column, PRO-10 / PROV10 / PV10 (new style).

This upper column extension mounts on the power unit side of the lift, extending the column to full height and providing the mounting structure for the overhead assembly. It pairs with Up-Column B (PV10-3300DC) on the opposite side.

OEM replacement for compatible Direct Lift 10K 2-post lifts. Verify your lift model and column side against the Figure #9 breakdown before ordering.
