Direct Lift TP9-4000A Left Front Arm Assembly for DL9 Two-Post Lift

Description

Direct Lift TP9-4000A Left Front Arm Assembly for DL9 Two-Post Lift

Repair or service the applicable lift assembly with the TP9-4000A Left Front Arm Assembly, listed for use on DL9 Two-Post Lift. Use the reference part number and listed Direct Lift application to compare against the original component before ordering.

Product Information

• Brand / Equipment: Direct Lift
• Manufacturer / Reference Part Number: TP9-4000A
• Store SKU: DIT94000A
• Component: Left Front Arm Assembly
• Listed Application: DL9 Two-Post Lift

Fitment & Ordering Notes

Automotive lift manufacturers may use different parts across model years, production runs, or equipment revisions. Before ordering, compare the reference part number and the model/application information in this listing with the identification tag, parts manual, or original component on your lift. If your equipment uses a different part number, verify interchange before installation.

Additional Existing Product / Fitment Information

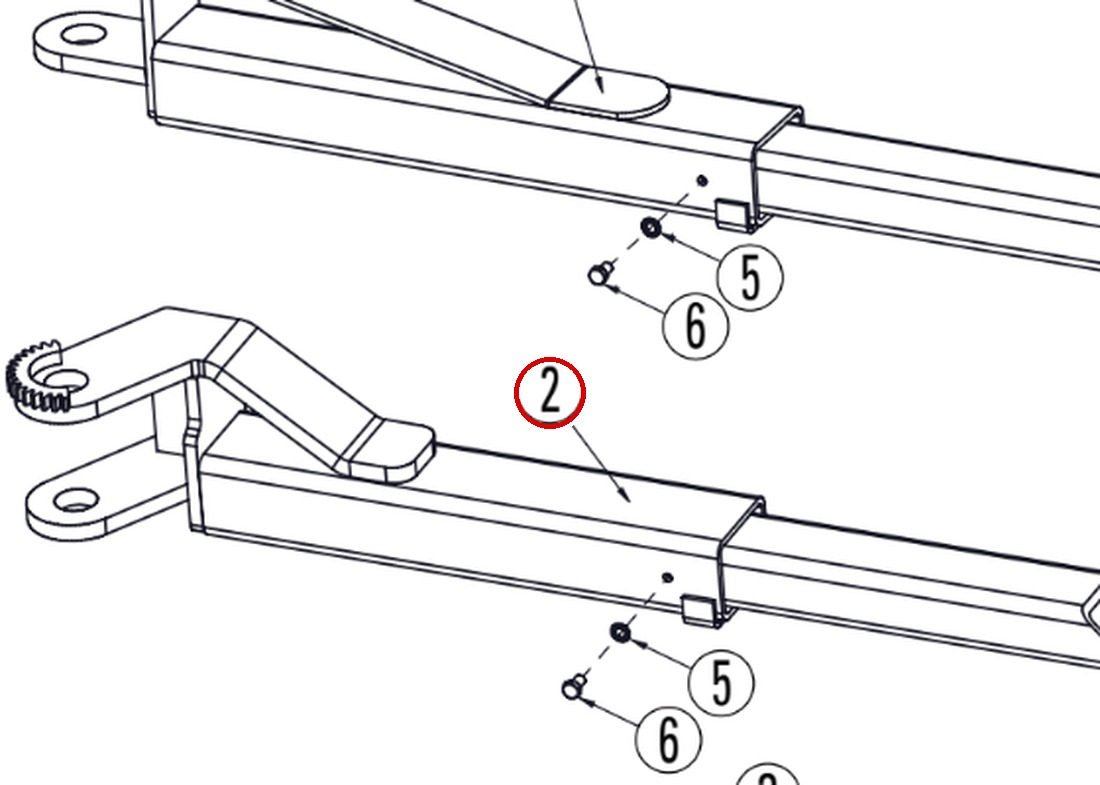

This is part number 2 in the drawing image above.

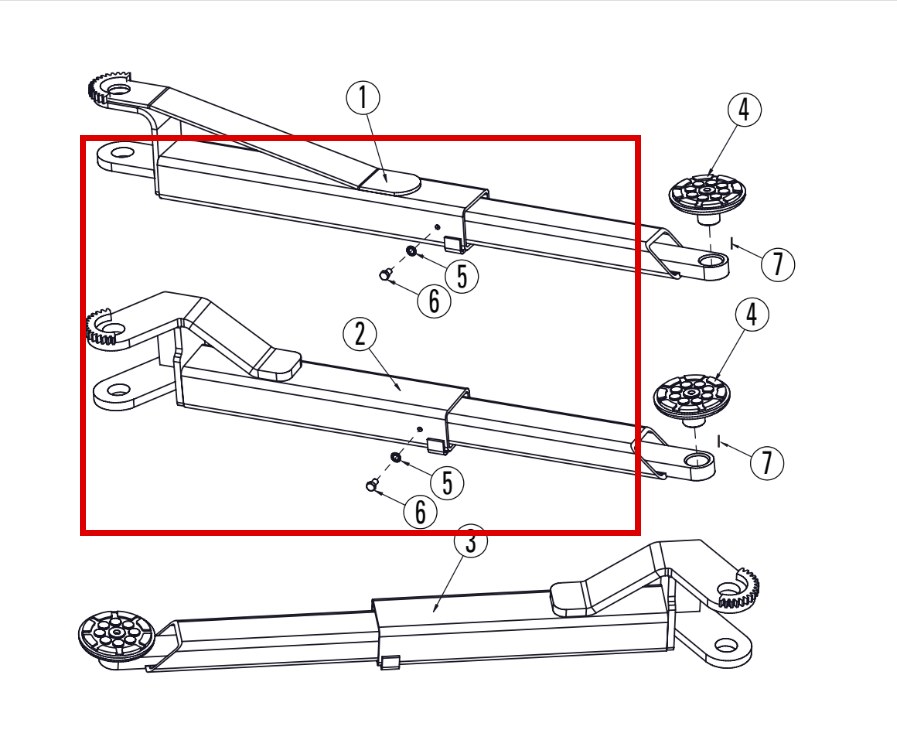

The Direct Lift TP9-4000A is the left front swing arm assembly for the Direct Lift DL9 two-post lift. It appears in the DL9 Arm Assembly parts breakdown (page 4) and mounts to the carriage on the left front position, carrying the lift adapter that supports the vehicle at its manufacturer-recommended lift point.

A bent, cracked, or worn arm assembly compromises safe vehicle support and should be replaced rather than repaired. This is the OEM replacement arm assembly for the DL9, ensuring proper fit with the carriage pin bores and factory arm restraint hardware. Verify your lift model and arm position (left front) against the DL9 parts breakdown before ordering. See TP9-4000B for the right front arm.

Fits these lifts:

• Direct Lift — DL9 (9,000 lb two-post)
• Hanmecson (VSG) — DL9
