Description

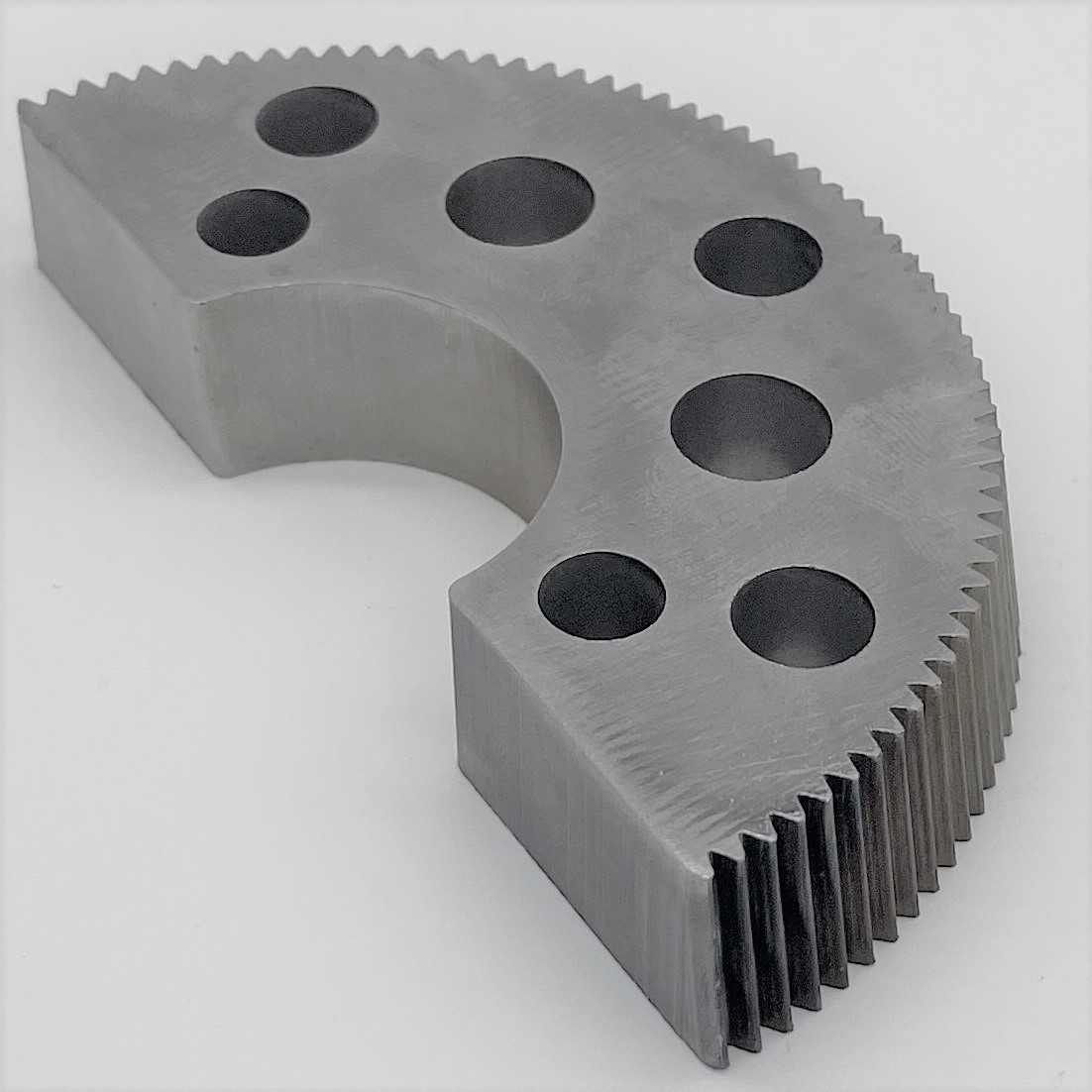

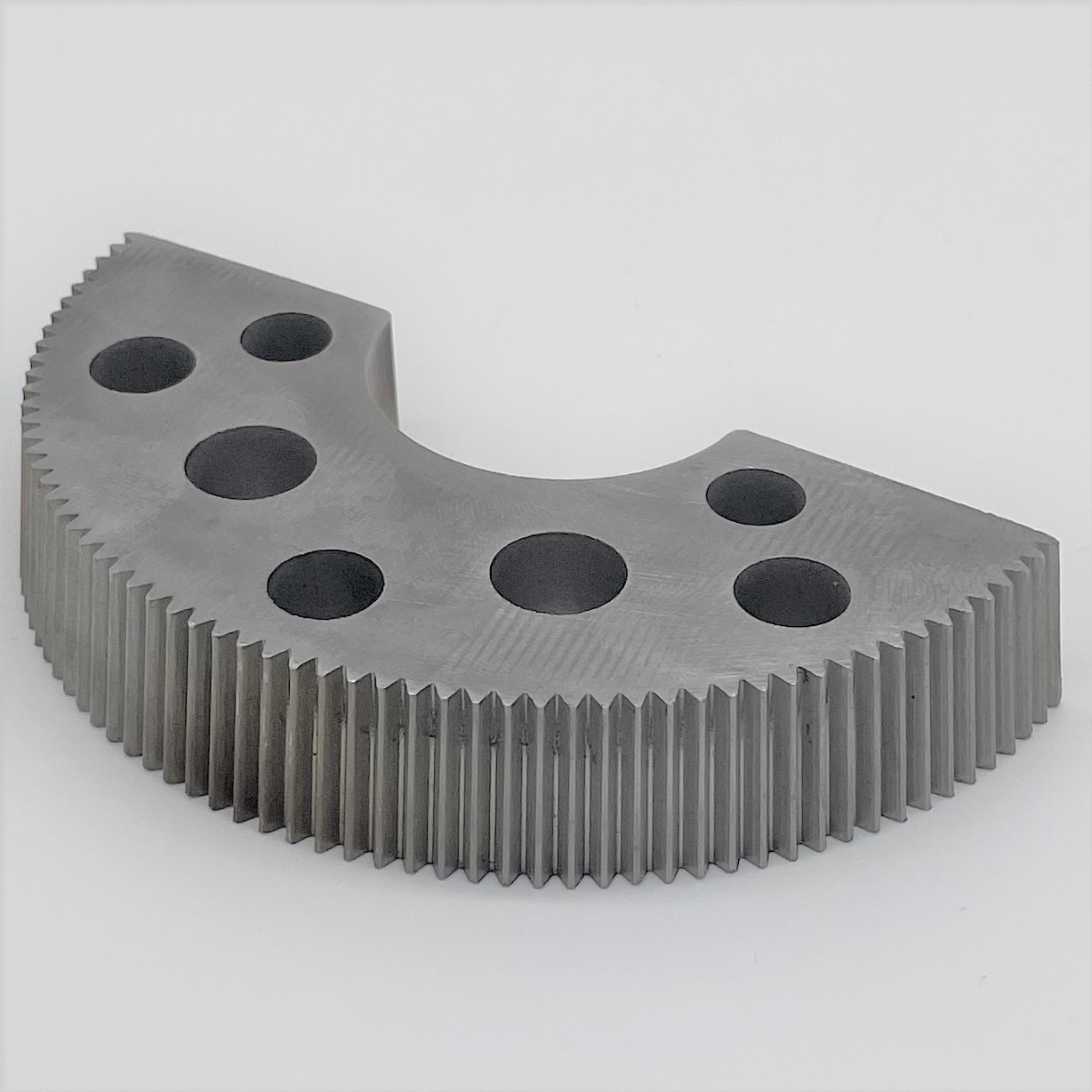

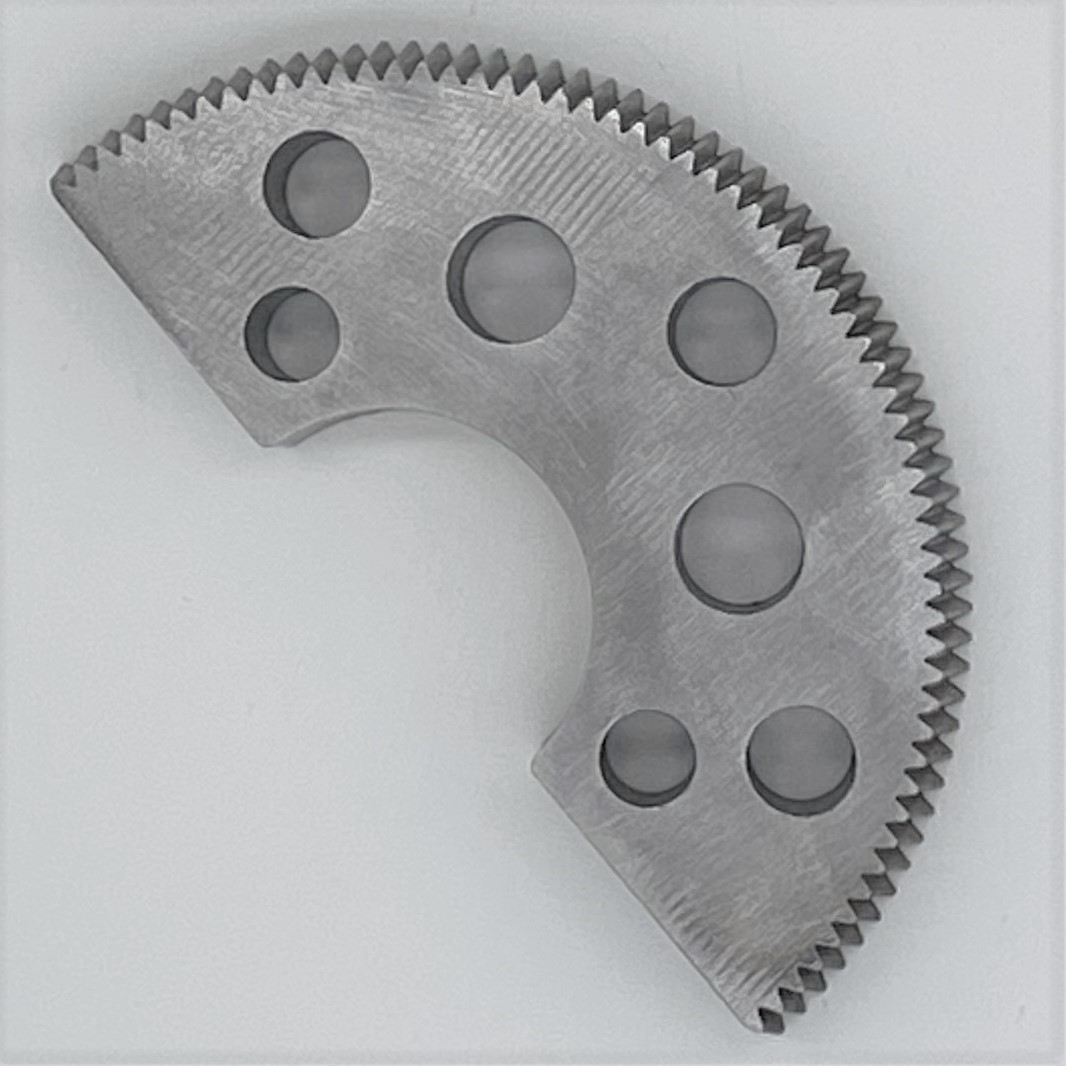

Forward 143534 Arm Restraint Main Gear – 2 Post Lift DP-10, DP-10A, I-DP9, Raptor

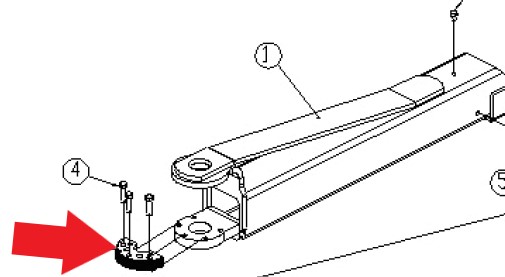

The arm restraint main gear (inner / half-moon gear) is the component bolted to the lift arm that engages with the plunger gear to keep the arms in position under the vehicle during initial lifting and arm positioning. When this gear wears or breaks, the arm restraint system will not function properly, creating a safety concern. Each lift requires 4 of these gears (one per arm). If the main gear is damaged, the mating plunger gear (part 143535) should also be inspected and replaced, as it is frequently damaged at the same time.
Product Information
- Brand / Equipment: Forward Lift
- Manufacturer / Reference Part Number: 143534
- Store SKU: FOD3534-1
- Component: Arm Restraint Main Gear (inner / half-moon gear)
- Quantity per lift: 4 gears per lift (1 per arm)
- Listed Application: Forward 2 Post Lift – later model 9,000 and 10,000 lb lifts; Models I-DP9 (Integrity 9), Raptor, DP-10, DP-10A, and others
Fitment & Ordering Notes
This gear fits later model Forward 9,000 and 10,000 lb 2-post lifts with the gear-style arm restraint. Verify your model number before ordering. We recommend replacing the plunger gear (part 143535) at the same time as it is commonly damaged together with this gear. For questions about fitment, call 866-902-6060.
