Forward Lift 40271 5/16"-18NC x 1-1/2" HHCS Full Thread Grade 5 Bolt for CR18, DL9 & DP10 Lifts

Description

Forward Lift 40271 5/16"-18NC x 1-1/2" HHCS Full Thread Grade 5 Bolt for CR18, DL9 & DP10 Lifts

Replace missing, worn, or damaged lift hardware with the 40271 5/16"-18NC x 1-1/2" HHCS Full Thread Grade 5 Bolt, listed for use on CR18, DL9 & DP10 Lifts. This hardware is used when servicing the specified Forward Lift assembly. Match the part number, size or description, and listed application before ordering.

Product Information

• Brand / Equipment: Forward Lift
• Manufacturer / Reference Part Number: 40271
• Store SKU: FOD0271
• Component: 5/16"-18NC x 1-1/2" HHCS Full Thread Grade 5 Bolt
• Listed Application: CR18, DL9 & DP10 Lifts

Fitment & Ordering Notes

Automotive lift manufacturers may use different parts across model years, production runs, or equipment revisions. Before ordering, compare the reference part number and the model/application information in this listing with the identification tag, parts manual, or original component on your lift. If your equipment uses a different part number, verify interchange before installation.

Additional Existing Product / Fitment Information

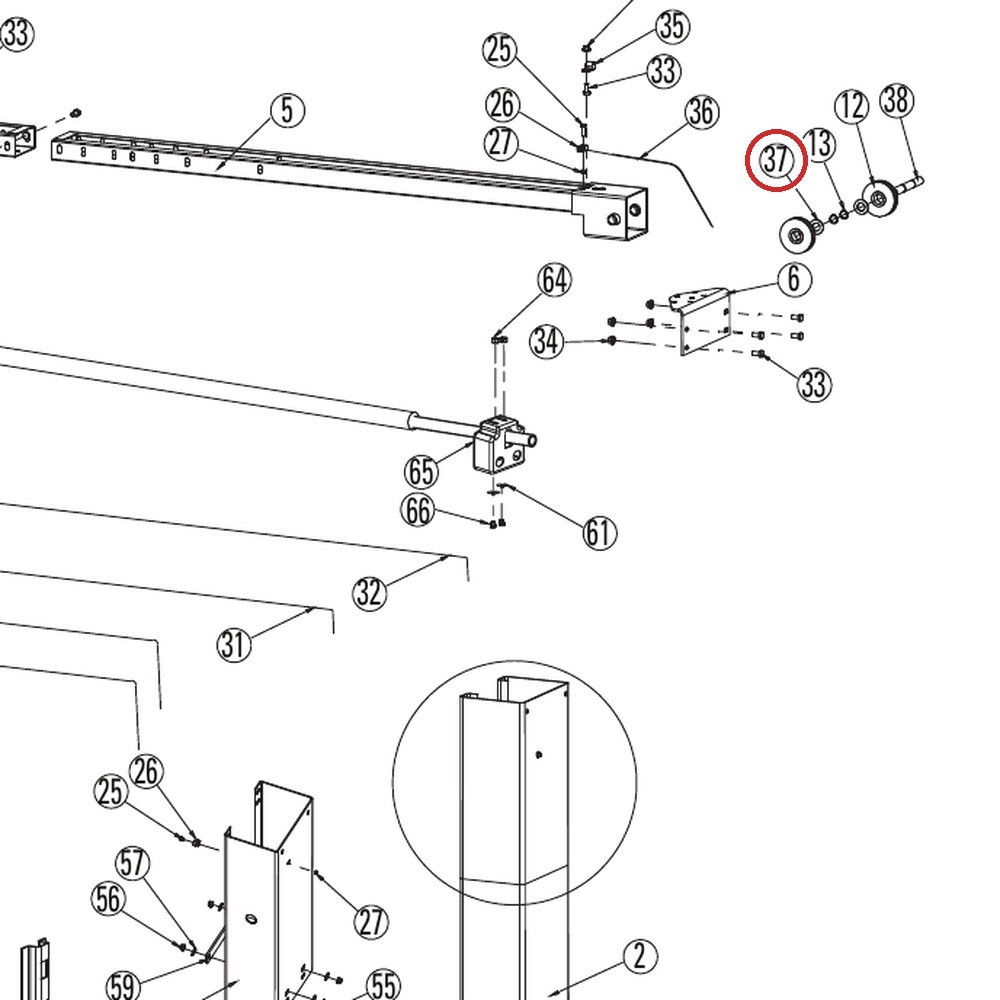

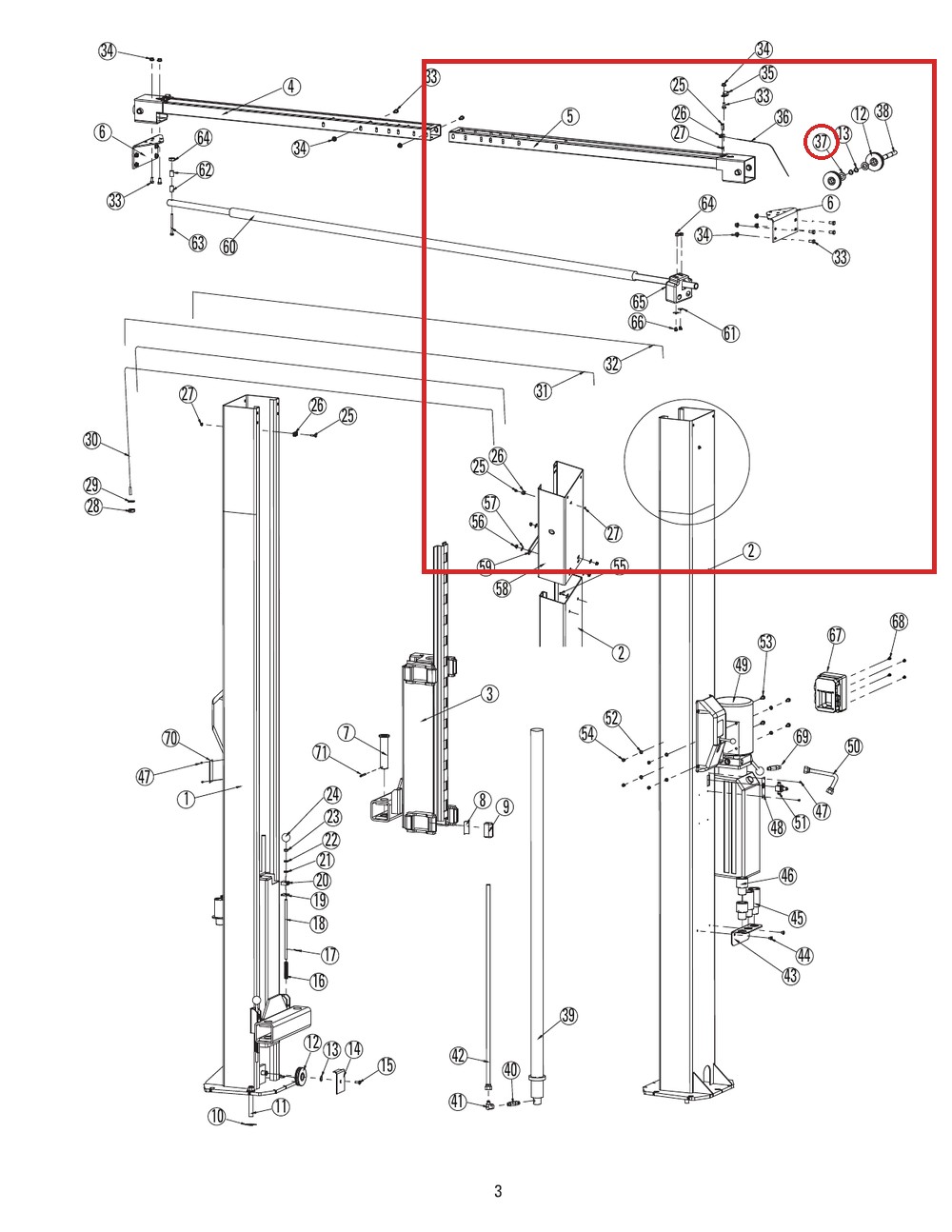

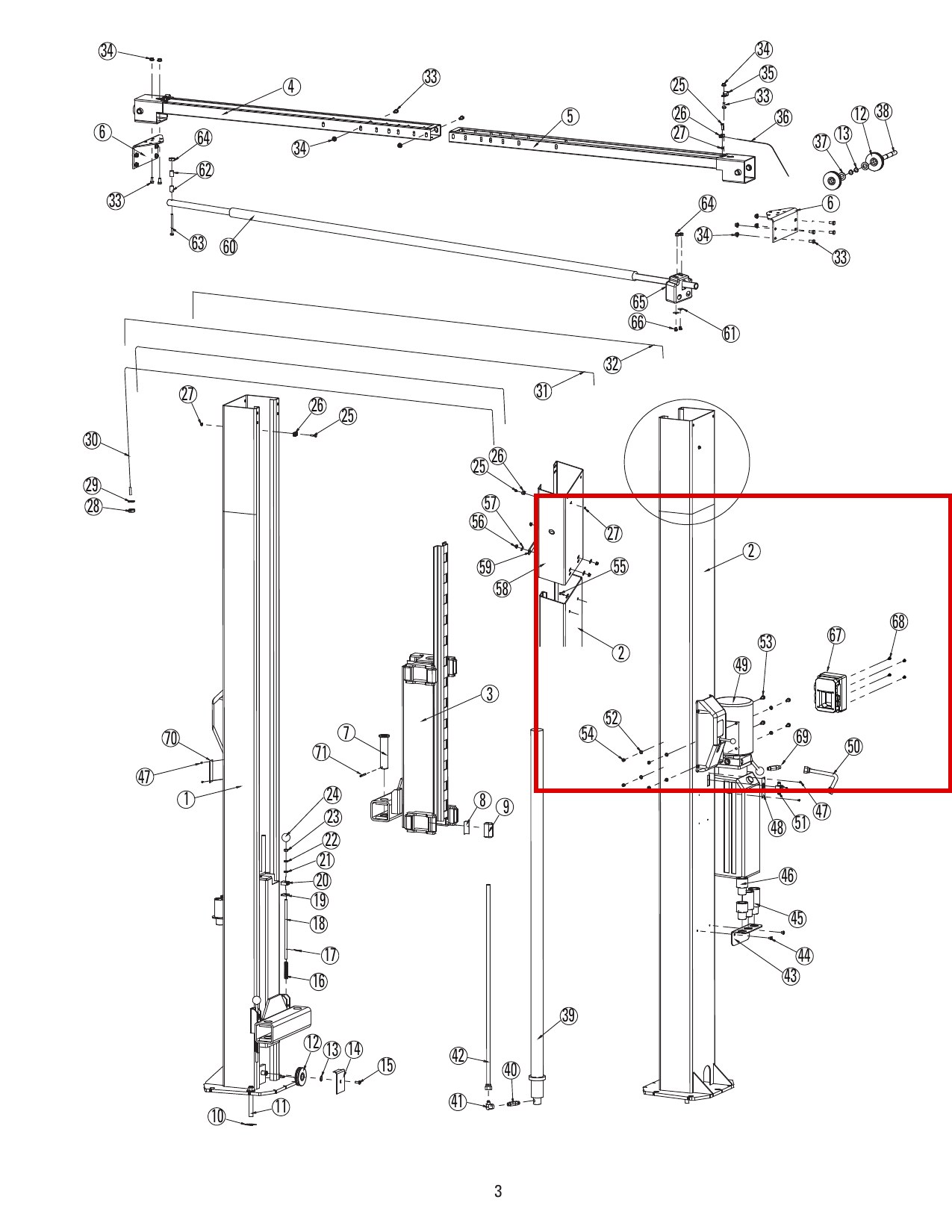

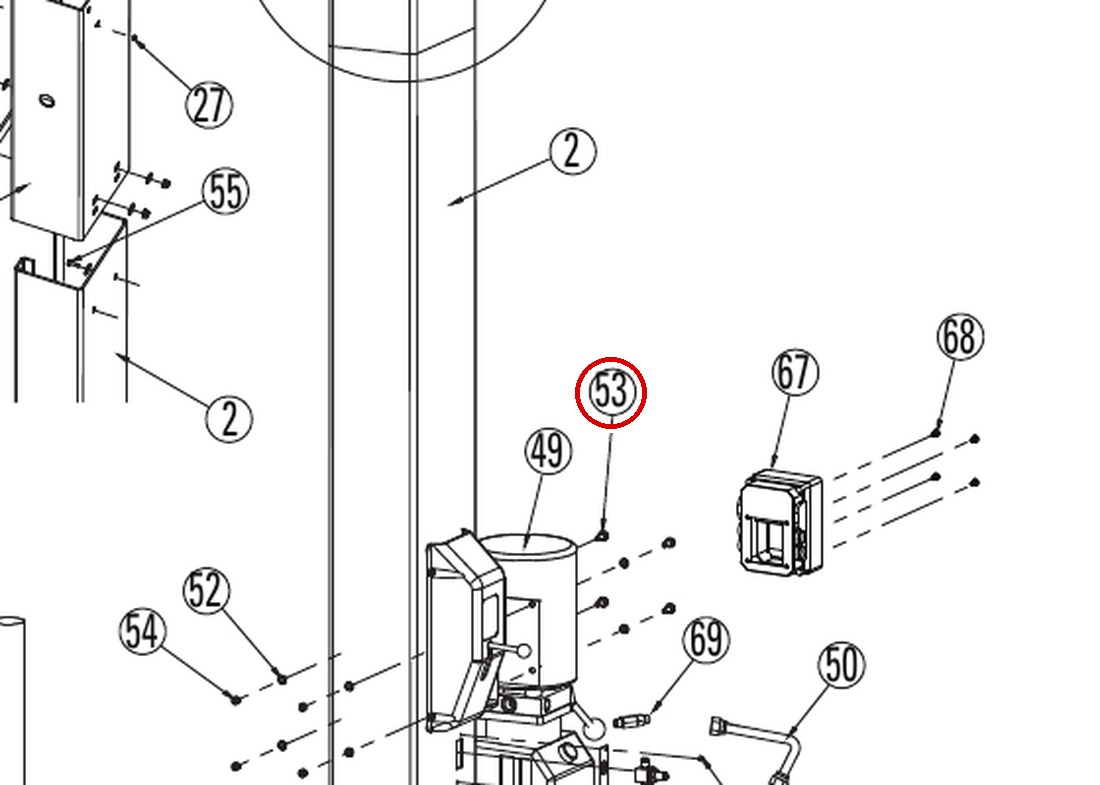

In the drawing images above this is part number 37 in the CR18-Parts drawing and part number 53 in the DL9 parts drawing and part number 50 in the DP10-Parts new style w lock covers drawing.

Fits the following lift models — part number 40271 appears in the parts breakdown of each of these lifts: Rotary Lift CR18, DL9, DP10 (new style with lock covers), I10N000M, I12 Pro, TL07; F12 / I12.

The Rotary Lift 40271 is a 5/16″-18NC x 1-1/2″ long full-thread hex head cap screw (HHCS), Grade 5, plated, from Rotary’s four-post/low-rise parts family.

Per the parts breakdowns it fits the CR18, the DL9 (Drawing 1, Main Lift Assembly, page 3), and the DP10 new style with lock covers (Main Lift Assembly, 2-post 12,000 lbs., plus columns, overhead, carriage and power unit).

OEM-spec replacement. The full-thread specification matters for clamping in these locations, so replace like for like per the parts breakdown.

Cross-check part number: Forward Lift 40271. This is a Forward Lift replacement part.

Fits these lifts:

• Direct Lift — DL9 (9,000 lb two-post)
• Hanmecson (VSG) — DL9
• Forward Lift — CR18 (four-post); DP10 (new style with lock covers); I10 (I10N000M); I12PRO (12,000 lb two-post); F12 / I12 (12,000 lb two-post); TLO7 (300 series two-post)
