Forward Lift 991487 Slider Restraint Screw, 3/8NC x 1/2" Self-Tapping for DP97, DP10, DP12 Lifts

Description

Forward Lift 991487 Slider Restraint Screw, 3/8NC x 1/2" Self-Tapping for DP97, DP10, DP12 Lifts

Replace missing, worn, or damaged lift hardware with the 991487 Slider Restraint Screw, 3/8NC x 1/2" Self-Tapping, listed for use on DP97, DP10, DP12 Lifts. This hardware is used when servicing the specified Forward Lift assembly. Match the part number, size or description, and listed application before ordering.

Product Information

• Brand / Equipment: Forward Lift
• Manufacturer / Reference Part Number: 991487
• Store SKU: FOD1487
• Component: Slider Restraint Screw, 3/8NC x 1/2" Self-Tapping
• Listed Application: DP97, DP10, DP12 Lifts

Fitment & Ordering Notes

Automotive lift manufacturers may use different parts across model years, production runs, or equipment revisions. Before ordering, compare the reference part number and the model/application information in this listing with the identification tag, parts manual, or original component on your lift. If your equipment uses a different part number, verify interchange before installation.

Additional Existing Product / Fitment Information

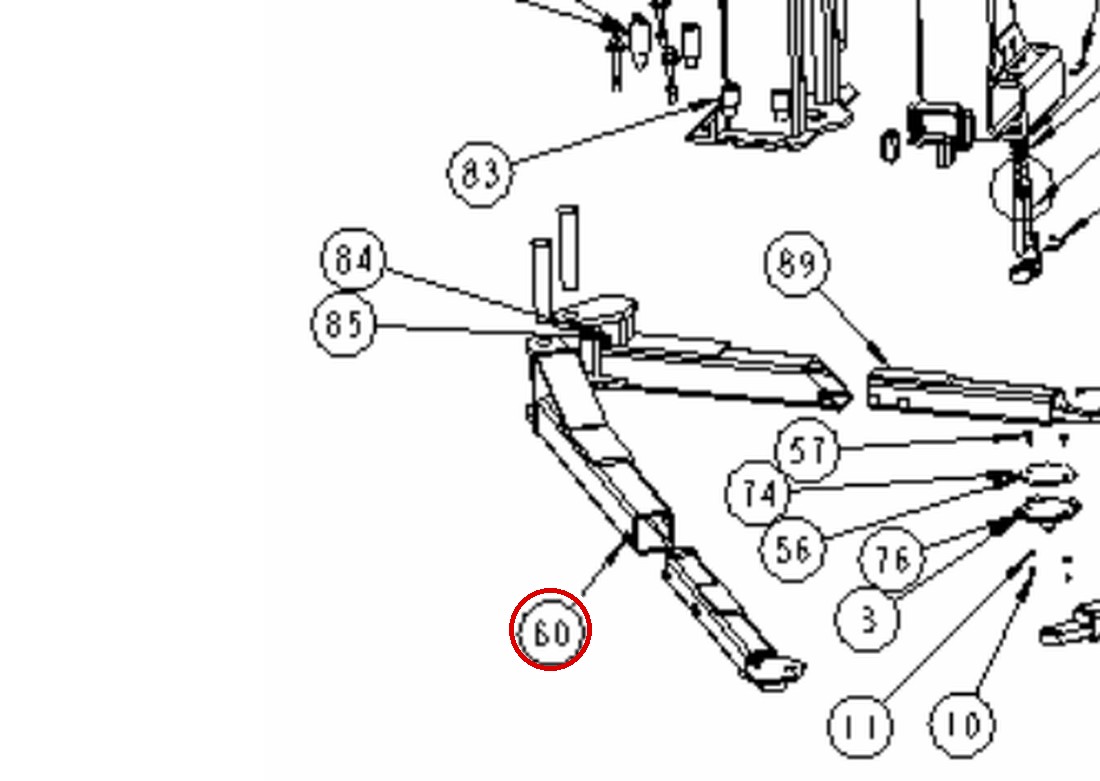

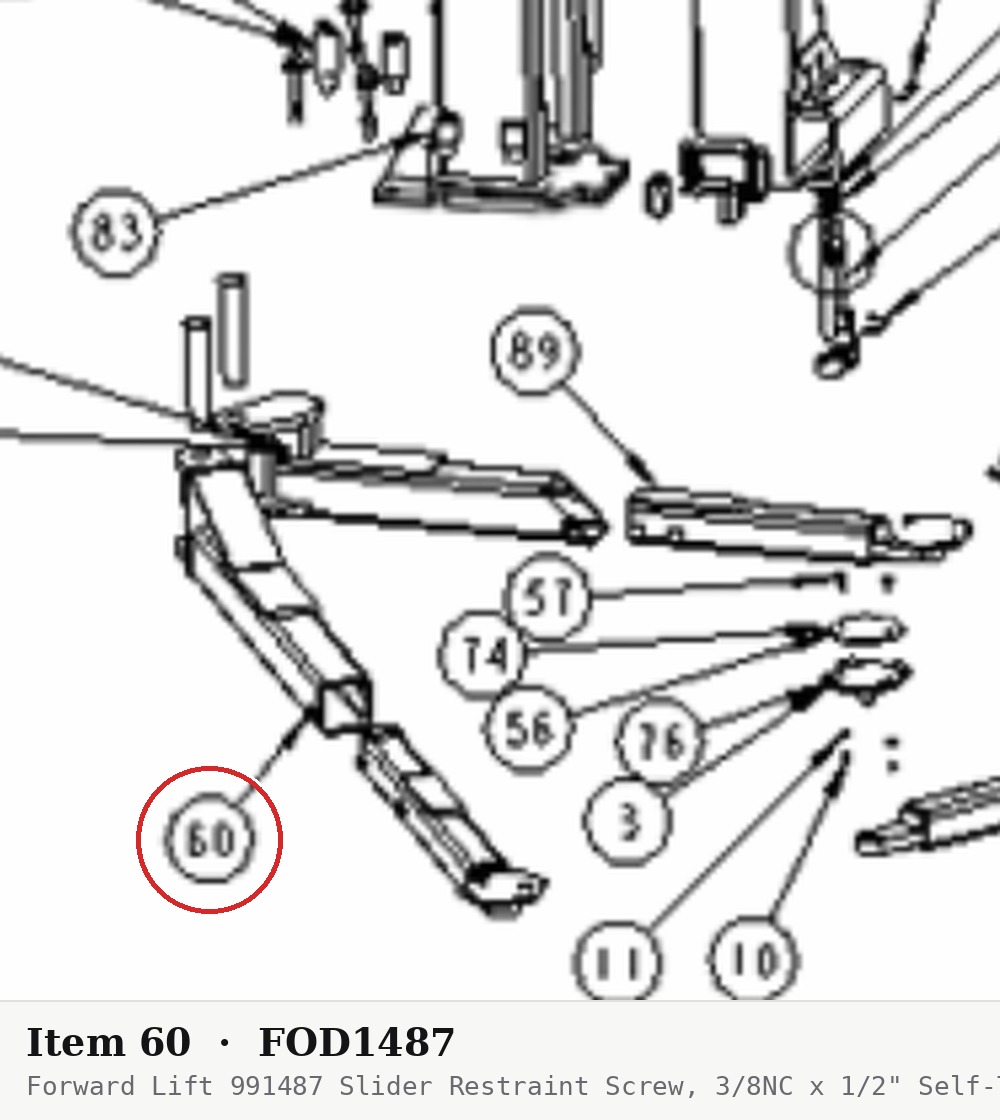

This is part number 60 in the drawing image above.

Fits the following lift models — part number 991487 appears in the parts breakdown of each of these lifts: Forward Lift I10, I10 (111000), INT10, INT9, DP9A-S, DP10 10K Two-Post.

This 3/8″-16 NC x 1/2″ self-tapping screw serves as the slider stop bolt, restraining the slider so it stays captive in its track during lift operation. It is a small but functionally important retention fastener on Forward’s 2-post carriage/overhead hardware.

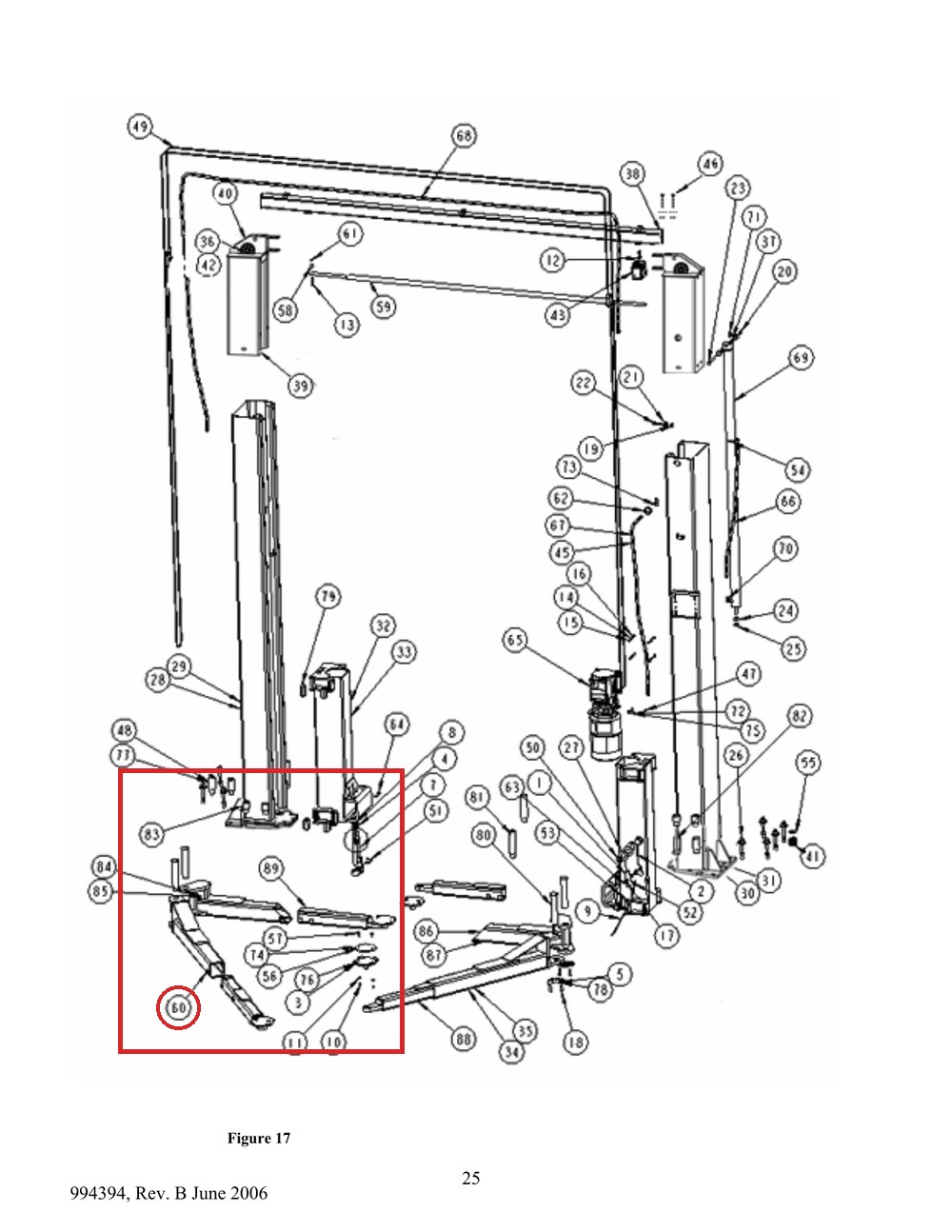

OEM replacement Forward part covering the DP97 through DP15 and IDP9/I10 model range. Confirm part number 991487 against Figure 17 of your lift’s parts breakdown before ordering.

Cross-check part number: Forward Lift 991487. This is a Forward Lift replacement part.
