Forward Lift H4P-2200 Column C Assembly for CR14 14000EWT / PRO 14F 4-Post Lifts
Repair or service the applicable lift assembly with the H4P-2200 Column C Assembly, listed for use on CR14 14000EWT / PRO 14F 4-Post Lifts. Use the reference part number and listed Forward Lift application to compare against the original component before ordering.
Product Information
- Brand / Equipment: Forward Lift
- Manufacturer / Reference Part Number: H4P-2200
- Store SKU: FOD2200
- Component: Column C Assembly
- Listed Application: CR14 14000EWT / PRO 14F 4-Post Lifts
Fitment & Ordering Notes
Automotive lift manufacturers may use different parts across model years, production runs, or equipment revisions. Before ordering, compare the reference part number and the model/application information in this listing with the identification tag, parts manual, or original component on your lift. If your equipment uses a different part number, verify interchange before installation.
Additional Existing Product / Fitment Information

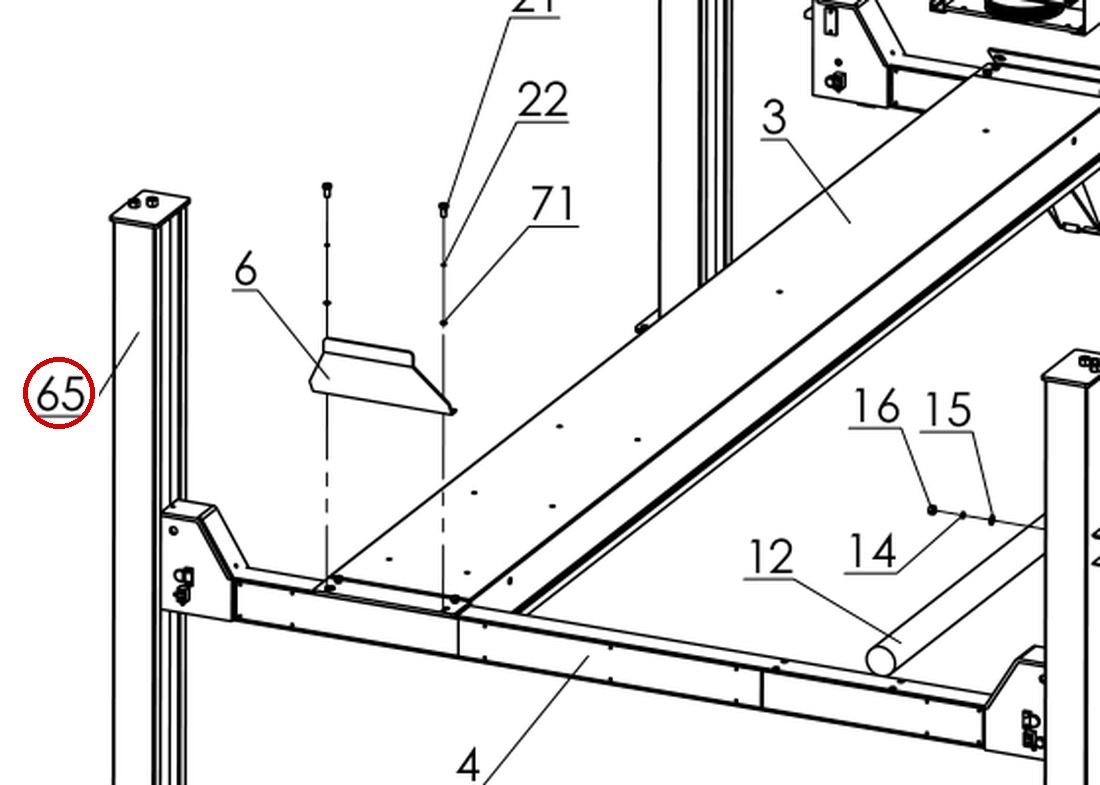

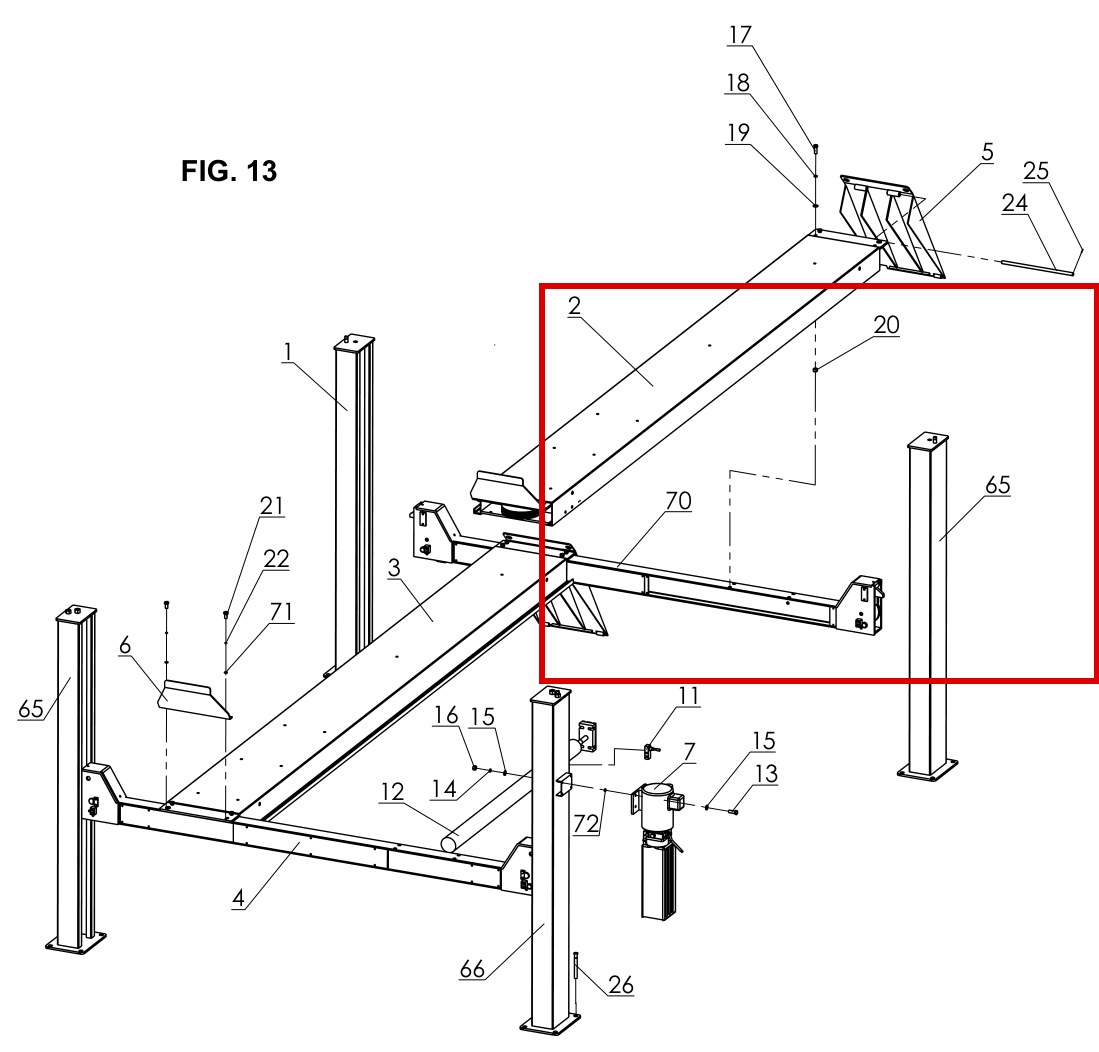

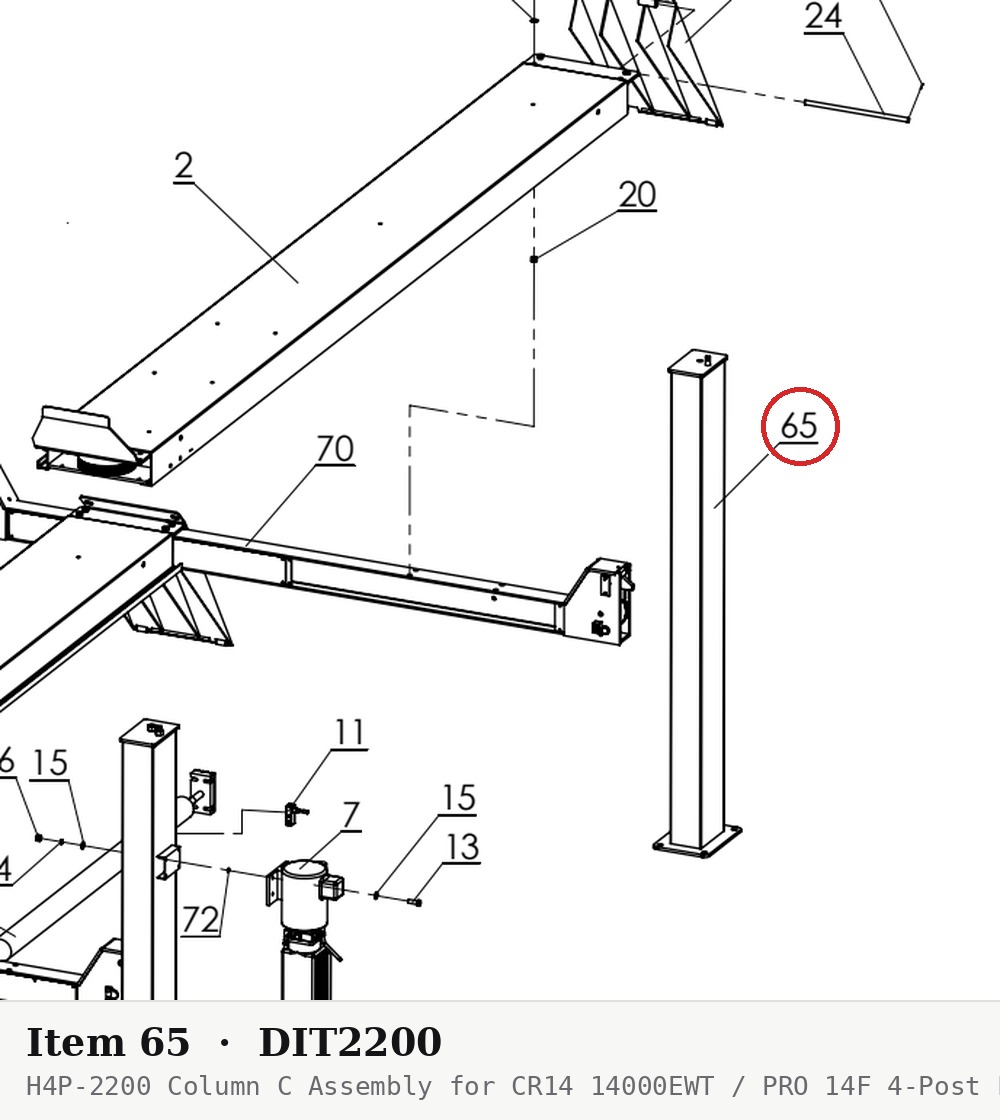

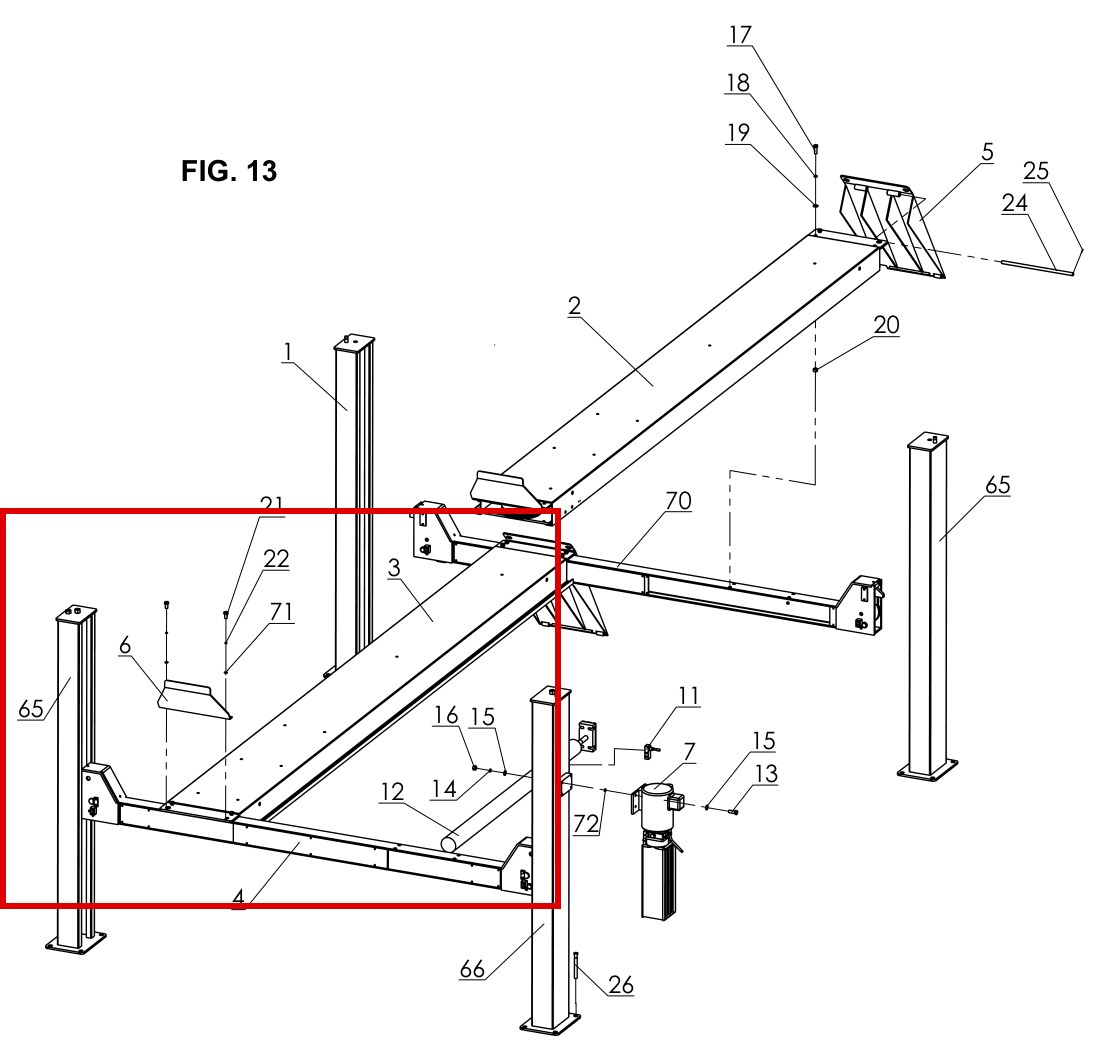

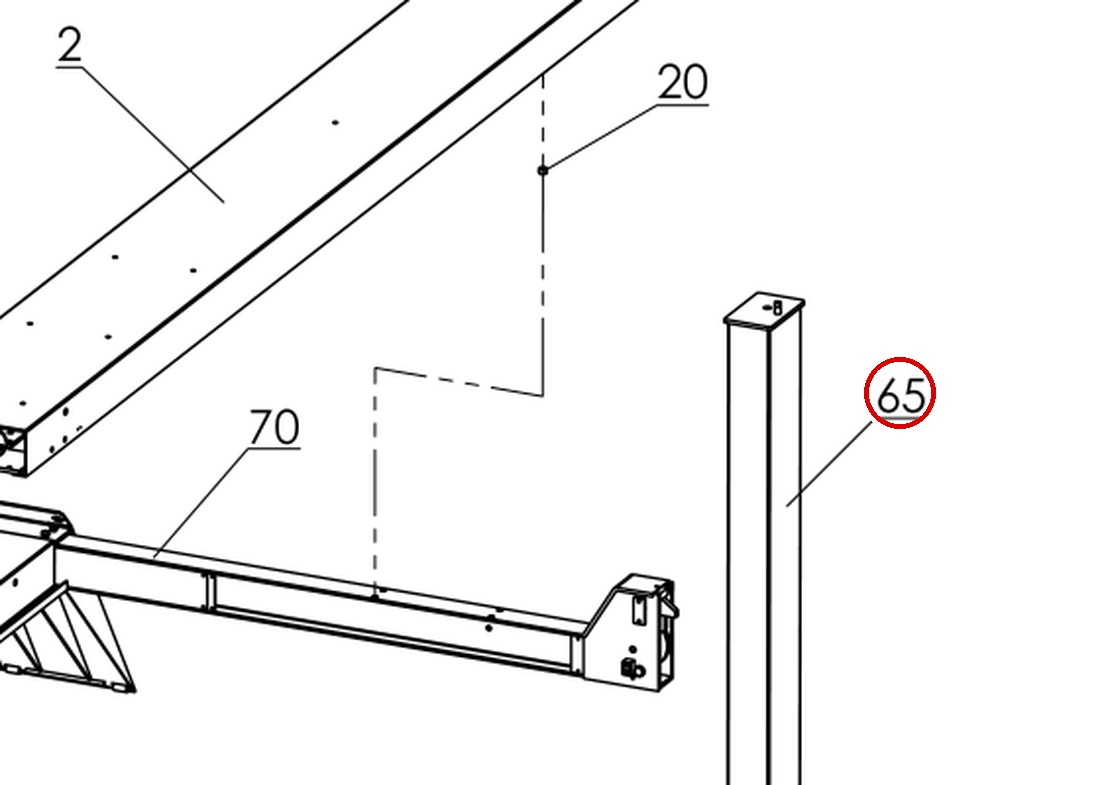

This is part number 65 in the drawing image above.
Fits the following lift models — part number H4P-2200 appears in the parts breakdown of each of these lifts: Direct Lift CR14 (14,000 lb EWT), PRO-14F 14K.

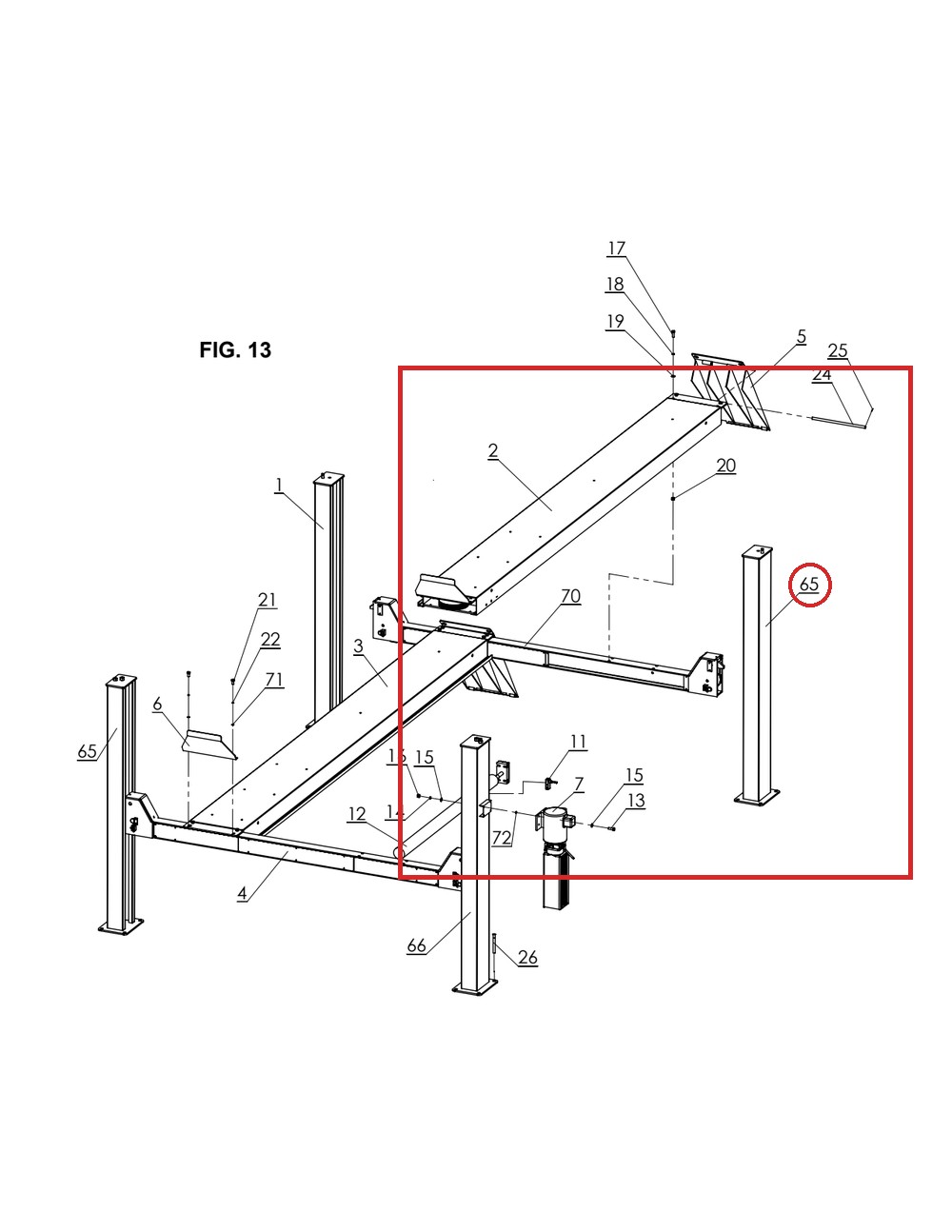

This is Column C for 14,000 lb four-post lifts, fitting both the CR14 (14000EWT, serial series 994359-9-20071) and the PRO 14F 14000. It is referenced in FIG. 9, FIG. 13, and FIG. 16 of the parts manual.
The column is a primary structural post: it carries the lift’s load through the cross beams and runways and houses the lock positions the safety latches engage. Replace a column that is bent, has cracked welds, or shows damaged or elongated lock positions.
OEM-style replacement. The lift’s columns are position-specific (see also H4P-2000 power unit column and H4P-2100 “A” RR column), so confirm the Column C position against the figure references before ordering.
Cross-check part number: Forward Lift H4P-2200. This is a Forward Lift replacement part.
