Forward Lift H4P-4006 Ramp Hinge Pin for CR14 14,000 lb & Pro 14F Lifts (Replaces H4P-4006FWD)
Replace missing, worn, or damaged lift hardware with the H4P-4006 Ramp Hinge Pin, listed for use on CR14 14,000 lb & Pro 14F Lifts (Replaces H4P-4006FWD). This hardware is used when servicing the specified Forward Lift assembly. Match the part number, size or description, and listed application before ordering.
Product Information
- Brand / Equipment: Forward Lift
- Manufacturer / Reference Part Number: H4P-4006
- Store SKU: FOD4006
- Component: Ramp Hinge Pin
- Listed Application: CR14 14,000 lb & Pro 14F Lifts (Replaces H4P-4006FWD)
Fitment & Ordering Notes
Automotive lift manufacturers may use different parts across model years, production runs, or equipment revisions. Before ordering, compare the reference part number and the model/application information in this listing with the identification tag, parts manual, or original component on your lift. If your equipment uses a different part number, verify interchange before installation.
Additional Existing Product / Fitment Information

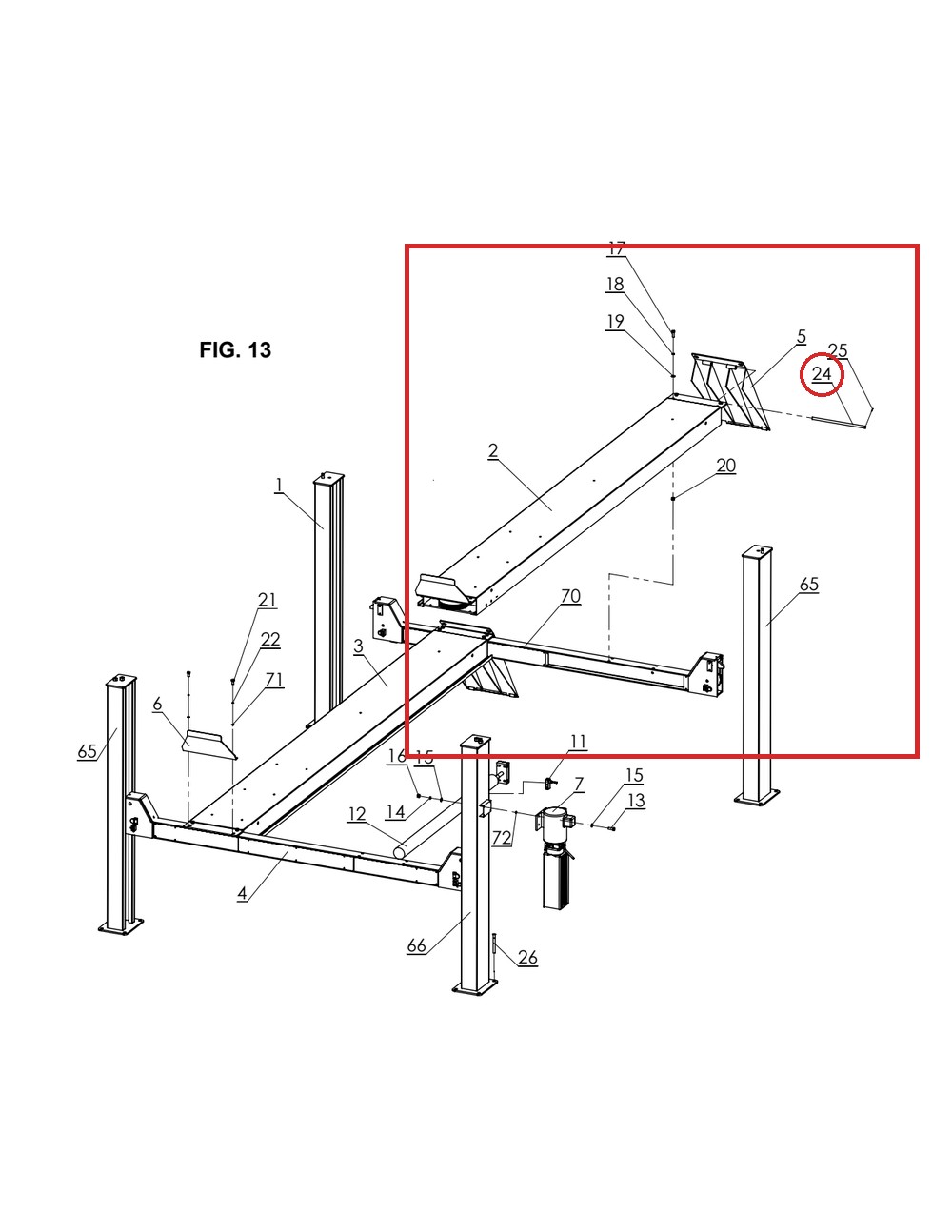

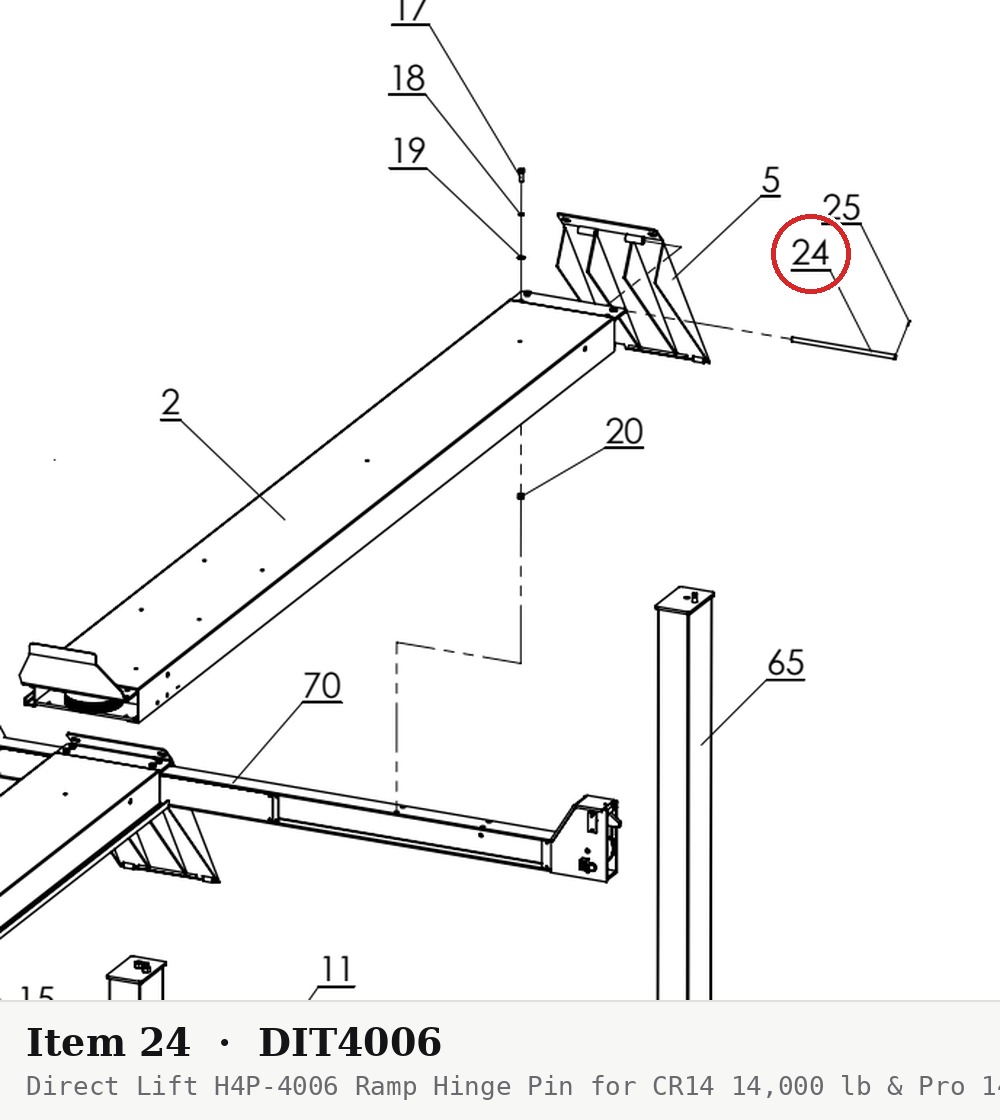

This is part number 24 in the drawing image above.
Fits the following lift models — part number H4P-4006 appears in the parts breakdown of each of these lifts: Direct Lift CR14 (14,000 lb EWT), CR14 14000 (serial 00N), PRO-14F (newer, 3-bolt lock), PRO-14F 14K.
The H4P-4006 hinge pin attaches the approach ramp to the rear of the runway, allowing the ramp to pivot as vehicles drive on and as the lift rises. It appears in Drawing 2 (Frame Assembly with Ramp/Stopper Detail, p.39), Drawing 3 (Frame with Power Unit & Cylinder Assembly, p.40) and FIG. 13 of the parts breakdowns. Worn or bent hinge pins cause the ramp to sag, rattle or fall off.
OEM-style replacement that supersedes the older H4P-4006FWD part number. Replace pins in pairs when servicing both ramps.
Cross-check part number: Forward Lift H4P-4006. This is a Forward Lift replacement part.
