Forward Lift TP10-3006 Overhead Top Bracket for DL9 Two-Post Lift (Replaces TP10-3006BL)

Description

Forward Lift TP10-3006 Overhead Top Bracket for DL9 Two-Post Lift (Replaces TP10-3006BL)

Repair or service the applicable lift assembly with the TP10-3006 Overhead Top Bracket, listed for use on DL9 Two-Post Lift (Replaces TP10-3006BL). Use the reference part number and listed Forward Lift application to compare against the original component before ordering.

Product Information

• Brand / Equipment: Forward Lift
• Manufacturer / Reference Part Number: TP10-3006
• Store SKU: FOD3006
• Component: Overhead Top Bracket
• Listed Application: DL9 Two-Post Lift (Replaces TP10-3006BL)

Fitment & Ordering Notes

Automotive lift manufacturers may use different parts across model years, production runs, or equipment revisions. Before ordering, compare the reference part number and the model/application information in this listing with the identification tag, parts manual, or original component on your lift. If your equipment uses a different part number, verify interchange before installation.

Additional Existing Product / Fitment Information

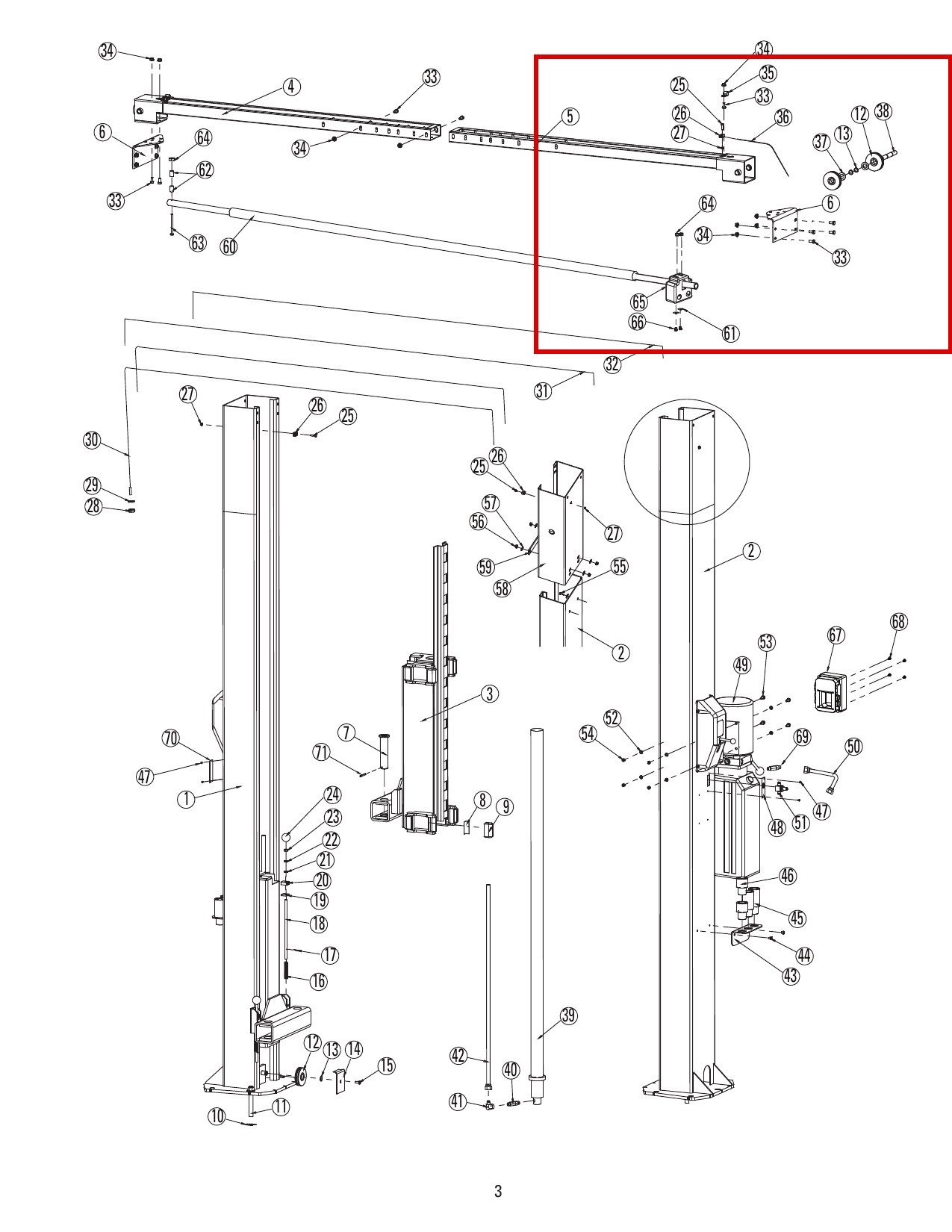

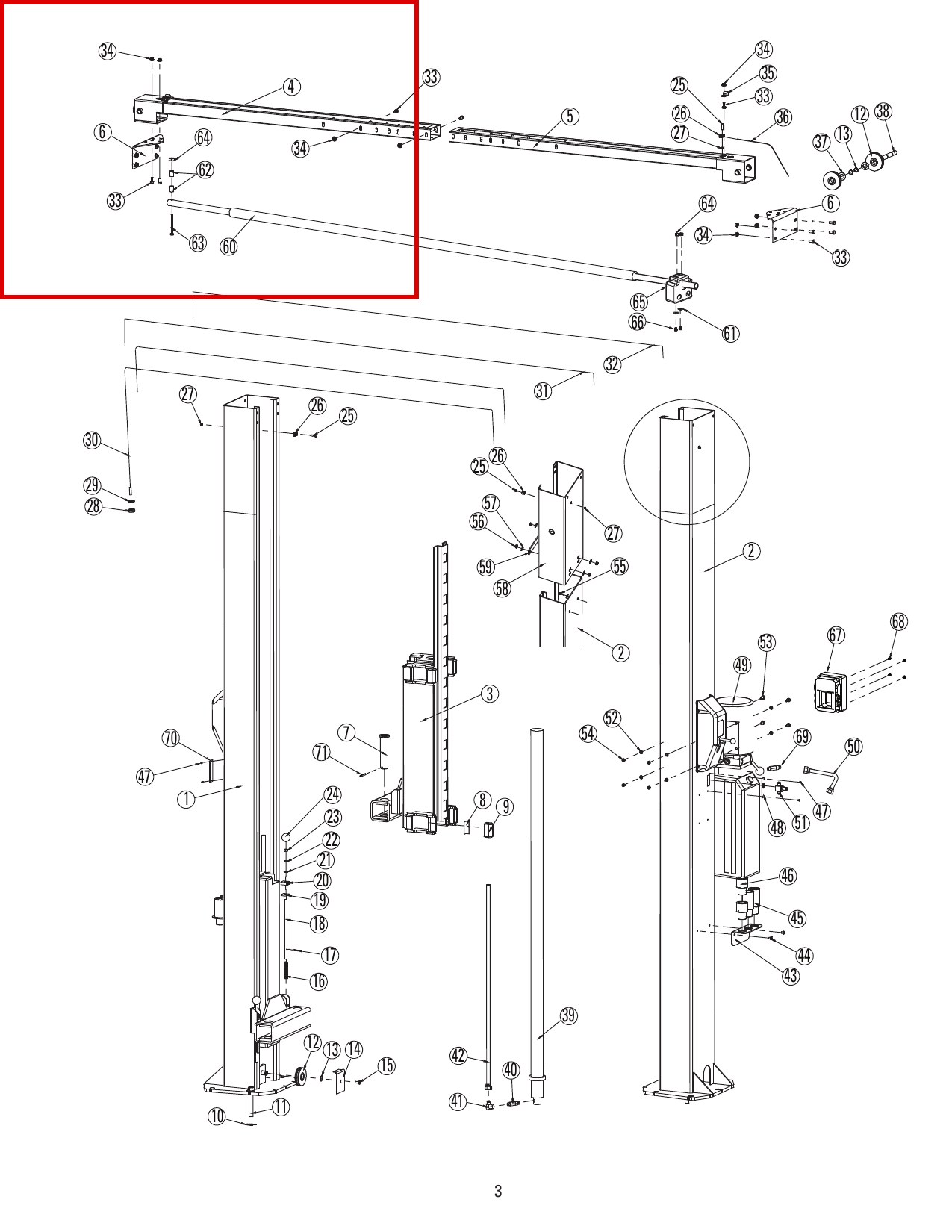

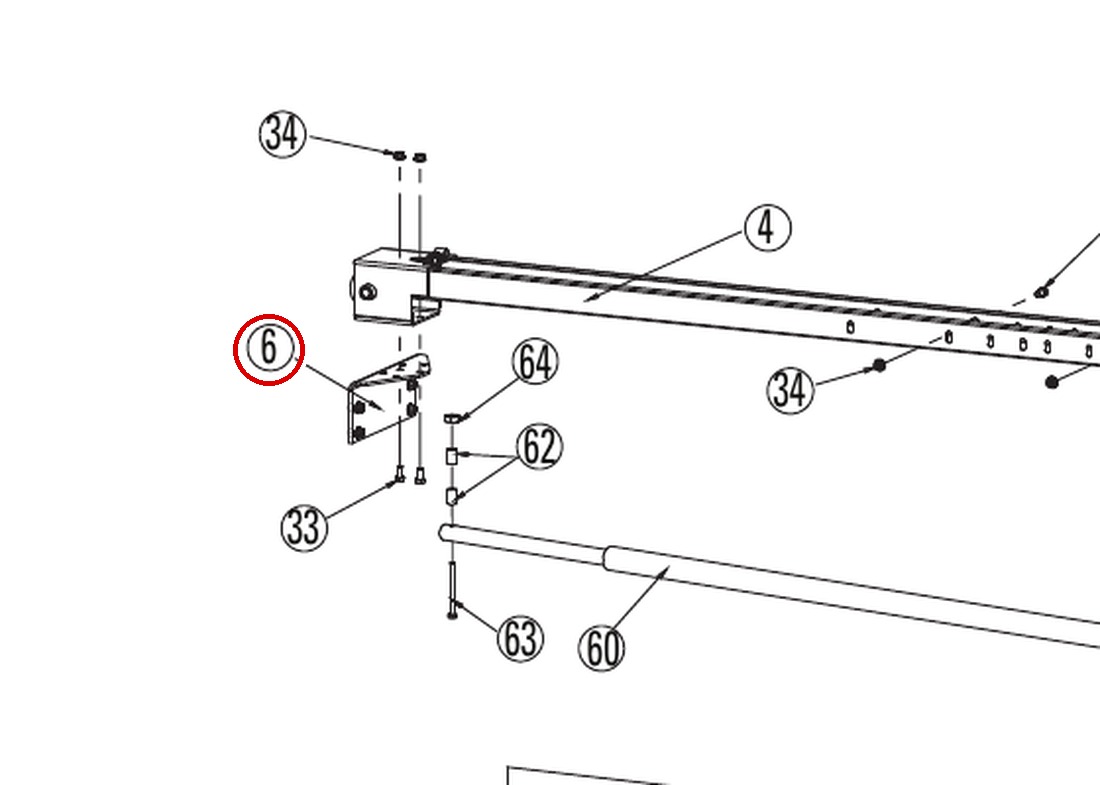

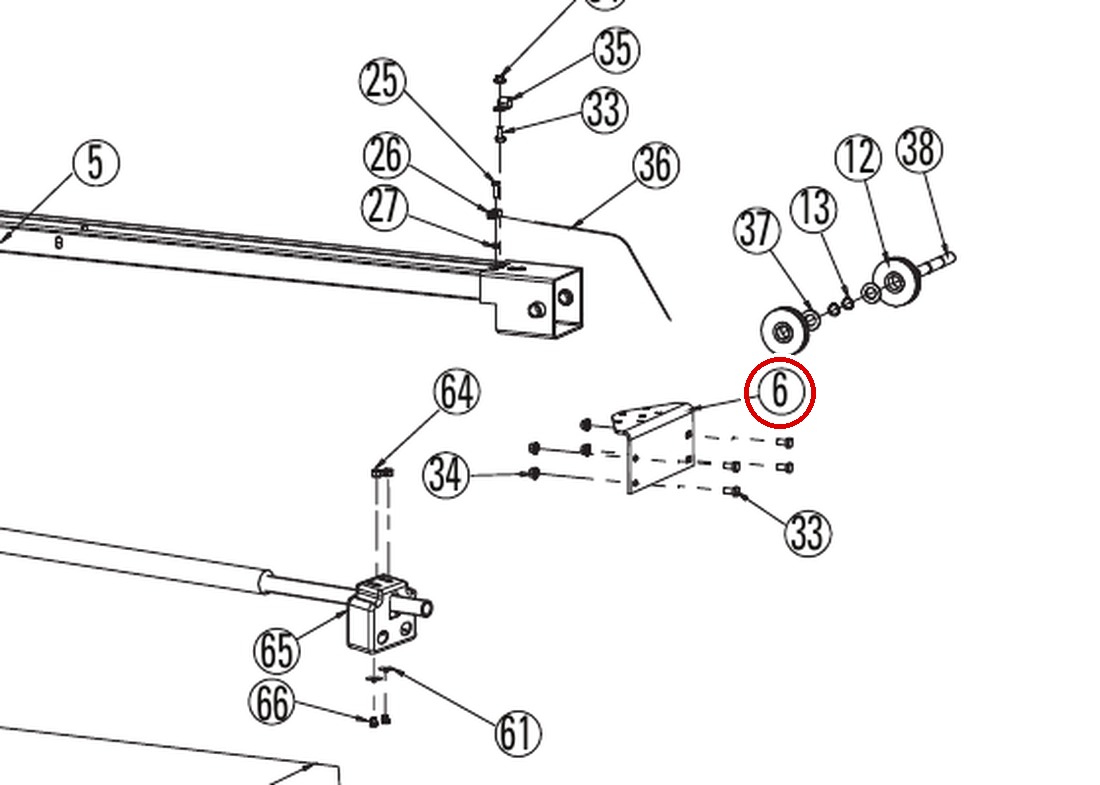

This is part number 6 in the drawing image above.

Fits the DL9 two-post lift. Shown in Drawing 1 (Main Lift Assembly, page 3) of the factory parts breakdown.

The overhead bracket mounts at the top of the column and supports the overhead assembly components, keeping the top structure of the lift located and secure. Per the catalog, this part supersedes and replaces the earlier TP10-3006BL, so order this number even if your diagram lists the -BL suffix.

OEM Forward Lift replacement part per the factory parts catalog. Verify against the DL9 main lift assembly drawing before ordering.

Fits these lifts:

• Direct Lift — DL9 (9,000 lb two-post)
• Hanmecson (VSG) — DL9
