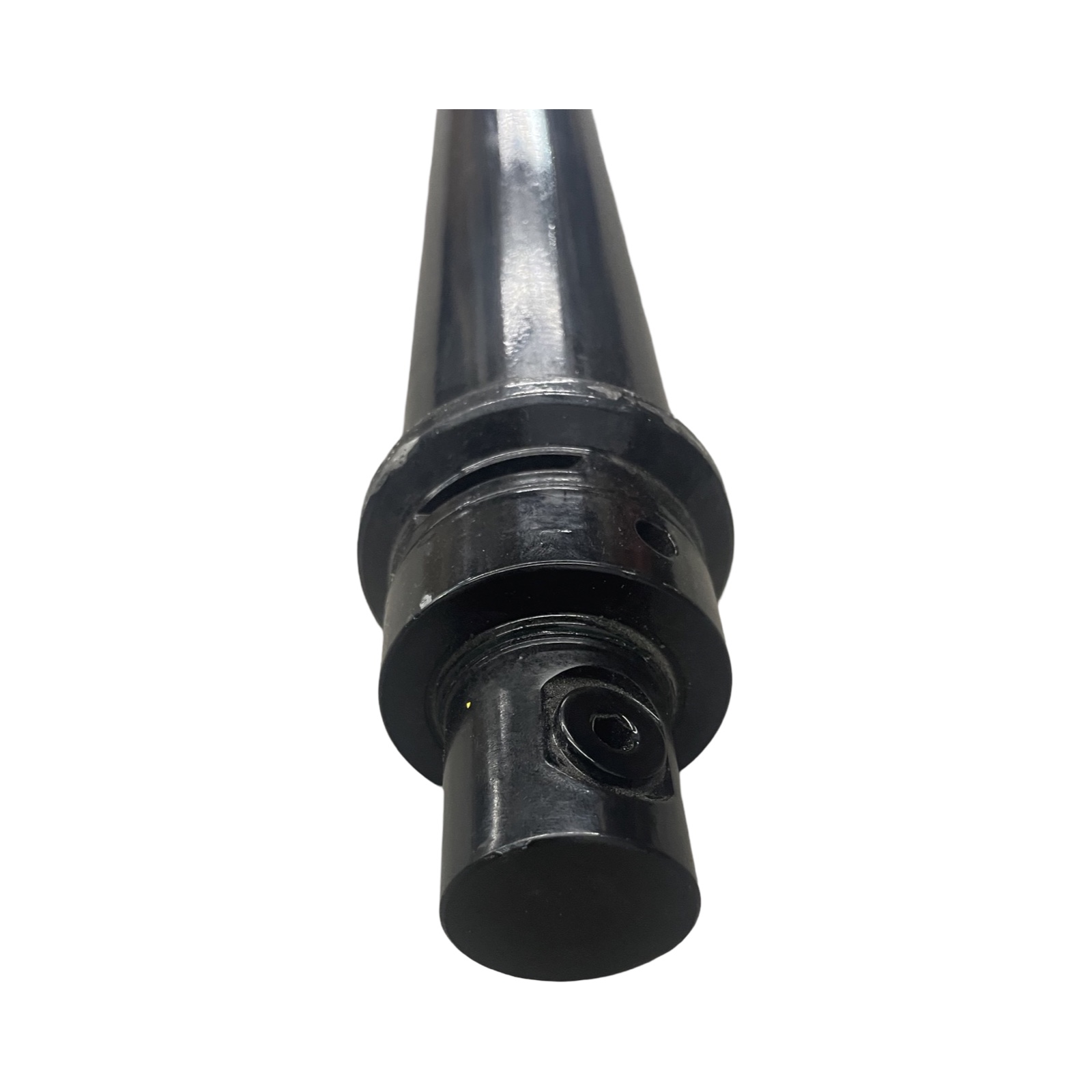

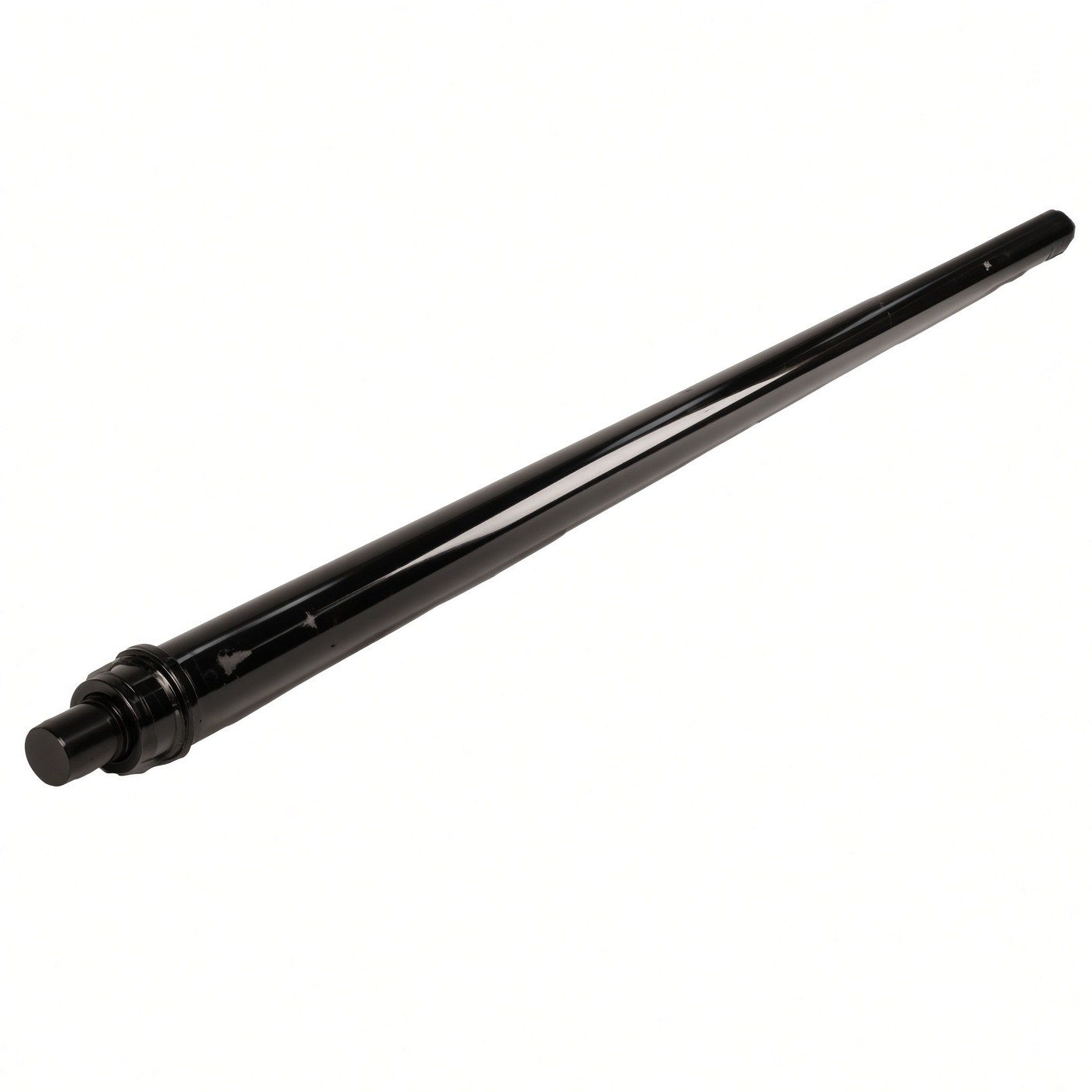

Challenger 16138 Hydraulic Cylinder – CL9, CL-10, and Inground Lift Replacement

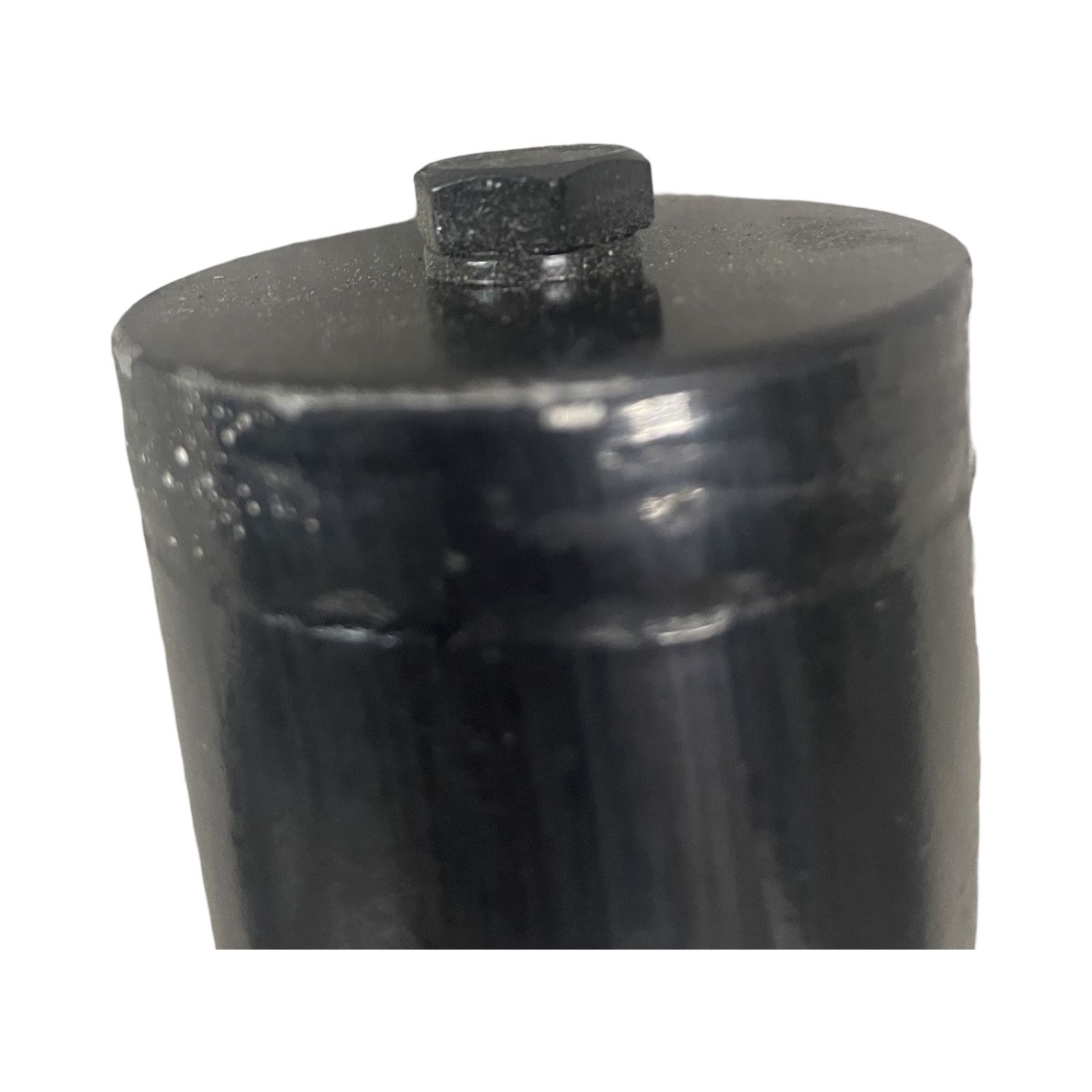

When replacing a hydraulic cylinder on a Challenger 2-post or inground lift, correct identification is critical. All Challenger cylinders are stamped with their part number on the outer tube housing, approximately 6 inches from the bleeder screw at the top of the cylinder. Confirm the stamped number reads 16138 and does NOT include an “R” suffix – this part does not replace the 16138R variant. Before installation, drain the oil reservoir, clean the tank, and flush the hydraulic system of debris and old fluid to maintain the warranty on the replacement cylinder.
Product Information
- Brand / Equipment: Challenger Lift (also fits Ammco, Magnum ADG, and compatible private-label 2-post and inground lifts)
- Manufacturer / Reference Part Number: 16138
- Store SKU: chr6138
- Component: Hydraulic Cylinder (single replacement unit)
- Stroke: 68 inches
- Bore: 2 inches
- Listed Application: 2-Post: CL9, CL-10, CL10-v3, Magnum OE-9, OE-10, Ammco Ac21NS (some models); Inground: CS1020WV, CS1220, CS1520, CS9200
Compatible Makes / Verified Fitment Models
- Challenger CL9
- Challenger CL-10
- Challenger CL10-v3
- Challenger CS1020WV (inground)
- Challenger CS1220 (inground)
- Challenger CS1520 (inground)
- Challenger CS9200 (inground)
- Magnum OE-9
- Magnum OE-10
- Ammco Ac21NS (some models only)
Fitment & Ordering Notes
Verify the stamped number 16138 on your cylinder’s outer housing before ordering. The stamp is typically located approximately 6 inches from the bleeder screw at the top of the cylinder. Some CL10 lifts were built with ram-style cylinders and require a different part. Some models listed have newer versions using a different cylinder – always confirm the stamped number matches 16138. This listing covers ONE cylinder and does NOT replace the 16138R cylinder.
