Hanmecson / Forward 52005 Cable Sheave 4.75" OD for Pro-V10 2-Post Lifts

Description

Hanmecson / Forward 52005 Cable Sheave 4.75″ OD for Pro-V10 2-Post Lifts

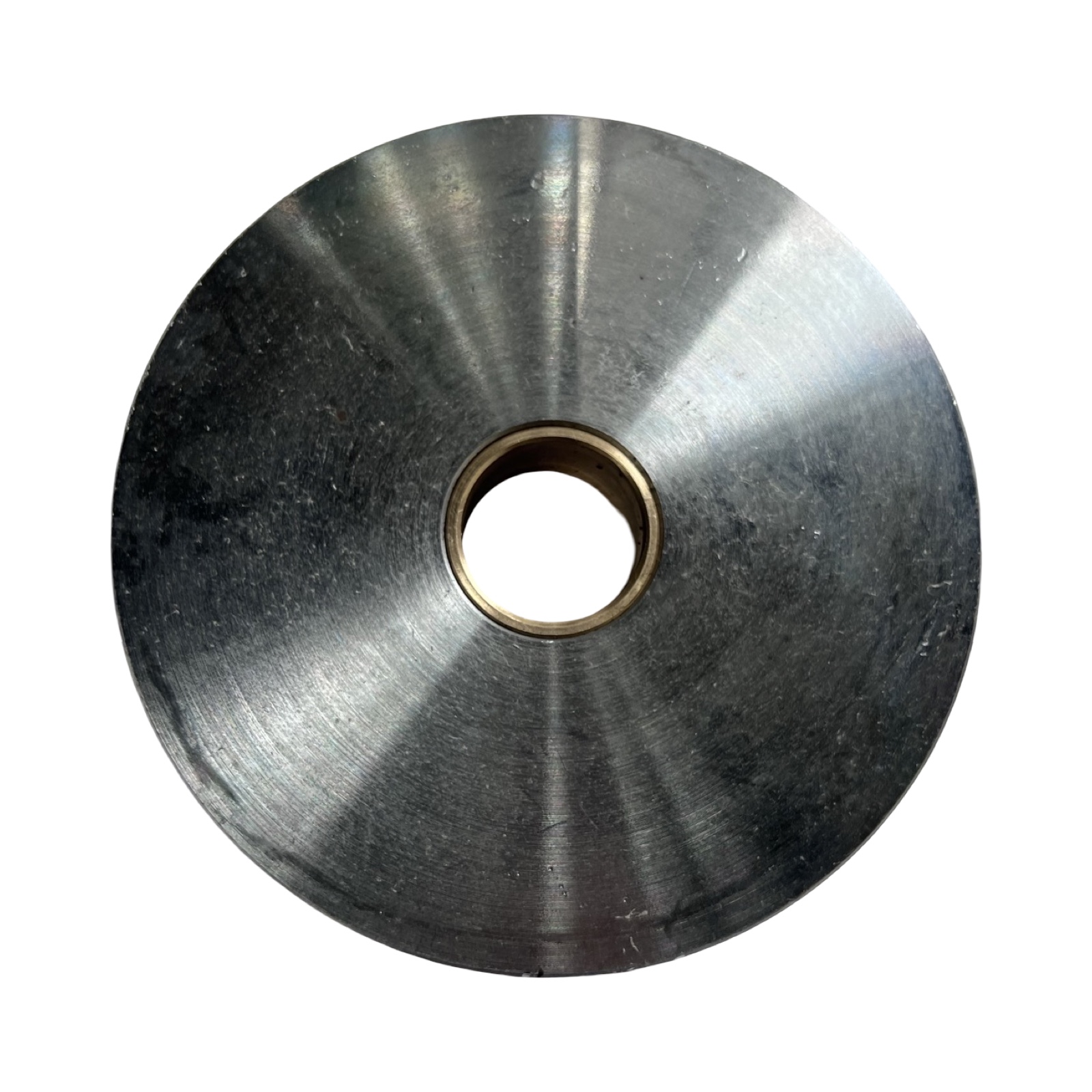

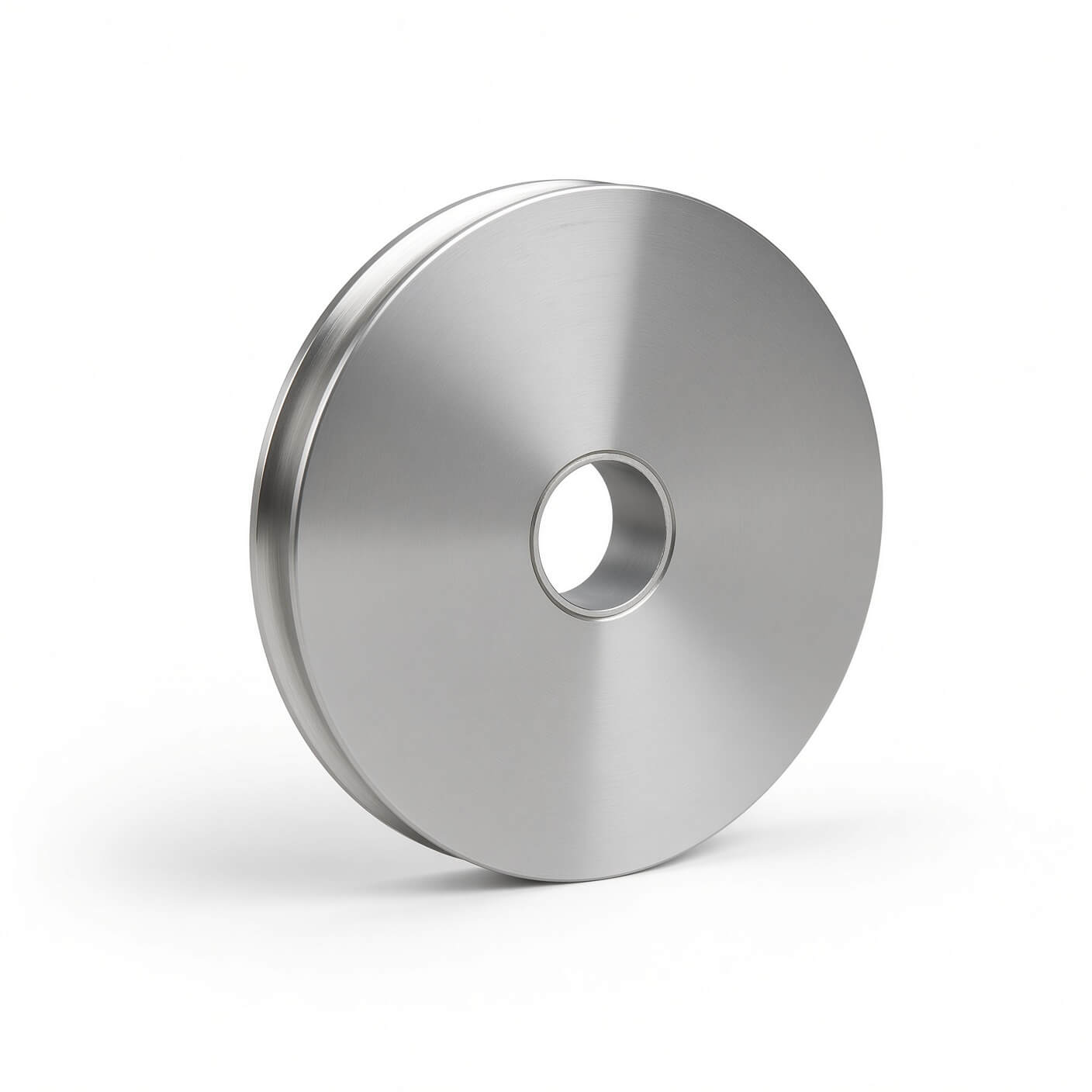

Keep your lift cables running smooth and aligned with this 52005 cable sheave / pulley (4.75″ outer diameter, 1″ pin diameter). This OEM-style sheave is used in the cable routing system on Hanmecson Pro-V10 (PROV10) and similar 2-post lifts. It guides the lift cable through the column or crossmember, reducing friction and ensuring proper tracking during lifting and lowering. A worn, seized, or cracked sheave can cause noisy operation, uneven cable travel, fraying, or premature cable failure. Before ordering, confirm pulley outer diameter (4.75″), width, and pin bore size against your existing sheave.

Product Information

• Brand / Equipment: Hanmecson, Forward 2-Post Lifts
• Manufacturer / Reference Part Number: 52005
• Store SKU: FOD2005
• Component: Cable Sheave / Pulley
• Outside Diameter: 4.75″
• Pin Diameter: 1″
• Function: Guides lift cable, reduces friction, maintains alignment
• Listed Application: 2-Post Lift Cable Routing System – Hanmecson Pro-V10 / PROV10

Parts Diagram and Manual Reference

This part appears in the following diagrams and figures:

• PRO10 – PROv10 – PV10 new style – Master Illustrated Parts Listings (Figure 9)
• 2-COLUMN 10K – Master Illustrated Parts Listings (Figure 9)
• 2-COLUMN 8K AUTOMO – Floor Plate – Equalization Cable Parts (Figure 12)
• 2-COLUMN 8K AUTOMO – Floor Plate – Master Illustrated Parts Listing (Figure 11)
• BP9 FLOOR PLATE AU – Drawing 3 (Full Lift Assembly / Two-Column Overview)
• BP9 FLOOR PLATE AU – Drawing 4 (Top Sheave, Hydraulic Hose Routing and 3-Phase Control Box)

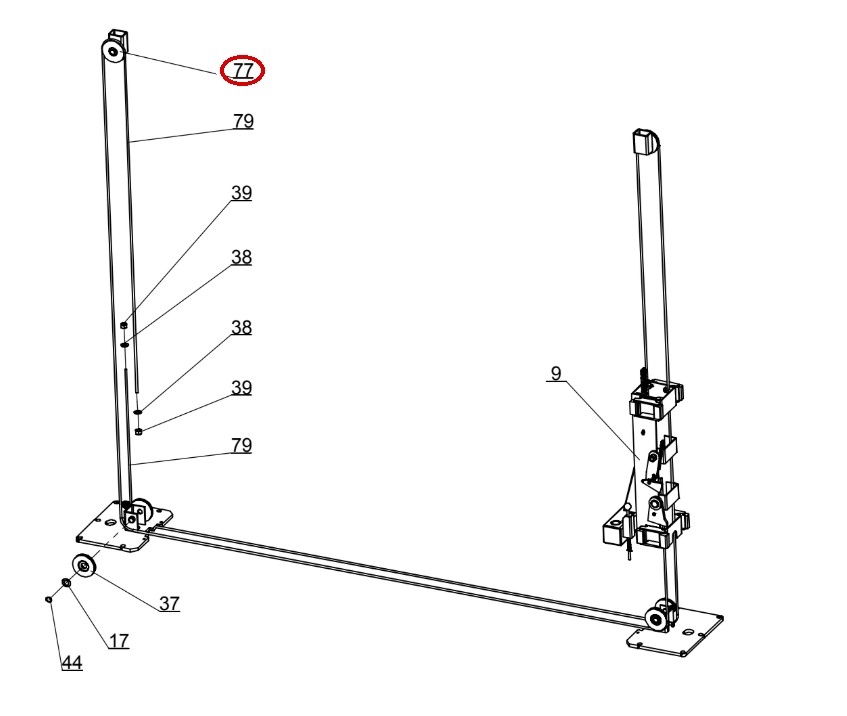

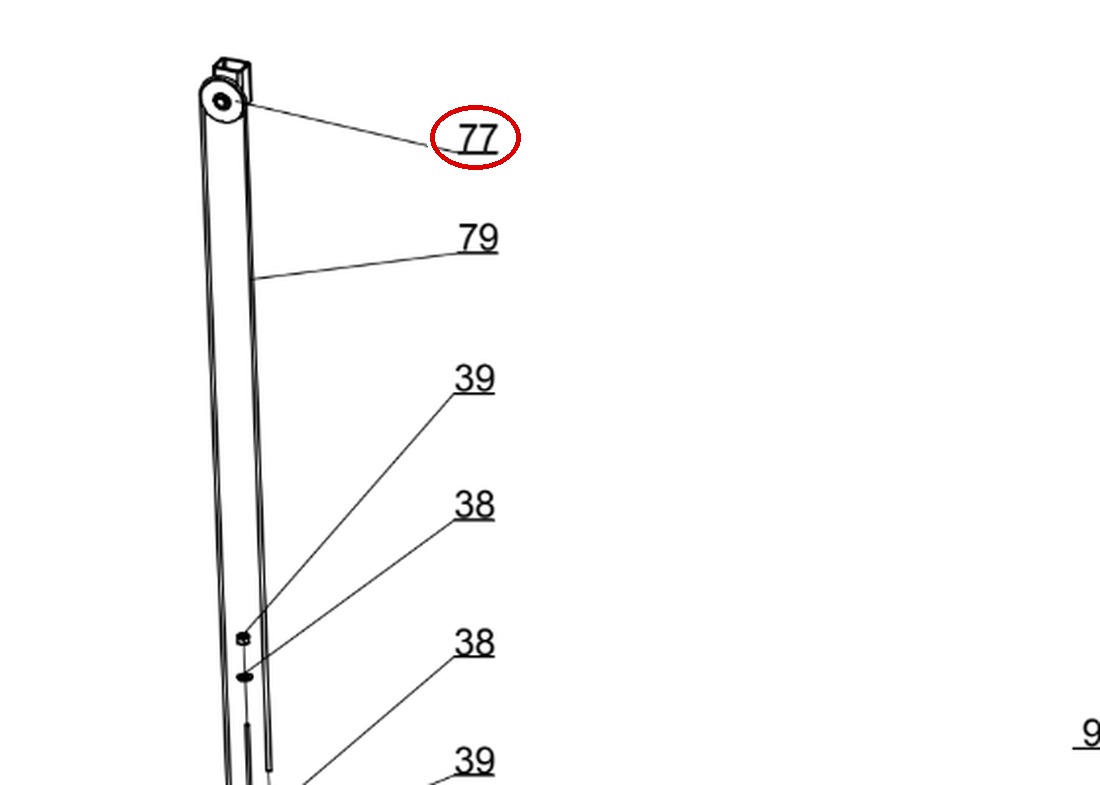

• HR8000 8K FLOOR PL – Drawing 1 (Cross Cable / Cable Sheave Assembly, page 24)

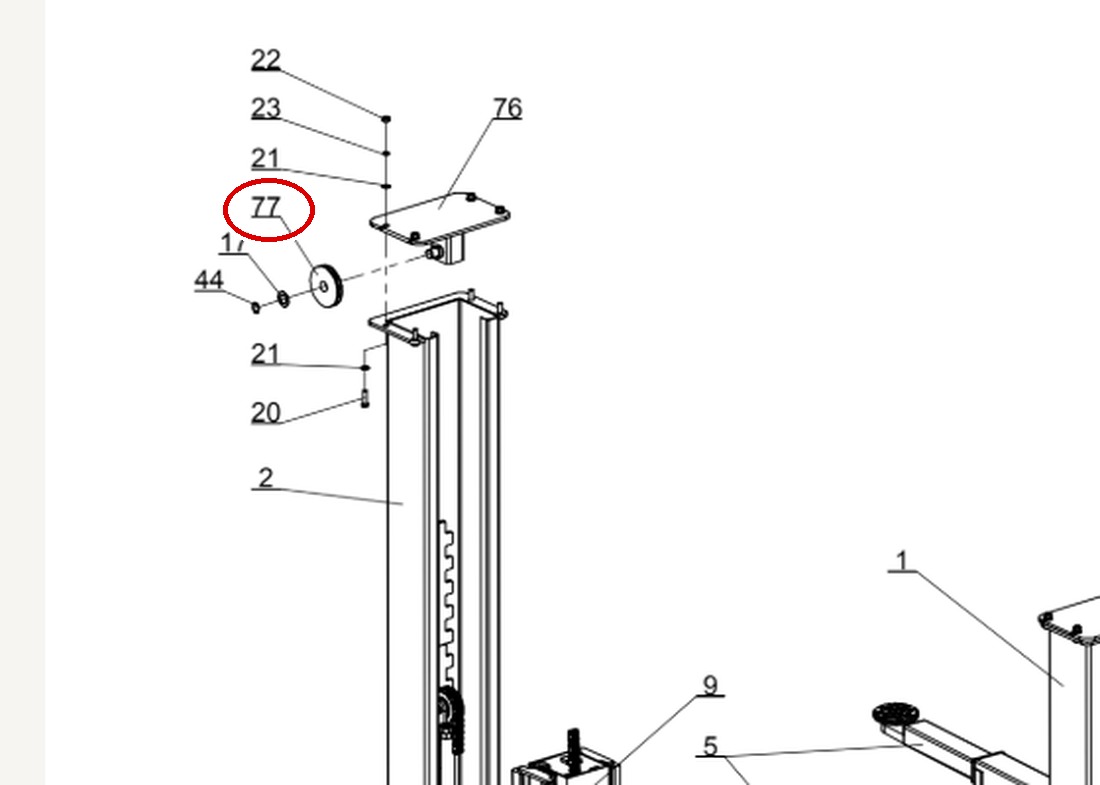

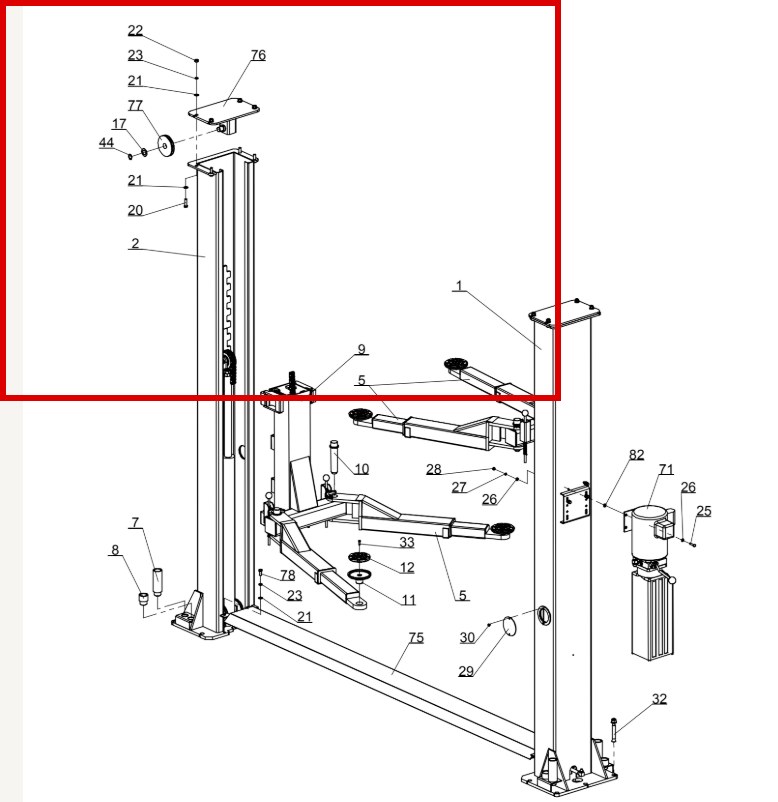

• HR8000 8K FLOOR PL – Drawing 2 (Column, Arm and Top Plate Assembly, page 25)
• I12-Parts – Drawing 6 (page 9 – Full lift assembly: columns, cross beams, arms, top pulleys and power unit, exploded)
• PRO9D 9K 2-COLUMN – Figure 8
• PRO9F 9K FLOOR PLA – Drawing 3 (Two-Post Column / Base / Runway Assembly, p.25)
• PRO9F 9K FLOOR PLA – Drawing 4 (Single Column / Sheave / Hydraulic Hose Routing, p.26)
• PROV12 – PRO12 TP – Drawing 2 (Overall lift assembly – columns, cross beams, arms)

Fitment and Ordering Notes

Confirm pulley diameter (4.75″), width, and pin bore size before ordering. May also fit select Forward, Direct Lift, or Atlas models that use the same 4.75″ ProV10-style sheave – always confirm dimensions against your existing sheave before purchasing.
