Direct Lift 30400-5020 Rub Block for 2-Column 10K, BP9 & PRO-9/9F Lifts

Description

Direct Lift 30400-5020 Rub Block for 2-Column 10K, BP9 & PRO-9/9F Lifts

The 30400-5020 Rub Block is listed for use on 2-Column 10K, BP9 & PRO-9/9F Lifts and is intended for service or repair of compatible Direct Lift equipment. Match the reference part number, component description, and listed application to your original lift part before ordering.

Product Information

• Brand / Equipment: Direct Lift
• Manufacturer / Reference Part Number: 30400-5020
• Store SKU: DIT5020
• Component: Rub Block
• Listed Application: 2-Column 10K, BP9 & PRO-9/9F Lifts

Fitment & Ordering Notes

Automotive lift manufacturers may use different parts across model years, production runs, or equipment revisions. Before ordering, compare the reference part number and the model/application information in this listing with the identification tag, parts manual, or original component on your lift. If your equipment uses a different part number, verify interchange before installation.

Additional Existing Product / Fitment Information

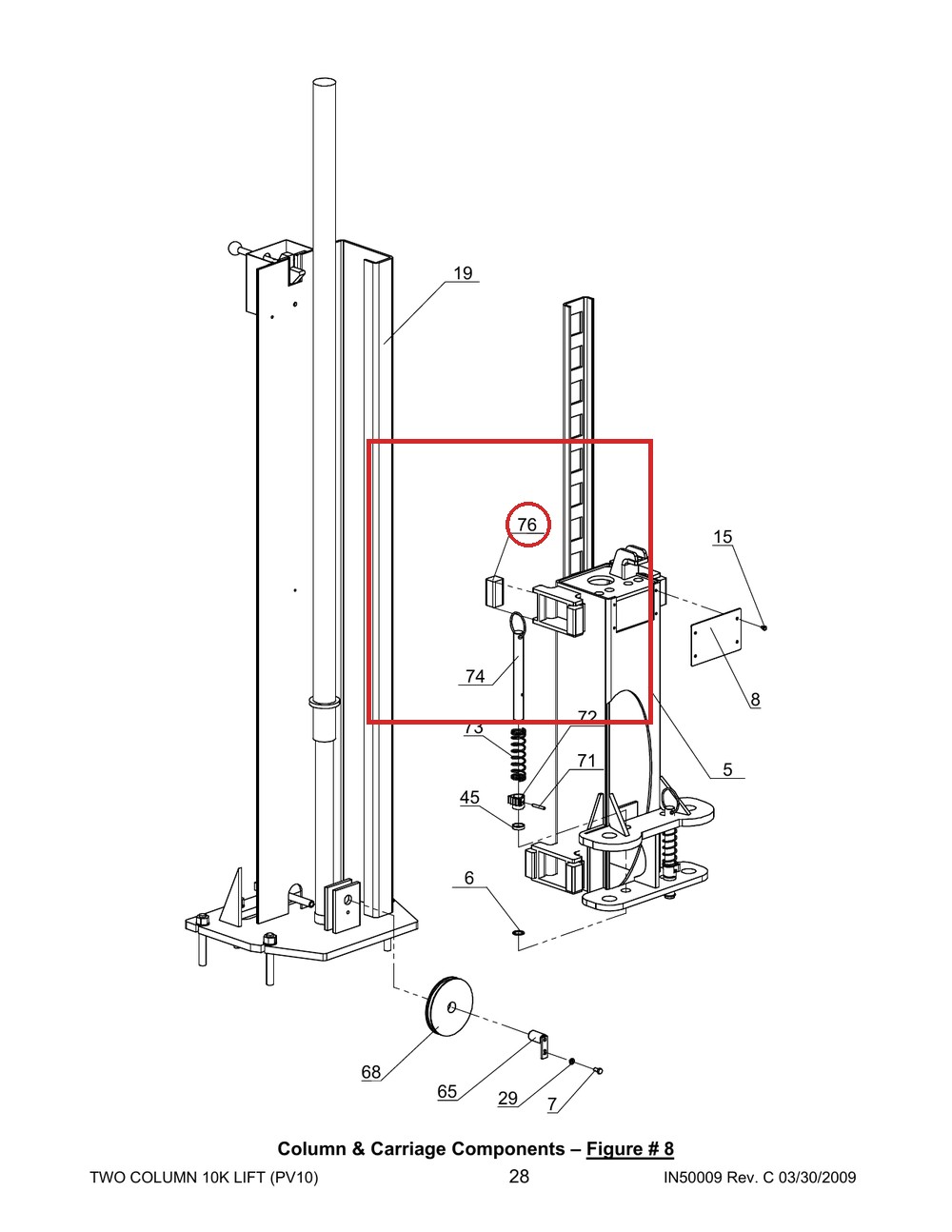

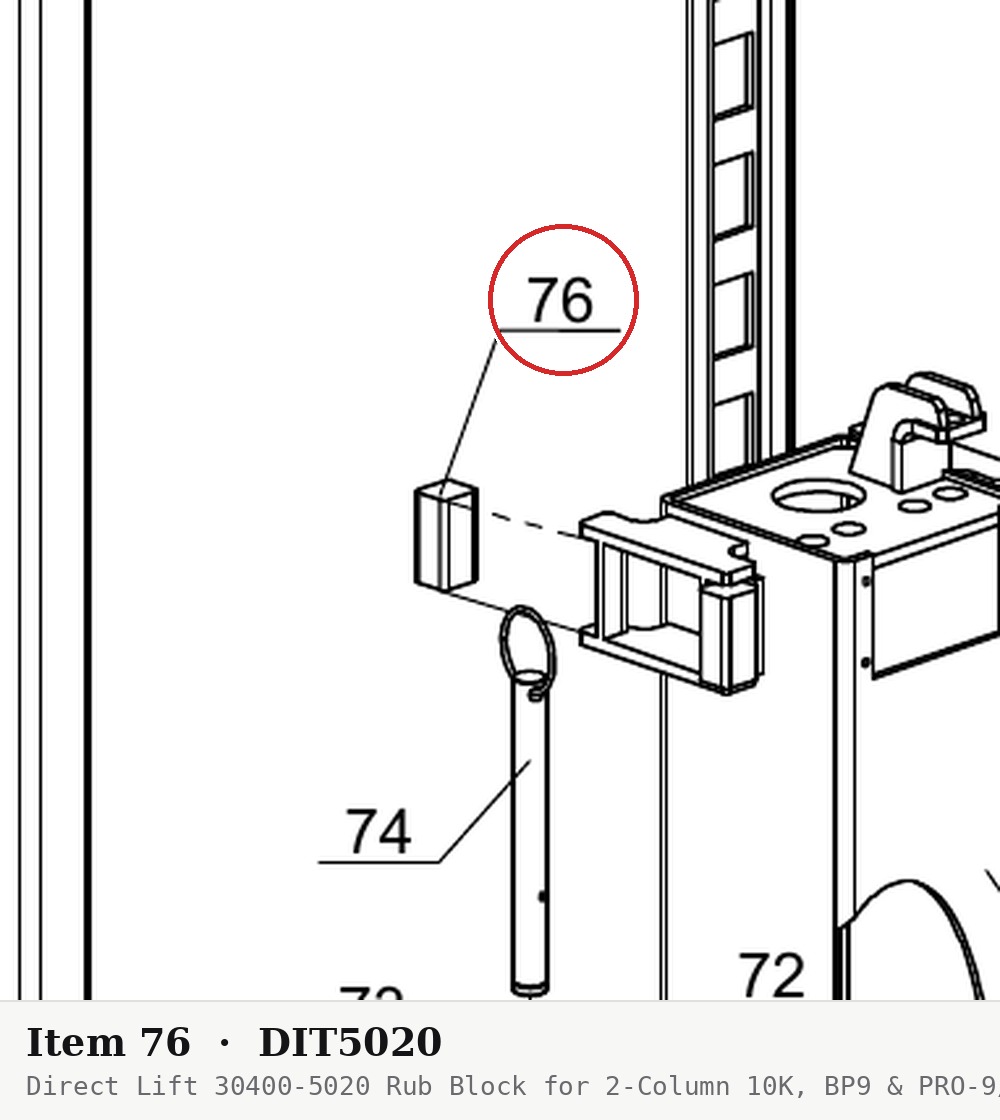

In the drawing images above this is part number 76 in the PARTS BREAKDOWN 2-COLUMN 10K drawing and part number 37 in the PARTS BREAKDOWN BP9 FLOOR PLATE AU drawing and part number 55 in the PARTS BREAKDOWN PRO-9-9F 9K 2-COLU drawing.

Fits the following lift models — part number 30400-5020 appears in the parts breakdown of each of these lifts: Direct Lift 10K Two-Column, BP9 Floor Plate, PRO-9 / PRO-9F 9K Two-Column, PRO-9F 9K Floor Plate, PRO-10 / PROV10 / PV10 (new style), PRO-9F, PROV10 (early).

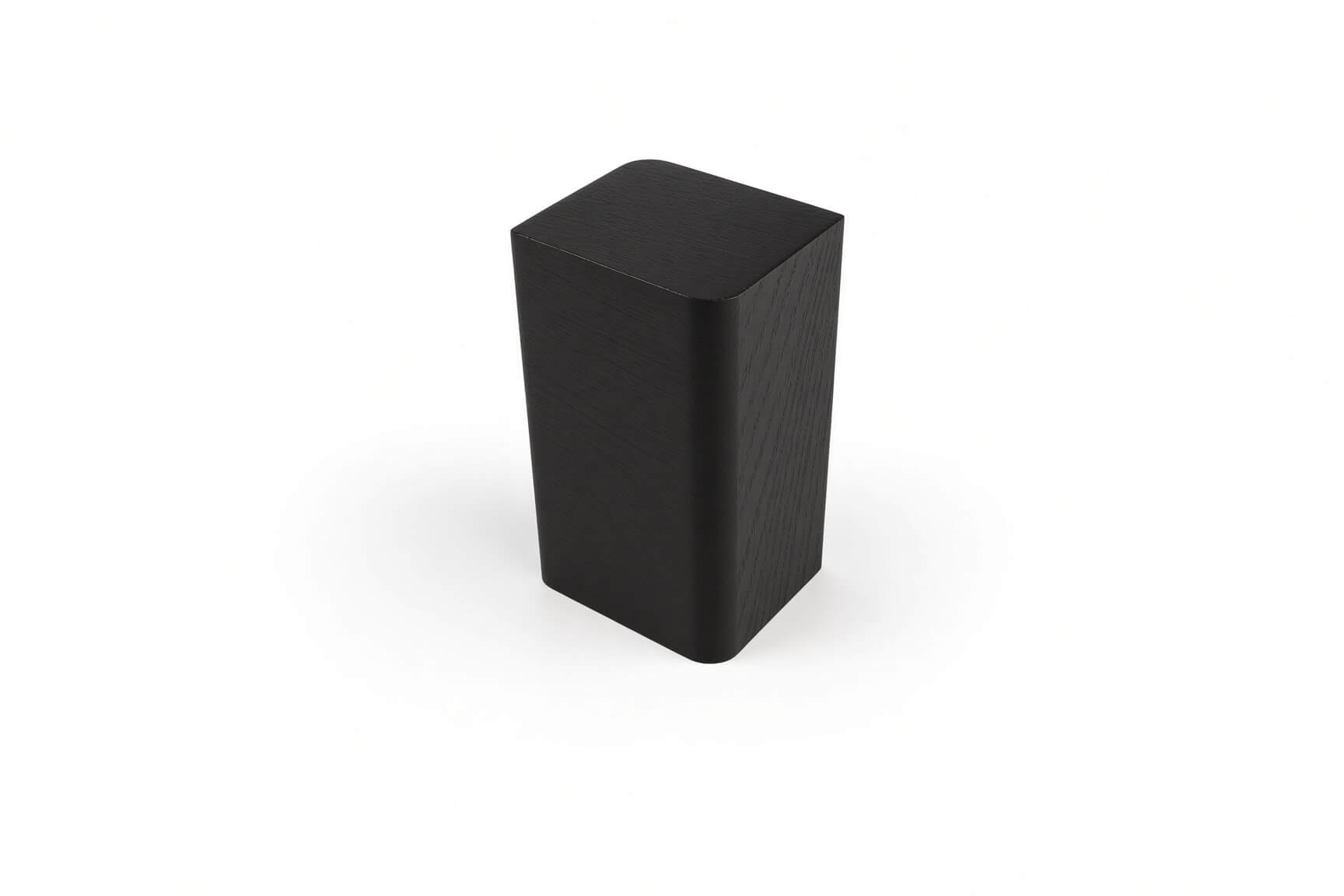

The rub block is a wear component that rides between the carriage and the column, providing a smooth low-friction bearing surface as the carriage travels. It appears in the Column & Carriage Components listing (Figure #8) of the 2-Column 10K and PRO-9 breakdowns and Drawing 2 (carriage/arm-lock/cylinder and chain detail, page 24) of the BP9 breakdown.

Genuine OEM replacement part for Direct Lift equipment. Rub blocks wear over time and should be replaced when the carriage develops play or binds in the column. Confirm the callout in your parts breakdown before ordering.
