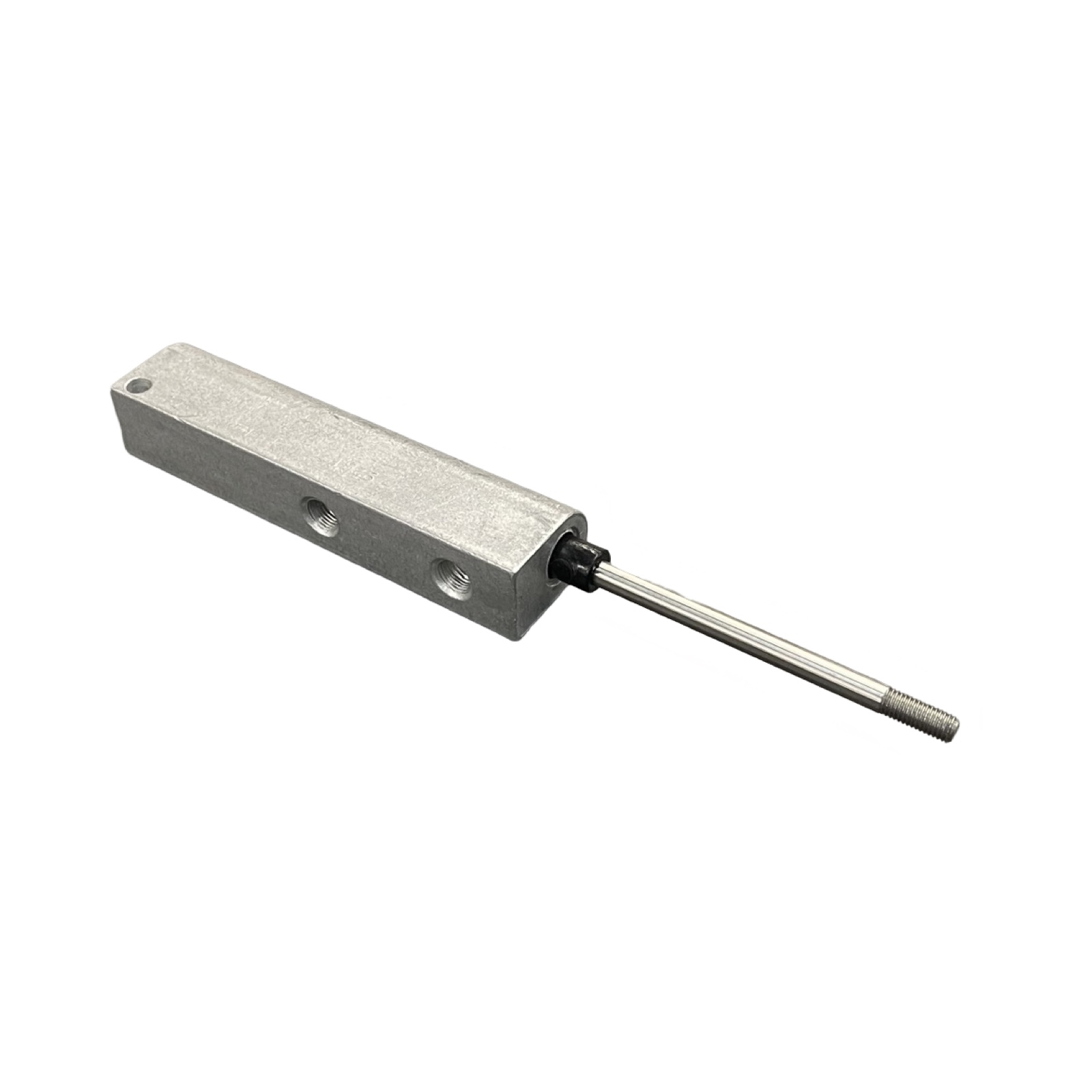

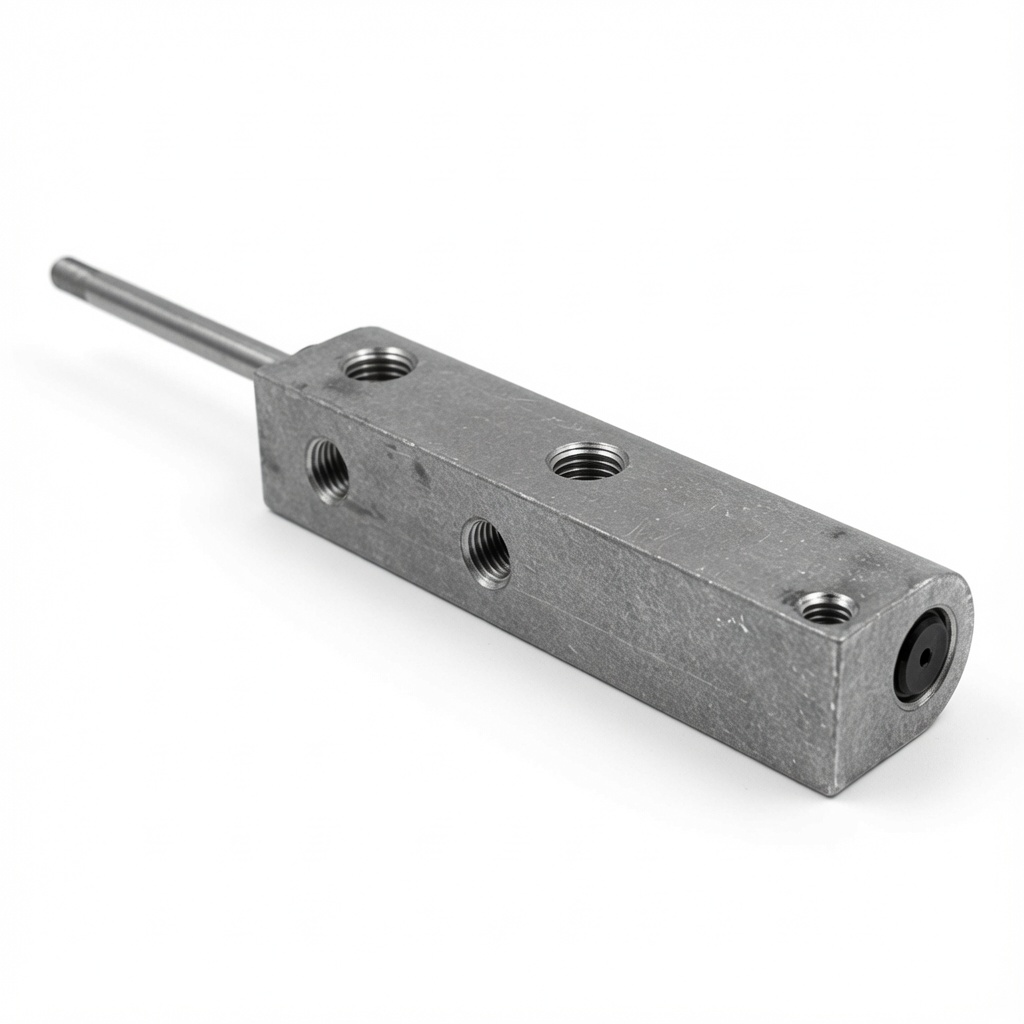

Rotary S130017 D-Shaped 2-Port Air Lock Cylinder for Newer 4 Post Lifts
This D-shaped air cylinder is for newer-style Rotary 4-post lifts. It mounts on the inside of the cross rail and has two threaded ports on the flat side of the cylinder housing. When air pressure is applied, the spring-loaded shaft extends to pull the safety locks open. Rotary produced both newer and older style D-shaped cylinders – verify your model is listed below before ordering. This 2-port cylinder can also replace the single-port S130061 by capping one port with a 1/8 NPT fitting.
Product Information
- Brand / Equipment: Rotary Lift
- Manufacturer / Reference Part Number: S130017
- Store SKU: ROY0017
- Component: D-shaped air lock cylinder (2-port, lock pull actuator)
- Body Shape: D-shaped (newer style)
- Ports: 2 threaded ports on the flat side of housing
- Action: Spring-loaded; shaft extends when air is applied
- Designation: 2 PORT AIR CYLINDER-AM, VENIX#V149
- Mounting Location: Inside of the cross rail
- Listed Application: Newer Rotary 4-post lifts – SM123, AR123, ARO123, SMO123, SM14, AR14, ARO14, SMO14
Fitment and Ordering Notes
Confirm your lift model is listed above and that you need a 2-port cylinder. Depending on the corner of the lift, the cylinder may be single-port or dual-port. This cylinder can be used in all four corners of the lift by capping the unused port. For questions call 866-902-6060.
