Description
Rotary Lift Installation Kit – Wedge Anchors and Shim Assortment
This installation kit provides the hardware needed to anchor and level a Rotary 2-post or 4-post auto lift during initial installation or when relocating a lift. It includes 16 Red Head zinc-plated 3/4″ x 5-1/2″ wedge anchors with nuts and washers pre-installed, plus a 30-piece shim assortment in three thicknesses for column leveling. All wedge anchors meet ANSI safety standards. A free installation manual for most Rotary lift models is available – message or call at time of purchase.
Product Information
- Brand / Equipment: Rotary Lift
- Manufacturer / Reference Part Numbers: FJ7385, FJ334457
- Store SKU: install kit 16 bolts + shims-5
- Component: Lift Installation Kit – Wedge Anchors and Shims

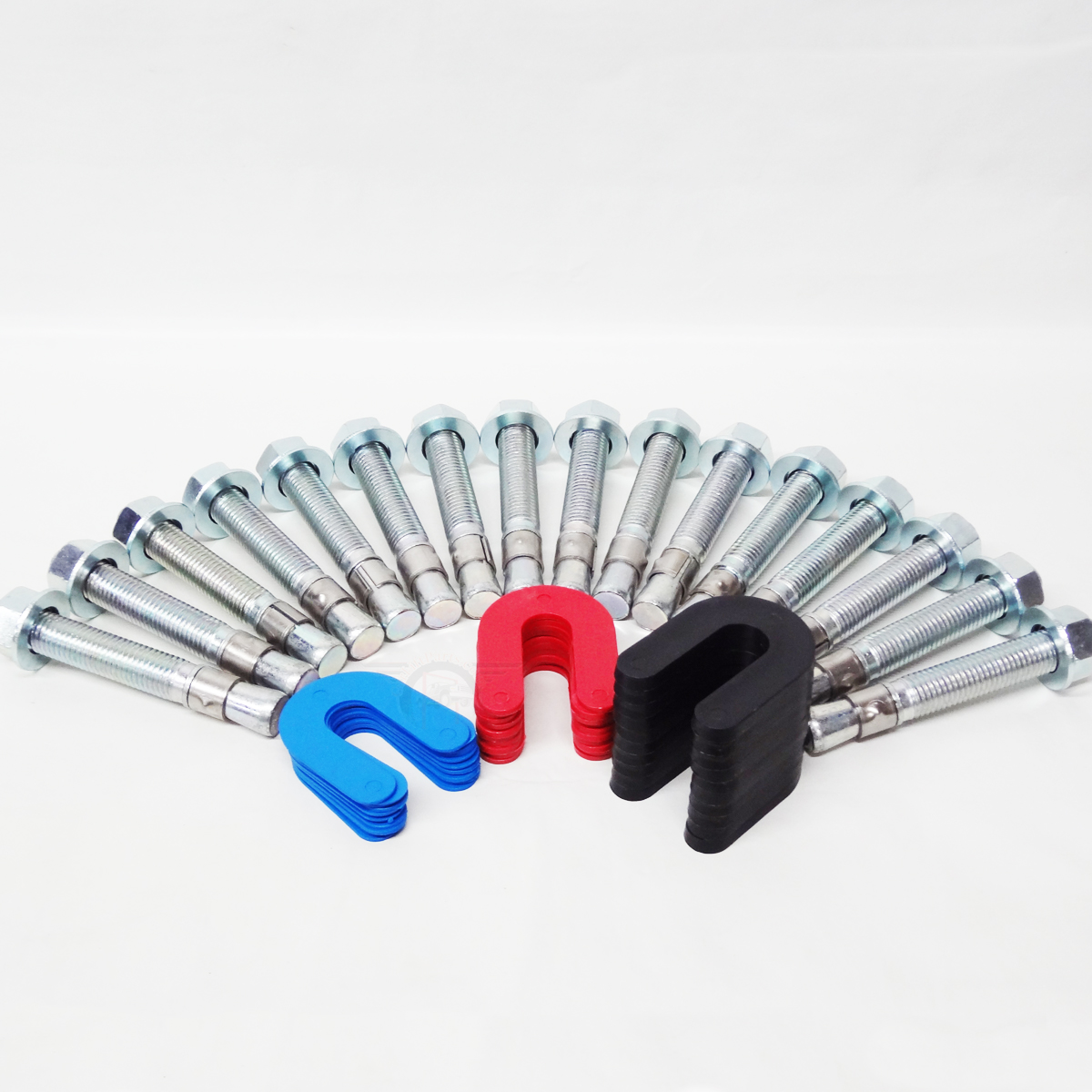

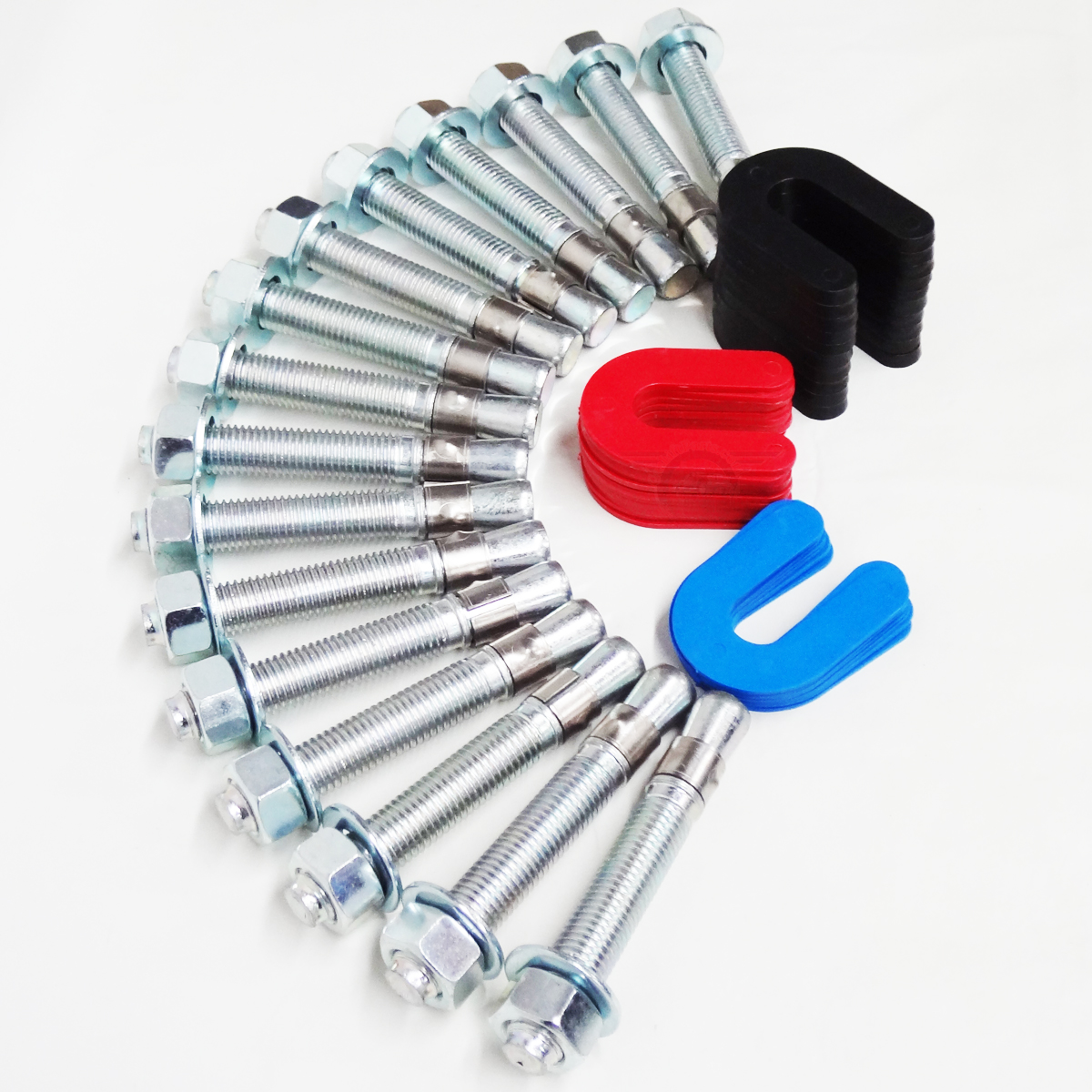

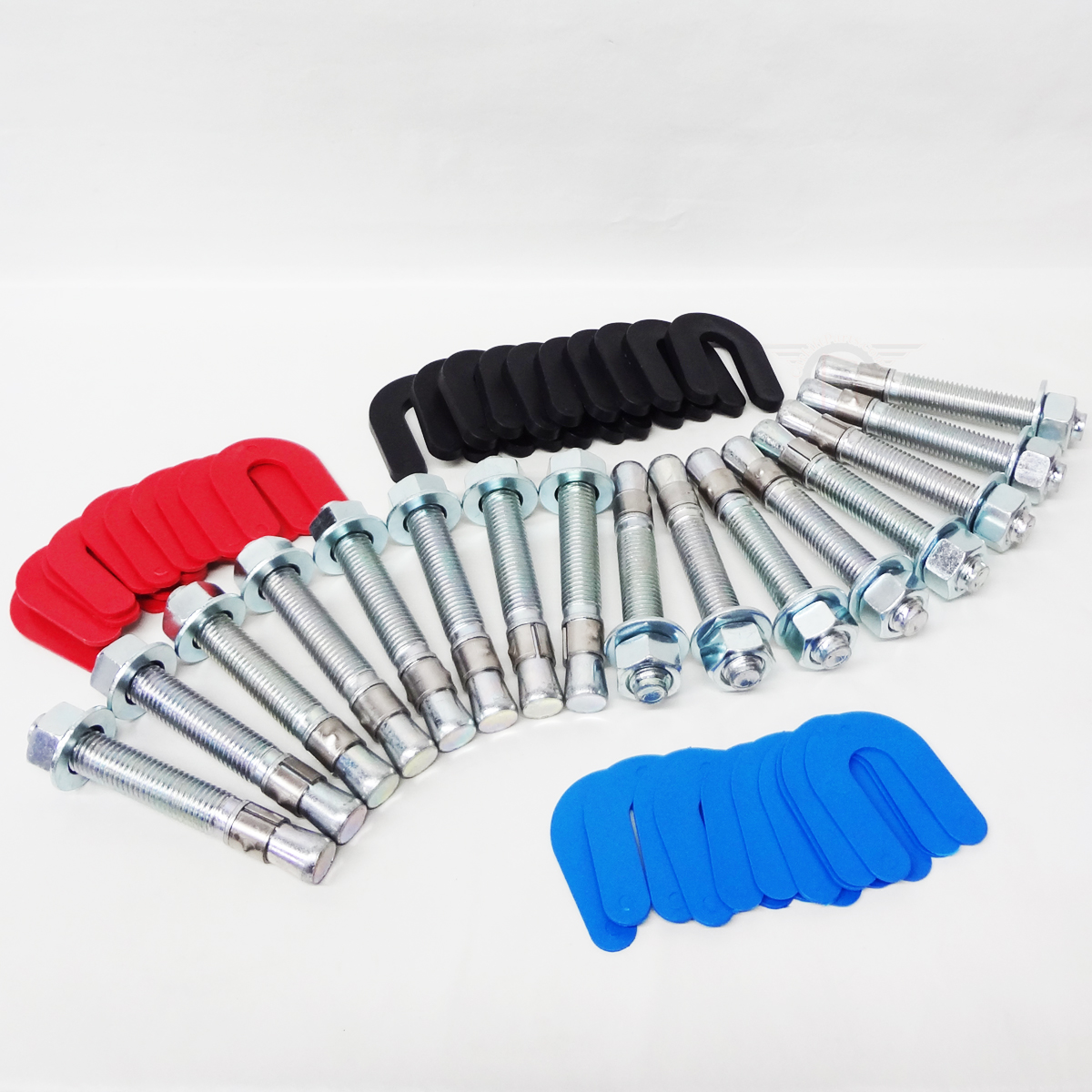

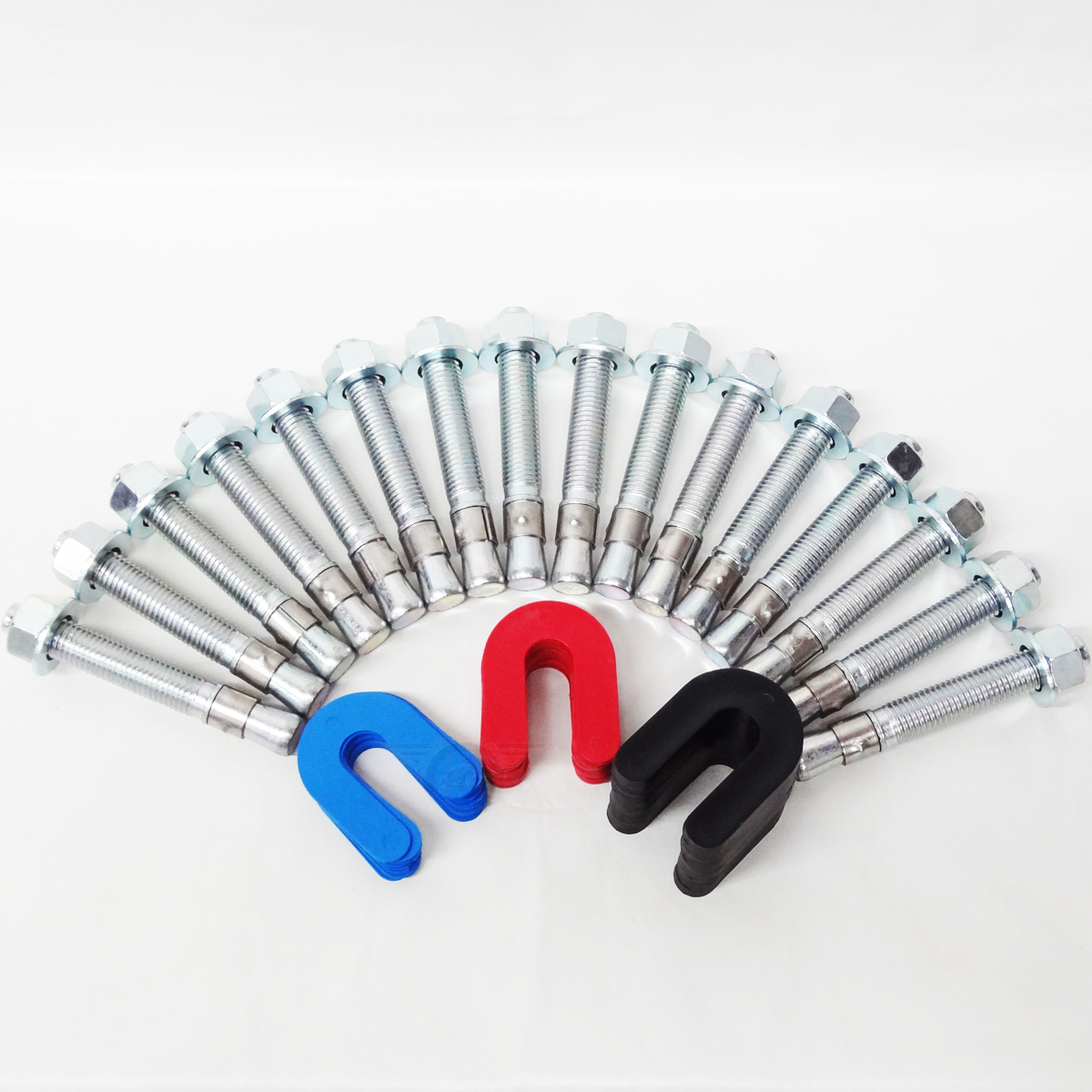

- Wedge Anchor Qty: 16 pieces (Red Head), 3/4″ diameter x 5-1/2″ length, zinc plated, nuts and washers included

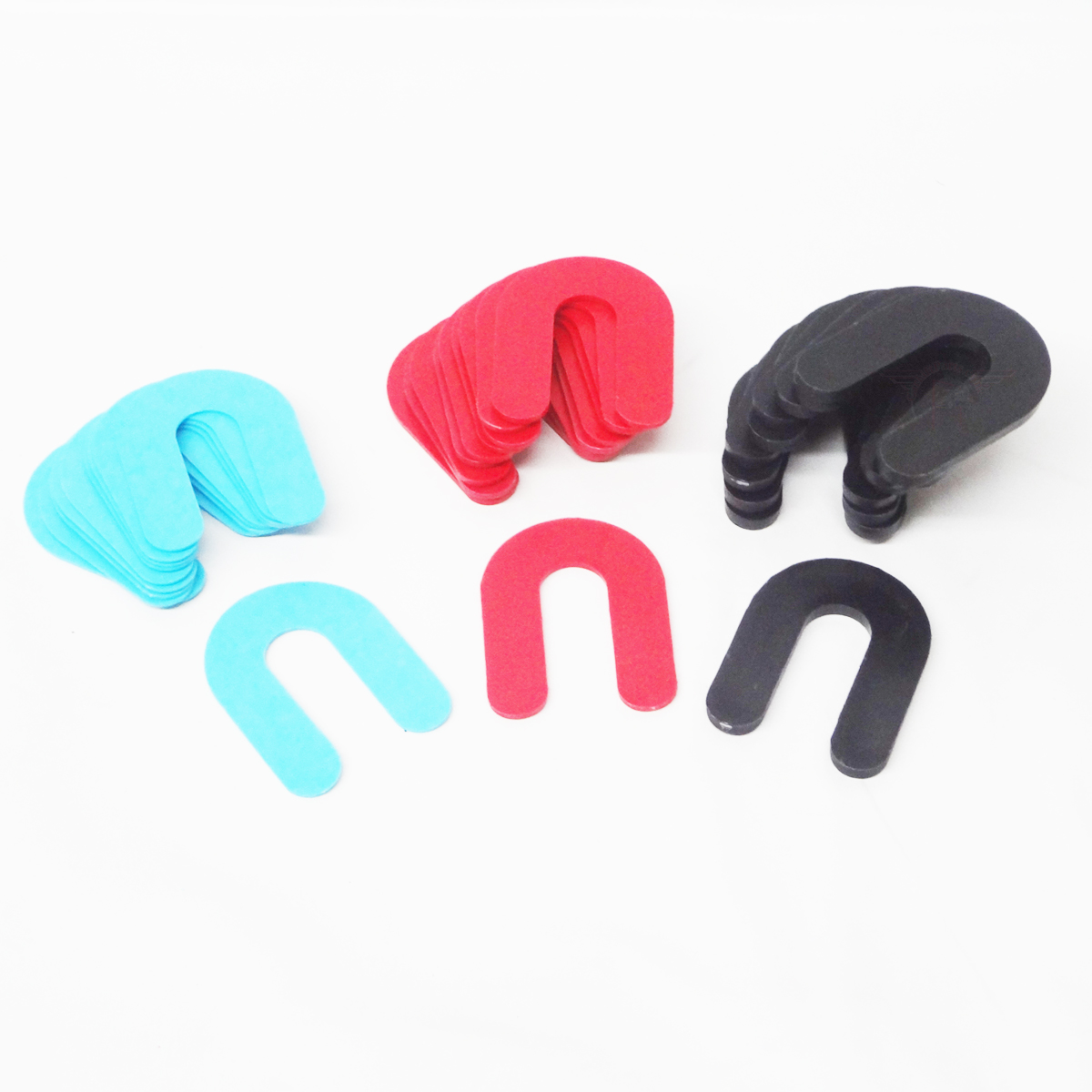

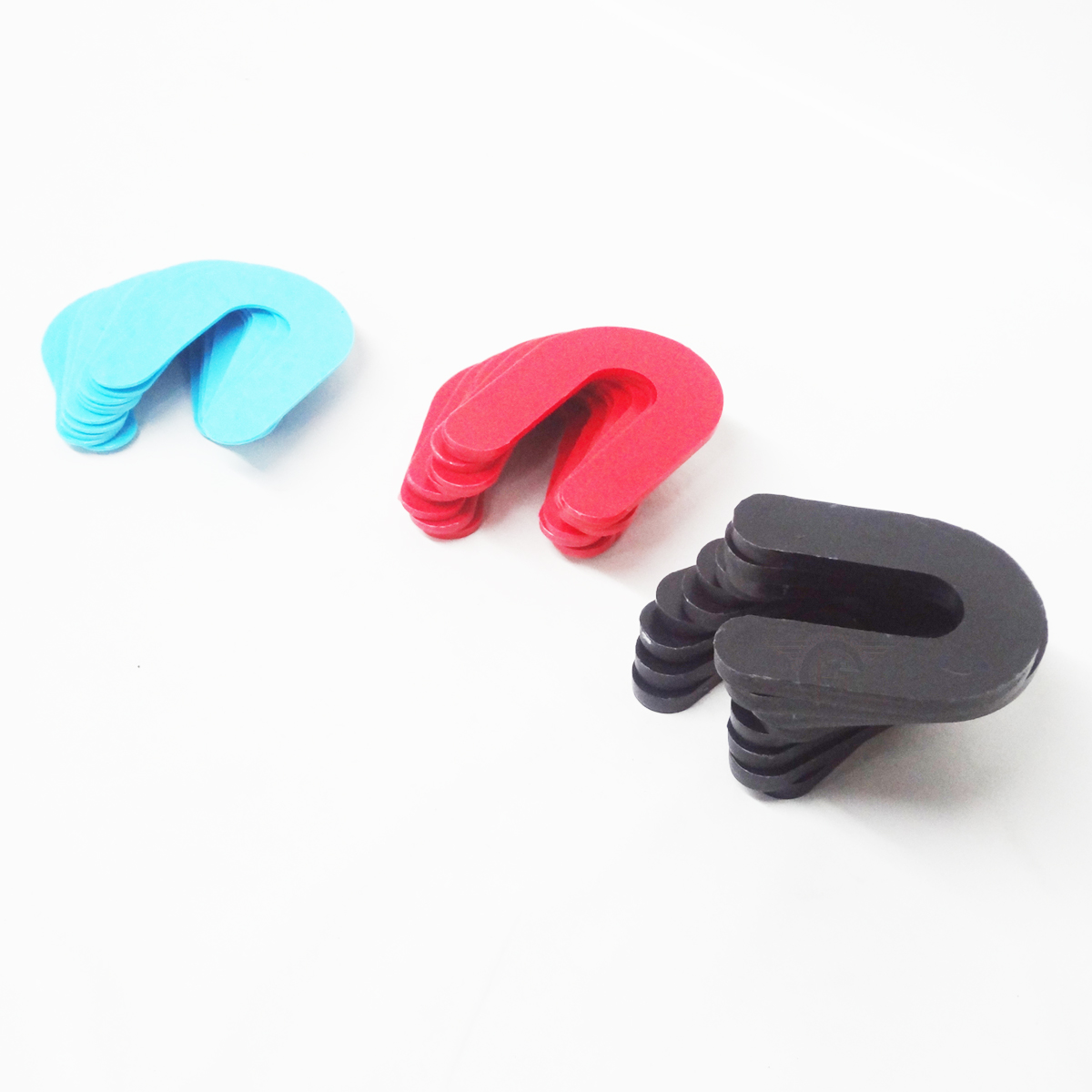

- Shim Kit Qty: 30 pieces – 10 x 1/16″ blue shims, 10 x 1/8″ red shims, 10 x 1/4″ black shims
- Compliance: All wedge anchors meet ANSI safety standards
- Listed Application: Rotary 2-post and 4-post lifts with 3/4″ lag bolt specification
Compatible Makes / Verified Fitment Models
This kit works with the following Rotary lift models (and many others using 3/4″ lag bolts):
- SP55, SP80-4, SP80-5, SP84-8, SP84-9, SP89-10, SP84-11, SP84-16
- SPO84, SPOA84, SPOA84C, AR94, SP94, SPO94
- AR98, ARO98, spo82, spoa82, sp88, sp98, spo88, SPOA88
- DCOA7, SPOA98, AR9, ARO9
- SP7, SPO7, SPOA7, SP9, SPO9, SPOA9, TLO7, SPO12-10
- RTP-10
- SL29-300, SL29-400 Thru -800, SL212-400 Thru 1000
- SPOA7LC-400, SPOA10-500, SPO10-500
- SPOA7-300 Thru -700, SPOA9-300 Thru -700, SPO9-300 Thru -700
- SPOA10-300 Thru -700, TLO7-300 Thru -500, SPO12-310 Thru -710
- Some 4-post lifts using 3/4″ lag bolts
Fitment & Ordering Notes
Verify your lift requires 3/4″ wedge anchors before ordering. A free installation manual for most Rotary lift manufacturers is available upon request – call 1-866-902-6060 or include a request with your order.
