Description

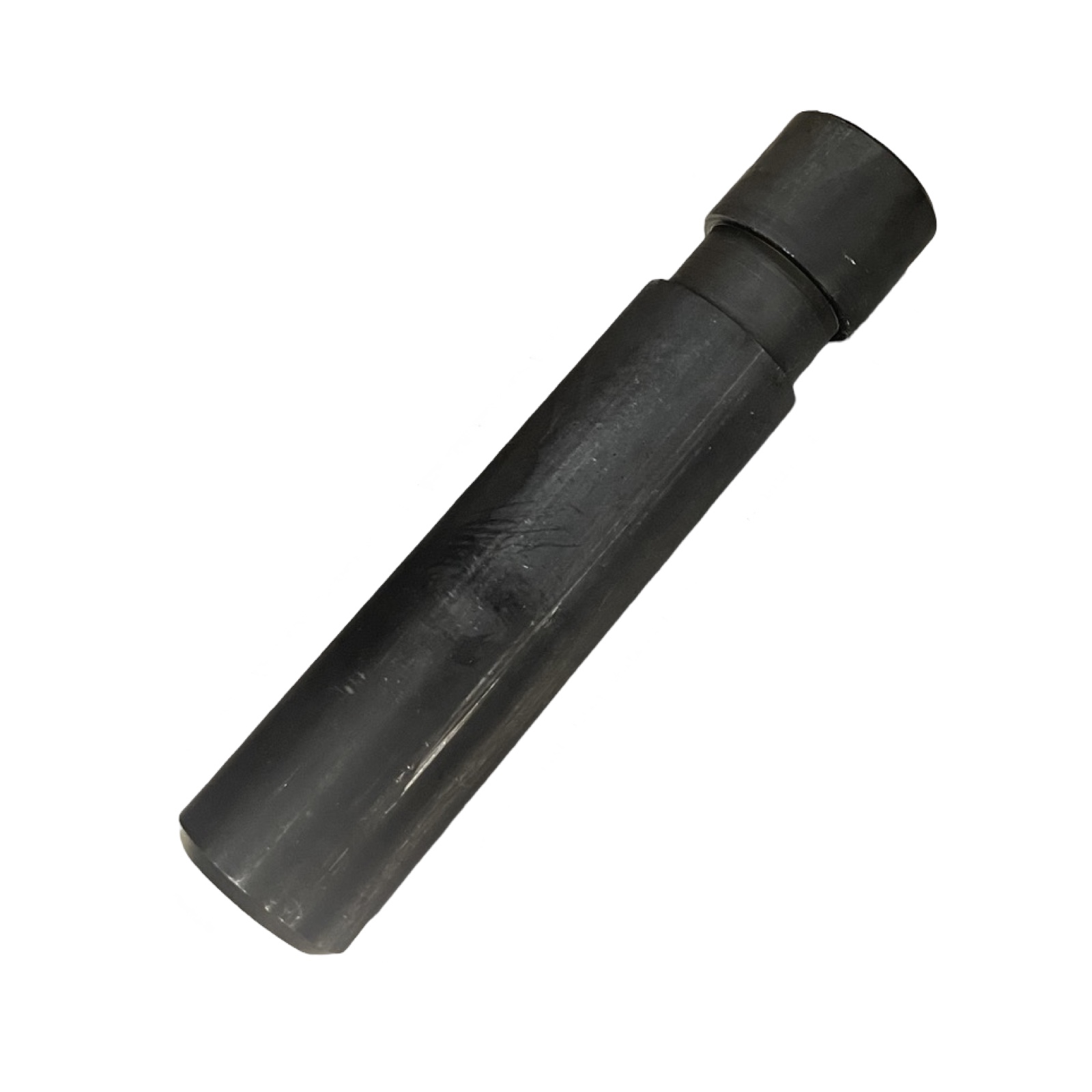

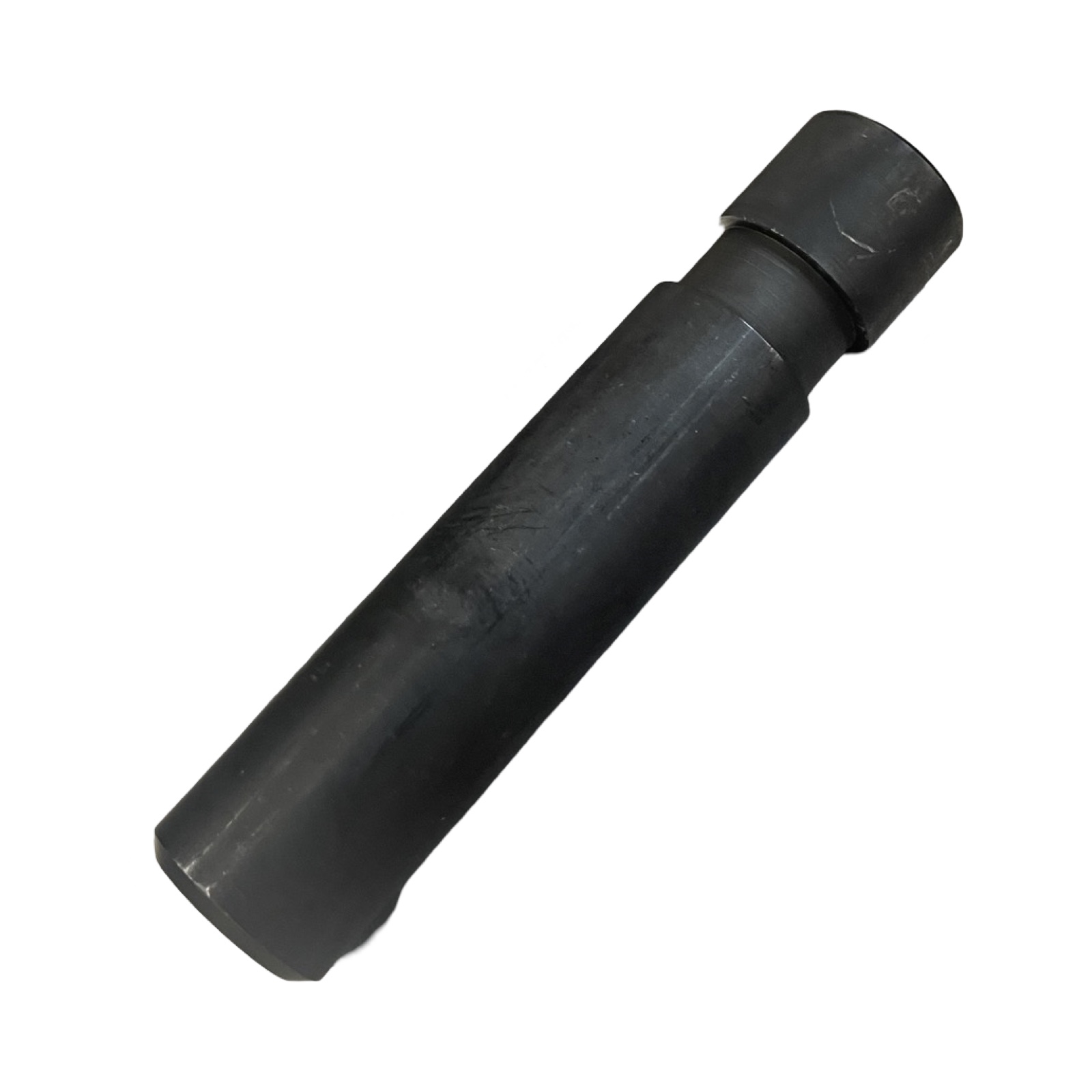

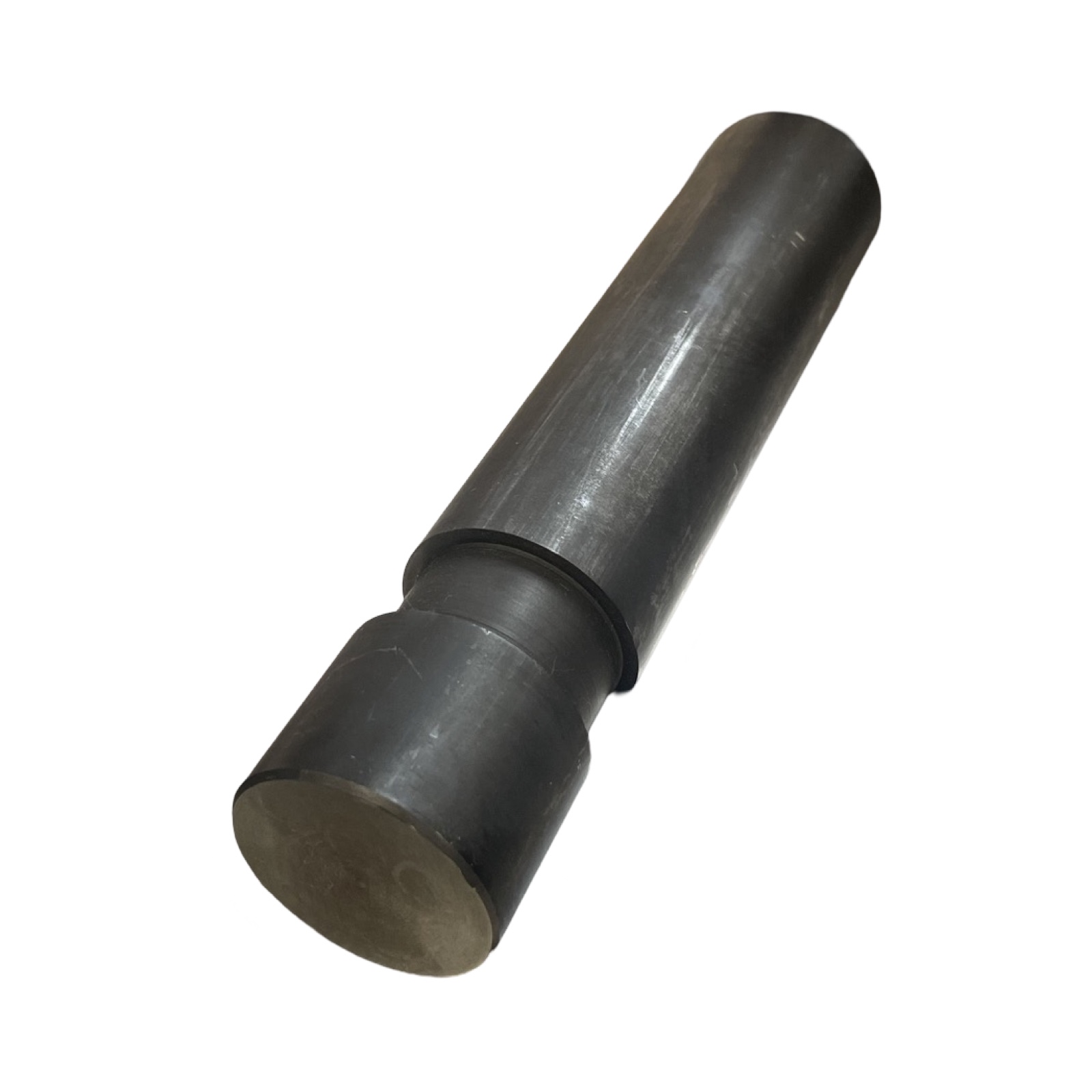

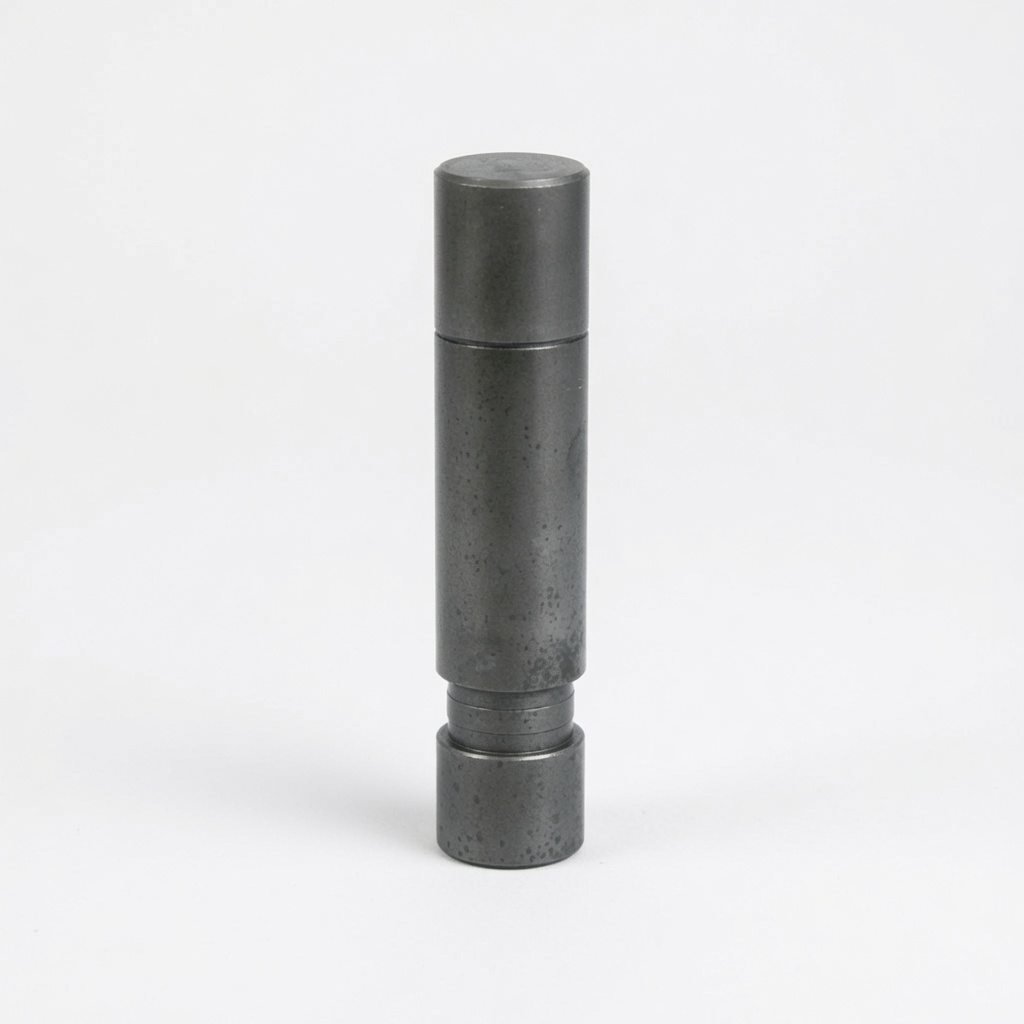

Rotary N2154 Replacement Arm Pin for 2-Post Car Lifts
The arm pin (also called the arm swivel pin) is the cylindrical pin that passes through the swing arm pivot point on your 2-post lift, allowing each arm to rotate and lock into position. Over time these pins wear, become loose, or go missing entirely due to corrosion or heavy daily use. Before ordering, verify the pin diameter (3/4″), overall length (8-1/4″), and that your lift uses a pin held in place by an arm restraint clip with no welded top hat or head on the upper end. A worn or missing arm pin compromises arm stability and must be replaced before the lift is returned to service.
Product Information
- Brand / Equipment: Rotary Lift
- Manufacturer / Reference Part Number: N2154
- Store SKU: ROY2154
- Component: Arm Swivel Pin (Arm Pin)
- Pin Diameter: 3/4″
- Overall Length: 8-1/4″
- Material: SAE 1045 per ASTM A108
- Listed Application: Rotary SPOA10, SPO10 2-Post Car Lifts
Compatible Makes / Verified Fitment Models
- Rotary SPOA10
- Rotary SPOA10 EH-1
- Rotary SPOA10 EH-2
- Rotary SPOA10-200
- Rotary SPOA10NB
- Rotary SPOA10NB EH-1
- Rotary SPOA10NB EH-2
- Rotary SPOA10NB-200
- Rotary SPOA7-500 Hybrid
- Rotary SPO10
- Rotary SPO10 200 Series
- Rotary SPO10 500 Series
- Rotary I10
- Rotary A10i
Replacement / Cross-Reference Numbers
- Rotary OEM: N2154
- Rotary alternate reference: G3T-5001
- Store alternate: ROY2154
Fitment and Ordering Notes
This arm pin is retained by an arm restraint and has no welded top hat or head on the upper end. If your lift uses a pin with a welded flange or head, this part will not fit. Confirm your lift model number against the list above before placing your order. If you are unsure of fitment, call us at 866-902-6060 before ordering.
