Rotary Lift TP9-1000A R.H. Column Weldment for DL9 Two-Post Lift

Description

Rotary Lift TP9-1000A R.H. Column Weldment for DL9 Two-Post Lift

Repair or service the applicable lift assembly with the TP9-1000A R.H. Column Weldment, listed for use on DL9 Two-Post Lift. Use the reference part number and listed Rotary Lift application to compare against the original component before ordering.

Product Information

• Brand / Equipment: Rotary Lift
• Manufacturer / Reference Part Number: TP9-1000A
• Store SKU: ROY000A
• Component: R.H. Column Weldment
• Listed Application: DL9 Two-Post Lift

Fitment & Ordering Notes

Automotive lift manufacturers may use different parts across model years, production runs, or equipment revisions. Before ordering, compare the reference part number and the model/application information in this listing with the identification tag, parts manual, or original component on your lift. If your equipment uses a different part number, verify interchange before installation.

Additional Existing Product / Fitment Information

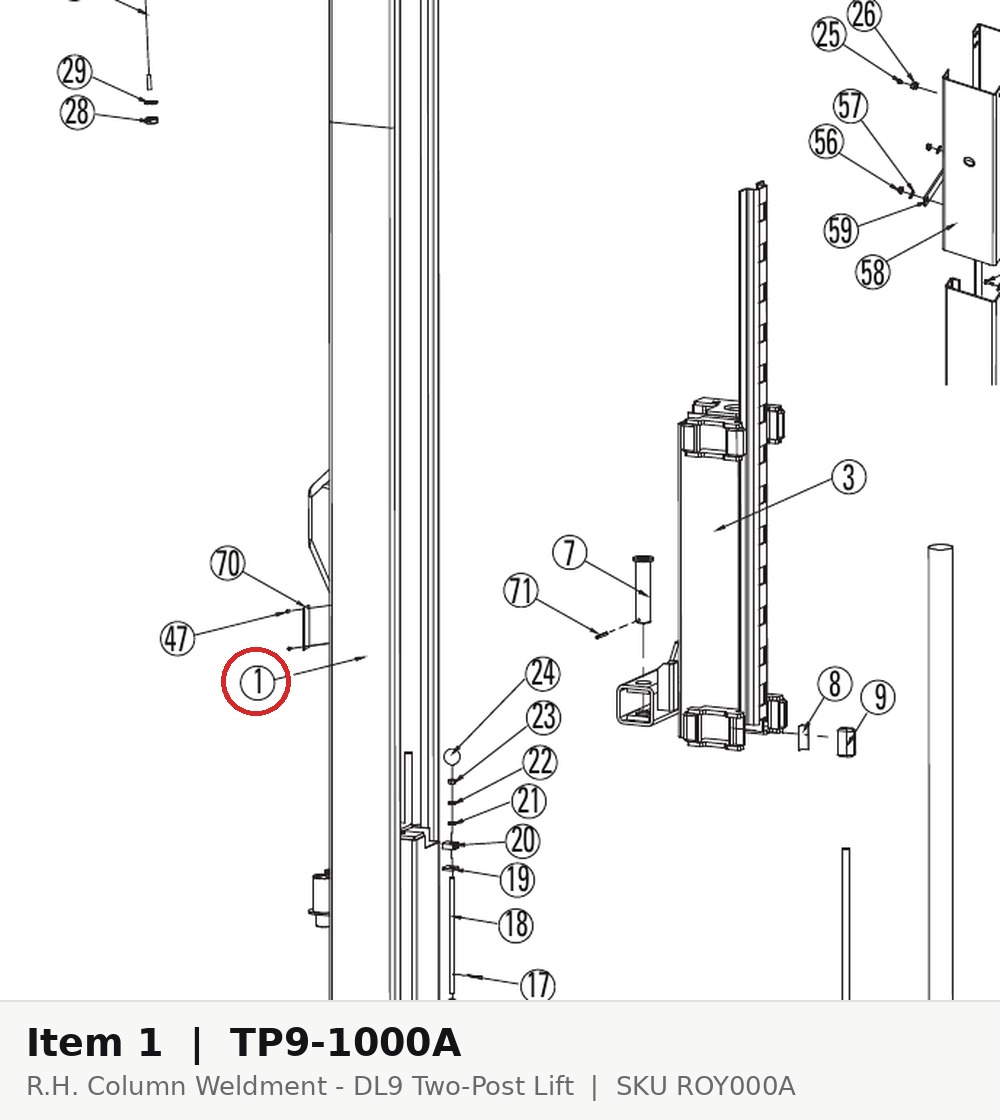

This is part number 1 in the drawing image above.

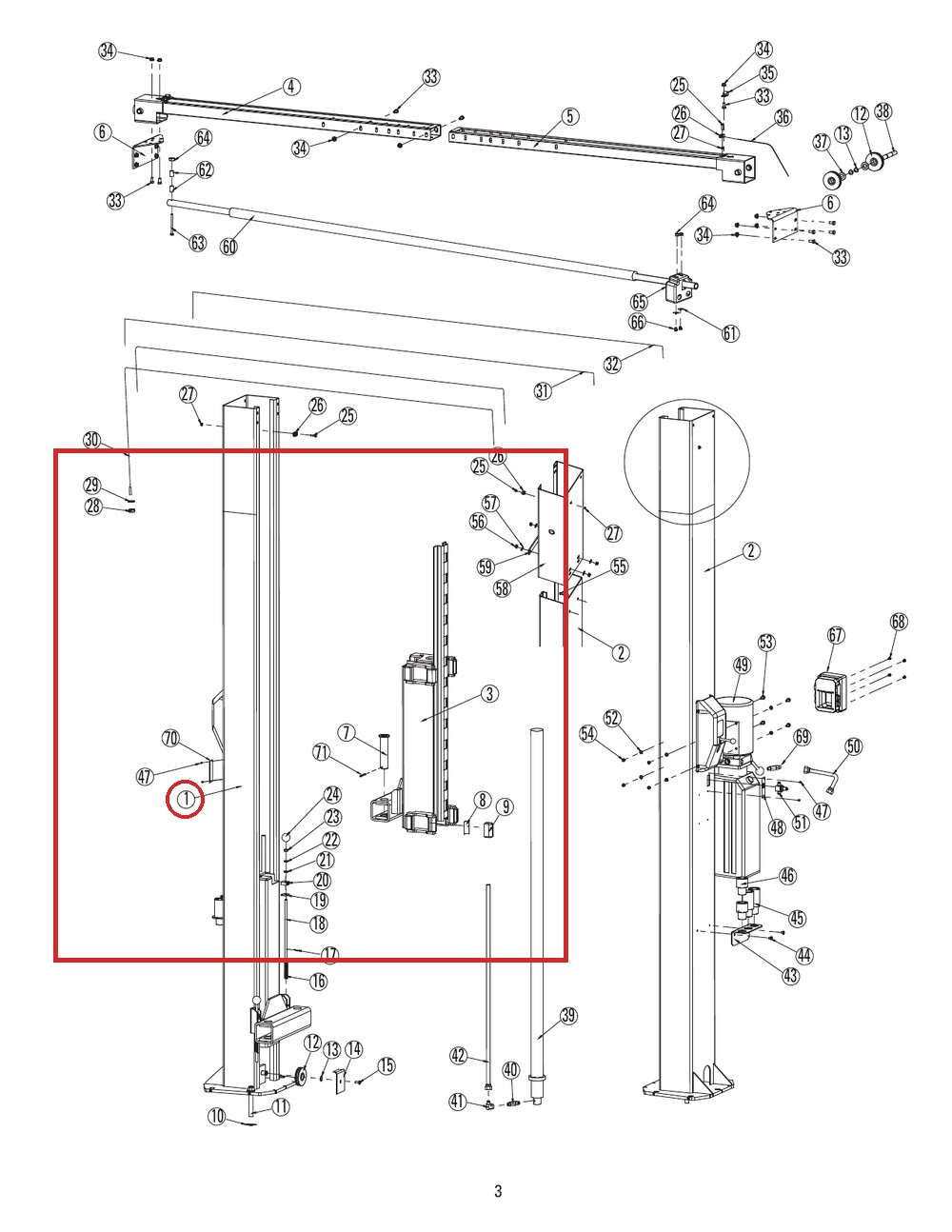

Fits the DL9 two-post lift. Shown in Drawing 1 (Main Lift Assembly, page 3) of the factory parts breakdown.

This is the complete right-hand column structure of the DL9: the vertical weldment that guides the carriage and carries the locking hardware on that side of the lift. Structural columns must be replaced as complete weldments if bent, cracked, or corrosion-damaged; field repair of a load-bearing column is never acceptable.

Direct replacement for the RH column called out in the DL9 factory parts breakdown. The matching left-hand column is TP9-1100A. Verify against the main lift assembly drawing before ordering.

Cross-check part number: Rotary TP9-1000A. This is a Rotary replacement part.

Fits these lifts:

• Direct Lift — DL9 (9,000 lb two-post)
• Hanmecson (VSG) — DL9
• Rotary Lift — interchange P/N TP9-1000A
