Forward Lift 995020 Upper Cable Sheave Pulley - DP97, DP09, DP07A, 2 Post Lift, Steel/Bronze

Description

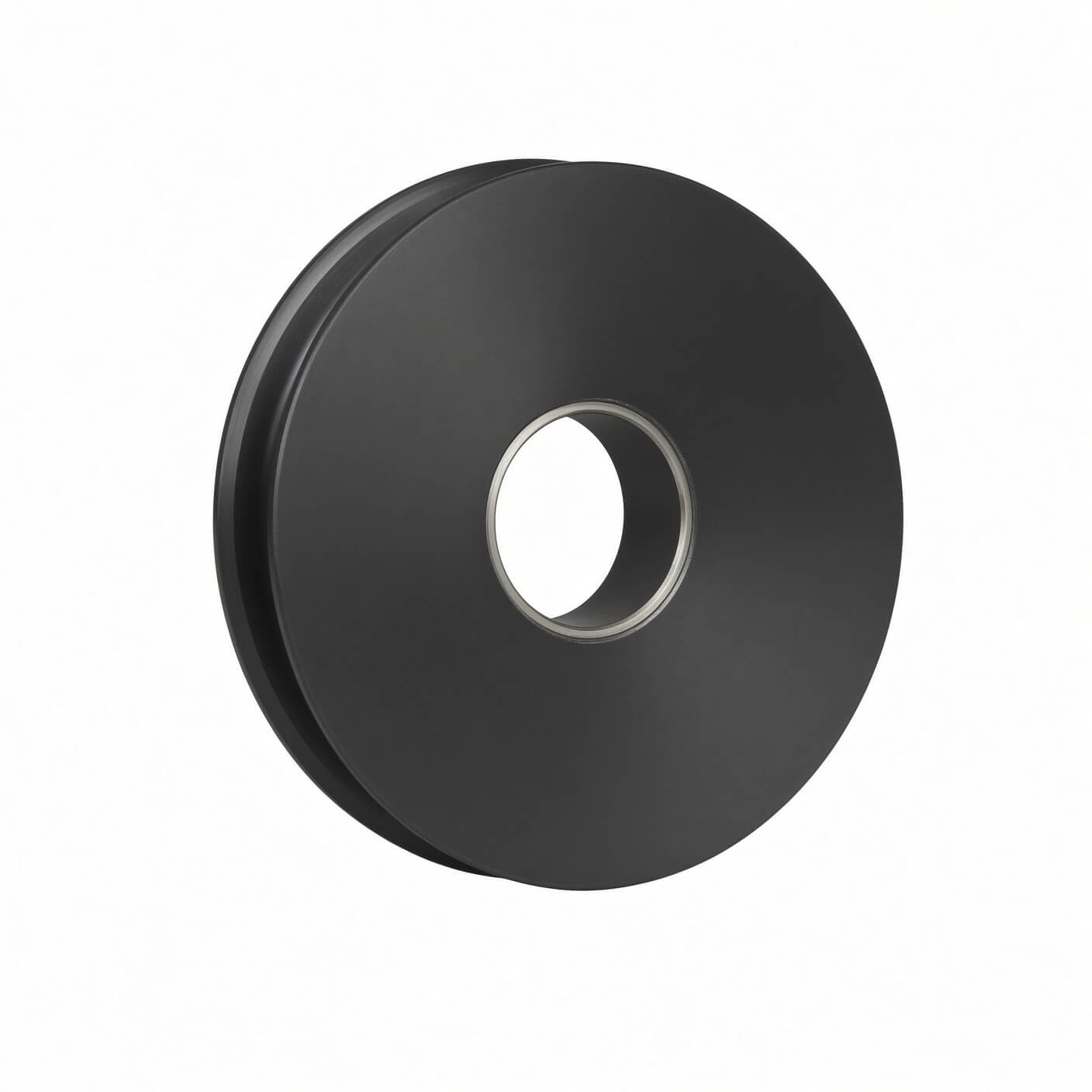

Forward Lift 995020 Upper Cable Sheave Pulley for 2-Post Lifts – Steel with Bronze Bushing

The overhead beam pulleys on Forward 2-post lifts take constant load and wear. Many early production units shipped with plastic pulleys that crack and deteriorate over time, creating a serious safety hazard. Part number 995020 is a solid steel replacement pulley with a bronze center bushing that delivers far greater durability and load-bearing capacity. It installs directly into the four upper/overhead beam pulley positions without any modification. This listing covers the upper (top) pulley positions only — it does not fit the bottom/lower pulley positions (see our separate listing for lower pulleys, part 995030). We recommend replacing all plastic pulleys with steel at the same time for consistent performance and maximum safety.

Product Information

• Brand: Forward Lift (SPX)
• Part Number: 995020
• SKU: FOD5020
• Component: Upper Cable Sheave Pulley
• Outside Diameter (OD): 4-3/4″
• Pin Hole Diameter: 1-3/8″
• Construction: Solid steel body with bronze center bushing
• Position: Upper / overhead beam positions only (4 positions per lift)
• Listed Application: Forward 2-post lifts with overhead beams
• Installation: Direct fit, no modification required

Compatible Makes / Verified Fitment Models

• DP07a
• DPo7
• DP09
• DPo9a
• DPo9a2
• DPo9s
• DPo9s2
• DP97
• DP97a
• DP97A2
• DP97s
• DP97s2
• 9000a
• 9000an
• 9000b
• 8000a
• 8000b
• 7000
• Other early model Forward 2-post lifts with overhead beams

Replacement / Cross-Reference Numbers

• 995020 (OEM Forward Lift / SPX part number)

Parts Diagram and Manual Reference

This part appears in the following official parts diagram breakdowns:

• DP97S-2 — Main Lift Assembly (Drawing 1)
• DP09 — Main Lift Assembly (Page 20 / 21)
• DP09A-2 — Main Lift Assembly (DP09A-2)
• DPO7A — Main Exploded Assembly (Drawing 1)
• DPO9S-2 — Main Assembly (Page 20)
• DP10AN — Main Lift Assembly (Page 17)

Fitment and Ordering Notes

• Before ordering, measure the outside diameter (should be 4-3/4″) and pin hole diameter (should be 1-3/8″) of your existing pulley to confirm fitment.
• This part is for the upper / overhead beam pulley positions only — there are 4 upper positions per lift.
• We recommend replacing all plastic upper pulleys with solid steel at the same time to ensure balanced performance and maximum safety.
