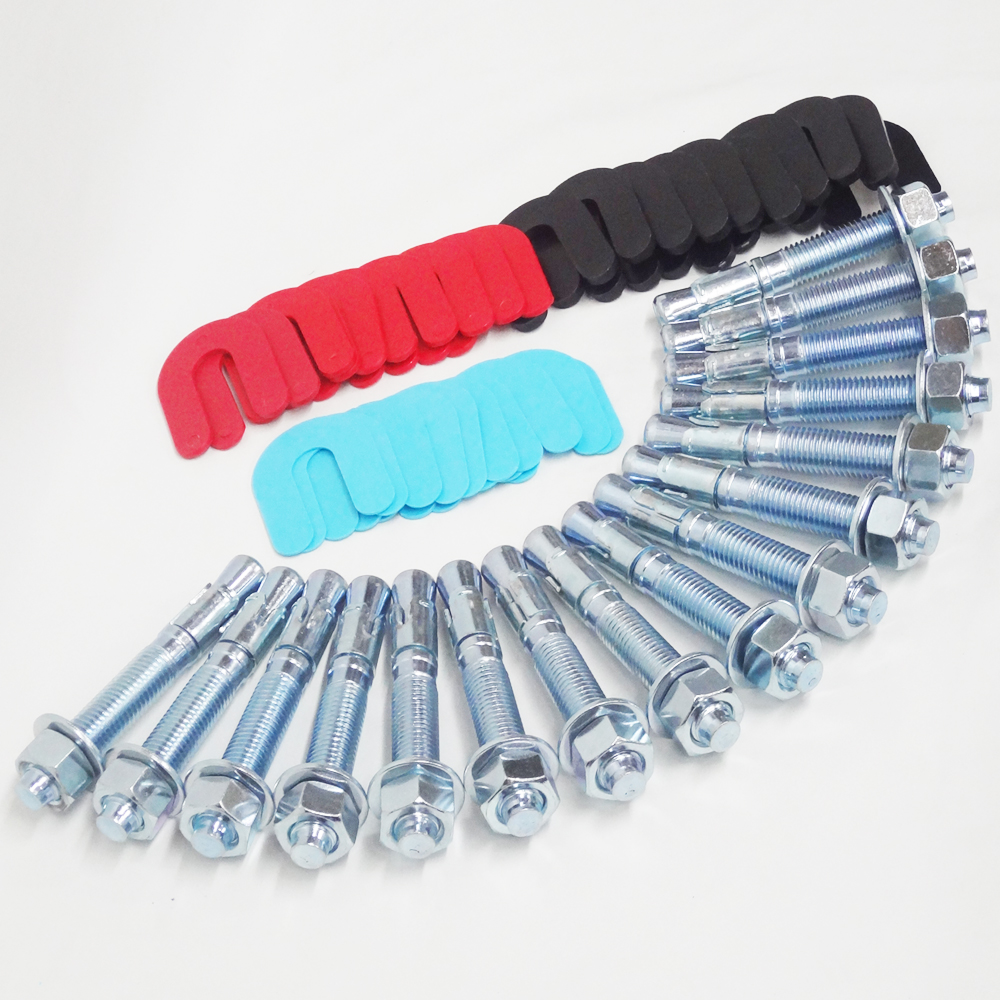

Western Lift Installation Kit – 16 Wedge Anchor Bolts and 30-Piece Leveling Shim Set
This installation kit provides all the hardware needed to anchor and level a 2-post or 4-post car lift. It includes Red Head zinc-plated wedge anchors for securing lift columns to a concrete floor, and a 30-piece shim assortment for leveling the columns. Suitable for new installations and for relocating an existing lift to a different bay. All wedge anchors meet ANSI safety standards.
Product Information
- Brand / Manufacturer: Western Lift installation supply
- Store SKU: install kit 16 bolts + shims-3
- Component: Lift Installation Kit (anchor bolts and shims)

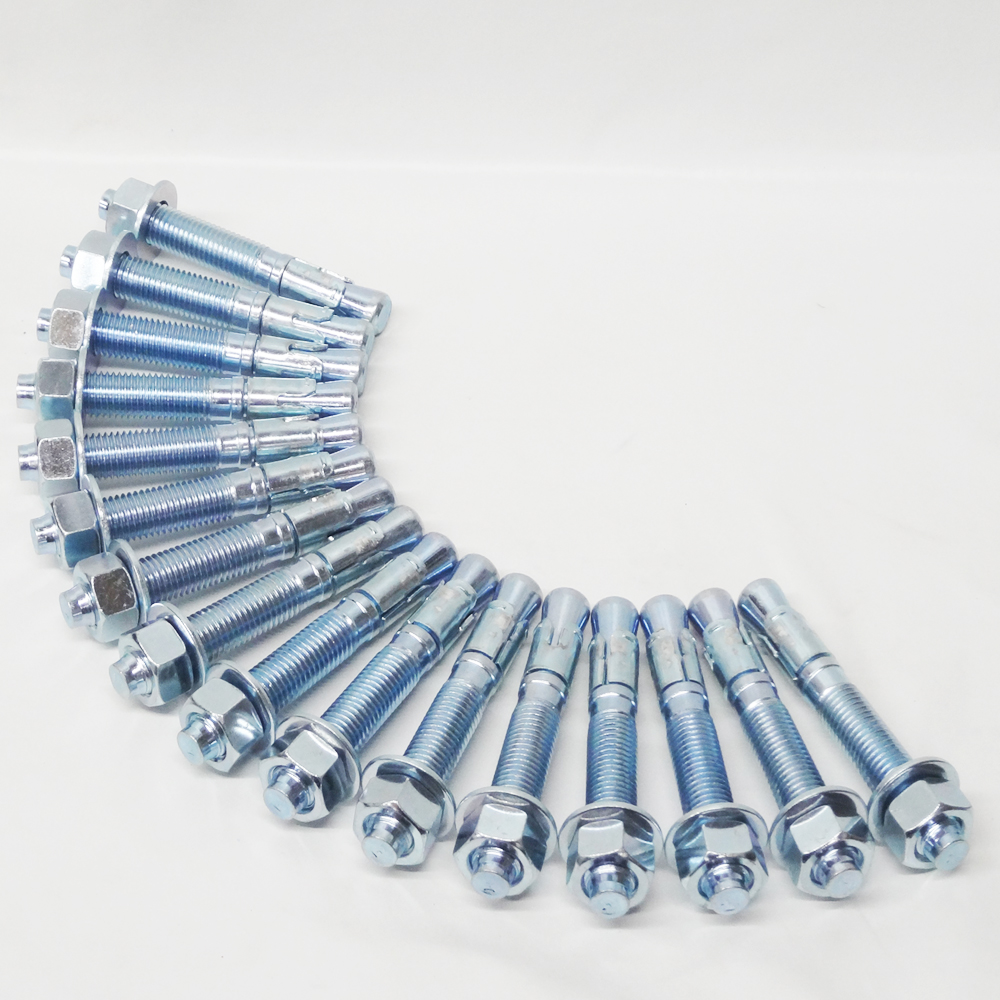

- Wedge Anchors: 16x Red Head zinc-plated, 3/4-inch x 5-1/2-inch, nuts and washers pre-assembled
- Shim Kit: 30-piece set – 10x 1/16-inch (blue), 10x 1/8-inch (red), 10x 1/4-inch (black)
- Certification: All wedge anchors meet ANSI safety standards
- Listed Application: Western WL, WSO, Y2K model lifts; most 2-post lifts; some 4-post lifts with 3/4-inch lag requirements
Fitment & Ordering Notes
This kit is designed for lifts requiring 3/4-inch anchor bolts. Confirm your lift manufacturer’s anchor bolt specification before ordering. A free installation manual is available for most lift manufacturers upon request – mention at time of order. Call 866-902-6060 with questions.
