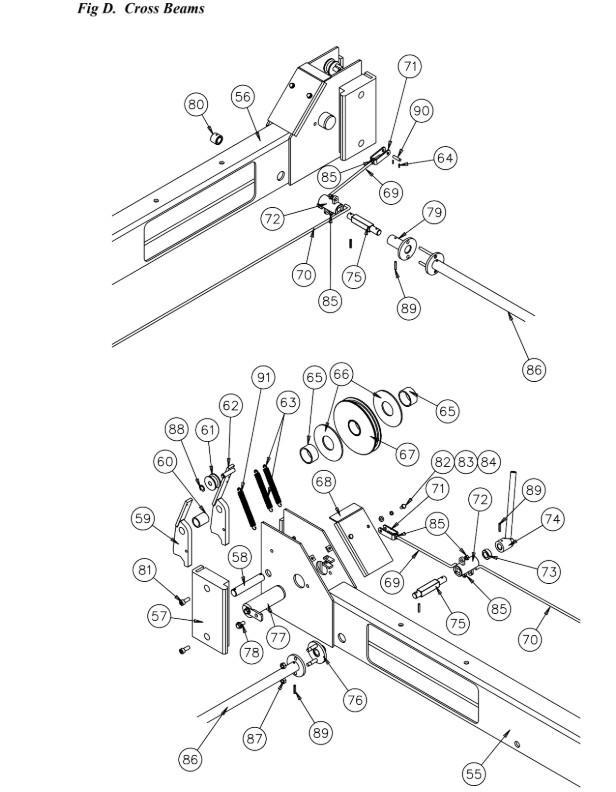

Q4P09 – CL4P9 – CL4P7 Cross Beam

Drawing Number

Q4P09 – CL4P9 – CL4P7 Cross Beam

Parts Description

42 Available Parts

55
Front Crossbeam Weld (CL4P9S & X)

Front Crossbeam Weld (CL4P9S & X)

$534.88
55
Unnamed part

Unnamed part

—

Unavailable online – please call for availability.

56
Unnamed part

Unnamed part

—

Unavailable online – please call for availability.

56
Unnamed part

Unnamed part

—

Unavailable online – please call for availability.

57
Slide Block

Slide Block

$132.04
58
Lock Pivot Pin

Lock Pivot Pin

$5.19
59
Primary Lock Pawl

Primary Lock Pawl

$16.00
60
Spacer Bushing

Spacer Bushing

$2.38
61
Unnamed part

Unnamed part

—

Unavailable online – please call for availability.

62
Slack Cable Latch

Slack Cable Latch

$13.18
63
Slack Latch Extension Spring

Slack Latch Extension Spring

$2.77
64
Unnamed part

Unnamed part

—

Unavailable online – please call for availability.

65
Unnamed part

Unnamed part

—

Unavailable online – please call for availability.

66
1/8" Thick Bearing

1/8" Thick Bearing

$11.21
67
Sheave Assembly

Sheave Assembly

$88.03
68
Sheave Guard

Sheave Guard

$10.79
69
Mechanical Lock Rod - Short

Mechanical Lock Rod - Short

(CL4P9S & X)

$3.58
69
Mechanical Lock Rod - Short

Mechanical Lock Rod - Short

(CL4P9 W)

$4.77
70
Mechanical Lock Rod - Long

Mechanical Lock Rod - Long

(CL4P9S & X)

$27.98
70
Mechanical Lock Rod - Long

Mechanical Lock Rod - Long

(CL4P9 W)

$13.18
71
Lock Rod Clevis

Lock Rod Clevis

$3.77
72
Unnamed part

Unnamed part

—

Unavailable online – please call for availability.

73
Lock Spacer

Lock Spacer

$1.19
74
Mechanical Lock Handle

Mechanical Lock Handle

$20.00
75
Lock Coupler Pivot Pin

Lock Coupler Pivot Pin

$5.59
76
Flange Coupling - Male

Flange Coupling - Male

$10.79
77
Sheave Pin Assembly (Crossbeam)

Sheave Pin Assembly (Crossbeam)

$58.41
78
M8 x 16mm Lg. HEX Locking FLG. HD. CAP Screw

M8 x 16mm Lg. HEX Locking FLG. HD. CAP Screw

$0.79
79
Flange Coupling - Female

Flange Coupling - Female

$13.84
80
Retainer Sleeve

Retainer Sleeve

$3.24
81
M* x 20mm Lg. Socket Head Cap Screw

M* x 20mm Lg. Socket Head Cap Screw

$2.07
82
M6 x 12mm Lg. Cap Screw

M6 x 12mm Lg. Cap Screw

$0.79
83
Unnamed part

Unnamed part

—

Unavailable online – please call for availability.

84
M6 Washer

M6 Washer

$0.40
85
M6 Nut

M6 Nut

$0.42
86
Mechanical Lock Bar

Mechanical Lock Bar

(CL4P9S)

$212.09
86
Mechanical Lock Bar

Mechanical Lock Bar

(CL4P9X & W)

$288.12
87
Unnamed part

Unnamed part

—

Unavailable online – please call for availability.

88
10mm Snap Ring

10mm Snap Ring

$0.40
89
4mm x 24mm Lg. Roll Pin

4mm x 24mm Lg. Roll Pin

$0.40
90
Clevis Pin

Clevis Pin

$0.42
91
Primary Lock Extension Spring

Primary Lock Extension Spring

$11.19

Shop specialized parts breakdowns for the Challenger Q4P09, CL4P9, and CL4P7 4-post lift cross beam and overhead assemblies. This category includes cross beams, overhead channels, weldments, support structures, mounting hardware, sheaves/pulleys, cable routing components, and all related reinforcement parts.

Organized by the factory diagrams for these smaller 4-post models, these components maintain structural integrity, proper cable alignment, and reliable lift performance. Perfect for repairs, replacements, or maintenance of the cross beam system on your Challenger Q4P09 / CL4P9 / CL4P7 hoist.
